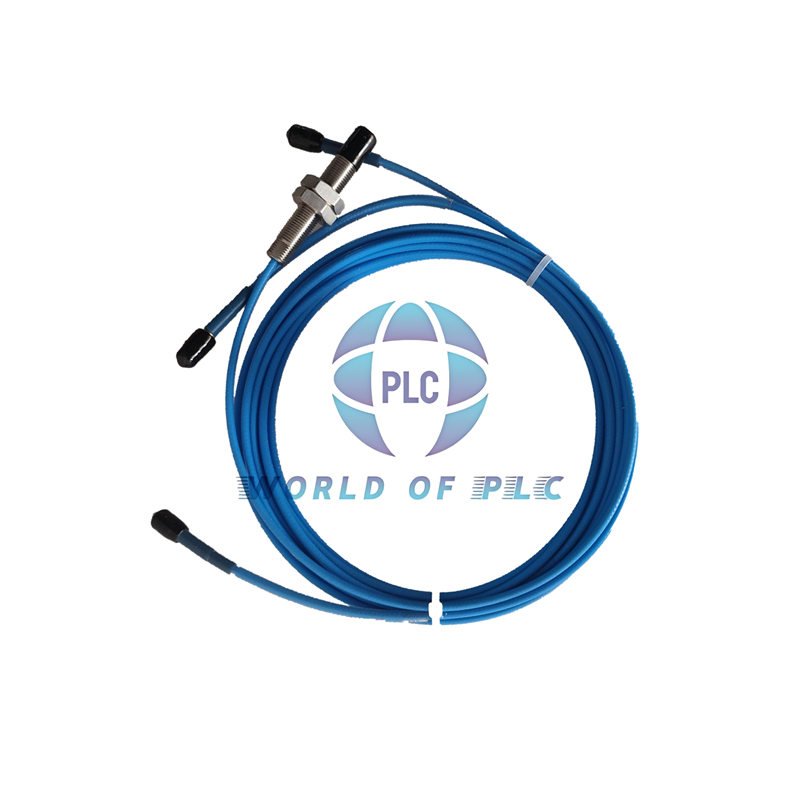

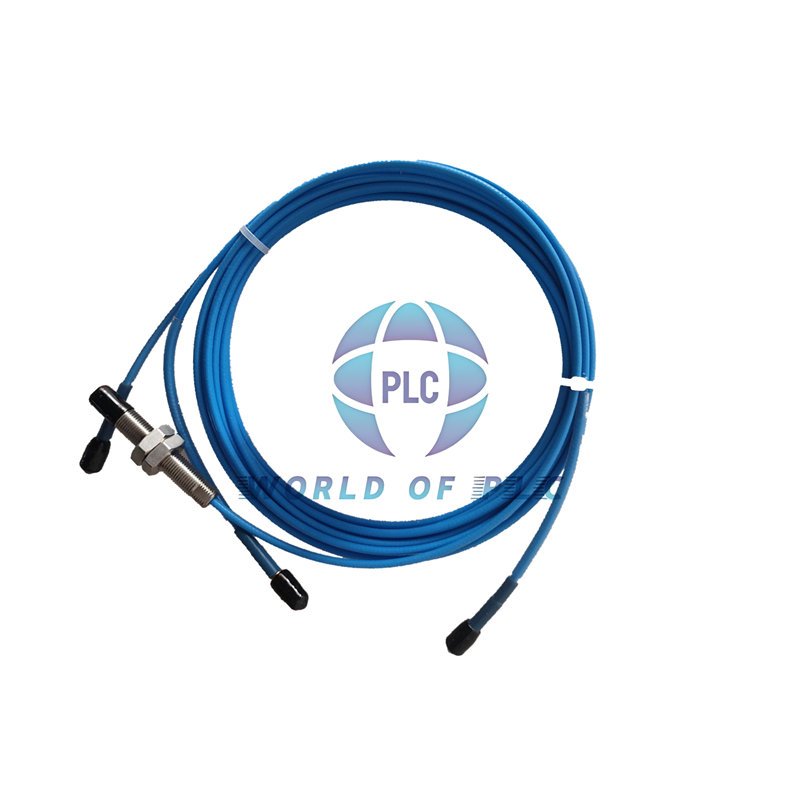

Emerson EZ1081-03-00-010 8mm Armored Eddy Current Sensor
Emerson delivers the EZ1081-03-00-010 eddy current sensor — compact, durable, and precise.
It offers non-contact displacement measurement for turbines, compressors, pumps, and fans.
Each unit includes a stainless-steel case and an armored cable for superior protection.
- Brand: Emerson
- Model: EZ1081-03-00-010
- Type: 8mm Eddy Current Sensor, M10x1 Thread
- Protection: IP67 rated, IP68 with optional DOC-TEST
- Warranty: 12 months from date of shipment
Performance & Highlights
- Linear range: 2 mm (80 mils) for dynamic shaft displacement.
- Scale factor: API 7.87 V/mm or ISO 8 V/mm ±5% at 0–45°C.
- Linearity: ±0.025 mm across operating temperature range.
- Temperature: -35°C to +180°C sensor, cable rated to +150°C.
- Sealing pressure: 10000 hPa (145 psi) up to 120°C differential pressure.
- Material: PEEK tip, stainless-steel case, armored FEP cable, nickel-plated brass connector.
- Weight: Approx. 100g including 1m cable.
- Safety Rating: SIL 2 capable, compliant with IEC 61508:2010.
Technical Details
- Target Material: 42CrMo4, AISI 4140, C35, ST37, ASTM A276 Type 410, and similar steels.
- Min Target Diameter: 20 mm; Recommended ≥25 mm for best stability.
- Air Gap: 0.5 mm recommended initial gap.
- Armored Cable: Yes — designed for harsh industrial environments.
- Output: Voltage proportional to displacement with minimal drift.
- Noise Resistance: Excellent EMI shielding and temperature stability.
Model Suffix Tree
- EZ1081-03-00-010
- EZ1081 – 8mm Eddy Current Sensor Series
- -03- – 30mm Case Length
- -00- – 0mm Unthreaded Length (No UTL)
- -010 – 1.0m Armored Cable
Product Advantages
- Armored cable ensures longer lifespan and better mechanical protection.
- Compact design suits narrow mounting spaces and turbine housings.
- Stable linear output enables high-precision vibration measurement.
- Wide operating temperature from -35°C to +180°C supports extreme environments.
- Complies with ATEX, IEC-Ex, CSA, CCC, and marine DNV GL certifications.
Installation Tips
- Mount the probe with M10x1 thread firmly and maintain a 0.5 mm air gap.
- Keep sensor tip aligned with the shaft surface to reduce noise and drift.
- Use provided armored cable routing to avoid sharp bends or vibration contact.
- Check grounding and shielding before connecting to the converter.
- Operate within approved temperature and safety classifications (T6 to T2).
Packaging & Delivery
- Each package includes one EZ1081-03-00-010 sensor with armored 1m cable.
- Includes user manual and quick-start sheet for installation reference.
- Ships securely with anti-static foam and sealed packaging.
- Delivery available via FedEx, UPS, or DHL worldwide.
FAQ
- Q: Can this sensor handle high vibration zones?
A: Yes, the armored cable and stainless-steel housing reduce vibration fatigue. - Q: Is this model waterproof?
A: It meets IP67, and IP68 if tested with DOC-TEST certification. - Q: What shaft size works best?
A: Use shafts above 25 mm for the most accurate response and calibration. - Q: How should the cable be grounded?
A: Always connect cable shielding to system ground to prevent EMI interference. - Q: What is the warranty period?
A: Every sensor includes a 12-month warranty from shipment date.
