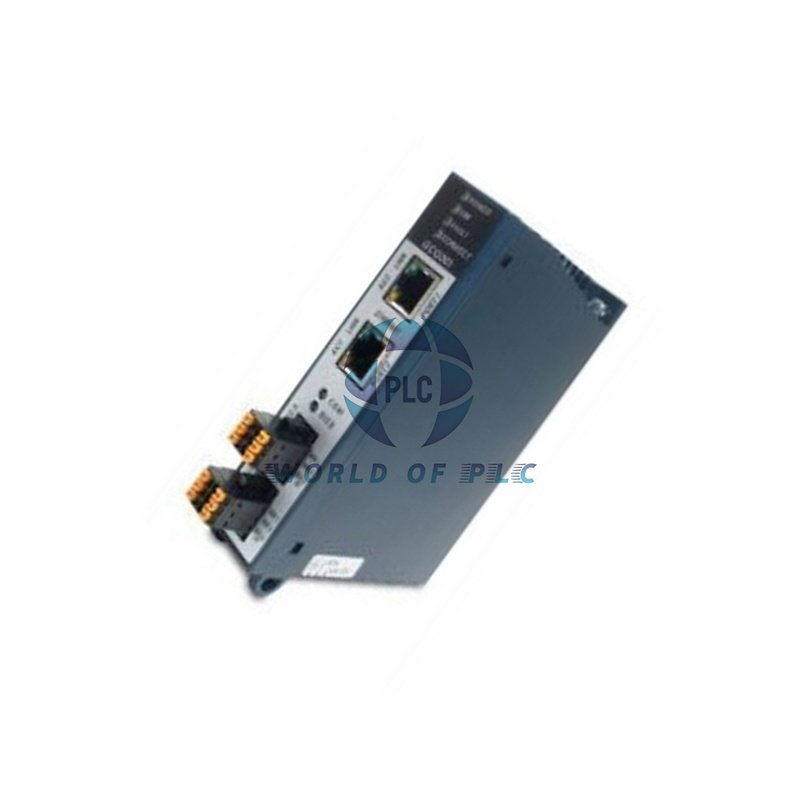

Emerson IC695GCG001 Genius Communication Gateway
Bridge your legacy systems to modern networks with the powerful IC695GCG001 gateway. This essential module connects Genius bus devices to PROFINET networks seamlessly.
- Smart Protocol Conversion – Links Genius I/O to PROFINET networks
- High Capacity – Supports up to 31 Genius devices simultaneously
- Fast Data Exchange – 1024 bytes input and 1024 bytes output data
- Easy Integration – Hot-swappable for maintenance without downtime
Technical Specifications
Brand: Emerson (formerly GE Fanuc)
Model: IC695GCG001
Series: PACSystems RX3i
Product Type: Genius Communication Gateway
Ethernet Ports: 2 RJ45 PROFINET interfaces
Genius Ports: 2 serial communication ports
Max Devices: 31 Genius blocks/devices
Data Capacity: 2048 total bytes (1024 in/1024 out)
Bus Speed: 153.6 kbps standard and extended
Power Requirement: 24V DC, 0.2A maximum
Update Rates: 2ms to 512ms (8 configurable options)
Operating Temp: 0°C to 60°C (32°F to 140°F)
Hot-Swap: Fully supported
Network Protocols: MRP, SNMP, LLDP, RTC, RTA
Mounting: Panel mount or RX3i expansion slot
Key Features
The IC695GCG001 acts as a bridge between old and new systems. It lets you keep using existing Genius I/O devices while upgrading to modern PROFINET networks. Perfect for system migration projects.
Compatibility
Works with RX3i controllers including CPE302, CPE305, CPE310, CPE330, CPU315, CPU320, and CRU320. Connects to all Genius bus compatible devices.
Installation Benefits
Hot-swappable design means no system shutdown for maintenance. Easy panel mounting or use in RX3i racks. Simple configuration with SD card support.
Frequently Asked Questions
What is the main purpose of this gateway?
It connects legacy Genius bus devices to modern PROFINET networks, saving you from replacing existing equipment.
How many devices can it handle?
It supports up to 31 Genius blocks or devices on a single bus with extensive data capacity.
Can I add this to an existing RX3i system?
Yes, it integrates seamlessly with RX3i controllers and supports hot-swapping for easy installation.
What network features does it support?
It includes Media Redundancy Protocol for network reliability and multiple industrial Ethernet protocols.
Is external power required?
Yes, it needs 24V DC power but draws minimal current for efficient operation.
Package Includes
• IC695GCG001 Gateway Module
• Installation Documentation
• Mounting Hardware
Warranty & Shipping
12-month product warranty. Worldwide delivery via FedEx, UPS, DHL.
Related Products
Explore compatible accessories: IC695ACC600 Compensation Kit | IC695ACC650 Conversion Rack
