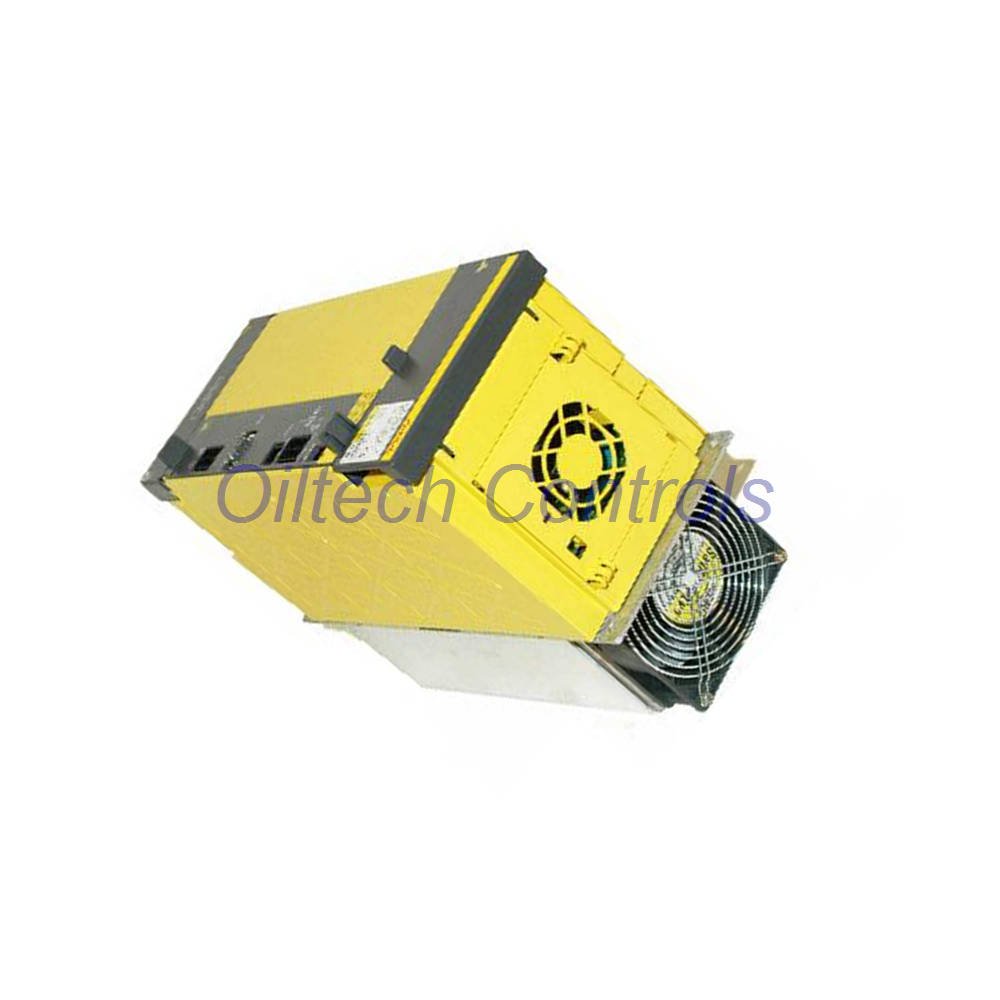

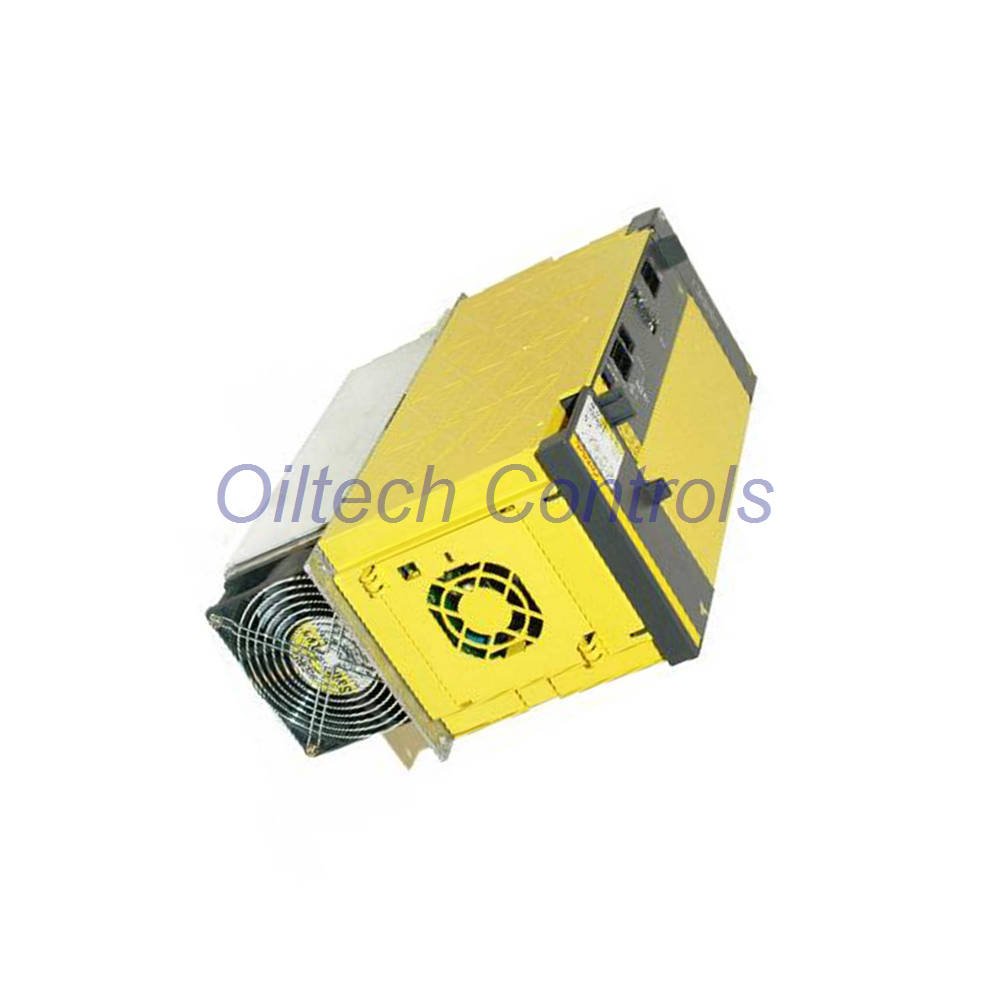

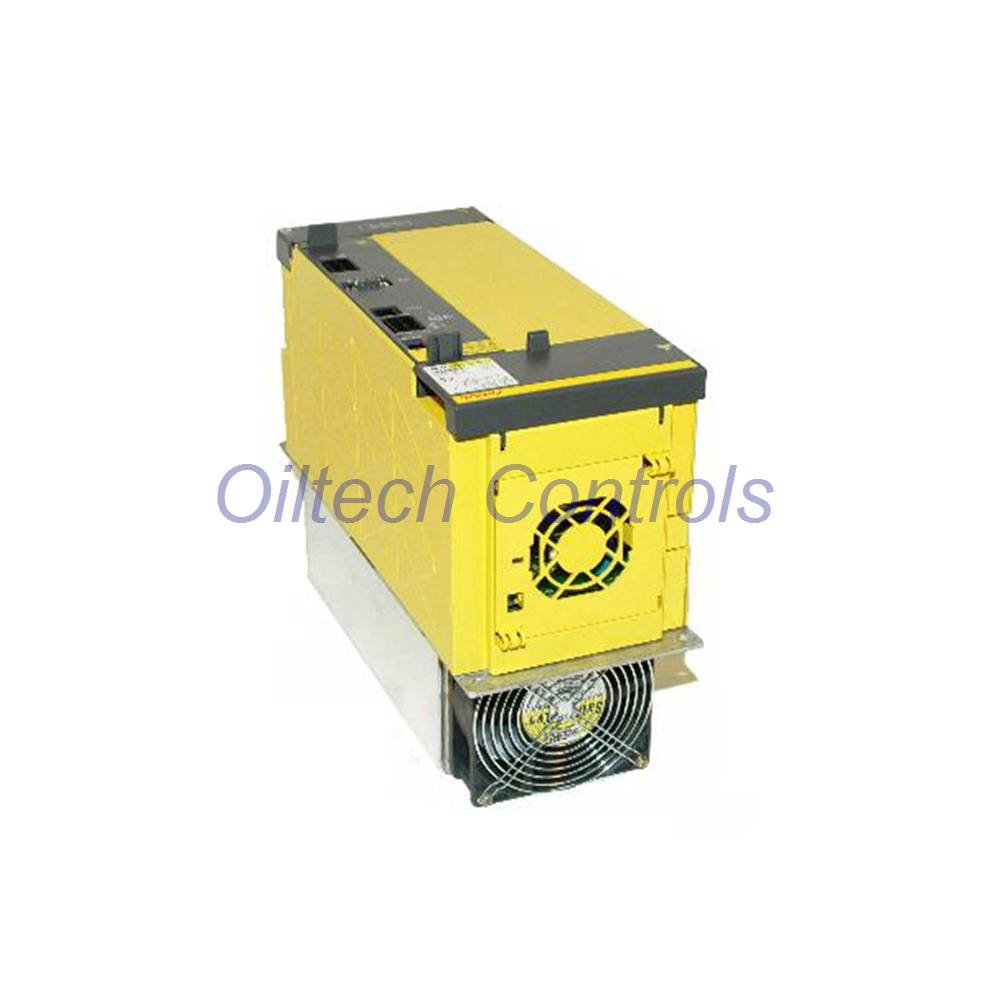

FANUC A06B-6110-H026 Power Supply Module 29.8kW 3-Phase

FANUC A06B-6110-H026 Power Supply Module – Industrial 3-Phase 29.8 kW

This FANUC power module converts 200-240 VAC 3-phase input into 283-339 VDC robust output. It delivers 26 A continuous (31 A peak) at 29.8 kW. High efficiency 92 % with power factor correction 0.98 reduces energy losses. Compact dimensions 190 x 290 x 170 mm fit standard cabinets. Weight 11.34 kg simplifies handling. Designed for CNC, servo drives, and robotic cells.

Technical Specifications

Environmental & Mechanical

• Temperature range: 0 to 50 °C operational, -20 to 70 °C storage
• Humidity: 20 to 90 % RH (non-condensing)
• Altitude: up to 1000 m without derating
• Vibration: 5 to 55 Hz, 0.5 mm amplitude
• Shock: 15 G, 11 ms half-sine
• EMC immunity: EN 61000-6-2 industrial standard
• Isolation: input-output 2500 VAC, 1 min

Installation & Commissioning

• Mount on flat metal surface for heat dissipation.
• Use M5 screws with torque 2.5 N·m.
• Connect 3-phase L1, L2, L3 and PE ground.
• LED indicator shows DC OK and fault status.
• Auto-restart after overvoltage trip.
• Diagnostic LED codes – refer to manual.

Maintenance & Diagnostics

• Front access to all terminals and fuses.
• Built-in overcurrent and thermal protection.
• Remote inhibit function for emergency stop.
• Monitoring output via analog signal (0-10 V).
• Fault memory stores last 5 events.

Compatibility

• ✅ FANUC CNC series 0i, 30i, 31i
• ✅ FANUC servo amplifiers A06B-6xxx
• ✅ Robotic controllers R-30iA / R-30iB
• ✅ Third-party DC bus systems (400-500 VDC)

Certifications

• ✔ CE (EN 61800-5-1)
• ✔ UL 508C recognized
• ✔ RoHS compliant
• ✔ REACH SVHC free

What’s in the Box

• 1 × FANUC A06B-6110-H026 module
• 1 × terminal cover kit
• 1 × mounting screws set
• 1 × quick start guide

Warranty & Shipping

• Warranty: 12 months against defects.
• Shipping carriers: FedEx, UPS, DHL – worldwide express.
• Tracking number provided within 24 hours.

Typical Applications

• CNC machining centers and lathes
• Industrial robots and welding systems
• Automated assembly lines
• Test stands and dynamometers
• High-power servo drive systems

Diagnostic Capabilities

• Real-time DC voltage and current readout
• Overvoltage/undervoltage trip points
• Internal temperature monitoring
• Fan speed and health status
• Error log via RS-485 (MODBUS)

FAQ – Quick Answers

• Q: Can I use 240 V single-phase? No, requires 3-phase input.
• Q: What is the max output power? 29.8 kW continuous, peak 33 kW for 5 s.
• Q: Is it compatible with older FANUC drives? Yes, with A06B-6xxx series.
• Q: Does it include a cooling fan? Yes, internal variable-speed fan.
• Q: How to reset after fault? Cycle input power or use remote reset signal.
