A06B-6110-H011 AC Power Module | FANUC 49A for CNC Systems

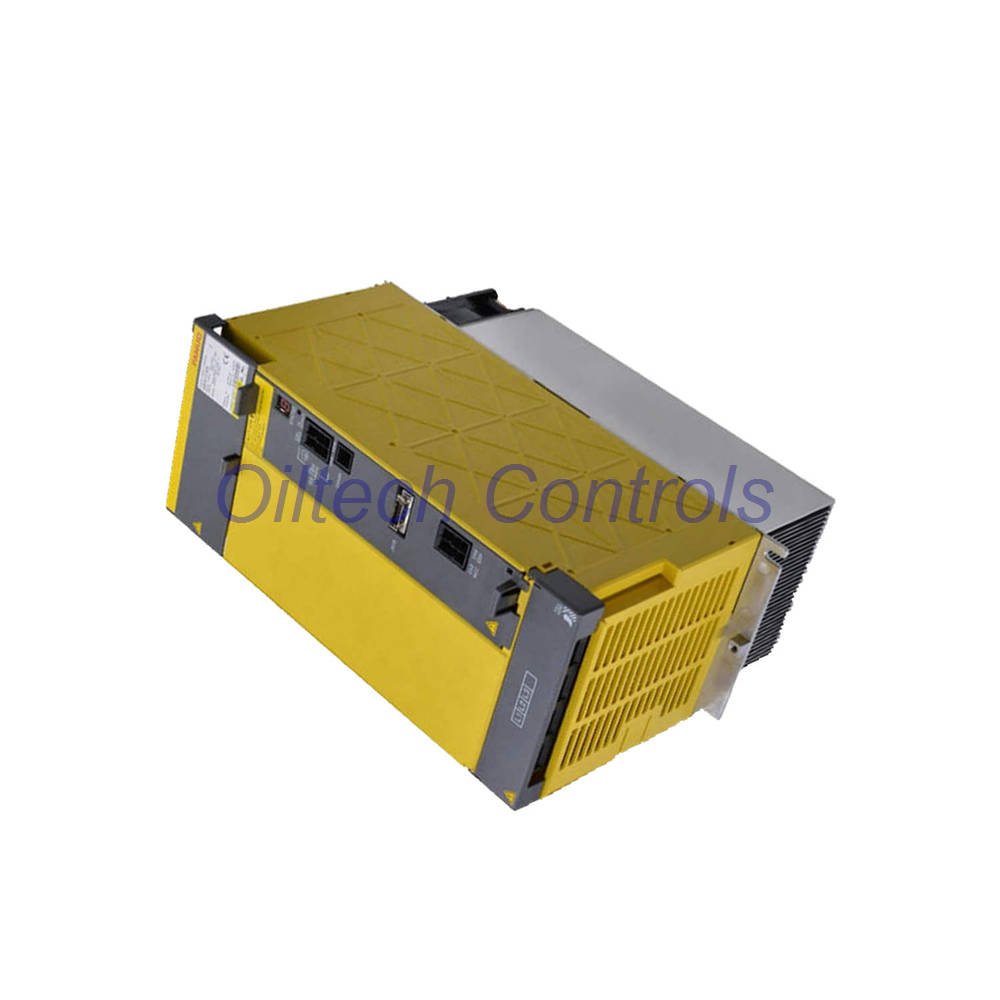

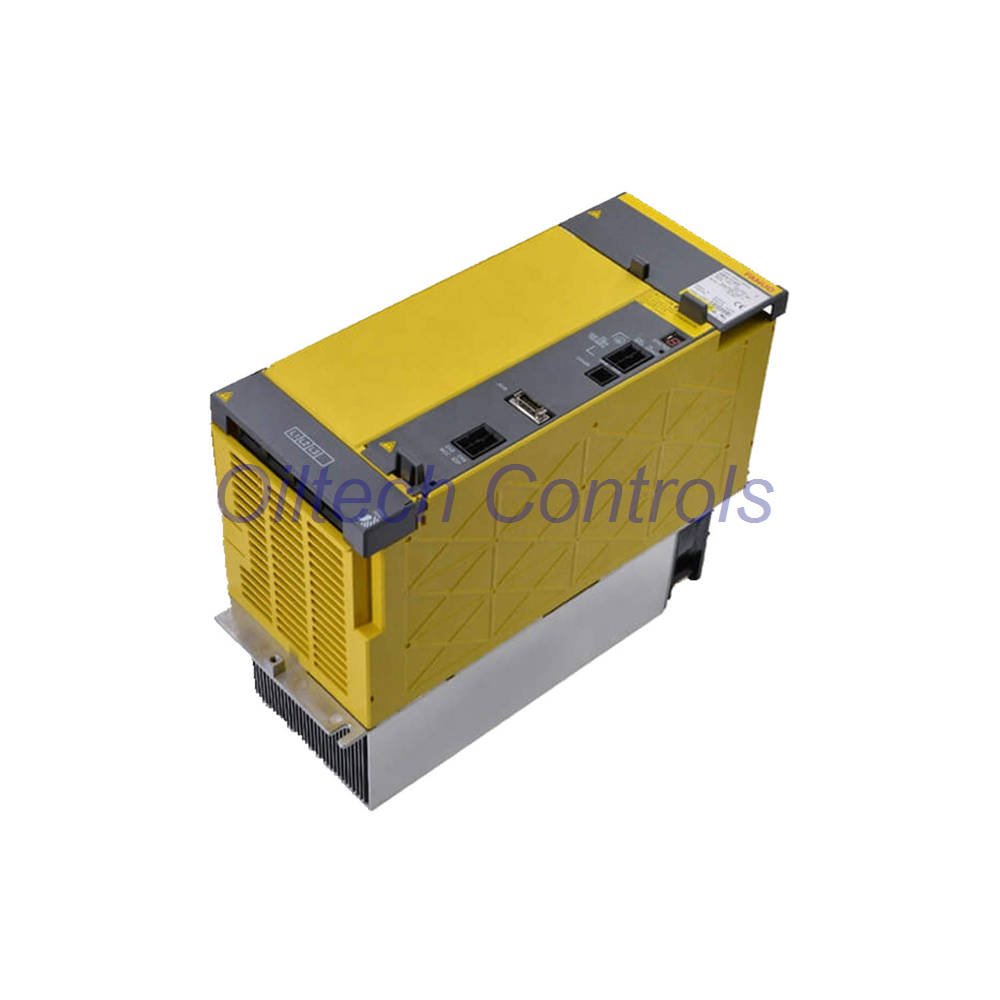

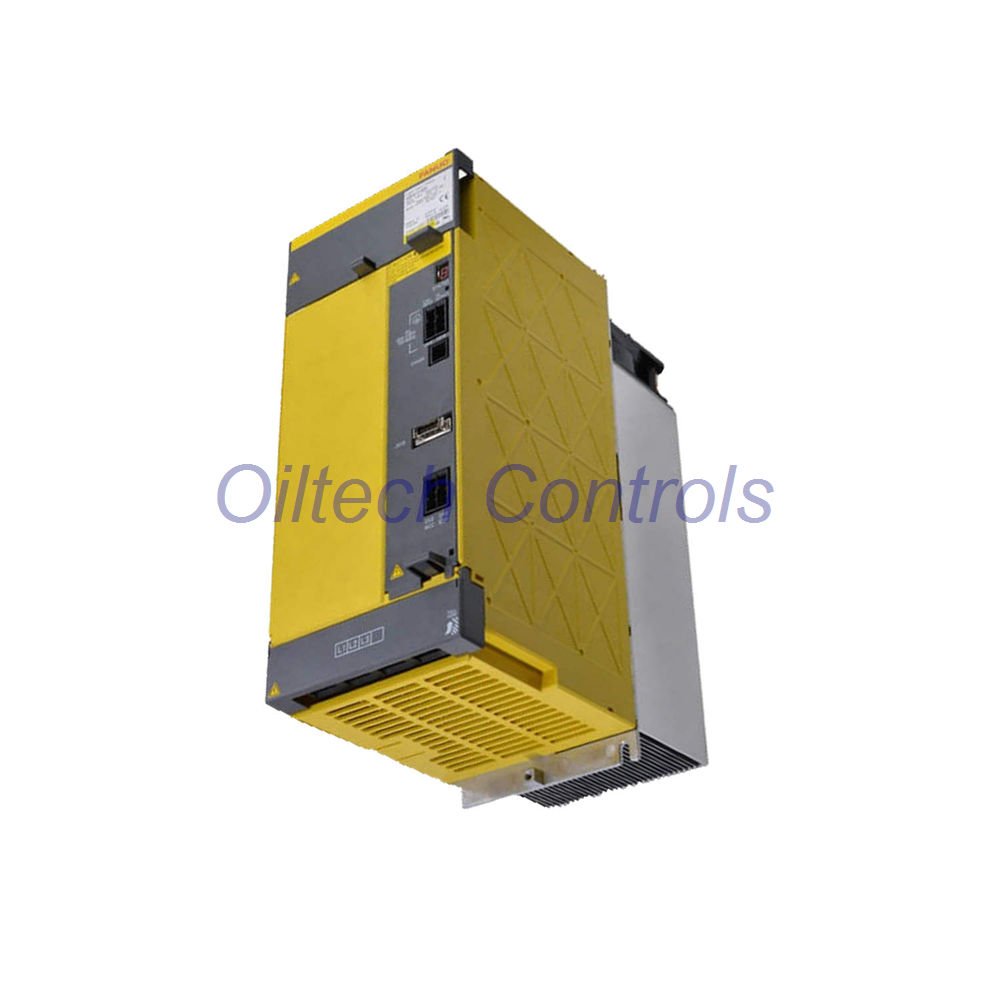

FANUC A06B-6110-H011 Power Supply

3‑Phase AC Input · 13.2 kW · 49 A @ 200 V · For CNC Systems

Power Supply Overview

• ✓ FANUC A06B-6110-H011 – rugged 3‑phase AC power module.
• ✓ Input: 200–240 VAC · Output: 283–339 VDC (adjustable).
• ✓ Rated power 13.2 kW · handles 49 A at 200 V.
• ✓ Frequency: 50/60 Hz – compatible worldwide.
• ✓ Built for CNC machinery, servo drives, and automation.

Technical Specifications

• Brand / Series – FANUC A06B
• Model – A06B-6110-H011
• Input voltage – 3‑phase 200‑240 VAC ±10%
• Output voltage – 283‑339 VDC (regulated)
• Output power – 13.2 kW continuous
• Current capacity – 49 A @ 200 VAC input
• Frequency – 50/60 Hz
• Operating temp – 0 °C to 40 °C
• Vibration tolerance – 5G max
• Altitude – up to 1000 m above sea level
• Weight – 12.00 lbs (5.44 kg)

Compatible Equipment & Applications

• ✓ FANUC CNC – Series 0i, 30i, 31i, and Power Motion.
• ✓ AC servo drives – α and β series amplifiers.
• ✓ Machine tools – lathes, milling, grinding, and machining centers.
• ✓ Industrial robots – R‑2000, M‑20, and LR Mate.
• ✓ Automation lines – conveyors, palletizers, and transfer systems.

Installation & Environmental Notes

• ✓ Mounting – vertical panel mount, use M6 screws.
• ✓ Cooling – forced air (internal fan) – maintain 60 mm clearance.
• ✓ Ambient – 0‑40 °C, 5‑95% RH non‑condensing.
• ✓ Altitude – derate 1% per 100 m above 1000 m.
• ✓ Vibration – 5G max, avoid resonant frequencies.

Oiltech Controls Insight

• ✓ This power supply is field‑proven for high‑inrush CNC loads.
• ✓ Its 49 A rating ensures stable DC bus even during heavy cutting.
• ✓ We recommend input line reactors to reduce harmonics.
• ✓ For 400 V systems, use a step‑up transformer (not included).

Professional FAQ – Selection & Experience

• Q1: Can this supply run a 2‑axis servo system?
  Yes, it supports up to 49 A, enough for 2‑3 medium servos. Check total continuous current.
• Q2: What happens if input voltage drops below 200 V?
  Output derates linearly. Below 180 V, the unit may trip on undervoltage.
• Q3: How to choose between A06B-6110-H011 and H012?
  H011 is 49 A, H012 is 78 A – select based on total axis load and peak torque.
• Q4: Is external pre‑charge circuit needed?
  Built‑in pre‑charge, but we recommend an external contactor for safety.
• Q5: What is the typical lifespan?
  With proper cooling, >10 years. Electrolytic caps may need replacement after 8‑10 years.

Why Buy From Oiltech Controls?

• ✓ 15+ years in industrial automation spares – deep technical know‑how.
• ✓ Global shipping – FedEx, UPS, DHL express (24‑48 hrs dispatch).
• ✓ Tested surplus / refurbished – each unit verified on load.
• ✓ 12‑month warranty – full coverage against defects.
• ✓ Pre‑shipment technical check – parameters confirmed to your spec.
• ✓ Support for obsolete control systems – we track legacy parts.
