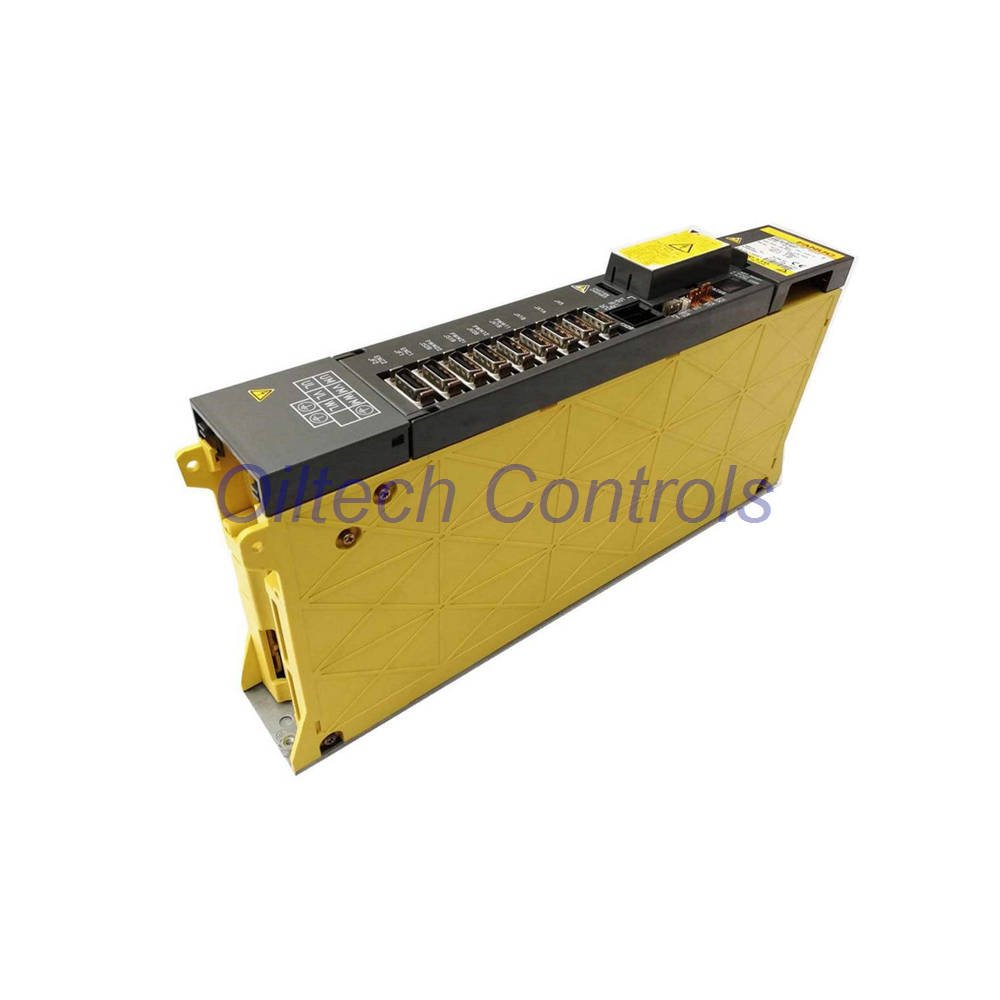

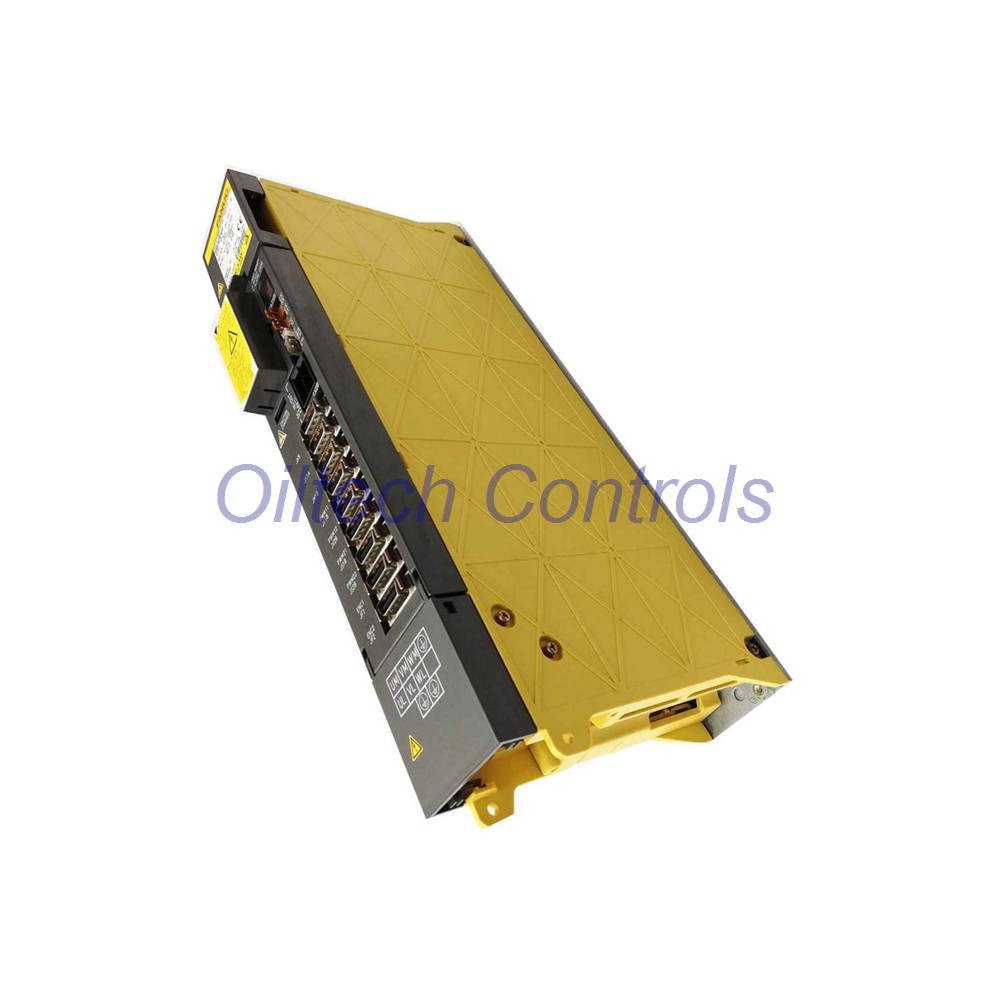

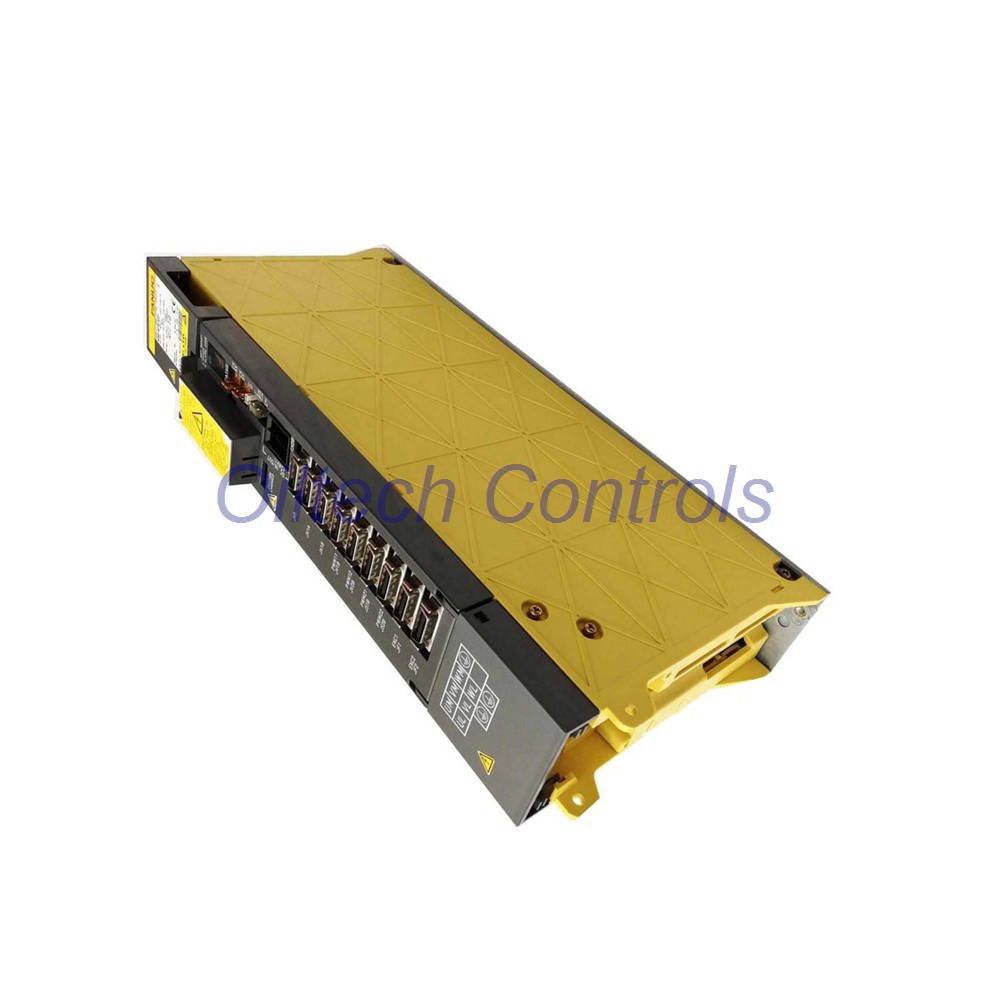

FANUC A06B-6077-H111 Servo Power Converter Module
Product Overview
FANUC A06B-6077-H111 is a high-performance servo power converter for CNC systems. It delivers 13.2 kW output power. This module ensures precise control in industrial automation. It uses a 3-phase power supply. The unit is air-cooled for reliable heat regulation. It includes overload, overcurrent, and overvoltage protection. This enhances equipment safety and operational uptime.
Technical Specifications
| Manufacturer | FANUC |
| Product Type | Servo Power Converter (Power Supply Module) |
| Model | A06B-6077-H111 |
| Series | ALPHA Power Supply Module |
| Output Power | 13.2 kW |
| Output Voltage | 283 – 325 VDC |
| Input Voltage | 200 – 230 VAC (3-phase) |
| Input Current | 49 A |
| Frequency | 50/60 Hz |
| Cooling Method | Air Cooled |
| Weight | 6.80 kg (15.00 lbs) |
| Protection | Overload, Overcurrent, Overvoltage |
Key Performance & Environment
- Efficiency: High-density power conversion for heavy loads.
- Temperature Range: 0°C to 50°C (ambient).
- Environmental Tolerance: Resistant to vibration and humidity (10–90% non-condensing).
- Interference Immunity: Built-in filtering reduces EMI/RFI.
- Resolution & Linearity: Precise servo control with minimal drift.
Installation & Setup
- Mount on a flat, grounded metal panel.
- Ensure 100 mm clearance for airflow.
- Use recommended cable gauges (refer to manual).
- Connect 3-phase input (L1, L2, L3, PE).
- Output terminals: DC+ and DC- to servo amplifiers.
- Initial power-on: check LED status for readiness.
Commissioning & Maintenance
- Easy front-panel status LEDs for diagnostics.
- Auto-calibration routine reduces setup time.
- Routine cleaning of cooling fins (compressed air).
- Firmware upgrade via optional service port.
- Overload history log accessible via CNC interface.
Compatibility & Certifications
- Direct replacement for FANUC ALPHA series amplifiers.
- Compatible with FANUC CNC models 0i, 30i, 31i, and 35i.
- CE marked, UL recognized (File E196950).
- RoHS compliant, low-halogen materials.
Diagnostic Capabilities
- Real-time current and voltage monitoring.
- Fault codes for overvoltage, under voltage, overcurrent.
- Communication with CNC for predictive maintenance.
- Self-test at power-on validates internal circuits.
- External test points for oscilloscope analysis.
Package Contents
- FANUC A06B-6077-H111 module (1 unit).
- Mounting screws and terminal covers.
- Quick start guide (multi-language).
- Warranty registration card.
Warranty & Support
- 12-month warranty against manufacturing defects.
- Technical verification before shipment.
- Global support for obsolete control systems.
Frequently Asked Questions (FAQ)
- Q: Can I use this with a single-phase supply?
A: No, it requires 3-phase 200–230 VAC. - Q: What is the typical efficiency?
A: Approximately 95% at rated load. - Q: Does it support regenerative braking?
A: Yes, built-in regenerative circuit. - Q: Is the unit field-repairable?
A: Only certified technicians should perform repairs. - Q: What is the altitude derating?
A: Derate 1% per 100 m above 1000 m.
