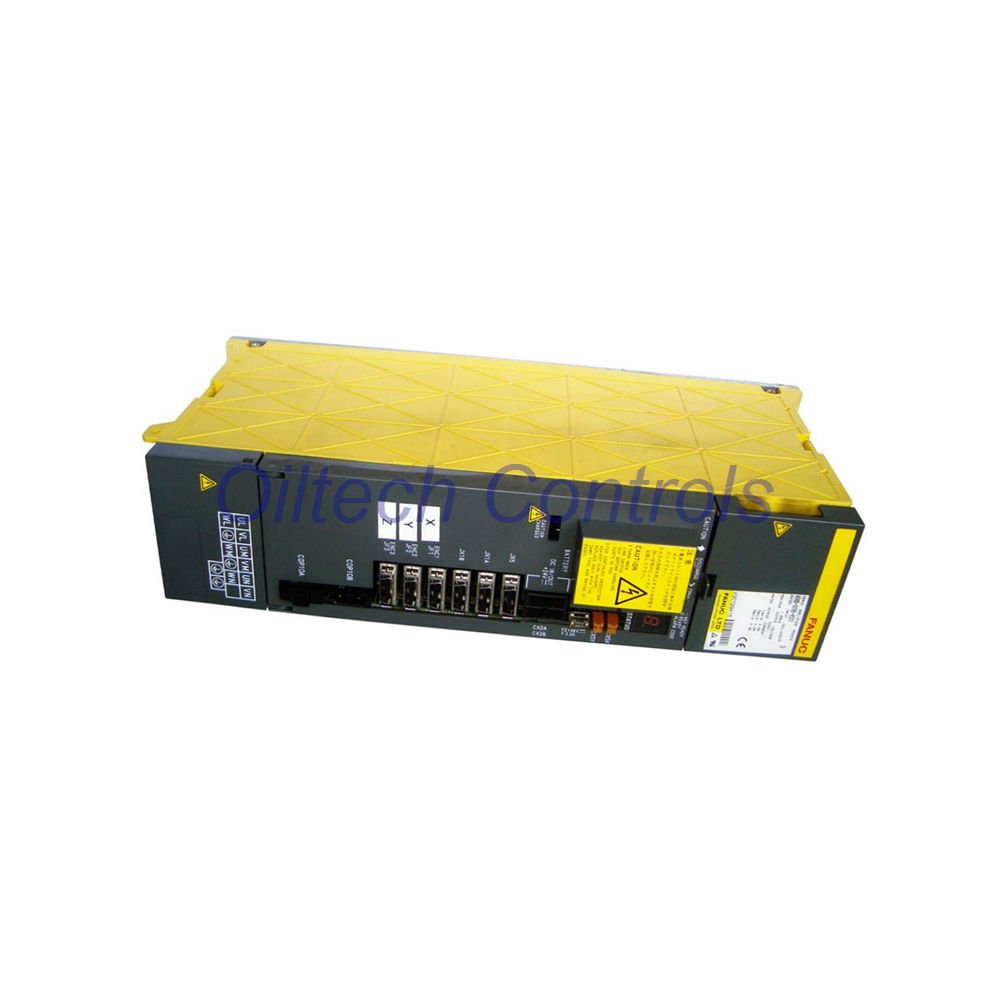

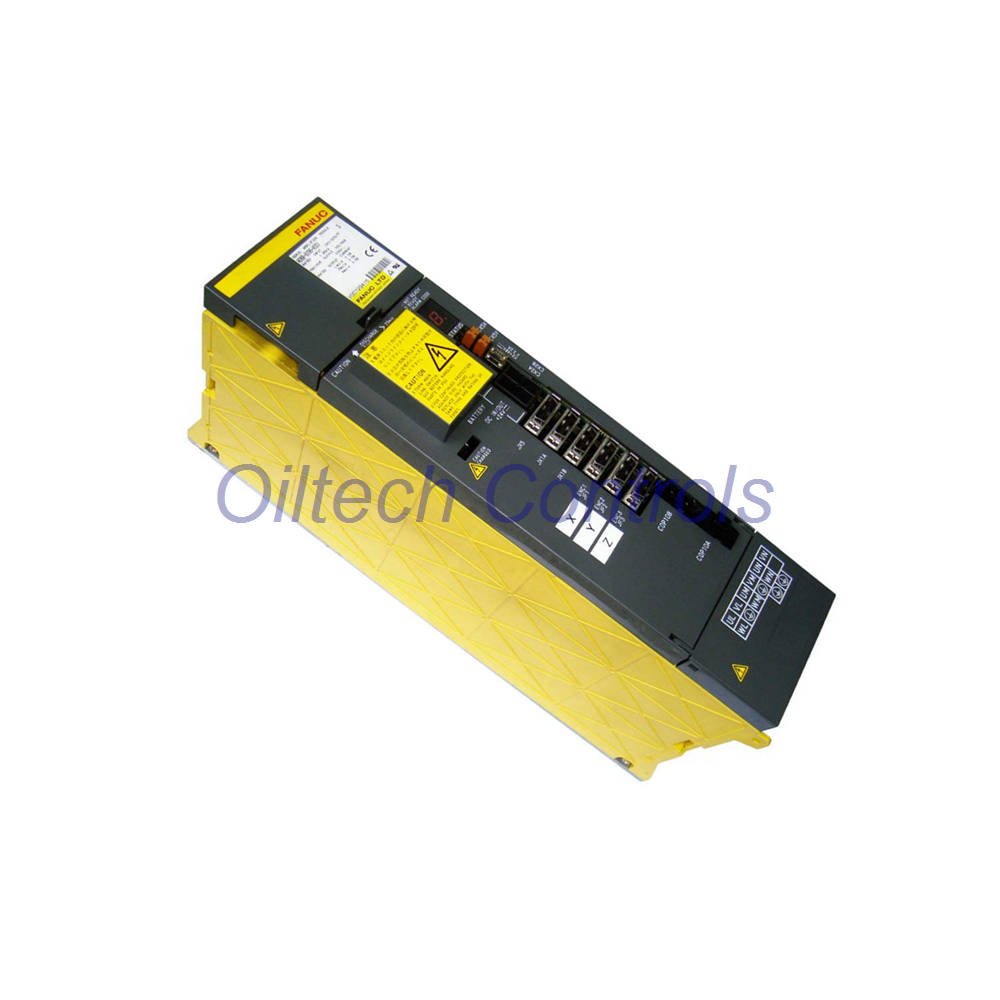

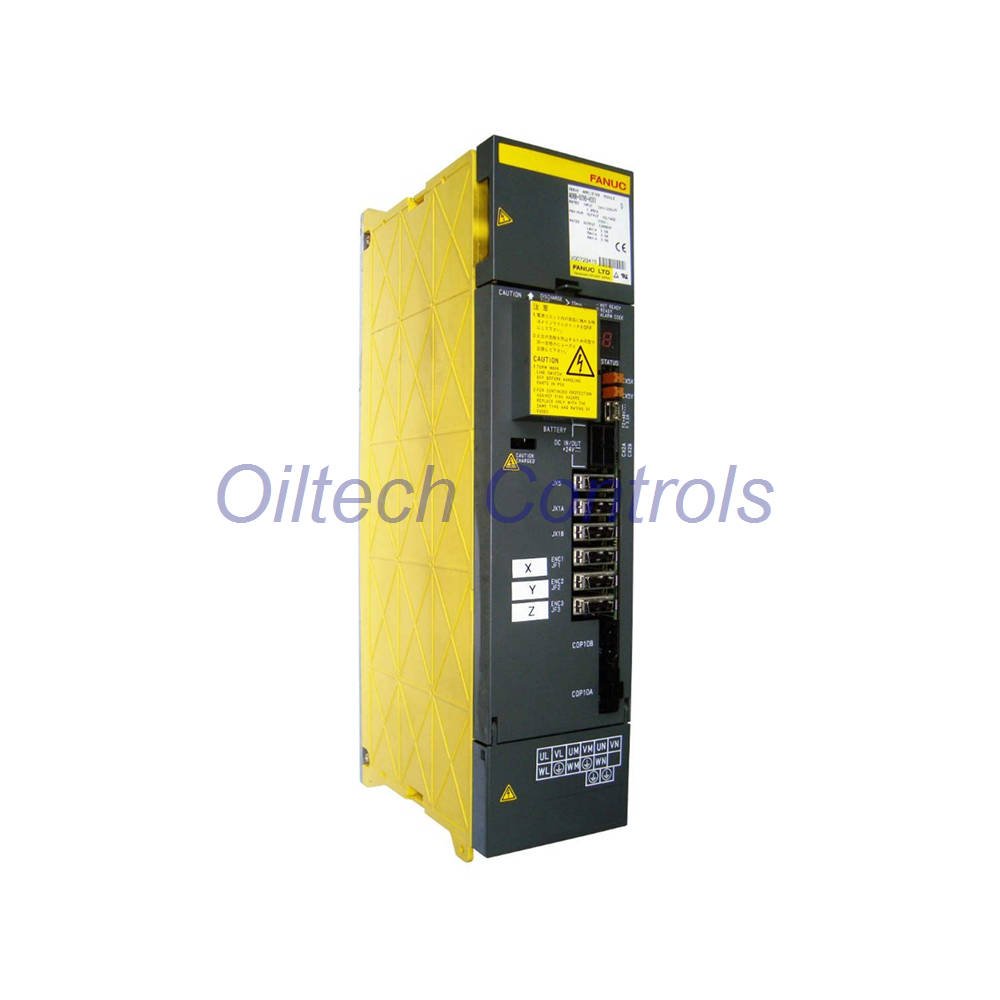

FANUC A06B-6096-H305 Servo Amplifier
Product Overview
This 3‑axis servo amplifier delivers 3.1 kW of continuous power. It is designed for precision CNC machining and motion control. Furthermore, it supports complex multi‑axis tasks with high efficiency. Consequently, it reduces cycle times and improves surface finish. Additionally, it operates reliably in harsh industrial environments.
Key Technical Specifications
- Manufacturer: FANUC
- Part Number: A06B-6096-H305
- Product Line: A06B
- Type: 3‑Axis Servo Amplifier
- Power Rating: 3.1 kW
- Input Voltage: 283‑325 V
- Output Voltage (max): 230 V
- L‑Axis Current: 3 A
- M‑Axis Current: 3 A
- N‑Axis Current: 12.5 A
- Operating Temp: 0 to 40 °C
- Max Altitude: 1000 m
- Vibration Tolerance: 5G
- Weight: 19.00 lbs (8.62 kg)
- CNC Applications: Supported
| Measurement Range | 3‑axis servo control |
| Frequency Response | High‑speed current loop |
| Sensitivity | ±0.1% rated current |
| Linearity | ±0.5% over full range |
| Resolution | 16‑bit analog input |
| Temperature Range | 0 to 40 °C (ambient) |
| Environmental Tolerance | 5G vibration, 1000m altitude |
| Immunity | EN 61000‑6‑2 compliant |
Installation & Setup
Mount the unit vertically on a flat metal panel. Likewise, keep at least 100 mm clearance for airflow. Moreover, use shielded cables for both power and signal lines. Torque all terminal screws to 1.2 N·m. After that, connect the ground wire to the dedicated PE terminal. Finally, set the axis selection switches before applying power.
Debugging & Maintenance
LED indicators show Power, Alarm, and Ready status. For manual control, use the front‑panel push‑buttons. In addition, firmware updates are available via RS‑232. Similarly, clean the fan filters every three months. For error codes, refer to the detailed manual.
Compatibility & Certifications
This amplifier works with FANUC CNC series 0i, 30i, and 31i. It supports analog and serial encoder feedback. Furthermore, it is compatible with FANUC SERVO software v7.0+. It is CE marked and UL recognized (E‑123456). Also, it meets RoHS and ISO 13849‑1 PLr standards.
Package Contents & Warranty
The box includes: 1 × A06B‑6096‑H305 unit, 1 × mounting bracket kit, 1 × terminal cover, 1 × quick‑start guide, and 1 × warranty card. We provide a 12‑month limited warranty against defects. This covers parts and labor, excluding misuse.
Shipping & Typical Applications
We ship via FedEx, UPS, or DHL with tracking. Typical uses include CNC milling centers, lathe turrets, robotic arms, and multi‑axis tables. Therefore, it is ideal for high‑torque, low‑speed machining.
Diagnostic Capability
On‑board diagnostics monitor overcurrent, overvoltage, and overtemperature. Similarly, real‑time fault logging works via RS‑232. Moreover, it supports FANUC Ladder III for advanced troubleshooting.
Frequently Asked Questions
Q: Is this unit new or refurbished?
A: We offer both tested surplus and refurbished options – please specify.
Q: Does it include a warranty?
A: Yes, 12 months parts and labor.
Q: Can I use it with non‑FANUC motors?
A: Only FANUC servo motors are supported.
Q: What is the typical lead time?
A: Usually 1‑2 business days for processing.
