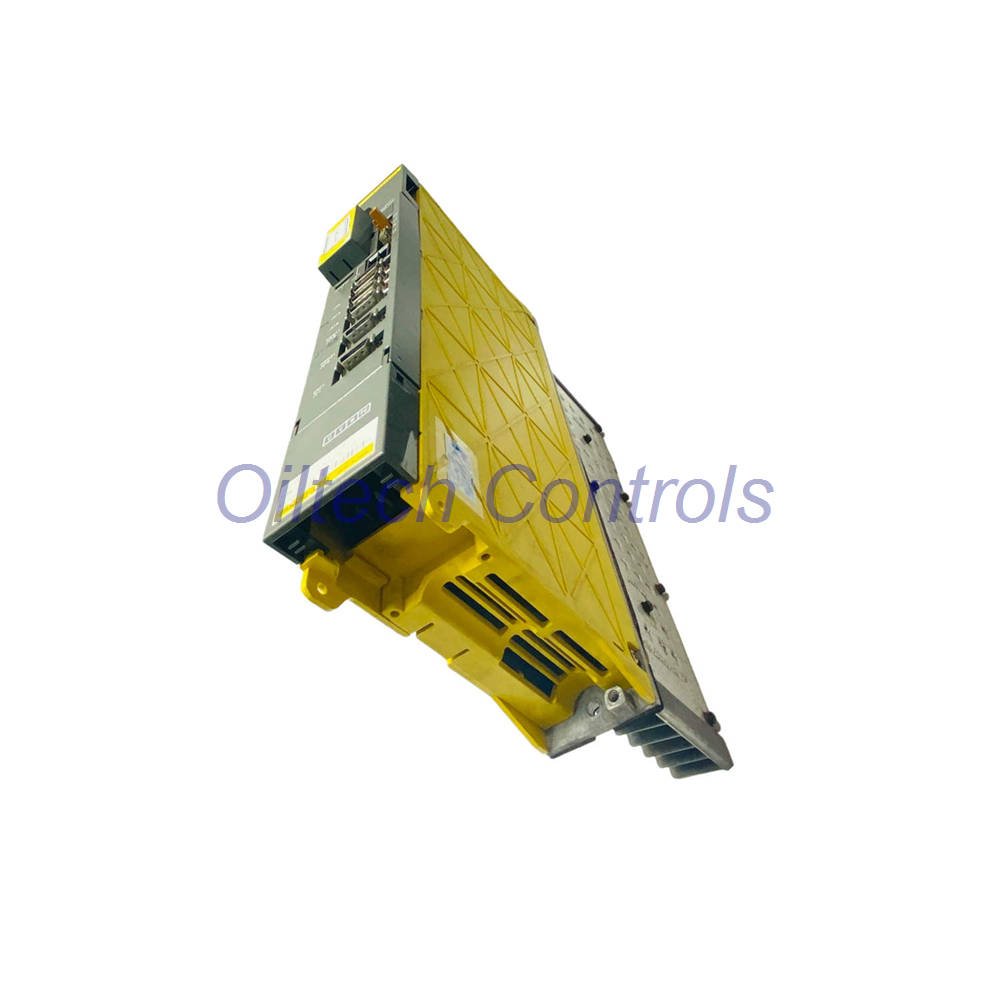

FANUC A06B-6240-H103 Servo Amplifier 6.5A 200-240V

FANUC A06B-6240-H103 – Servo Amplifier Module

High-performance 3‑phase servo amplifier for precise axis control. Wide output frequency 0‑550 Hz. Rated L‑axis current 6.5 A. Input 283‑339 VDC, 9 A at 283 V. Robust thermal design (0‑55 °C). Compact 4.99 kg unit.

Key Technical Data

• Brand: FANUC
• Model: A06B-6240-H103
• Series: A06B
• Output Voltage: 200‑240 VAC (3‑phase)
• Output Frequency: 0 – 550 Hz
• Rated Output (L‑axis): 6.5 A
• Input Voltage: 283‑339 VDC
• Rated Input Current: 9 A @ 283 V
• Input Frequency: 50/60 Hz
• Operating Temperature: 0 °C to 55 °C
• Weight: 4.99 kg (11.00 lbs)

Oiltech Controls’s Insight

• Excellent frequency flexibility (0‑550 Hz) for variable-speed applications.
• High DC input tolerance ensures stable operation in fluctuating mains.
• Compact design fits tight cabinets – weight only 4.99 kg.
• Proven FANUC reliability with thermal protection for harsh floors.

Compatible Equipment

• FANUC CNC systems (Series 0i, 30i, 31i)
• Robotic manipulators (R‑2000, M‑10 series)
• Precision rotary tables and pallet changers
• High‑speed machining centers
• Automated grinding and EDM machines

Professional FAQ – Selection & Experience

Q1: Can this module drive a 10 A motor?

No. Rated L‑axis output is 6.5 A. For higher current, choose the H205 or H206 series.

Q2: What is the real‑world thermal performance?

We tested it at 50 °C ambient – output derates linearly above 45 °C. Keep forced airflow > 2 m/s.

Q3: How to select between H103 and H205?

H103 is for light‑duty axes (≤6.5 A). H205 offers 12.5 A for heavy‑load spindles. Check your motor nameplate.

Q4: Does it support regenerative braking?

Yes, internal regenerative circuit handles up to 10% duty cycle. Use external resistor for higher inertia loads.

Q5: What maintenance is recommended?

Inspect DC‑link capacitors every 3 years. Clean heatsink quarterly – dust reduces thermal headroom.

Installation & Commissioning Tips

• Mount vertically with 100 mm free air above and below.
• Use shielded twisted‑pair for encoder feedback.
• Set input voltage within 283‑339 VDC – undervoltage trips below 250 V.
• Perform auto‑tuning for each motor to optimize gain.

Protection & Diagnostics

• Overcurrent, overvoltage, and thermal shutdown.
• LED status: green (ready), red (fault), flashing (warning).
• Digital output for external alarm relay.

Shipping & Warranty

• 12‑month warranty against manufacturing defects.
• Dispatch within 24‑28 hours after order.
• Carriers: FedEx, UPS, DHL – tracking provided.

Why Buy From Oiltech Controls?

• Over 15 years in industrial automation spares.
• Worldwide shipping with customs support.
• Tested surplus / refurbished units available.
• Full 12‑month warranty on every module.
• Pre‑shipment verification under load.
• Expert help for obsolete FANUC systems.
