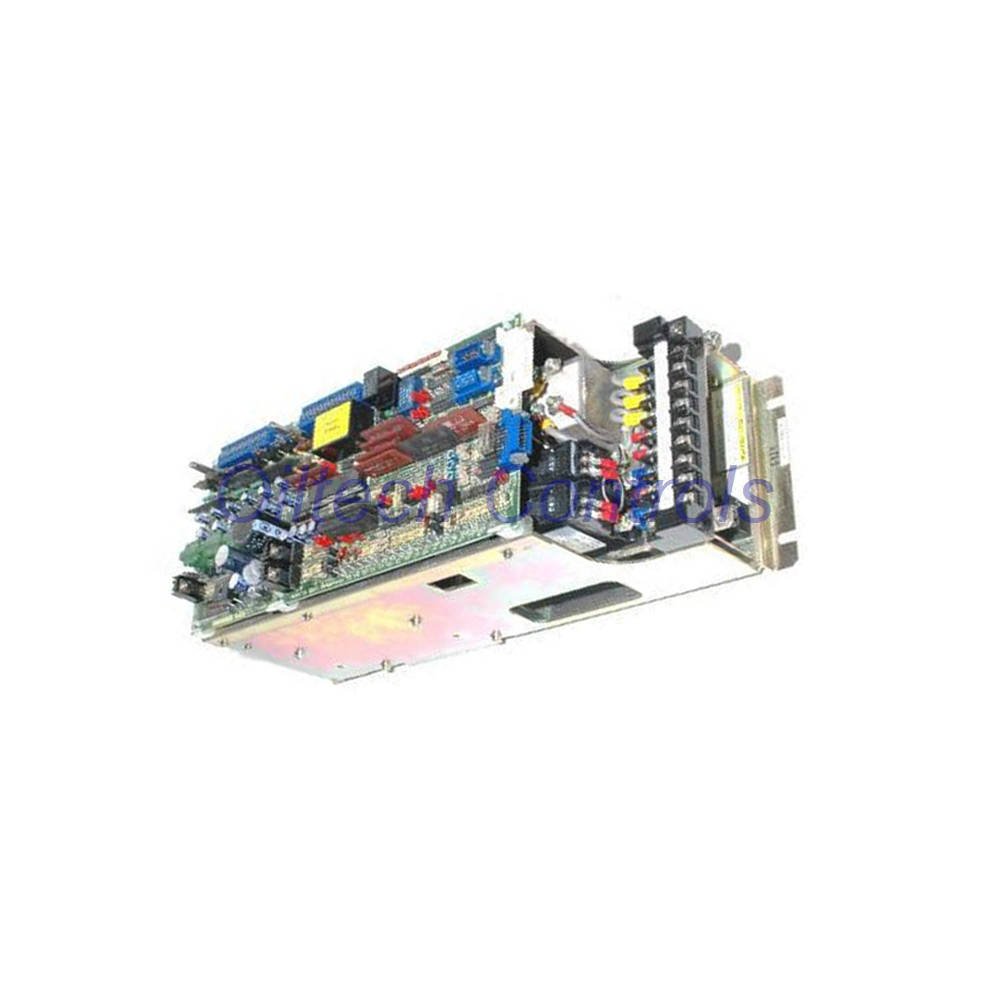

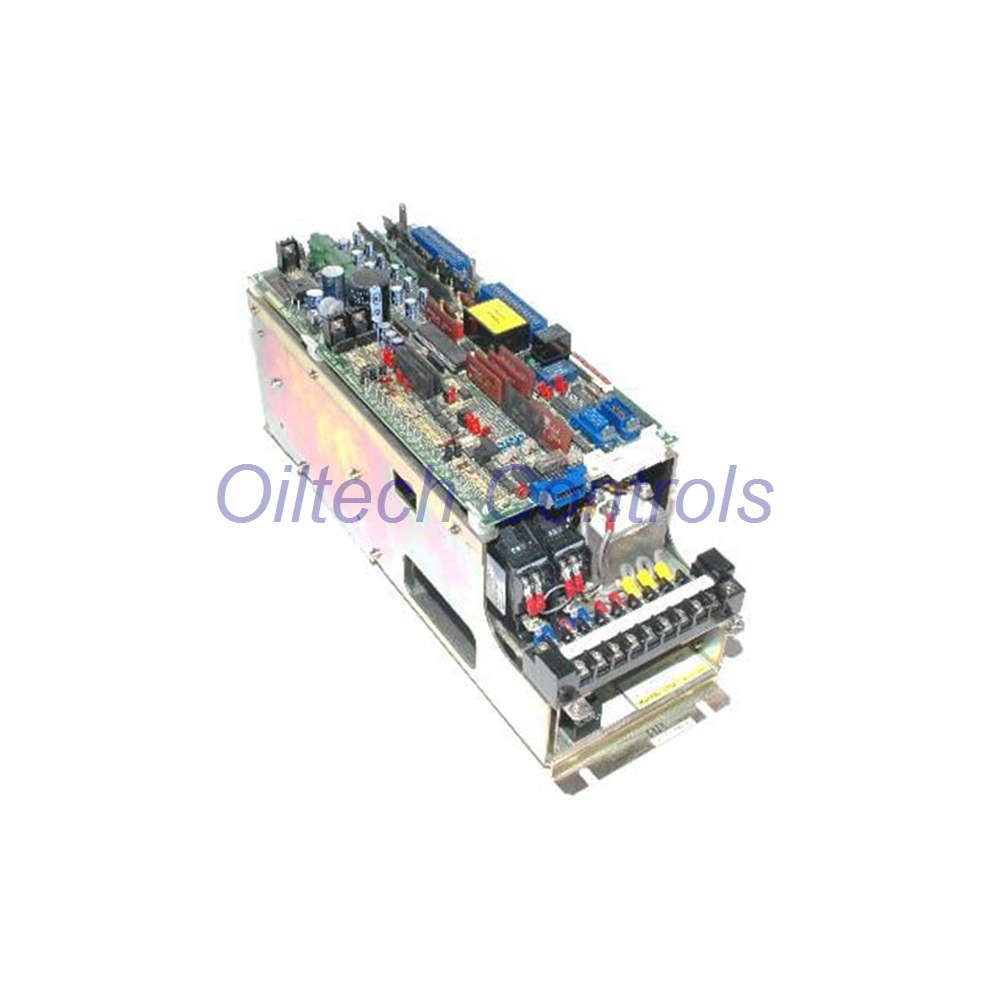

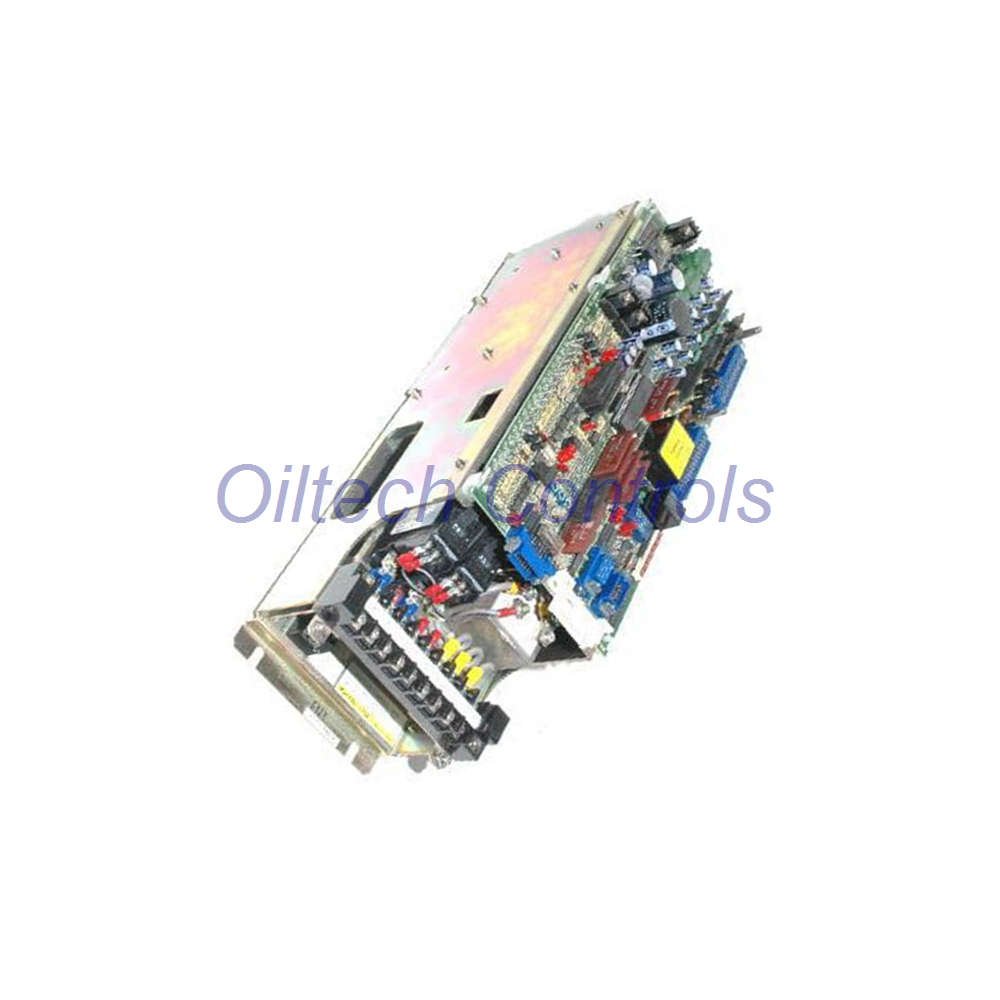

FANUC A06B-6050-H104 Servo Drive | Compact AC CNC Drive

FANUC A06B-6050-H104 Servo Drive – Compact AC Control

Precision AC servo drive for CNC and general motion. 0–40 °C ambient, 5G vibration tolerance. Compact 20/30 type. Supports FANUC servo motors.

Technical Data – At a Glance

• Brand: FANUC
• Model: A06B-6050-H104
• Type: AC Servo Drive (20/30 series)
• Operating temp: 0 to 40 °C
• Vibration max: 5G
• Altitude max: 1000 m above sea level
• Weight: 8.62 kg (19.00 lbs)
• Design: Compact, space-saving
• Application: CNC, servo motor control

Oiltech Controls’s Insight – Why This Drive?

• Reliable for machine tool axes and robotic arms.
• Robust 5G vibration rating – ideal for milling and punch presses.
• Compact footprint saves cabinet space.
• Direct replacement for older 20/30 type systems.
• Tested for full torque linearity up to 40 °C.

Compatible Equipment

• FANUC CNC series 0i, 18i, 21i.
• FANUC α series servo motors (2–22 kW).
• Legacy FANUC AC spindle drives (with adapter).
• Industrial robots: R‑2000, M‑10i, LR Mate.
• General automation – conveyors, indexers, winders.

Professional FAQ – 5 Expert Q&A

• Q: Can this drive run a motor rated for 400 V?
  A: No. It is designed for 200‑230 V AC input. Using 400 V will damage the unit.
• Q: What is the maximum encoder cable length?
  A: For reliable feedback, keep encoder cable under 20 m. Use shielded twisted‑pair.
• Q: How to select between H104 and H105?
  A: H104 is 20/30 type with lower current; H105 is higher power. Check motor rated current.
• Q: Does it support absolute encoders?
  A: Yes, with FANUC serial encoder interface. Set parameter 1815 for absolute mode.
• Q: Drive trips on overvoltage – common fix?
  A: Check regenerative resistor value. Often replace with 200 W, 50 Ω unit.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spares.
• Worldwide shipping – FedEx, UPS, DHL.
• Surplus/refurbished units fully tested.
• 12‑month warranty on all drives.
• Technical verification before dispatch.
• Support for obsolete and legacy controls.

Shipping & Warranty

• Dispatch: 24‑28 hours after order.
• Carriers: FedEx, UPS, DHL – express.
• Warranty: 12 months parts & labour.
