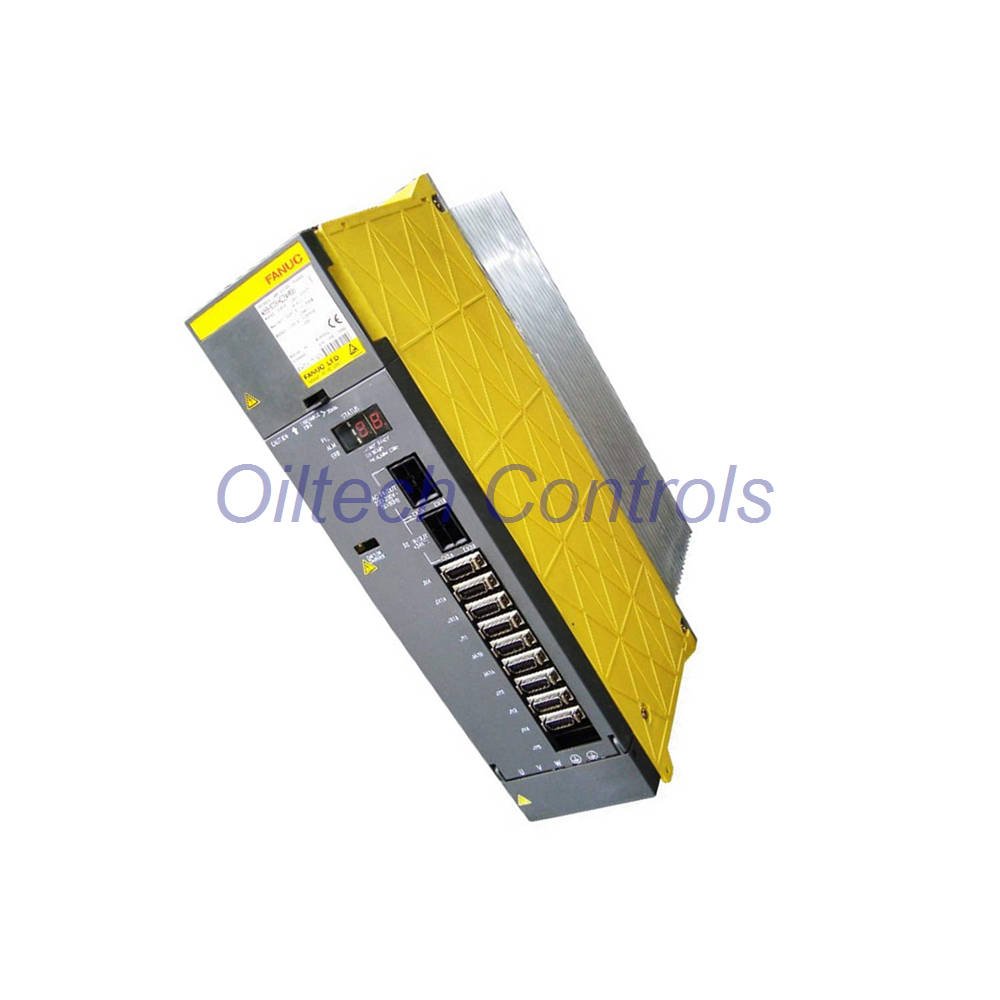

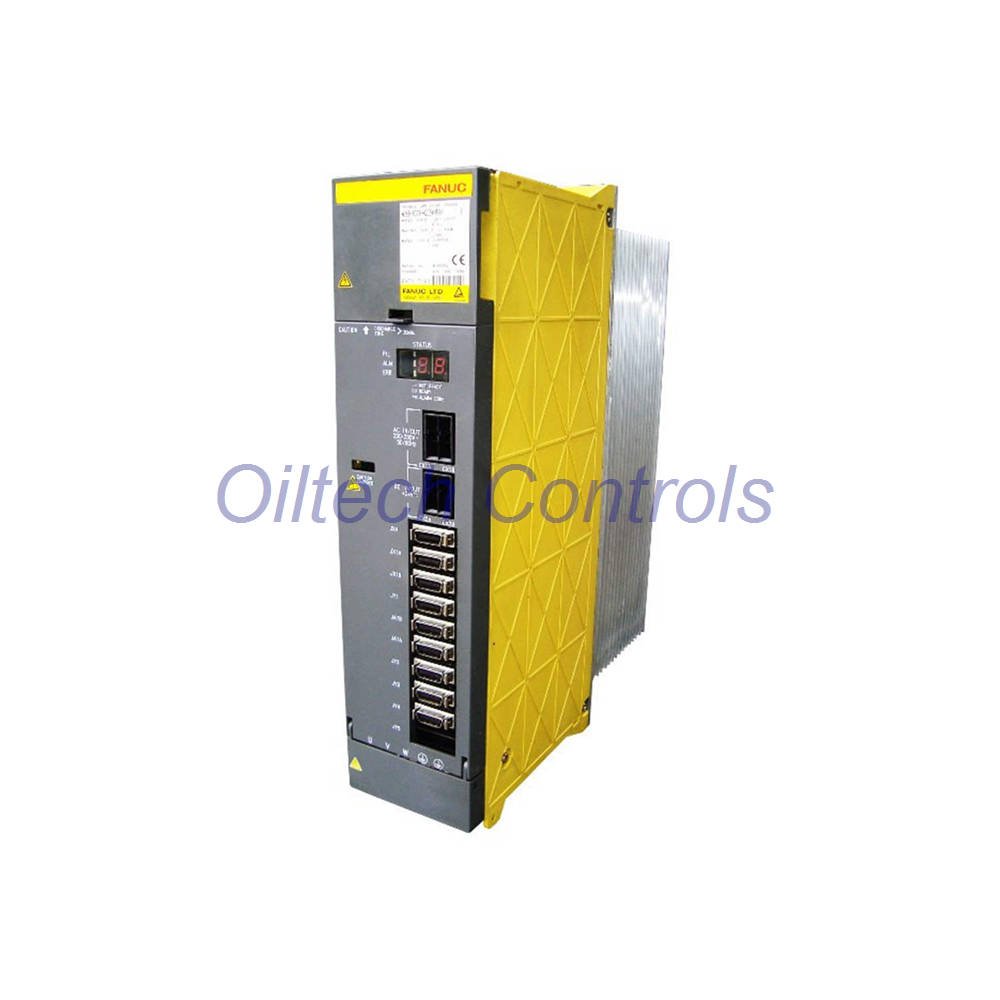

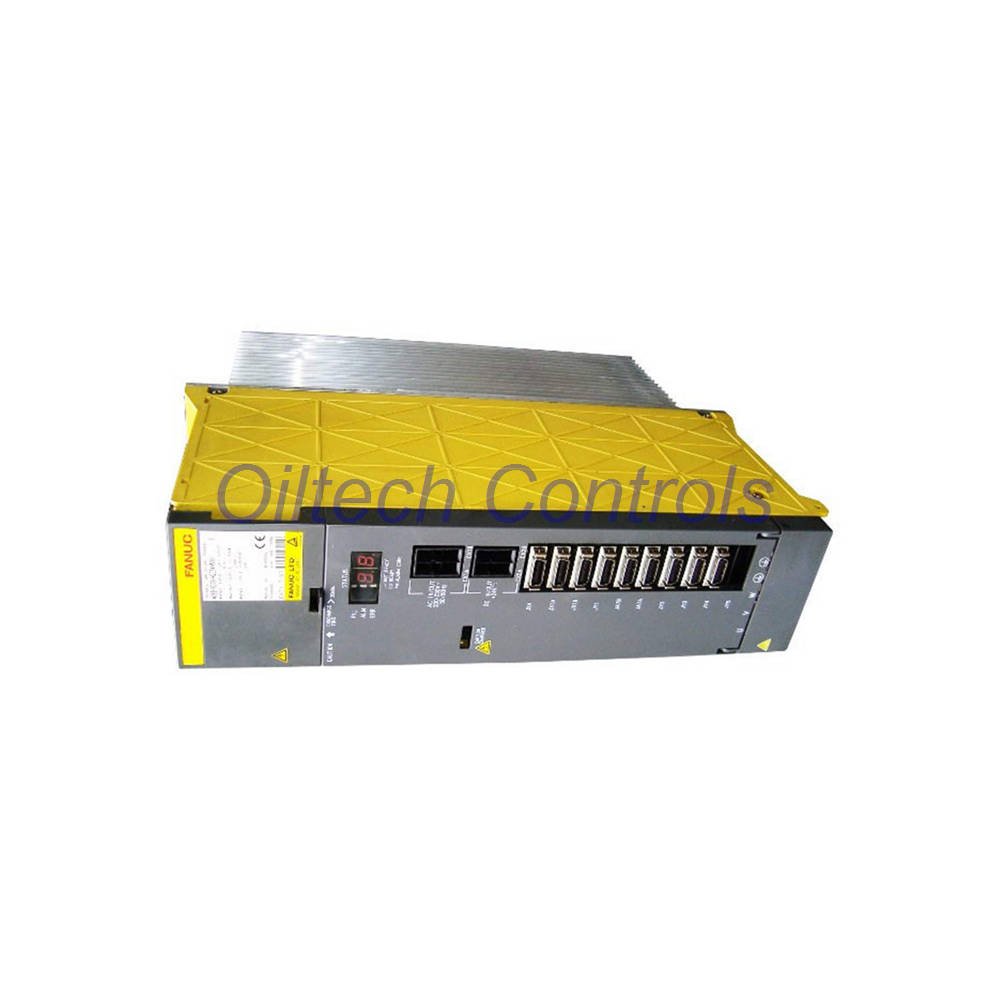

FANUC A06B-6079-H208 Dual-Axis Servo Amplifier
Precision PWM servo drive for CNC systems. Handles dual axes at 230 V input. Rated current from 2 A to 80 A per axis. Air-cooled, vertical mount. Designed for reliable machine tool control.
Technical Specifications
| Brand | FANUC |
| Model | A06B-6079-H208 |
| Product Type | Servo Amplifier (Dual-Axis Drive) |
| Input Voltage | 230 V |
| Rated Current | 2 – 80 A / 80 A (per axis) |
| Frequency | 50/60 Hz |
| Control Interface | PWM |
| Cooling | Air Cooled |
| Mounting | Vertical / Wall-mounted |
| Operating Temperature | 0 °C to 55 °C |
| Protection | Overload, Overcurrent, Overvoltage |
| Weight | 6.80 kg (15.00 lbs) |
Key Features & Performance
- Measurement range: 2 – 80 A continuous per axis, peak handling for dynamic loads.
- Frequency response: 50/60 Hz line adaptation, stable PWM regulation.
- Sensitivity & linearity: High-resolution current loop, <0.1 % linearity for precise torque control.
- Resolution: 16‑bit velocity/current loop, fine motion control.
- Temperature range: 0 °C to 55 °C ambient, derating above 45 °C.
- Environmental tolerance: IP20, non‑condensing, 10‑55 Hz vibration resistance.
- Interference immunity: Built‑in EMC filters, surge protection per IEC 61800‑3.
Installation & Mounting Guide
- Vertical or wall‑mount only (cabinet installation).
- Maintain 100 mm clearance above/below for airflow.
- Use M5 screws, torque 3.5 N·m.
- Connect shielded cables for motor and feedback.
- Ground terminal must be connected first.
Debugging & Maintenance Convenience
- Front LED status indicators: power, run, alarm.
- Easy access to PWM adjustment trimmers.
- Diagnostic alarms via LED blink codes.
- Quick‑release terminal blocks for fast replacement.
- Routine cleaning of air intake every 6 months.
Compatibility
- Designed for FANUC CNC series 0i, 30i, 31i.
- Compatible with FANUC αi and βi servo motors.
- PWM interface matches FANUC standard drives.
- Replaces A06B‑6079‑H206, H207, H210.
Certifications & Standards
- CE marked (LVD and EMC).
- UL 508C listed.
- RoHS compliant.
- IEC 61800‑5‑1 safety.
Package Contents
- 1 × A06B-6079-H208 servo amplifier.
- 1 × user manual (digital download).
- Mounting screws and grounding lug.
- Connector kit (power + signal).
Warranty & Shipping
12‑month warranty against manufacturing defects. Fast delivery via FedEx, UPS, or DHL – global express shipping.
Typical Applications
- CNC milling and turning centers.
- Industrial robotics axis control.
- High‑precision positioning systems.
- Automated packaging machinery.
- Laser cutting and welding equipment.
Diagnostic Capabilities
- Real‑time current monitoring via analog output.
- Overcurrent/overvoltage trip history.
- Thermal warning pre‑alarm.
- LED fault code table (see manual).
- Dynamic brake test mode.
FAQ – Frequently Asked Questions
- Q: Can this drive run single‑axis mode?
A: Yes, just leave one axis unconnected. - Q: What is the maximum cable length?
A: 20 m for motor power, 10 m for encoder. - Q: Does it support 400 V input?
A: No, only 230 V ±10 %. - Q: Is cooling fan replaceable?
A: Yes, field‑replaceable fan unit. - Q: How to reset after overload?
A: Cycle power or press reset button.
