Product Introduction

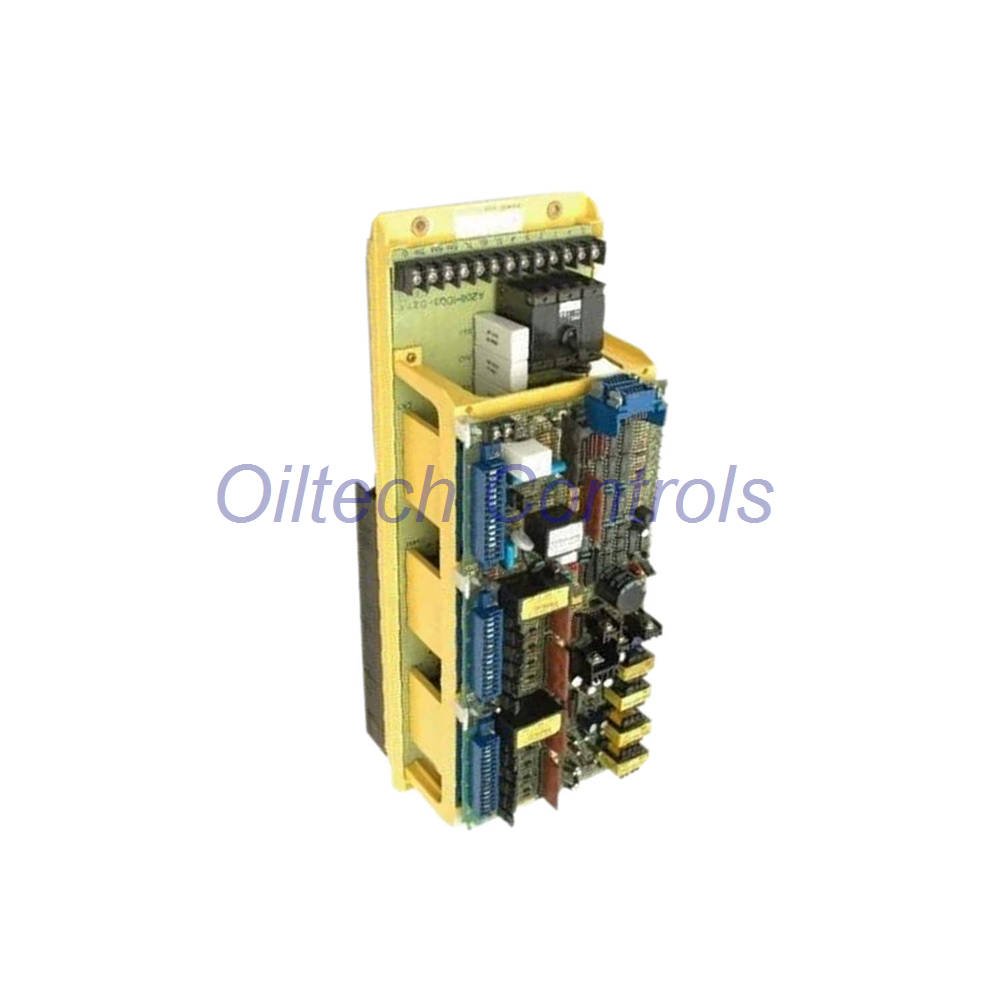

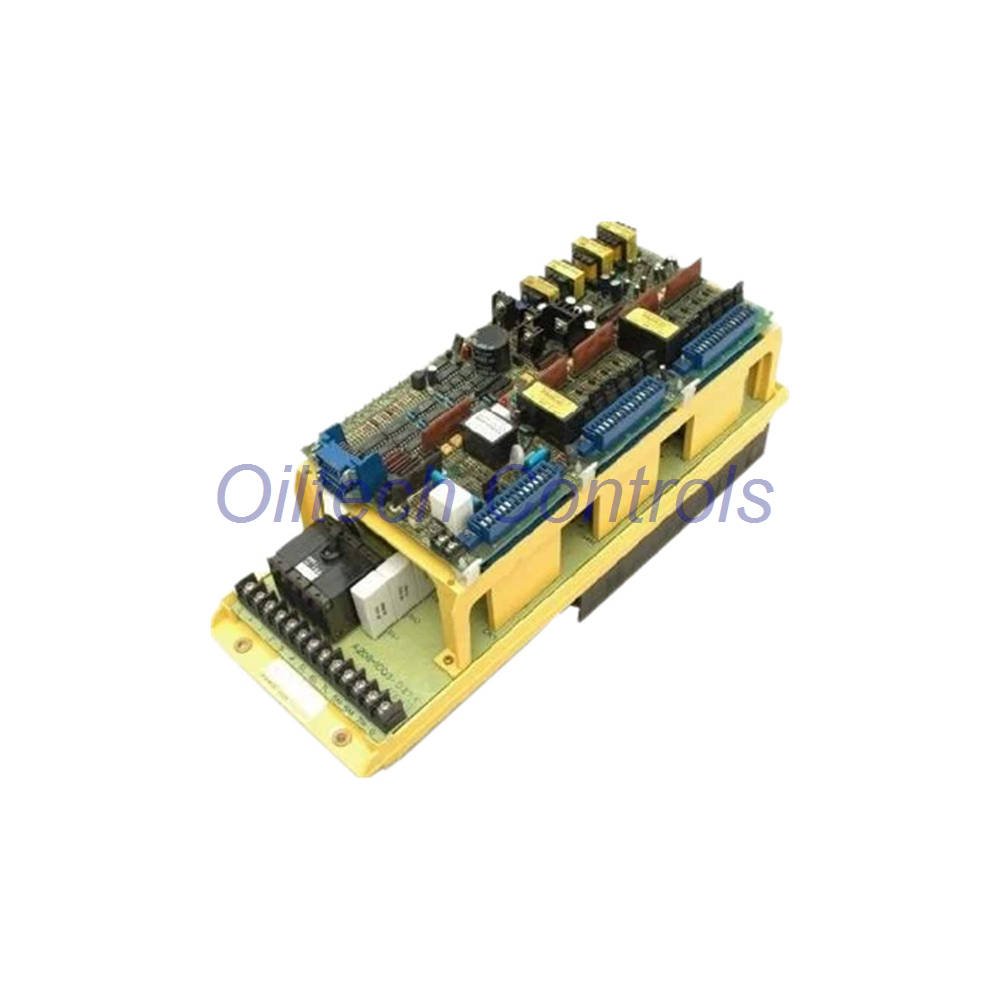

The FANUC A06B-6058-H005 is a rugged servo amplifier for high-duty CNC, robotics, and material handling. It delivers 3.08 kW power and supports PWM interfaces. The open-frame design ensures efficient cooling and easy service access. It operates reliably from 0 to 40 °C and withstands 5G vibration. This unit is rated for altitudes up to 1000 meters. It offers dependable performance in demanding industrial environments.
Technical Specifications
| Brand | FANUC |
| Model | A06B-6058-H005 |
| Series | A06B |
| Type | Servo Amplifier |
| Power Rating | 3.08 kW |
| PWM Interface | Supported |
| Open Frame | Yes |
| Weight | 19.00 lbs (8.62 kg) |
| Operating Temp. | 0 to 40 °C |
| Max Vibration | 5G |
| Max Altitude | 1000 m ASL |
| CNC Support | Yes |
| Robotics Support | Yes |
| Material Handling | Yes |
Performance & Environmental Tolerance
- Frequency response: optimized for fast PWM control loops.
- Sensitivity: high-gain design for precise torque/velocity regulation.
- Linearity: excellent across entire 3.08 kW range.
- Resolution: 16-bit velocity/current feedback.
- Temperature range: 0 to 40 °C (ambient).
- Vibration resistance: 5G (sinusoidal).
- Altitude rating: 1000 m above sea level.
- EMC immunity: designed for high-noise industrial environments.
Installation & Commissioning
- Mount on flat, grounded metal surface for heat dissipation.
- Use shielded cables for PWM and feedback signals.
- Provide 200-230 VAC input with proper fuse protection.
- Connect to FANUC CNC or robot controller via PWM port.
- Initial setup via FANUC software (manual included).
Maintenance & Serviceability
- Open frame design allows quick internal inspection.
- Easy access to cooling fan and connector terminals.
- LED indicators show power, fault, and run status.
- No special tools required for routine cleaning.
Compatibility
- Works with FANUC Series 0i/30i/31i CNCs.
- Supports FANUC R-30iA/R-30iB robot controllers.
- Compatible with most PWM-driven servo motors in A06B series.
- Replaces older A06B-6058-H003/H004 directly.
Certifications
- CE marked (EU compliance).
- UL/cUL listed for US/Canada.
- RoHS compliant.
- Designed to meet EN 61800-3 (EMC).
Package Contents
- A06B-6058-H005 servo amplifier (1 unit).
- Mounting screws and brackets.
- Quick start guide.
- Warranty card (12-month).
Warranty & Shipping
- 12-month warranty against defects.
- Express shipping via FedEx, UPS, DHL.
- Global tracking available for all orders.
Typical Applications
- CNC milling/turning spindle drives.
- Robotic arm axis control.
- Automated conveyor and pick-and-place.
- High-speed material handling systems.
- Packaging and palletizing equipment.
Diagnostic Capabilities
- Built-in overcurrent/overvoltage protection.
- Fault history stored in EEPROM.
- Real-time current and speed monitoring via PWM.
- Error codes displayed on front LEDs.
- Remote diagnostics via controller interface.
FAQ
- Q: Is this a new unit?
A: We offer tested surplus/refurbished options; each unit is verified before shipment. - Q: Can I use it with non-FANUC motors?
A: It is optimized for FANUC PWM motors; compatibility with third-party motors is limited. - Q: What is the lead time?
A: In-stock items ship within 24 hours via FedEx/DHL/UPS. - Q: Does it support 400V input?
A: No, this model requires 200-230 VAC.
