FANUC A06B-6124-H208 Servo Amplifier | 2-Axis 400V Module

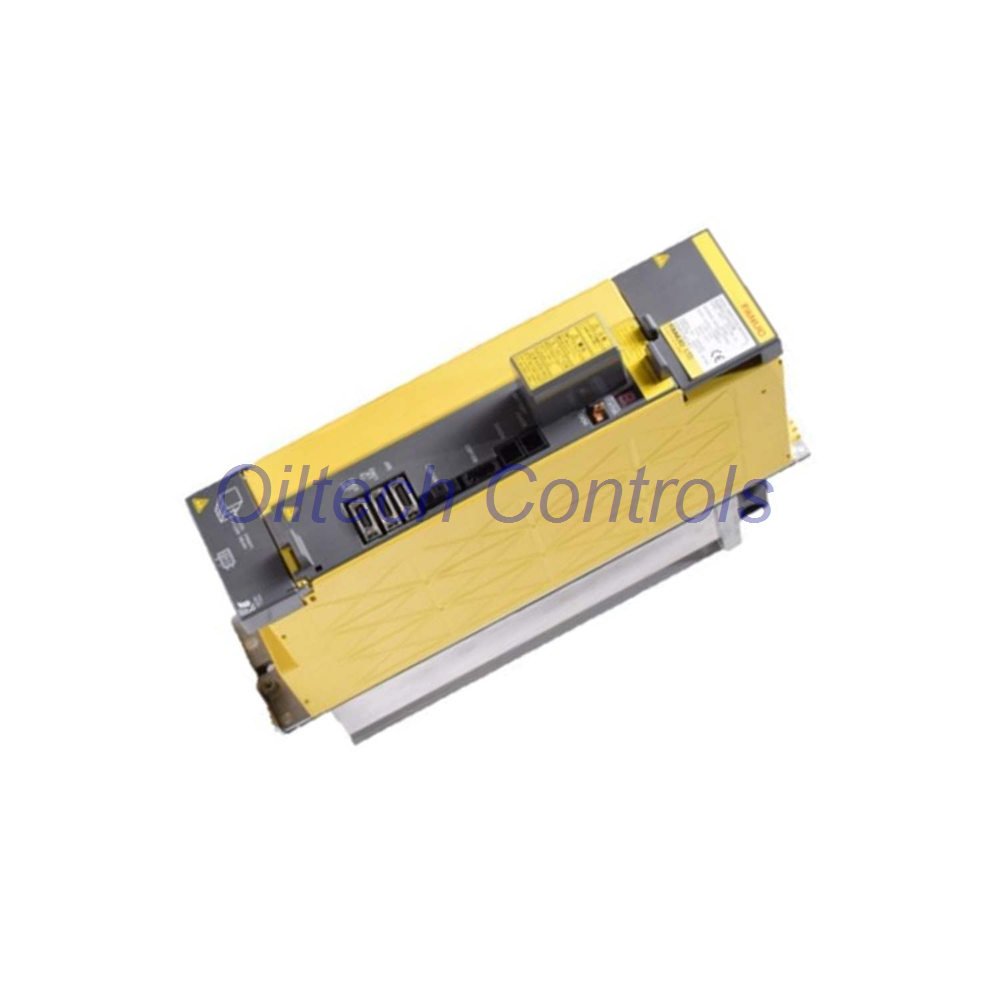

A06B-6124-H208 Servo Amplifier Module by FANUC

A06B-6124-H208 is a robust 2‑axis servo amplifier for precise motion control. It runs on 400‑480 VAC three‑phase mains. The control supply accepts 200‑240 VAC single‑phase. Rated currents are 13 A and 19 A, with nominal limits of 40 A and 80 A. It withstands vibrations below 0.5G and operates from 0 to 55 °C. This module ensures reliable automation in demanding environments.

Key Technical Specifications

• Brand: FANUC
• Model: A06B-6124-H208
• Series: A06B
• Type: 2‑axis servo amplifier
• Mains voltage: 400‑480 VAC, 3‑phase
• Control voltage: 200‑240 VAC, single‑phase
• Rated current (axis 1/2): 13 A / 19 A
• Current limit (axis 1/2): 40 A / 80 A
• Frequency: 50/60 Hz ±1 Hz
• Voltage deviation: -15 % to +10 %
• Power failure hold: 3 ms
• Ambient temp (operation): 0 to 55 °C
• Storage temp: -20 to 60 °C
• Humidity: ≤90 % RH (non‑condensing)
• Vibration tolerance: < 0.5G
• Weight: 8.16 kg (18.00 lbs)

Installation & Commissioning

• Mount on a flat, rigid surface with adequate ventilation.
• Use shielded cables for power and feedback lines.
• Set proper earth grounding to avoid noise issues.
• Auto‑tuning function simplifies initial gain adjustment.
• Diagnostic LEDs show status and fault codes.
• Removable terminal blocks ease wiring and maintenance.

Compatibility & Diagnostics

• Works with FANUC CNC systems and motion controllers.
• Supports both position and velocity control modes.
• Built‑in overcurrent, overvoltage, and thermal protection.
• Real‑time current and speed monitoring via software.
• Fault history log helps rapid troubleshooting.
• Compatible with FANUC SERIES 30i/31i/32i controls.

Environmental Resilience

• Operates reliably in 0‑55 °C ambient temperature.
• Stores safely from -20 °C to 60 °C.
• Handles 90 % RH humidity without condensation.
• Resists vibration up to 0.5G for stable performance.
• Built to withstand voltage dips and short interruptions.

Certifications & Packing

• CE marked and UL recognized for industrial use.
• Complies with RoHS and REACH directives.
• Package includes: amplifier module, terminal blocks, and manual.
• Optional mounting brackets and cable kits available.

12‑Month Warranty & Shipping

• Warranty: 12 months against defects.
• Shipping: FedEx, UPS, DHL worldwide.
• Tracked express delivery with insurance.
• All units tested before shipment.

Typical Applications

• CNC machining centers and lathes.
• Robotic arms and pick‑and‑place systems.
• Automated assembly lines and conveyors.
• High‑speed packaging machinery.
• Precision positioning stages and gantries.

FAQ – Quick Answers

• Q: Can it run a single axis? A: Yes, you can use only one axis.
• Q: Does it support 460 VAC? A: Yes, within 400‑480 VAC range.
• Q: Are cables included? A: No, cables are sold separately.
• Q: How to reset faults? A: Cycle power or use reset signal.
• Q: Is setup software needed? A: Use FANUC servo parameter tool.
