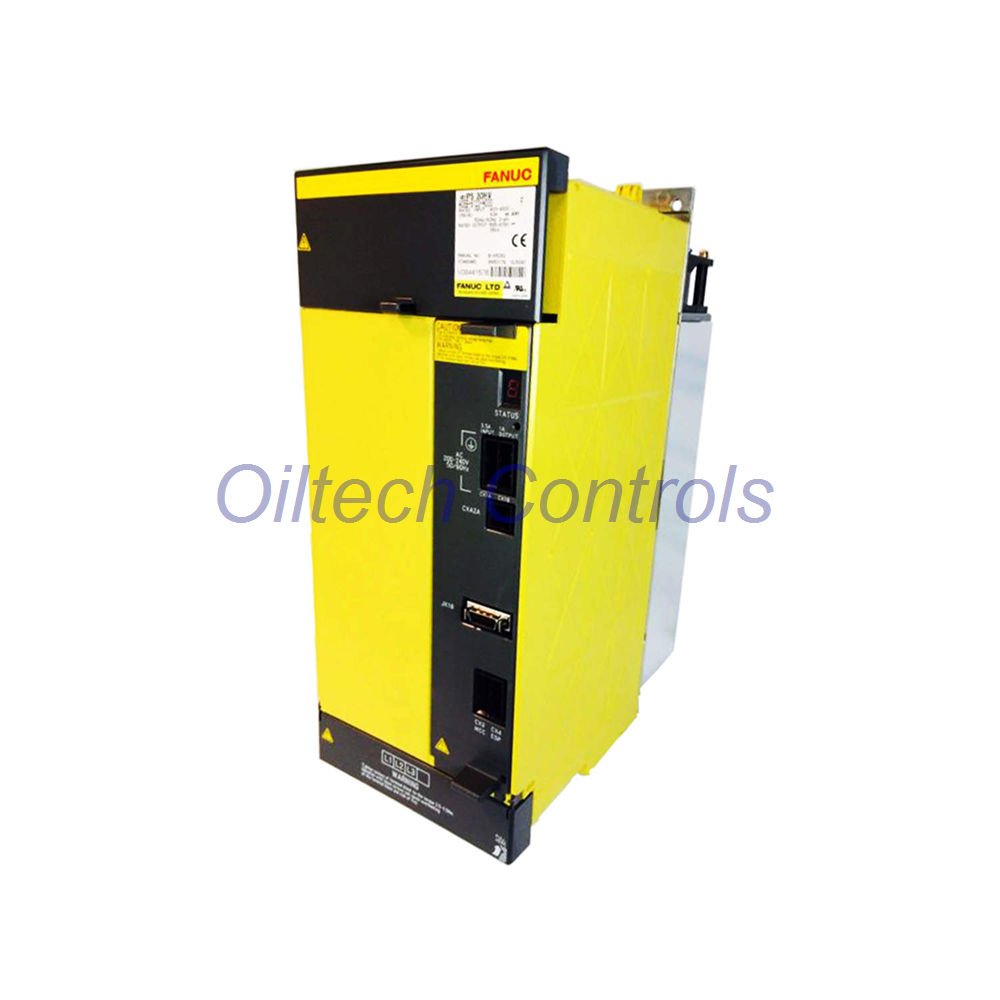

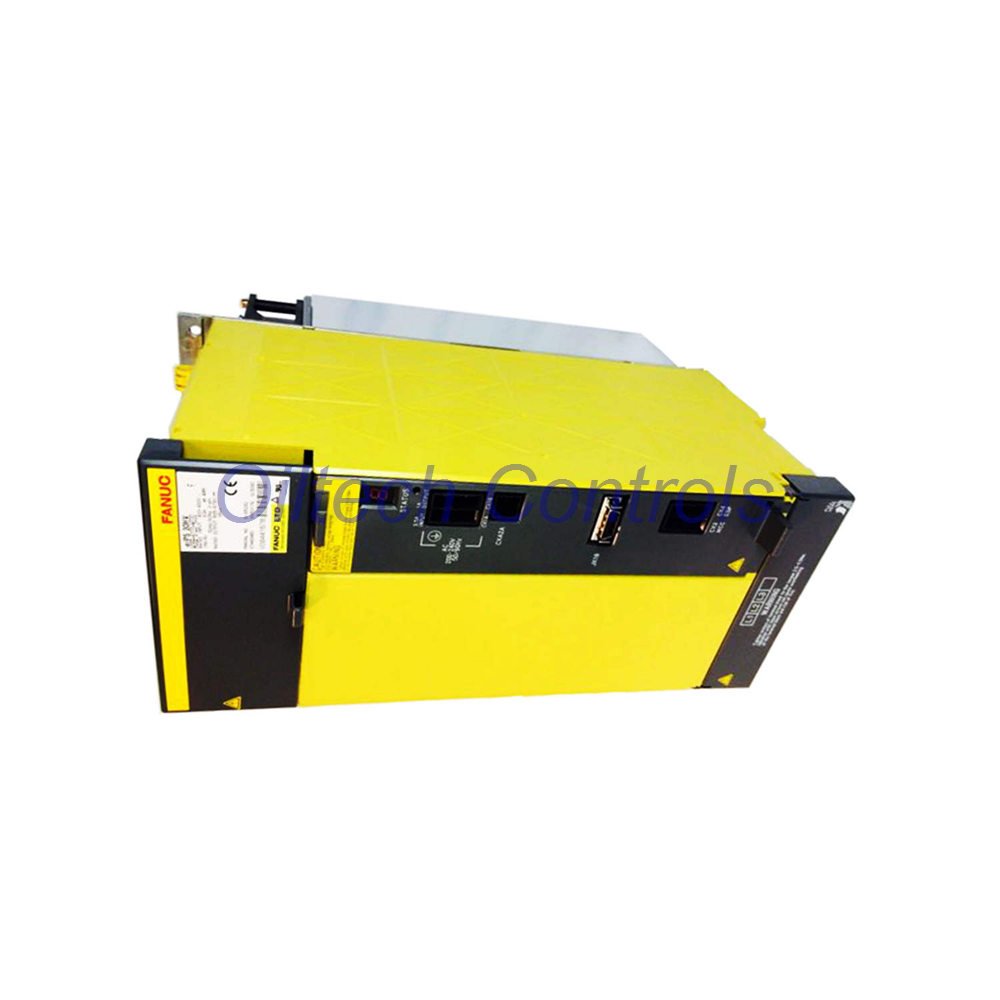

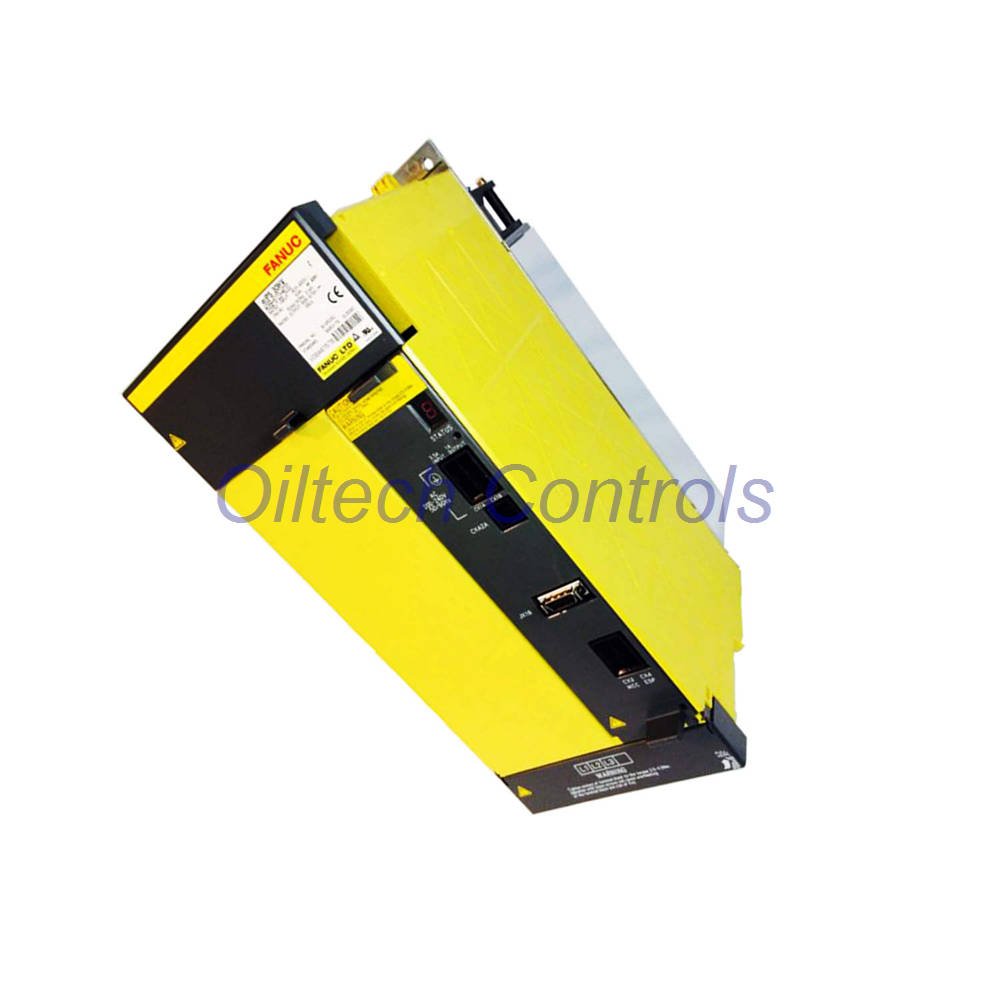

Product Brief: FANUC A06B-6100-H001 Servo Amplifier
This 6-axis servo amplifier drives complex automation with precision. It accepts 200-230V 3-phase AC input and delivers up to 230V output. The unit operates reliably from 0 to 40 °C and withstands 5G vibration. It supports altitudes up to 1000 meters above sea level. Ideal for CNC and robotic systems requiring multi-axis control.
Technical Specifications
| Brand | FANUC |
| Series | A06B |
| Part Number | A06B-6100-H001 |
| Product Type | Servo Amplifier |
| Controlled Axes | 6 Axes |
| Input Voltage | 200-230V (3-phase AC) |
| Max Output Voltage | 230V |
| Frequency | 50/60 Hz |
| Operating Temperature | 0 to 40 °C |
| Max Vibration | 5G |
| Max Altitude | 1000 m above sea level |
| Weight | 35.00 lbs (15.88 kg) |
- Frequency Response: Supports 50/60 Hz grid compatibility.
- Sensitivity & Linearity: Precision-tuned for smooth torque and speed control.
- Resolution: High-resolution pulse feedback for accurate positioning.
- Environmental Tolerance: Operates in 0-40 °C, 5G vibration, and 1000m altitude.
- Noise Immunity: Built-in shielding and filtering reduce electrical interference.
Installation & Mounting Guide
- Mount vertically on a flat, conductive backplane.
- Ensure adequate airflow; maintain 10 cm clearance around the unit.
- Use shielded cables for power and signal lines.
- Torque terminal screws to specified values (see manual).
- Ground the frame securely to avoid noise and safety hazards.
Debugging, Maintenance & Compatibility
- Debugging: Front-panel LEDs and diagnostic ports simplify setup.
- Maintenance: Regularly check cooling fans and terminal tightness.
- Compatibility: Fully compatible with FANUC CNC and robotics systems.
- Supports standard fieldbus and I/O interfaces for easy integration.
Certifications & Package
- Certifications: CE, UL, and RoHS compliant.
- Package Contents: Servo amplifier, terminal cover, and quick-start guide.
- Warranty: 12-month warranty against manufacturing defects.
Shipping & Logistics
- Carriers: FedEx, UPS, DHL – global express shipping.
- All shipments include tracking and insurance.
Typical Applications & Diagnostics
- Applications: CNC machining centers, robotic arms, automated assembly lines.
- Diagnostic Capability: Real-time status monitoring via built-in fault logs.
- LED indicators show overcurrent, overheat, and short-circuit conditions.
FAQ – Frequently Asked Questions
- Q: Can this unit replace A06B-6100-H002?
A: No, they have different axis ratings and I/O configurations. - Q: Is it compatible with 60Hz only?
A: It works with both 50Hz and 60Hz systems. - Q: What is the typical lifespan?
A: With proper cooling, it exceeds 10 years in normal use.
Why Buy From Oiltech Controls?
- ✓ Over 15 years in industrial automation spare parts.
- ✓ Global shipping with real-time tracking.
- ✓ Tested surplus and refurbished options available.
- ✓ 12-month warranty on all products.
- ✓ Technical verification before dispatch.
- ✓ Support for obsolete and legacy control systems.
