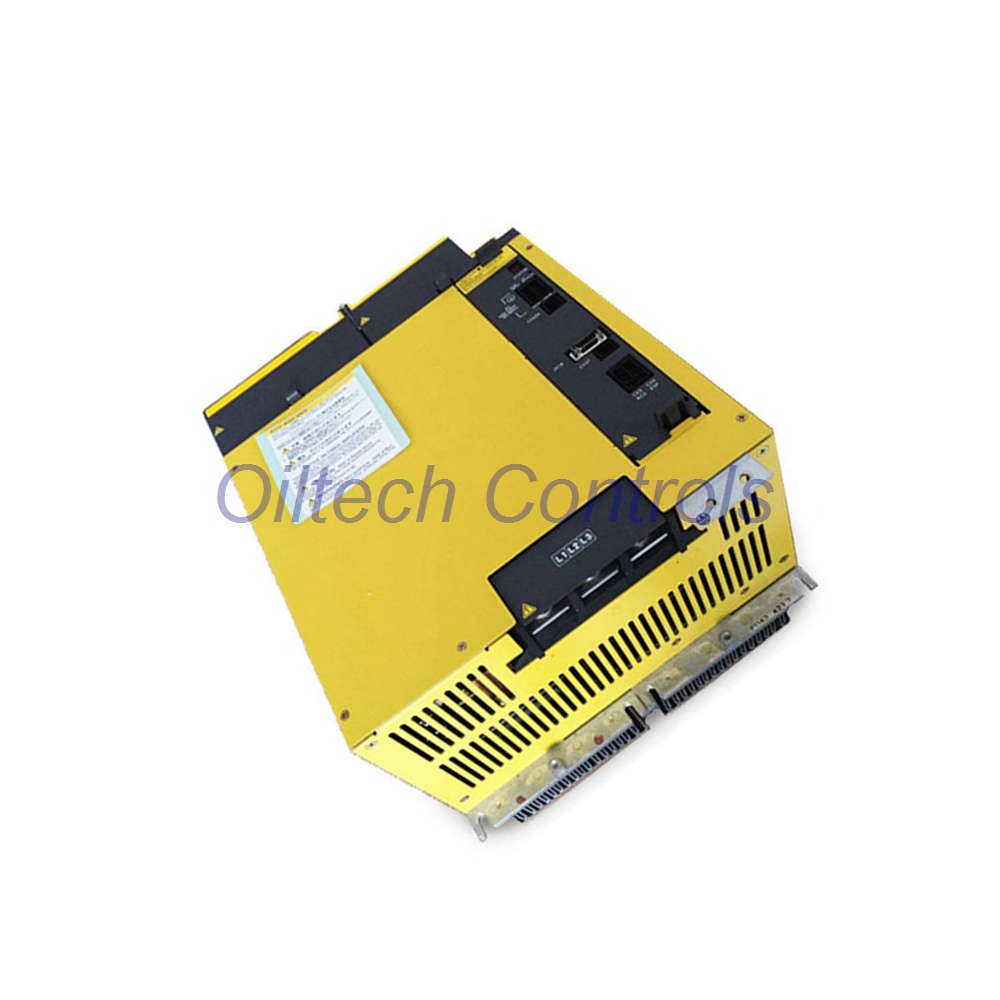

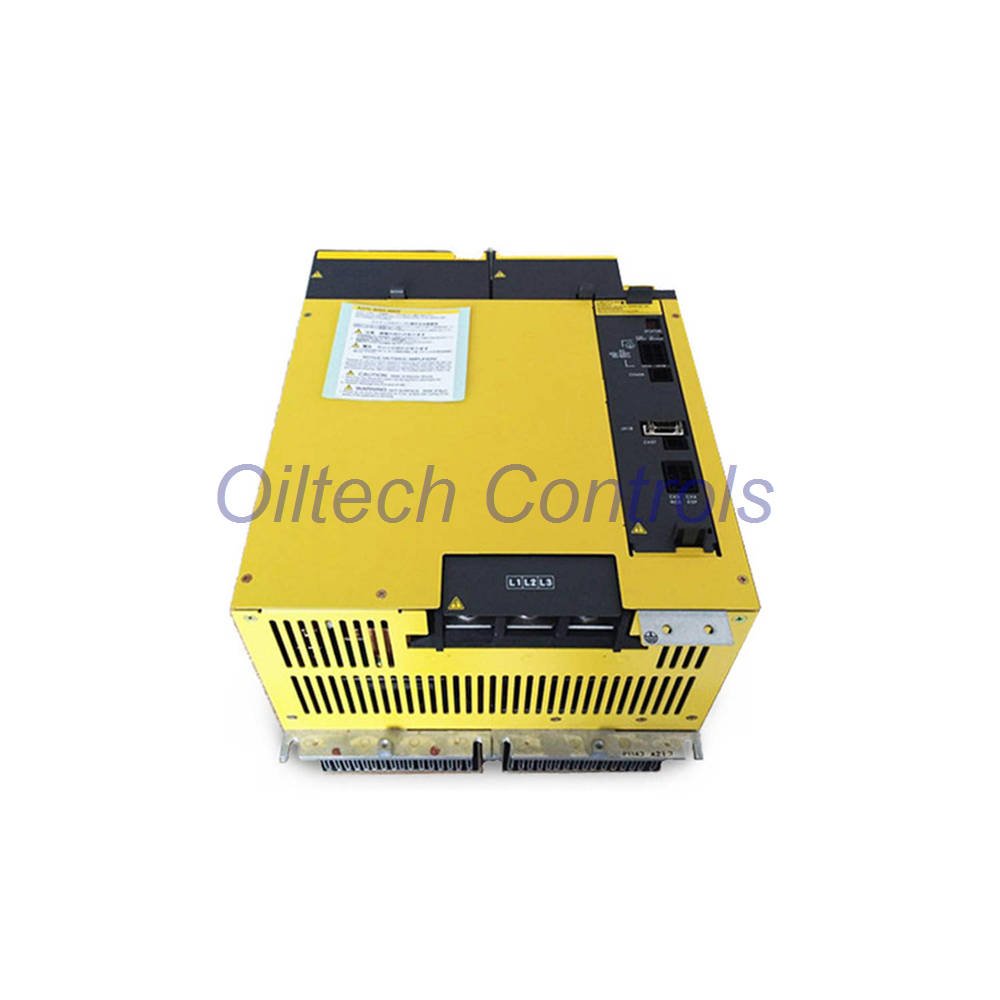

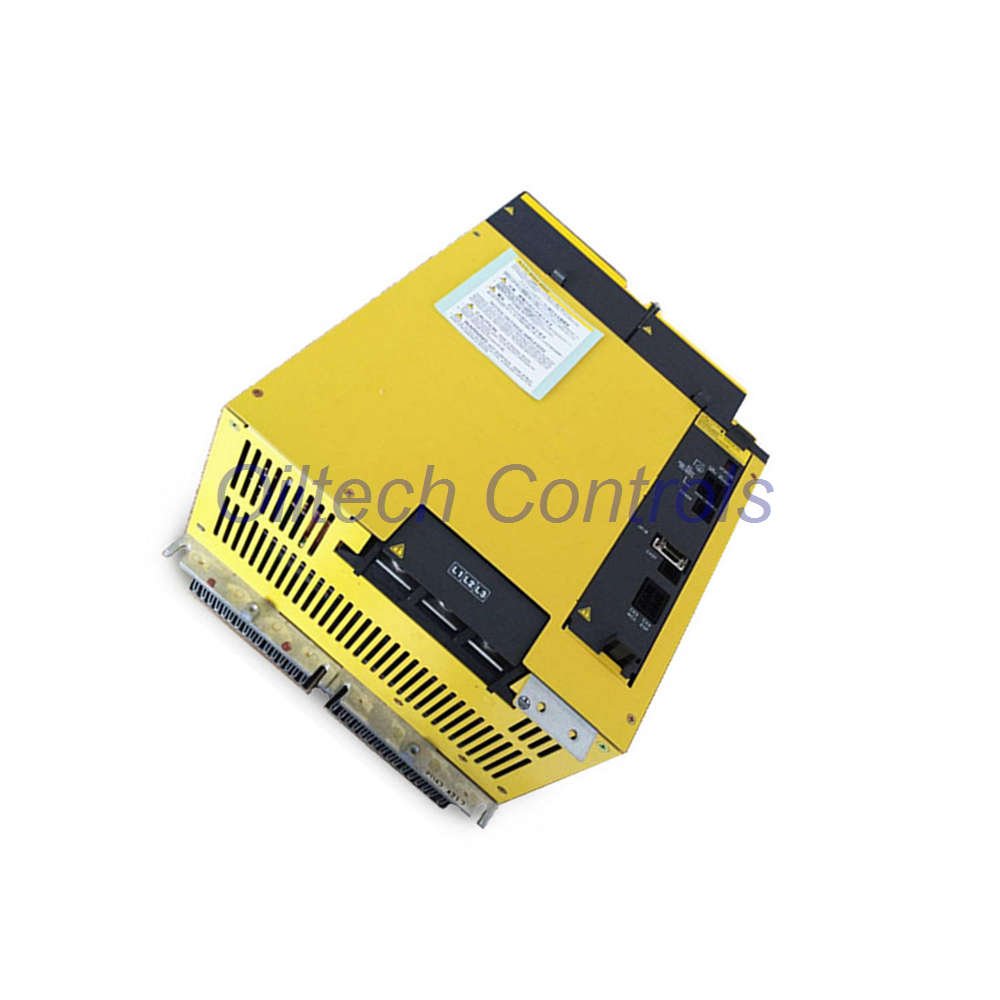

A06B-6140-H055 FANUC Amplifier | 200V Class 65kW Drive

A06B-6140-H055 – FANUC 200V Servo Amplifier Module

A06B-6140-H055 is a high‑power 200V‑class servo amplifier from FANUC. It delivers 65 kW output with 228 A input current. This 3‑phase unit runs on 200‑240 VAC and produces 283‑339 VAC output. Built for heavy CNC, presses, and large robots.

Oiltech Controls’s Insight

• This amplifier suits high‑torque, high‑inertia loads.
• Common in FANUC 30i/31i controlled machining centres.
• Matched with large alpha i servo motors (e.g. 40/50 series).
• Ideal for dual‑axis synchronous applications.
• Provides stable current even under 150 % overload.

Where to Use This Amplifier

• Large CNC lathes and vertical machining centres.
• Heavy‑duty robotic arms and transfer lines.
• Press feeders and injection moulding machines.
• Wind turbine pitch control systems.
• Test stands and dynamometers.

Technical Data – Quick Reference

• Brand / Series: FANUC A06B
• Model: A06B-6140-H055
• Voltage class: 200 V
• Input voltage: 200‑240 VAC, 3‑phase
• Input current: 228 A
• Frequency: 50/60 Hz
• Output voltage: 283‑339 VAC
• Rated output: 65 kW
• Dimensions (H×W×D): 38 × 30 × 27.2 cm
• Weight: 20.41 kg (45 lbs)

Installation & Environmental Tolerances

• Mount vertically with 10 cm clearance for airflow.
• Ambient temp: 0 to 55 °C (operation).
• Storage: -20 to 60 °C.
• Humidity: ≤90 % RH, non‑condensing.
• Vibration: < 0.5G (operational).
• Use external line reactor for harmonic reduction.

Diagnostics & Maintenance

• LED status: ready, alarm, and axis select.
• Overcurrent and overheat protection built‑in.
• RS‑232 port for parameter backup.
• Fan filter cleaning recommended every 3 months.
• Fault codes available in FANUC alarm manual.

Compatibility & System Integration

• Matches FANUC αi/βi series servo motors.
• Works with CNC series 0i, 30i, 31i, 32i.
• Supports pulse train and analog torque commands.
• Fits standard 19″ rack or panel mount.
• Use dedicated FANUC feedback cable (e.g. A06B‑6064‑K…).

Shipping & Warranty

• Warranty: 12 months against defects.
• Dispatch: within 24‑28 hours of order.
• Carriers: FedEx, UPS, DHL (tracked).
• All units undergo final functional test.

5 Professional FAQs with Buying Advice

• Q1: Can this replace an A06B‑6140‑H045?
  A: Yes, but check the current rating. This H055 provides 228 A vs 200 A – better for heavy cuts. Verify motor compatibility.
• Q2: Do I need a separate regenerative unit?
  A: For high‑deceleration loads, yes. We recommend A06B‑6087‑HXXX series. Our engineers can size it for your application.
• Q3: What cable set is required?
  A: Use FANUC power cable A06B‑6093‑K… and feedback cable A06B‑6064‑K…. We stock both – ask for a bundle deal.
• Q4: Can it run in single‑phase?
  A: No – strictly 3‑phase. Running on single‑phase will trigger undervoltage alarm.
• Q5: How to choose between this and A06B‑6140‑H045?
  A: Choose H055 for spindle or dual‑axis heavy milling. For lighter duty, H045 is more cost‑effective. Share your motor model – we guide you.
