Product Introduction

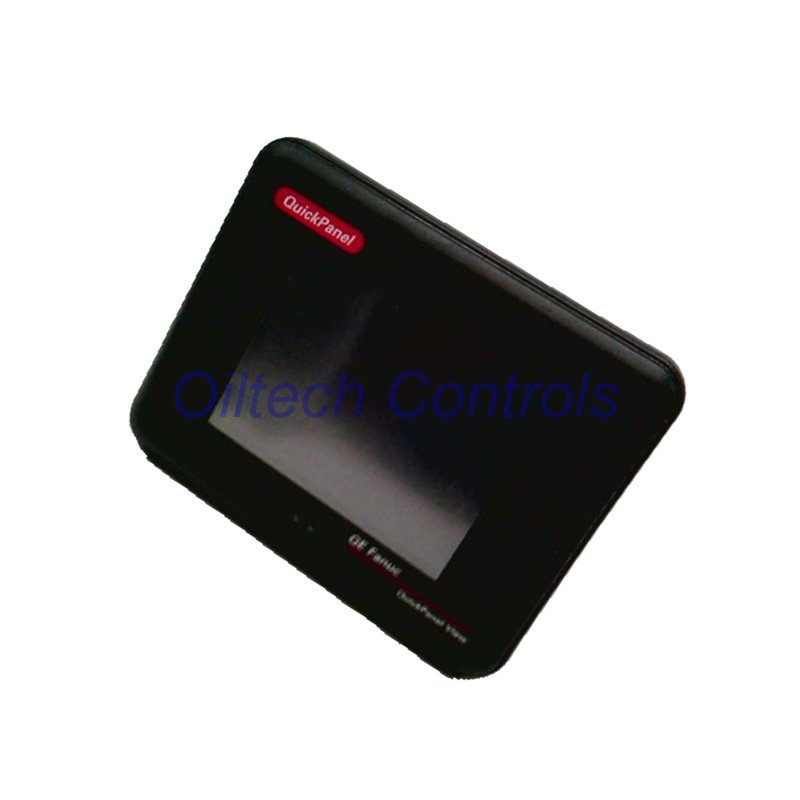

The IC754VSI12MTD is a GE Fanuc Emerson QuickPanel HMI. This industrial operator interface has a 12-inch screen. It helps workers control and monitor machines easily.
Complete Technical Specifications
- Brand: GE Fanuc / Emerson
- Model: IC754VSI12MTD
- Product Line: QuickPanel
- Display Size: 12.1 inches diagonal
- Display Type: Monochrome TFT, 256 shades of gray
- Display Resolution: 800 x 600 pixels (SVGA)
- Touch Technology: Resistive touchscreen
- Backlight Life: 50,000 hours (non-replaceable)
- Processor: XScale CPU at 300 MHz
- Memory: 32 MB DRAM (expandable to 96 MB)
- Storage: CompactFlash Type II slot (supports 512 MB card)
- Operating System: Microsoft Windows CE
- Pre-installed Software: Proficy View Machine Edition
- Communication Ports: 1x RS232, 1x RS485, 1x 10/100 Ethernet
- Expansion Slot: For optional Genius, DH+, DeviceNet, Profibus modules
- Power Supply: 12-24 VDC (±20%)
- Power Consumption: 36W typical, 48W maximum at 24VDC
- Enclosure Rating: IP65, NEMA 4/12/4X
- Cutout Dimensions: 302 x 228 x 60 mm
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Operating Humidity: 10% to 90% RH non-condensing
- Weight: 15 lbs (6.8 kg)
- Recommended Cable: HMI-CAB-C94 communication cable
Installation & Setup
- Prepare panel cutout: 302 mm x 228 mm.
- Use 12-18 AWG wire for power connections.
- Mount securely in industrial control panel.
- Connect communication cables to PLC or controller.
Warranty & Support
- 12-month quality warranty from shipment date.
- Technical support available for installation and configuration.
Shipping Information
- Global shipping via FedEx, UPS, and DHL.
- Real-time tracking provided for all orders.
- Fast order processing and dispatch.
Common Applications
- Machine operation and monitoring panels
- Industrial process control interfaces
- Factory automation visualization
- Equipment status display and control
Frequently Asked Questions
Can I replace the backlight when it fails?
No, the backlight is not user-replaceable. It has a rated life of 50,000 hours.
What software do I need to program this HMI?
It comes with Proficy View Machine Edition. You use this software to create your screens.
Can I connect this to a Siemens PLC?
Yes, through the serial or Ethernet ports. For Profibus, you need an optional communication module.
From experience, what is the most common installation mistake?
Not checking the power supply voltage carefully. The unit accepts 12-24V DC, but the tolerance is ±20%. An unstable power source can cause issues.
How do I choose between this and a color HMI?
Choose the IC754VSI12MTD for basic monitoring and control. It is cost-effective and very reliable. Choose a color model if you need detailed graphics or color-coded alarms.
