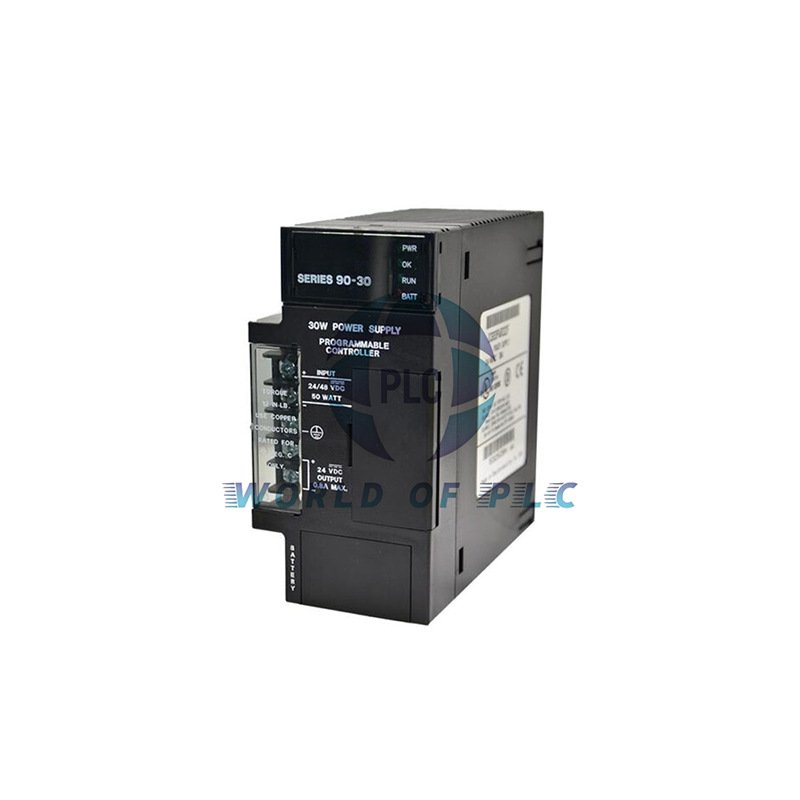

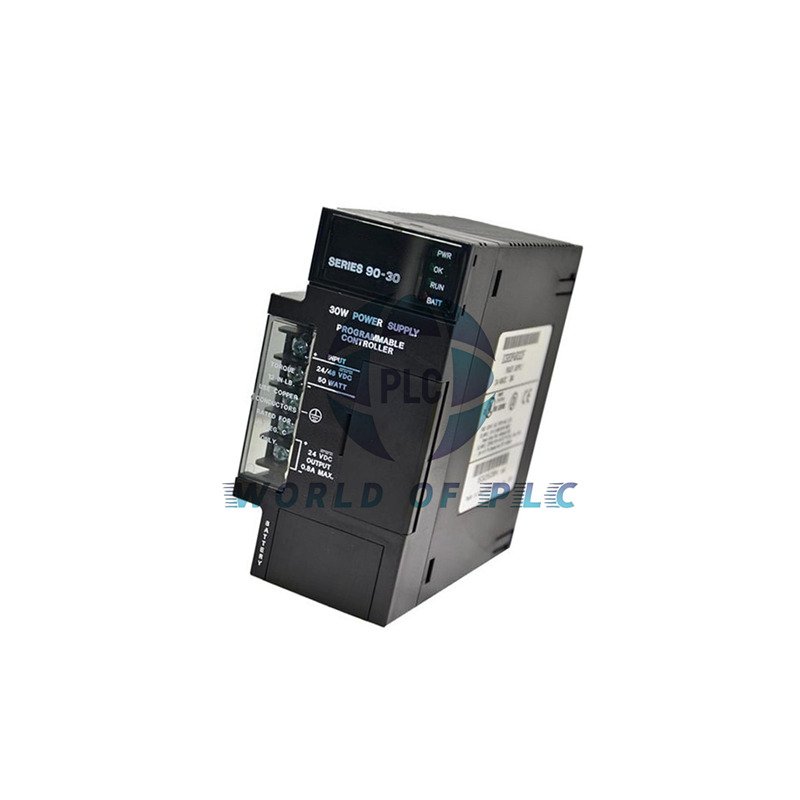

GE Fanuc IC693PWR322 Power Supply for Series 90-30 PLC
This 30 Watt power supply reliably powers your GE Series 90-30 PLC system. It converts a 24/48VDC input into three separate outputs to run your backplane, I/O modules, and relays. With clear status lights and a communication port, it is a simple and strong foundation for your industrial control cabinet.
Key Features
• Three Outputs: +5VDC (15W), +24VDC Isolated (20W), +24VDC Relay (15W).
• Wide Input Range: Works from 18 to 56 VDC.
• Status Monitoring: Four LED indicators (PWR, OK, RUN, BATT).
• Built-in Communication: RS-485 port for easy programming.
• Strong Protection: Built-in overvoltage and overcurrent safety.
Technical Specifications
Brand: GE Fanuc
Model: IC693PWR322
Series: Series 90-30
Input Voltage: 24/48 VDC (18 – 56 VDC Range)
Total Power: 30 Watts
Output 1 (+5V): 15W (For backplane power)
Output 2 (+24V Isolated): 20W (For input modules)
Output 3 (+24V Relay): 15W (For relay outputs)
Holdup Time: 14 ms minimum
Inrush Current: 4A peak for 100ms
Communication Port: RS-485 (9-pin)
Installation & Compatibility
This IC693PWR322 module installs directly into any Series 90-30 rack. Always disconnect input power before wiring. It is compatible with all Series 90-30 CPUs and modules.
Package Contents
• 1 x IC693PWR322 Power Supply Module
• Documentation Guide
Shipping & Warranty
We ship quickly worldwide using FedEx, UPS, and DHL. Your purchase is protected by our 12-month warranty for peace of mind.
Frequently Asked Questions (FAQ)
Q1: What does the +24VDC Isolated output power?
A: It powers 24VDC input modules and can supply power to external devices.
Q2: Can I use this with a 120VAC power source?
A: No. The IC693PWR322 requires a DC input voltage. You will need an external power converter for AC.
Q3: What is the RS-485 port used for?
A: It is used to connect a programming laptop or a handheld programmer to the PLC.
Q4: What does the BATT LED indicate?
A: It shows the status of the memory backup battery. It lights up if the battery is low or missing.
Q5: How do I replace the backup battery?
A: The battery is user-replaceable. Use the recommended replacement battery model IC693ACC301.
