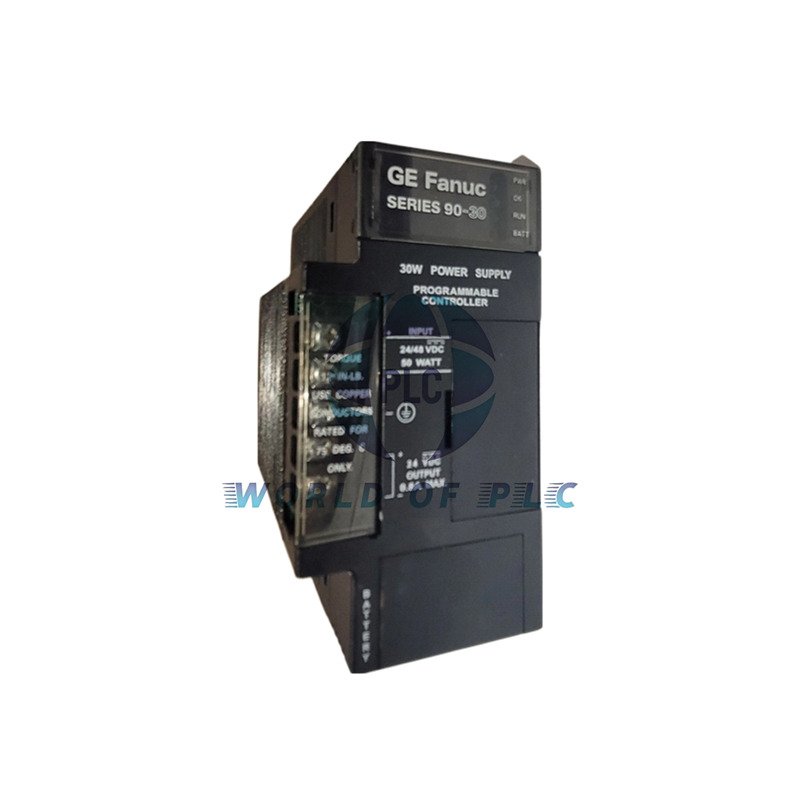

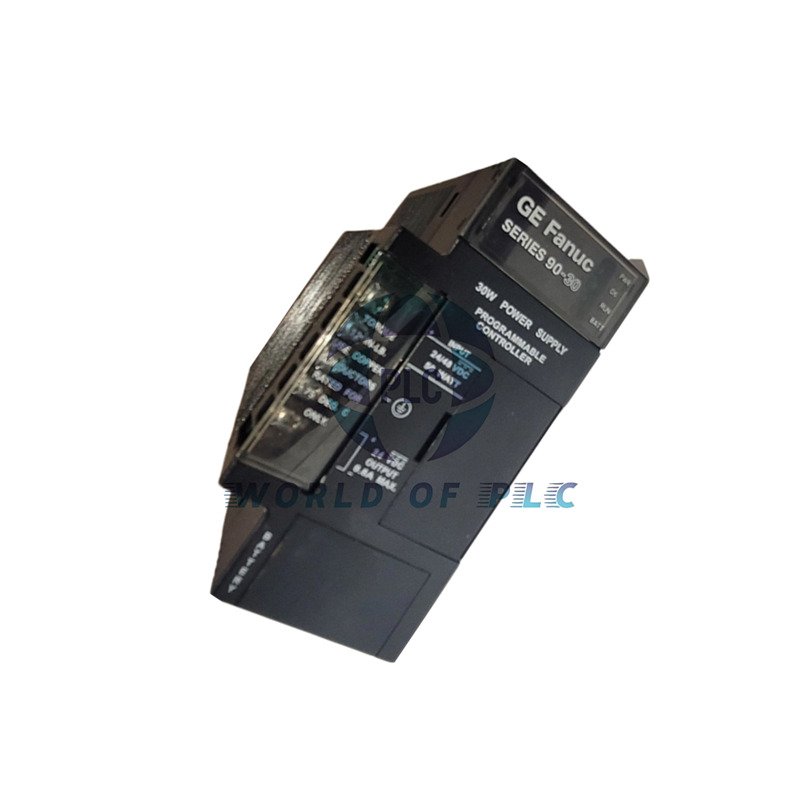

GE Fanuc IC693PWR332 12VDC Power Supply for Series 90-30 PLC
Run your Series 90-30 system from a low-voltage DC source with the IC693PWR332 power supply. Perfect for mobile applications or locations where only 12VDC is available. This robust 30W unit delivers clean, stable power to your entire PLC rack.
Technical Specifications
Brand: GE Fanuc
Model: IC693PWR332
Series: Series 90-30
Nominal Input Voltage: 12 VDC
Input Voltage Range: 9.6 to 15 VDC
Total Power: 30 Watts
Max Input Power: 50 Watts
Output 1 (+5V): 30W max
Output 2 (+24V Isolated): 20W max
Output 3 (+24V Relay): 15W max
Inrush Current: 4A peak for 100ms
Ride-Through Time: 10 ms minimum
Communication Port: RS-485
Max Operating Temp: 50°C (122°F)
Installation Guide
Install the IC693PWR332 in any slot of a Series 90-30 rack. Connect your 9.6-15VDC power source, observing correct polarity. Ensure the operating environment stays below 50°C.
Package Contents
• 1 x IC693PWR332 Power Supply Module
• Documentation Guide
Shipping & Warranty
Fast global shipping via FedEx, UPS, and DHL. Your purchase is protected by our 12-month warranty.
Frequently Asked Questions (FAQ)
- Q1: What is the main use for this power supply?
A: It is designed to power a Series 90-30 PLC from a 12VDC source, like a battery or vehicle electrical system. - Q2: Can I use a car battery to power this unit?
A: Yes. The input range (9.6-15VDC) is compatible with standard 12V vehicle electrical systems. - Q3: What does the “ride-through time” mean?
A: It is the minimum time the power supply can maintain output during a brief loss of input power (10ms). - Q4: How do I know if the power supply is working?
A: The module has four status indicator LEDs (PWR, OK, RUN, BATT) to show its operational status. - Q5: Is this power supply protected from voltage spikes?
A: Yes, it includes protective limits for overvoltage and overcurrent conditions on the 5VDC output.
