GE Fanuc Power Supply | PACSystems RX3i 40W Universal – IC695PSA040

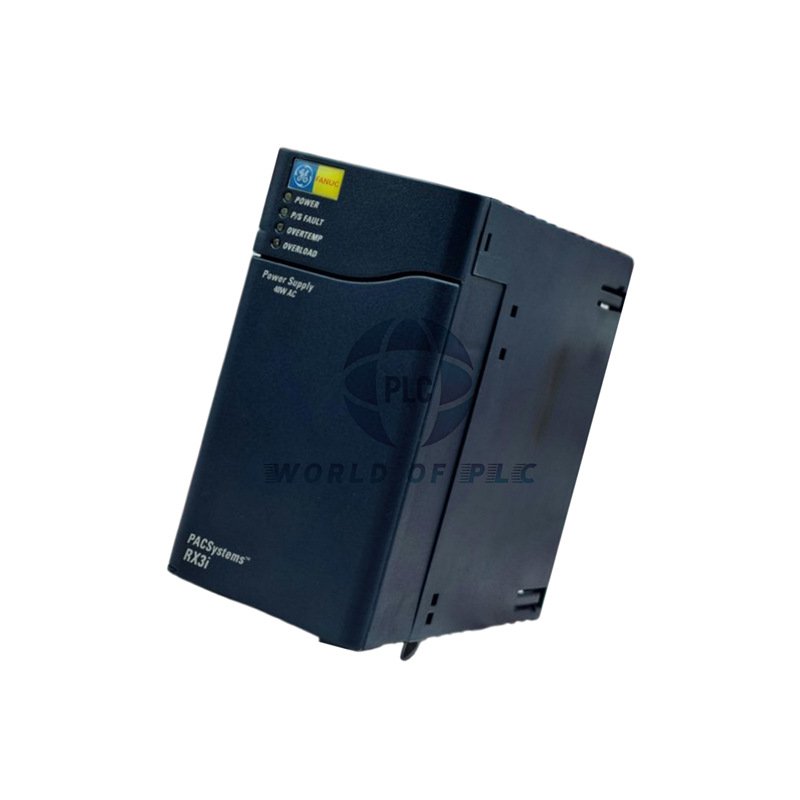

GE Fanuc IC695PSA040 40-Watt Universal Power Supply

The IC695PSA040 from GE Intelligent Platforms delivers reliable power distribution for PACSystems RX3i universal backplanes. This versatile 40-watt power supply accepts both AC and DC input voltages for flexible installation. It provides three regulated output voltages to support all RX3i system components and external circuitry.

Technical Specifications & Performance Data

• Brand: GE Intelligent Platforms/GE Fanuc
• Model: IC695PSA040
• Power Supply Type: Universal Base Power Supply
• Output Power Rating: 40 Watts maximum
• Input Voltage Range: 85-264V AC / 100-300V DC
• Nominal Input Voltage: 120/240V AC or 125V DC
• Input Power Consumption: 70 Watts at full load
• Output Voltages: +3.3V DC, +5.1V DC, +24V DC relay
• Input Protection: Withstands 4A for 250ms maximum
• Isolation Rating: 1500V AC for 1 minute

Output Current Capabilities & Ranges

• +3.3V DC Output: 0-9A maximum current capacity
• +5.1V DC Output: 0-6A maximum current capacity
• +24V DC Relay Output: 0-1.6A maximum current capacity
• Output Voltage Tolerance: ±2% for all output channels
• Current Per Terminal: 6 Amperes maximum rating
• Efficiency Rating: >85% at typical load conditions

Physical Design & Safety Features

• The IC695PSA040 features four comprehensive LED indicators
• It includes Power, P/S Fault, Over Temperature, and Overload LEDs
• This power supply has a protected ON/OFF switch behind hinged door
• The switch features a projecting safety tab to prevent accidental operation
• It provides continuous 250V AC isolation between input and backplane
• The unit maintains universal backplane compatibility only

System Configuration & Limitations

• Each RX3i rack supports maximum of four IC695PSA040 units
• You cannot mix different power supply models in same backplane
• This power supply does not support redundancy configurations
• High-power modules may require installation in expansion backplanes
• The unit operates within 0°C to 60°C temperature range

Voltage Regulation & Output Stability

• +3.3V DC Output Range: 3.1V DC to 3.5V DC
• +5.1V DC Output Range: 5.0V DC to 5.2V DC
• +24V DC Output Range: 19.2V DC to 28.8V DC
• Line Regulation: ±1% for input voltage variations
• Load Regulation: ±2% for load current changes
• Ripple and Noise: <50mV peak-to-peak maximum

Packaging & Shipping Information

• Your order includes one IC695PSA040 Universal Power Supply Module
• All products ship with comprehensive 12-month warranty coverage
• We provide worldwide shipping via FedEx, UPS, and DHL services
• Standard packaging includes installation and safety documentation

Comparison with Related RX3i Components

• The IC695PSA040 provides essential backplane power distribution
• For CPU battery connectivity, consider the IC695CBL003 cable
• The IC695CEP001 CEP carrier requires stable power from this supply

Professional FAQ Section

• Can I use both AC and DC power sources with this supply?
• Yes, the power supply accepts either 85-264V AC or 100-300V DC input sources.
• What do the four LED indicators on the front represent?
• They show Power status, Power Supply Fault, Over Temperature, and Overload conditions.
• How many power supplies can I install in one RX3i rack?
• You can install up to four IC695PSA040 power supplies in a single universal backplane.
• What is the purpose of the 24V DC relay output?
• This output powers external circuitry and output relay modules in your control system.
• Can I mix this power supply with other RX3i power supply models?
• No, you cannot mix different power supply models within the same backplane.
