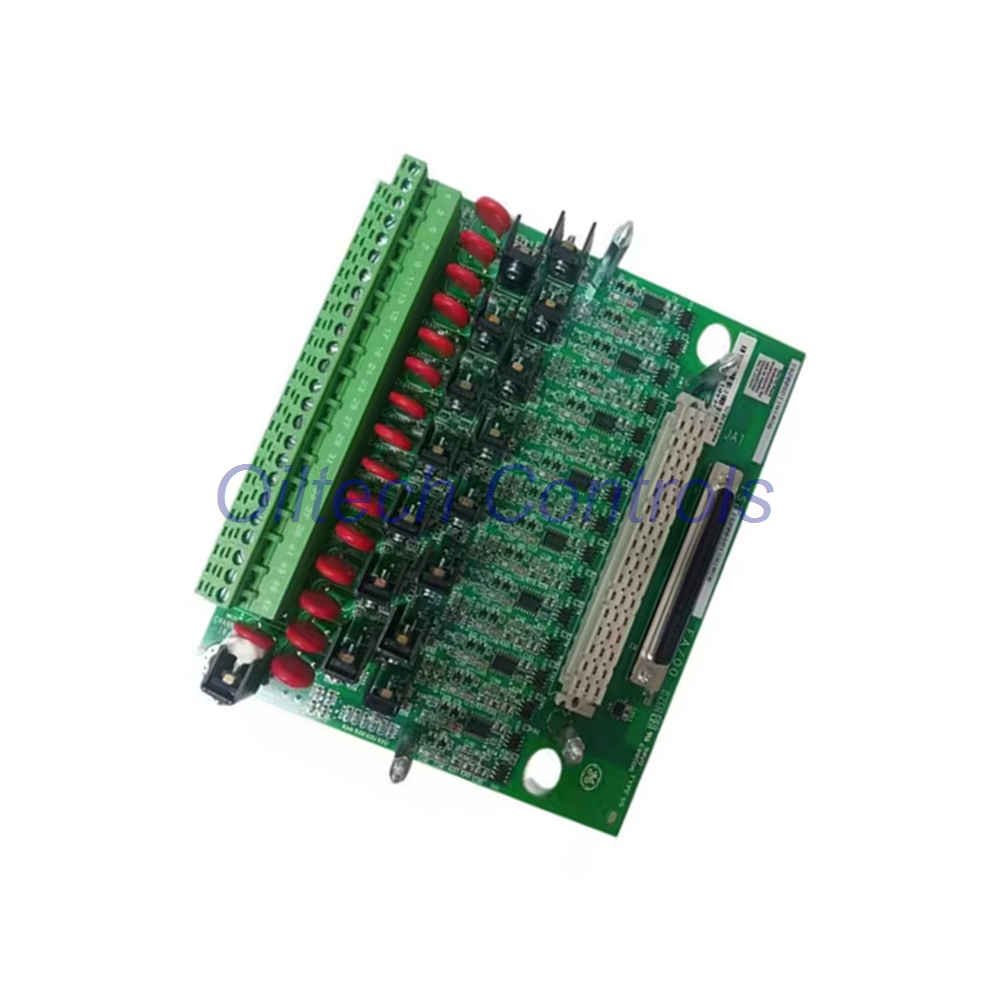

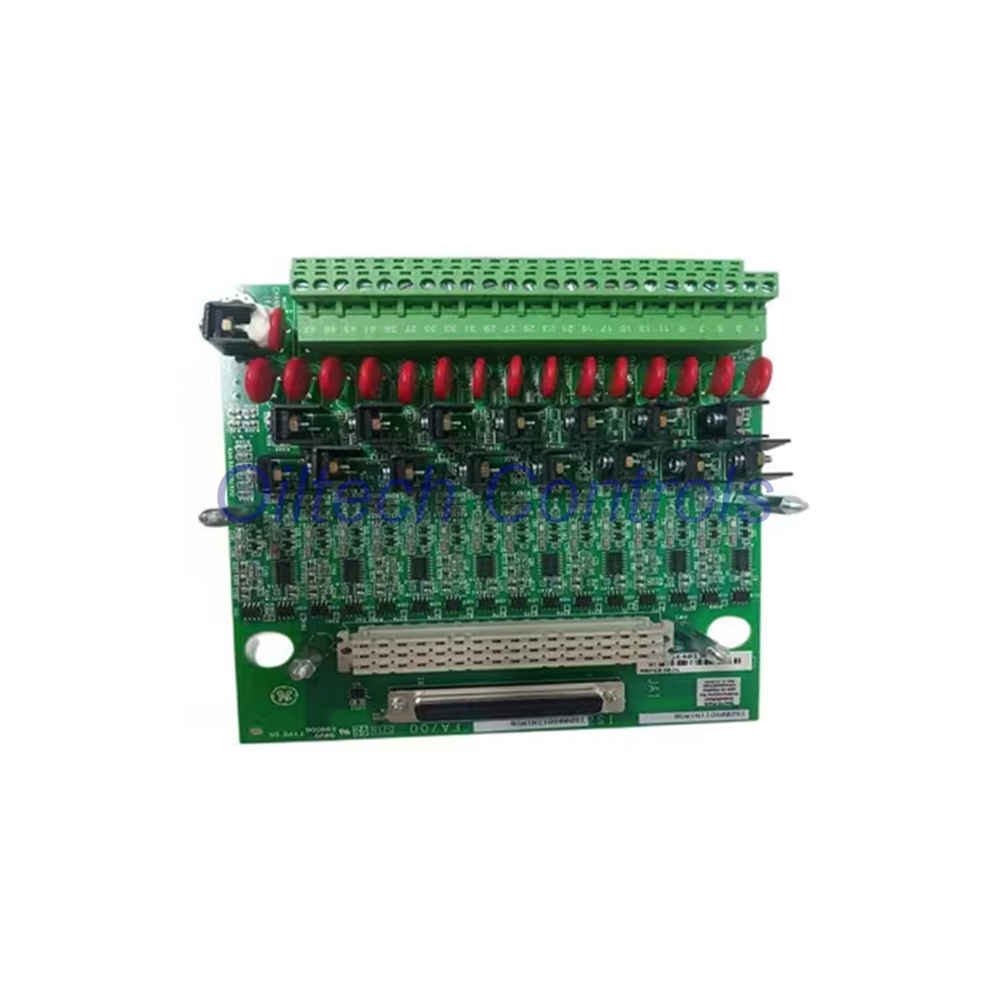

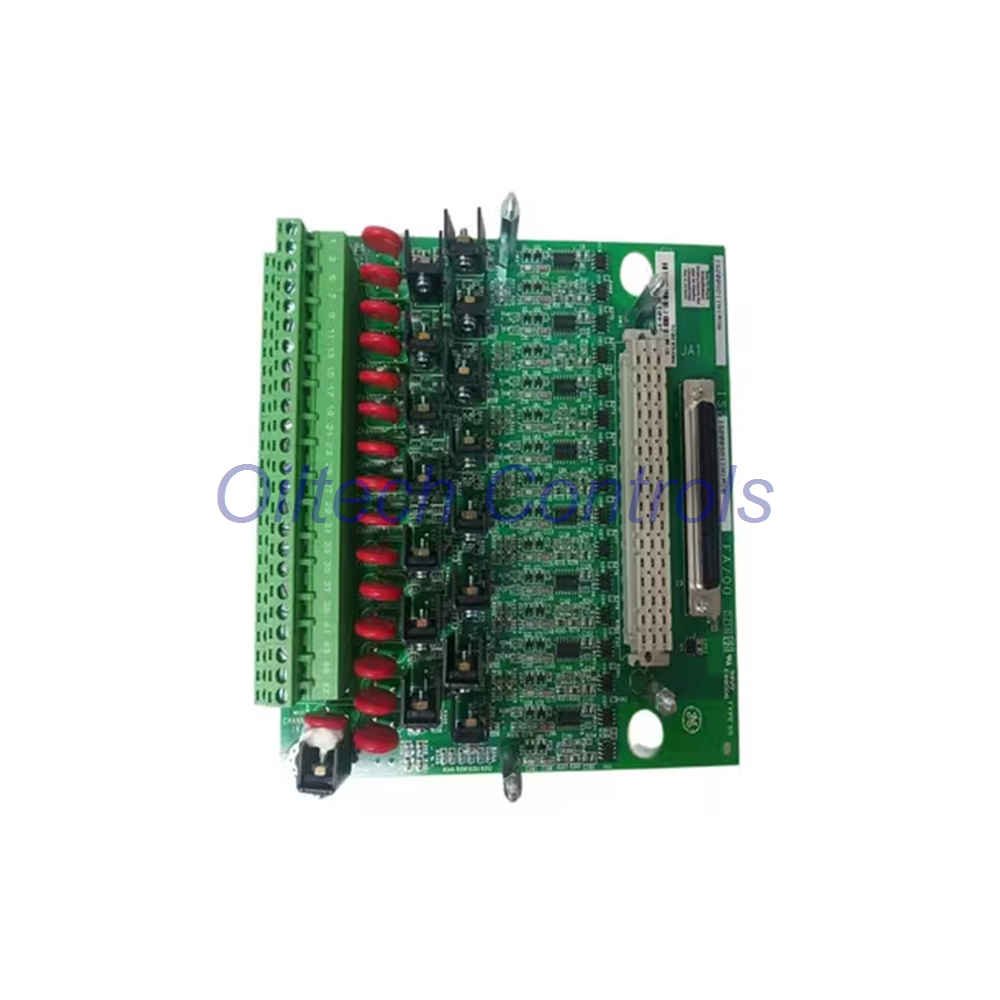

IS230SDIIH1A Simplex Contact Input Module

Brand: General Electric (GE Energy) · Series: Mark VIe · Type: Contact Input with Point Isolation Terminal Board

Product Overview

IS230SDIIH1A is a 16-channel simplex contact input module from the Mark VIe series. It provides isolated voltage detection for relay contacts, switches, fuses, and other field devices. The module combines an IS200SDII terminal board with a PDII I/O pack. It supports point-isolated or group-isolated configurations via optional WDIIH1 / H2 / H3 boards.

Designed for GE Distributed Control Systems, this module delivers reliable DC/AC sensing across multiple voltage levels. It suits turbine control, power generation, and heavy industrial automation.

Technical Specifications

Key Features & Diagnostic Capability

• ✔ 16 isolated inputs – each channel electrically isolated from others.
• ✔ Wetting voltage flexibility – 24 V dc, 115 V ac, 230 V ac (with WDIIH1).
• ✔ Group or point isolation – configurable via WDII option boards.
• ✔ Open wire / fuse detection – field fault monitoring with external resistors.
• ✔ Conformal coating – protects against dust, moisture, and vibration.
• ✔ Diagnostic feedback – firmware calculates voltage and reports ON/OFF status per channel.

Mounting, Installation & Maintenance

• Mounting: DIN-rail (35 mm) – quick snap-on installation.
• Terminals: Pluggable Euro-style box-type blocks for easy wiring.
• Option board slots: Accepts WDIIH1/H2/H3 without additional tools.
• Maintenance: Fuses are field-replaceable; no calibration needed.
• ToolboxST configuration: Simple channel-level setup via software.

Compatibility & Certifications

• System compatibility: Mark VIe, Mark VI, and Modicon Quantum series (via adapter).
• Option boards: WDIIH1 (24 Vdc/115/230 Vac), WDIIH2 (48 Vdc), WDIIH3 (125 Vdc).
• CE marking: Complies with EU EMC and low-voltage directives.
• RoHS: Lead-free construction.
• Manual reference: GEH-6721L (available upon request).

What’s in the Box

• • IS230SDIIH1A module (terminal board + PDII pack)
• • 16 pluggable terminal blocks (pre-installed)
• • DIN-rail mounting clip
• • Product documentation (digital download)

12-Month Warranty & Shipping

• Warranty: 12 months against defects in material and workmanship.
• Shipping carriers: FedEx, UPS, DHL – global express delivery.
• Origin: United States (stock in multiple warehouses).

Typical Applications

• • Gas/steam turbine control systems (Mark VIe)
• • Power plant auxiliaries and switchgear monitoring
• • Industrial relay and contact status sensing
• • Fuse and breaker status indication
• • Distributed control system (DCS) field interfaces

Frequently Asked Questions

• Q: Can I mix point-isolated and group-isolated channels?
  Yes. With WDIIH1 or WDIIH2, each channel can be individually configured.
• Q: What is the maximum wire resistance per input?
  15 Ohms maximum lead resistance for reliable voltage sensing.
• Q: Does the module support 48 V dc wetting?
  Yes, via WDIIH2 option board (group isolation).
• Q: Is the IS230SDIIH1A compatible with older Mark VI systems?
  Primarily designed for Mark VIe, but electrical compatibility exists with adapters.
