Product Description

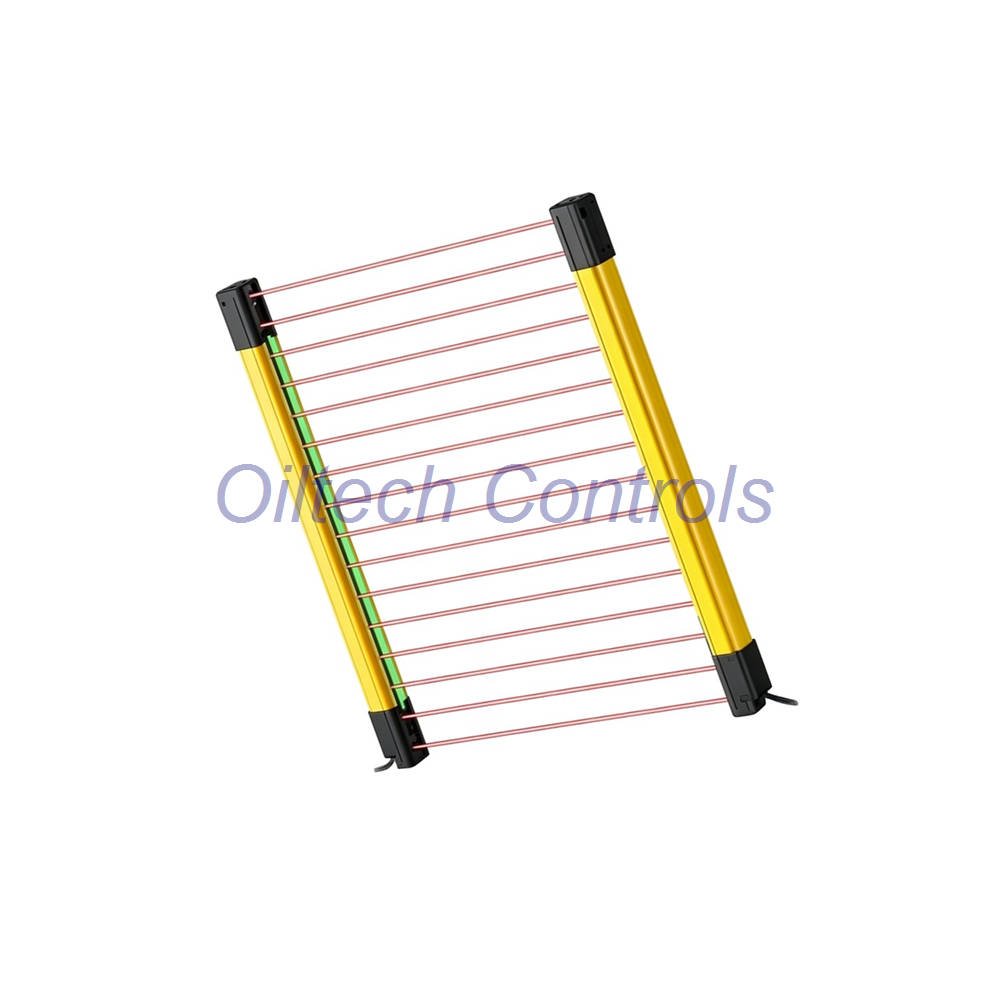

Model GL-VM12HN is a compact Type 4 safety light curtain from the Keyence GL-V series. It uses 12 infrared beam axes for hand protection. However, its metal housing stays small and strong. Therefore, it fits tight machine openings. It detects a ø25 mm object. In addition, the protected height is 220 mm. Also, the total length is 240 mm. Response time is max. 4.3 ms. Moreover, it works from 0.3 m to 15 m. It has NPN output. Finally, it is active and in production.
This model has no built-in communication port. Also, it uses optical synchronization. It is made for fast stop signals. For example, it suits press brakes, robots, packaging lines, and assembly cells. In addition, it works in dirty or wet areas. As a result, the IP65/IP67 rating helps in daily factory use.
Technical Specifications
| Brand | Keyence |
| Model | GL-VM12HN |
| Series | GL-V series |
| Module Type | Type 4 safety light curtain, hand protection |
| Measuring Range | 0.3 to 15 m |
| Response Time | Max. 4.3 ms, OSSD channel 0, ON to OFF |
| Sensitivity | Minimum detectable object ø25 mm |
| Resolution | 12 beam axes, 20 mm spacing |
| Detection Height | 220 mm |
| Total Length | 240 mm |
| Light Source | Infrared LED, 850 nm, Exempt Group IEC62471 |
| Synchronization | Optical synchronization |
| Angular Aperture | Up to ±2.5 degrees at 3 m or above |
| Detection Mode | ON when all beam axes are received |
| Output | Transistor output x2, NPN |
| Supply Voltage | 24 VDC -20/+25%, ripple 10% or less, Class 2 |
| Maximum Load Current | 150 mA or less |
| Residual Voltage | ON up to 2.5 V, OFF up to 2.0 V at 5 m cable |
| Leakage Current | Up to 0.8 mA |
| Load Capacity | Max. 0.8 µF |
| Load Wiring Resistance | Up to 2.5 Ω |
| Input Short-Circuit Current | Approx. 3 mA |
| Current Consumption | Transmitter max. 62 mA, receiver max. 74 mA |
| Temperature Range | -30 to +55 °C operating, -30 to +70 °C storage |
| Humidity | Up to 95 % RH, no condensation |
| Ambient Light | Incandescent 3,000 lux or less, sunlight 20,000 lux or less |
| Protection Rating | IP65/IP67 IEC60529 |
| Overvoltage Category | II |
| Vibration Resistance | 5 to 150 Hz, 1G, 10 cycles X/Y/Z |
| Shock Resistance | 15 G, 6 ms pulses, 100 times X/Y/Z |
| Material | Aluminum alloy, PPS GF40%, polycarbonate, SUS304 |
| Weight | Transmitter 170 g, receiver 170 g |
| Communication | None |
| Protocols | None |
| Expansion | None |
Installation Guide
- Mount the transmitter and receiver facing each other.
- Then keep the beam path clear of obstacles.
- Use optical synchronization. No sync cable is needed.
- Also set the series connection switch for up to 2 units.
- Check the 0.3 to 15 m detecting distance.
- Moreover, align the units within ±2.5 degrees.
- Use a stable 24 VDC Class 2 supply.
- Finally, protect the load circuit against short and surge.
Setup and Maintenance
Setup is simple. First, power the units. Then align the beams. The indicator helps during alignment. Also, the ON state shows all beams received. Maintenance is low. For example, clean the front cover with a soft cloth. However, do not use harsh chemicals. In addition, check the cable and mounting bolts. The metal case resists vibration and shock. Moreover, the IP65/IP67 rating supports washdown areas. As a result, response time stays fast at max. 4.3 ms.
Compatibility
GL-VM12HN belongs to the Keyence GL-V series. It works as a standalone Type 4 ESPE/AOPD set. However, it has no communication port. Also, it does not use protocols. In addition, it supports series connection for up to 2 units. Therefore, it fits machines that accept NPN OSSD signals. Moreover, it can replace old safety curtains with the same beam layout and voltage. Always check the machine safety circuit before replacement.
Certifications
- IEC61496-1/-2 Type 4 ESPE/AOPD
- EN ISO13849-1 Category 4, PL e
- IEC61508 SIL3
- UL60947-1, CSA C22.2 No.60947-1
- UL1998
- IEC/EN61496-1
- EN55011 Class A
- FCC Part15B Class A
- ICES-003 Class A
Package List
- Transmitter x1
- Receiver x1
- Mounting hardware as supplied
- Quick reference sheet as supplied
Warranty and Shipping
All products include a 12-month warranty. Also, we ship by FedEx, UPS, and DHL. In addition, we test and verify before shipment. Moreover, we support global delivery. Therefore, contact us for stock and lead time.
Typical Applications
- Hand protection on press brakes
- Robot cell entry guarding
- Packaging and palletizing lines
- Assembly and test stations
- Material handling equipment
- Obsolete control system retrofits
Diagnostic Capability
The unit shows beam status through its indicator. For example, the ON state means all beams are received. Also, the OFF state means a beam is blocked. Therefore, this helps fast fault finding. In addition, the receiver has short-circuit and surge protection. Moreover, the supply has reverse-connection protection. As a result, these features reduce downtime and protect the circuit.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support through FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on all products
- Technical verification before shipment
- Support for obsolete control systems
FAQ
Q: What is the detection range?
A: The range is 0.3 to 15 m.
Q: What object size can it detect?
A: It detects a ø25 mm object.
Q: What is the response time?
A: The response time is max. 4.3 ms.
Q: What output does it have?
A: It has NPN transistor output x2.
Q: Does it have communication?
A: No. It has no port and no protocol.
Q: What is the protection rating?
A: It is IP65/IP67.
Q: What is the warranty?
A: It has a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
