Product Introduction

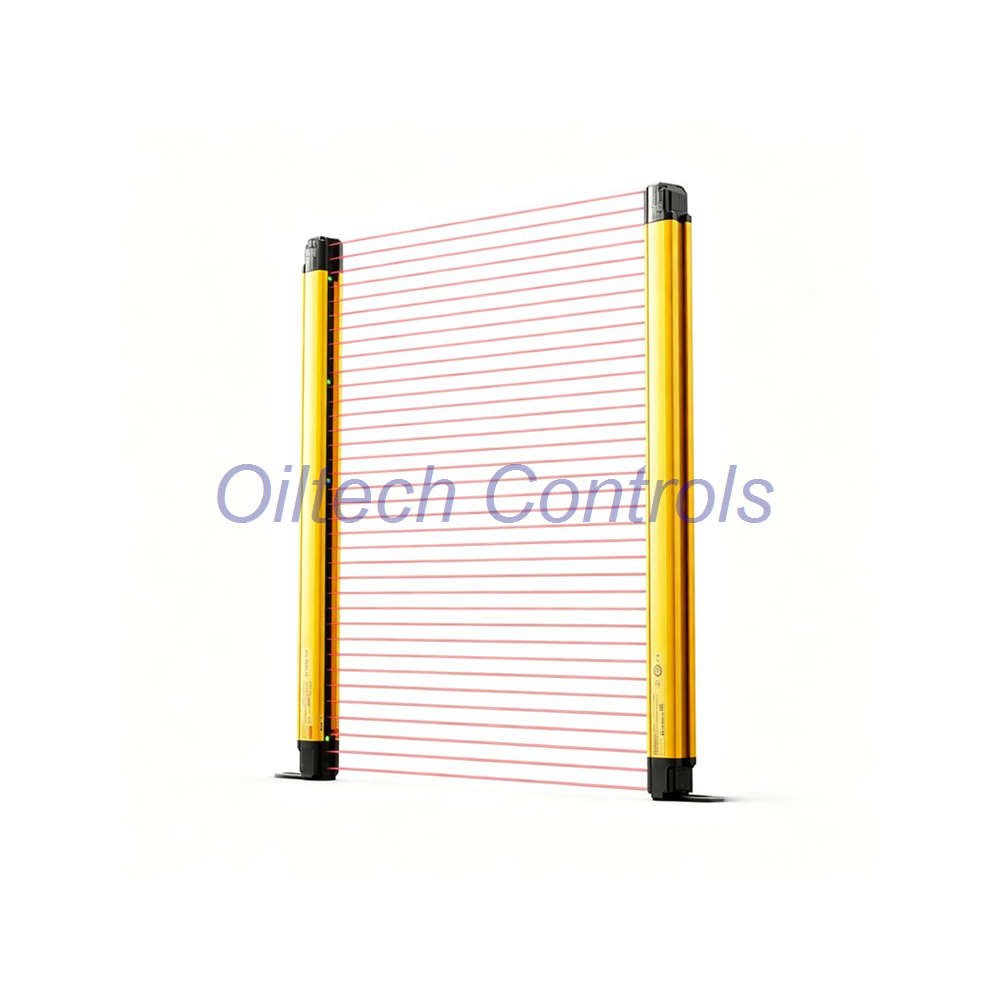

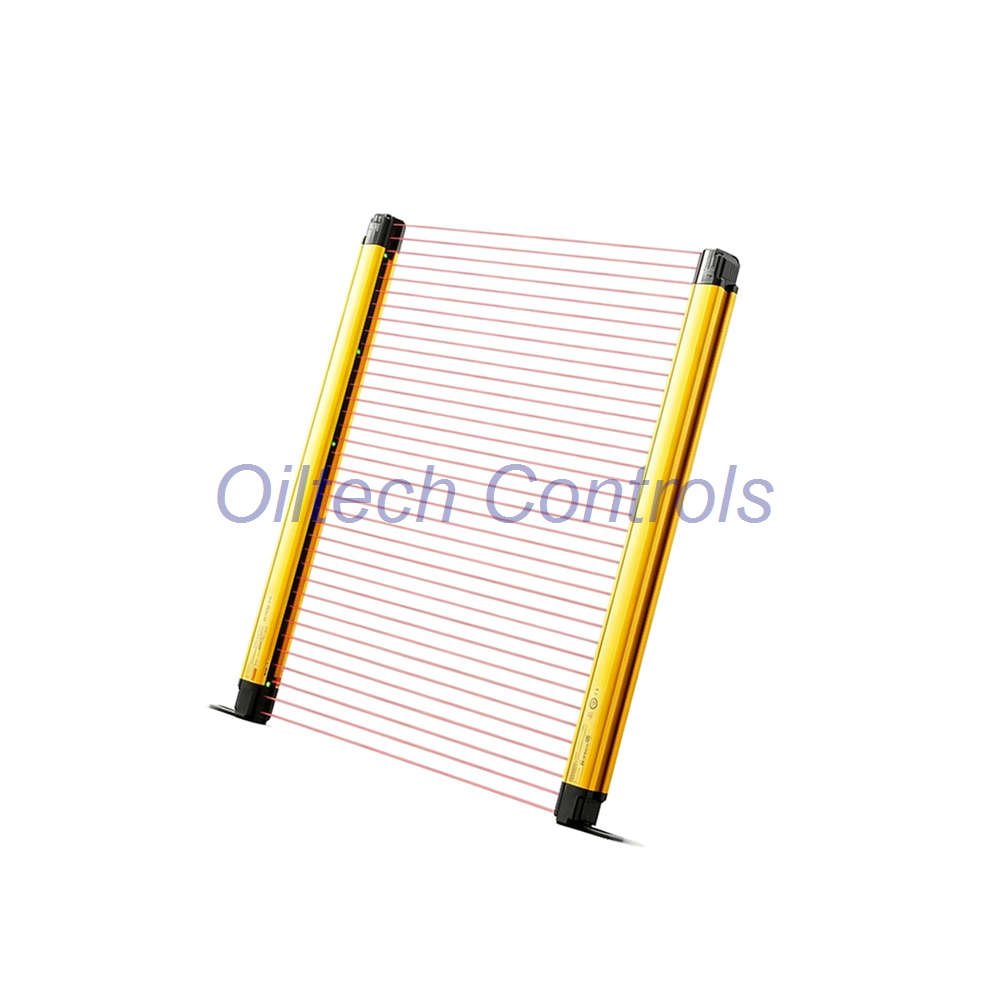

The GL-VM12HP from Keyence is a compact Type 4 safety light curtain. It is part of the GL-V series. This hand protection model has 12 beam axes. The metal housing is small and strong. It uses optical synchronization. The light source is an infrared LED at 850 nm. The detection mode is ON when all beams are received. It has a PNP output. The total length is 240 mm. This device is ideal for machine guarding and automation safety.
Technical Specifications
| Brand | Keyence |
| Model | GL-VM12HP |
| Series | GL-V series |
| Type | Type 4 ESPE / AOPD safety light curtain |
| Protection | Hand protection |
| Number of beam axes | 12 |
| Beam spacing | 20 mm |
| Detection height | 220 mm |
| Total length | 240 mm |
| Minimum detectable object | ø25 mm |
| Detecting distance | 0.3 to 15 m |
| Response time (OSSD ON→OFF) | Max. 4.3 ms |
| Light source | Infrared LED 850 nm, Exempt Group (IEC62471) |
| Synchronization | Optical synchronization |
| Effective angular aperture | Up to ±2.5° (at 3 m or above) |
| Interference prevention | Up to 2 units by series connection and switch setting |
| Supply voltage | 24 VDC -20/+25%, ripple (P-P) 10% or less, Class 2 |
| Current consumption (indicator ON) | Transmitter max. 62 mA; Receiver max. 74 mA (OSSD output current not included) |
| Control output (OSSD) | Transistor output x2 (PNP) |
| Maximum load current | 150 mA or less |
| Residual voltage (ON) | Up to 2.5 V (5 m cable); OFF voltage: up to 2.0 V (5 m cable) |
| Leakage current | Up to 0.8 mA; max. load capacity: 0.8 µF; load wiring resistance: up to 2.5 Ω |
| Inputs | Short-circuit current approx. 3 mA |
| Protection circuit | Supply reverse-connection, per-output short-circuit and surge protection |
| Operating temperature | -30 to +55 °C (No freezing) |
| Storage temperature | -30 to +70 °C (No freezing) |
| Relative humidity | Up to 95 % RH (no condensation) |
| Ambient light | Incandescent lamp 3,000 lux or less; Sunlight 20,000 lux or less |
| Protection rating | IP65/IP67 (IEC60529) |
| Overvoltage category | II |
| Vibration resistance | 5 to 150 Hz, 1G, 10 cycles each in X/Y/Z |
| Shock resistance | 15 G, 6 ms pulses, 100 times each in X/Y/Z |
| Material | Main unit Aluminum alloy; upper/lower case PPS (GF40%); front cover Polycarbonate, SUS304 |
| Weight | Transmitter 170 g; Receiver 170 g |
| Built-in ports / Protocols | None |
| Communication expansion | None |
Installation Guide
Mount the transmitter and receiver facing each other. Use the metal housing for robust fixing. Keep the distance between 0.3 m and 15 m. Align the units for optical synchronization. The effective angular aperture is ±2.5°. Connect the 24 VDC power supply. Ensure the ripple is 10% or less. Use a Class 2 power source. Wire the PNP outputs to your safety circuit. The response time is fast at 4.3 ms. This helps stop the machine quickly.
Debugging and Maintenance
Check the indicator LEDs for status. The transmitter draws max. 62 mA. The receiver draws max. 74 mA. Use the switch setting for interference prevention. You can connect up to 2 units in series. Clean the front cover with a soft cloth. Do not use abrasive cleaners. The protection rating is IP65/IP67. This allows use in dusty or wet areas. The operating temperature range is wide. It works from -30 to +55 °C.
Compatibility Notes
This light curtain uses PNP output. It works with most safety relays and controllers. The optical synchronization means no extra wires for sync. No built-in communication ports are available. No expansion is possible. It is a standalone safety device. The GL-V series offers other models. Check your machine voltage before connection.
Certifications
- IEC61496-1/-2 (Type 4 ESPE/AOPD)
- EN ISO13849-1 (Category 4, PL e)
- IEC61508 (SIL3)
- UL60947-1 / CSA C22.2 No.60947-1
- UL1998
- EMC: IEC/EN61496-1, EN55011 Class A, FCC Part15B Class A, ICES-003 Class A
Package List and Warranty
- Transmitter x1
- Receiver x1
- Instruction manual (official Keyence documentation)
- 12-month warranty from Oiltech Controls
- Shipping via Fedex, UPS, or DHL
Typical Applications
- Hand protection on press machines
- Robotic cell guarding
- Packaging line safety
- Assembly stations
- Automated storage systems
Diagnostic Capabilities
The device has indicator LEDs. They show power and beam status. If a beam is blocked, the OSSD turns OFF. The response time is max. 4.3 ms. You can check the output voltage. ON voltage is up to 2.5 V. OFF voltage is up to 2.0 V. The leakage current is up to 0.8 mA. These values help with troubleshooting. No communication port means no remote diagnostics. Use a multimeter for testing.
