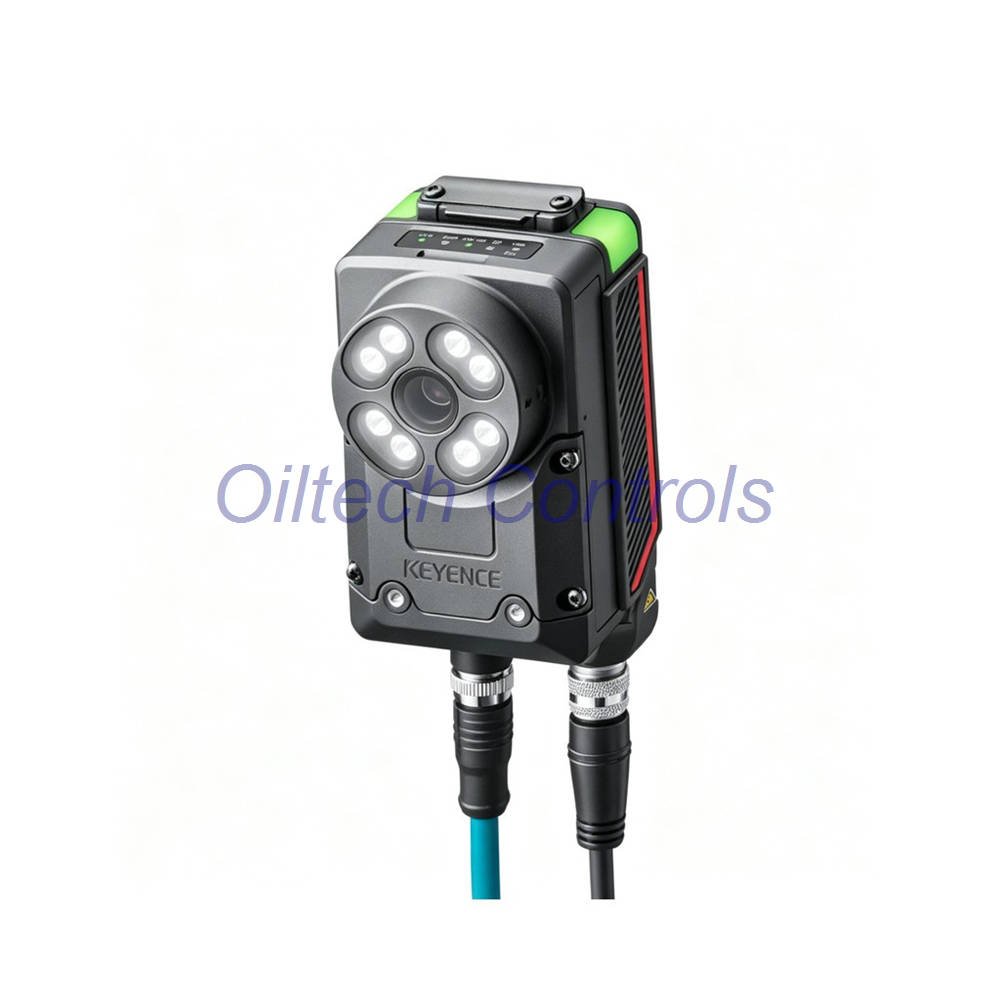

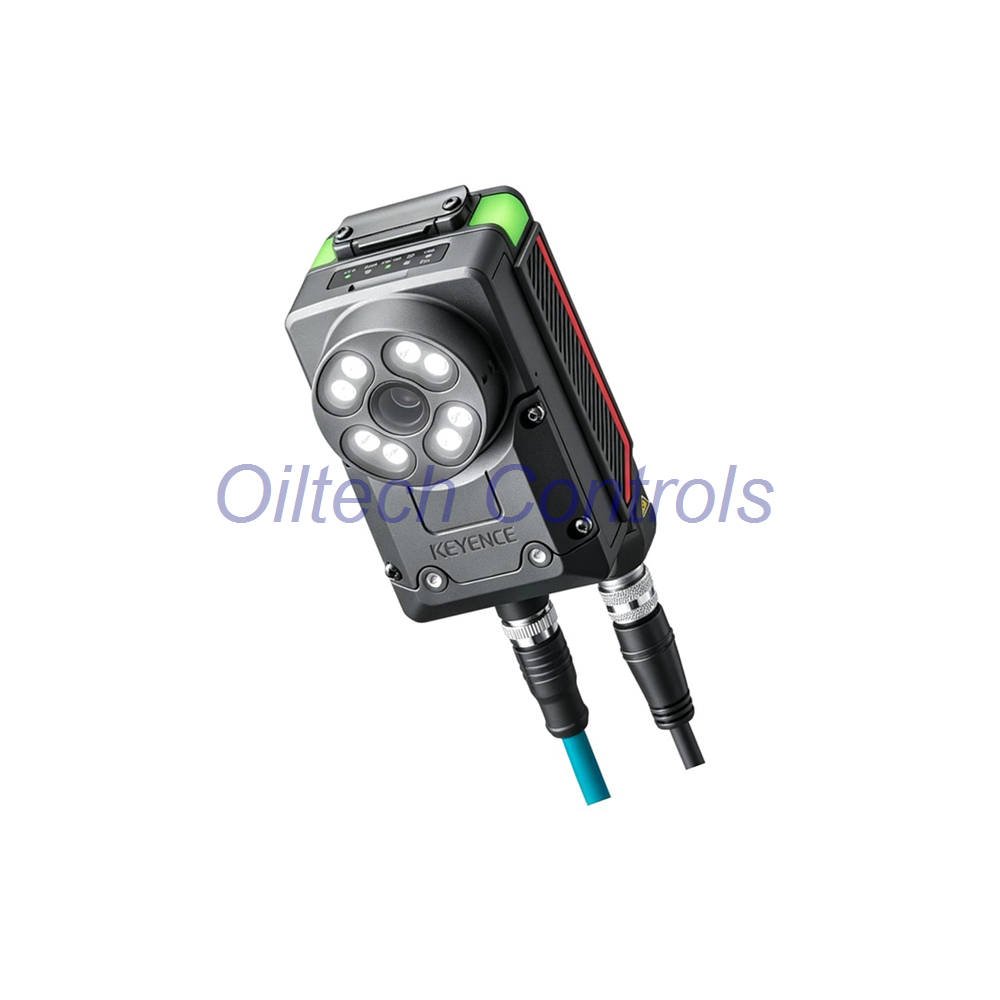

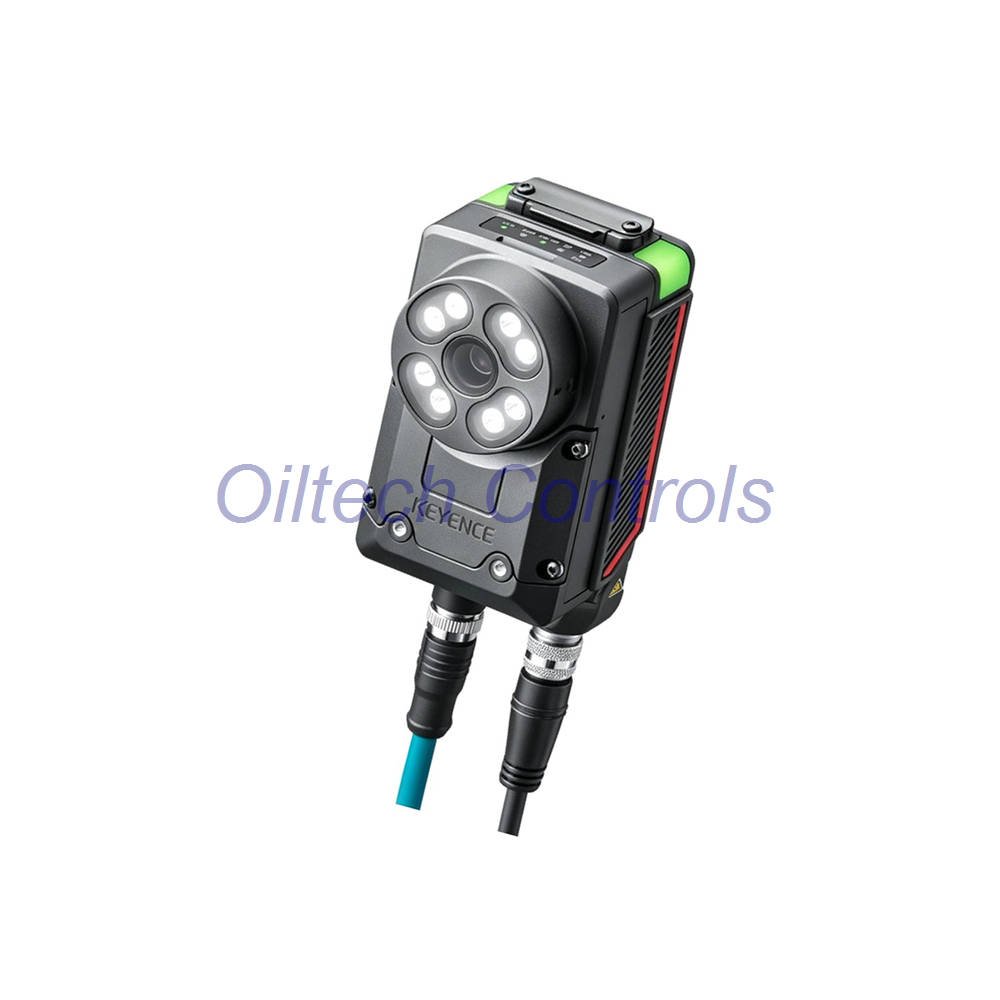

Keyence IV4-600CA AI Vision Sensor – Wide View Smart Camera
The Keyence IV4-600CA is a color smart camera in the IV4 Series. It combines built-in AI with a wide field of view. This makes it useful for flexible inspection tasks. It works well in industrial automation, quality control, and sorting lines. The camera supports standard mode, sorting mode, and AI Through Count Mode. It has 65 tools for many vision tasks. The unit is compact but powerful. It starts imaging from 50 mm. At 3000 mm, it covers 2730 x 2044 mm. This wide range helps with large parts and moving objects.
Brand: Keyence
Model: IV4-600CA
Series: IV4 Series
Type: Smart camera, wide field of view, color model
This sensor suits engineers who need reliable AI vision without complex setup. It uses a 1/2.9 inch color CMOS sensor. Resolution is 1280 x 960 pixels. Auto focus saves time during changeovers. Exposure time ranges from 12 us to 10 ms. White LED lighting is built in. You can switch between pulse and continuous lighting. The housing is aluminum die-casting. The front cover is acrylic with hard coating. It is ESD safe and meets IEC61340-5-1.
Need a tested industrial camera? Contact info@oiltechcontrols.com or +86 158 8020 0923 for stock and support.
Technical Specifications
| Parameter | Detail |
|---|---|
| Brand | Keyence |
| Model | IV4-600CA |
| Series | IV4 Series |
| Module Type | Smart camera, wide field of view, color |
| Field of View | 50 mm: 51 x 38 mm; 3000 mm: 2730 x 2044 mm (reference) |
| Image Sensor | 1/2.9 inch color CMOS, 1280 x 960 pixels |
| Focus | Auto |
| Exposure Time | 12 us to 10 ms |
| Lighting | White LED; pulse and continuous modes |
| Tools | 65 tools |
| Modes | Standard, Sorting, AI Through Count |
| Ethernet Port | M12 8-pin X-code female, 1000BASE-T/100BASE-TX |
| Protocols | EtherNet/IP, PROFINET CC-B, TCP/IP, FTP, SFTP, SNTP, OPC UA, MQTT |
| Communication Expansion | IV4-CU1 (PROFINET CC-C, EtherCAT); DL Series units |
| Supply Voltage | 24 VDC +25%, -20% |
| Power Consumption | 3.4 A or less at 19.2 V; 2.7 A or less at 24.0 V |
| Average Power | 9.3 W without AI illumination; 12.8 W with AI illumination |
| Output Type | Open collector, NPN/PNP switchable, N.O./N.C. switchable |
| Output Rating | 30 V, 50 mA max |
| PoE | PoE Power Class 4/6 |
| Inputs | 6 (3 selectable IN/OUT) |
| Outputs | 6 (3 selectable IN/OUT) |
| Operating Temperature | 0 to +50°C, no freezing |
| Humidity | 85% RH or less, no condensation |
| Protection Rating | IP67 (except with polarizing filters OP-88640/41/44/45) |
| Vibration Resistance | 10 to 500 Hz, 0.816 G^2/Hz, X/Y/Z |
| Shock Resistance | 500 m/s^2, 3 times in 6 directions |
| Material | Aluminum die-casting case; acrylic front; PBT back; TPU indicator |
| Weight | Approx. 370 g without AI illumination; approx. 560 g with AI illumination |
| Lifecycle | Active; official Keyence production status confirmed |
Installation Guide
- Mount the camera at the planned distance. Minimum distance is 50 mm.
- Use the M12 Ethernet port for network connection. It supports 1000BASE-T and 100BASE-TX.
- Connect 24 VDC power. Check ripple is within +25% and -20%.
- Use PoE Power Class 4/6 if PoE is available.
- Keep the front cover clean. Do not block the white LED.
- For IP67, install waterproof caps on power and Ethernet connectors.
- Do not install polarizing filters if IP67 is required.
Debugging and Maintenance Convenience
- Auto focus reduces setup time. No manual focus adjustment is needed.
- Exposure time is adjustable from 12 us to 10 ms. This helps with different line speeds.
- Switch lighting between pulse and continuous modes. This saves power and extends LED life.
- Use 65 tools for flexible inspection recipes. Change modes without replacing hardware.
- IP67 protection allows use in dusty or wet areas. Clean the front cover with a soft cloth.
- ESD safe design meets IEC61340-5-1. This protects sensitive electronics during service.
Compatibility Notes
- Works with EtherNet/IP, PROFINET CC-B, and OPC UA.
- Supports MQTT client and FTP/SFTP client for data transfer.
- Expands with IV4-CU1 for PROFINET CC-C and EtherCAT.
- Also works with DL Series units for EtherCAT, CC-Link, DeviceNet, and RS-232C.
- TCP/IP non-procedural communication is available on two channels.
- SNTP client keeps time sync in networked systems.
Certifications and Standards
- ESD safe, IEC61340-5-1 compliant.
- Protection rating IP67 under specified conditions.
- Vibration and shock resistance tested per stated limits.
- Official Keyence production status confirmed. Last verified: 2026-09.
Packing List and Warranty
- 1 x Keyence IV4-600CA smart camera.
- 1 x power supply connector waterproof cap.
- 1 x Ethernet connector waterproof cap.
- Documentation as supplied.
- 12-month warranty from Oiltech Controls Limited.
- Technical verification before shipment.
- Tested industrial surplus and refurbished options may be available.
Shipping Methods
- FedEx for fast international delivery.
- UPS for reliable global shipping.
- DHL for express options to many regions.
- Global shipment support from Oiltech Controls.
Typical Applications
- Presence and absence detection on production lines.
- Color inspection of parts and labels.
- Sorting tasks with AI Through Count Mode.
- Wide-area monitoring of large components.
- Quality checks in automotive, electronics, and packaging.
- Obsolete control system support and retrofit projects.
Diagnostic Capabilities
- Built-in AI helps identify patterns and defects.
- 65 tools support detailed pass/fail logic.
- OPC UA and MQTT allow data reporting to higher systems.
- Ethernet diagnostics via standard industrial protocols.
- Outputs can trigger alarms or reject mechanisms.
- Supports remote monitoring through network clients.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support with FedEx, UPS, and DHL.
- Tested industrial surplus and refurbished options.
- 12-month warranty on eligible products.
- Technical verification before shipment.
- Support for obsolete control systems.
Ask for stock, lead time, or a quote. Email info@oiltechcontrols.com or message +86 158 8020 0923 on WhatsApp.
FAQ
Q: What is the field of view at 3000 mm?
A: It is about 2730 x 2044 mm. This is a reference value.
Q: Does it support PoE?
A: Yes. It supports PoE Power Class 4/6.
Q: Can I use it with PROFINET?
A: Yes. It supports PROFINET CC-B. The IV4-CU1 adds PROFINET CC-C.
Q: What is the warranty?
A: Oiltech Controls offers a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Is the camera IP67?
A: Yes, except when certain polarizing filters are installed.
Q: What modes are available?
A: Standard Mode, Sorting Mode, and AI Through Count Mode.
Q: How many tools does it have?
A: It has 65 tools.
