Product Overview

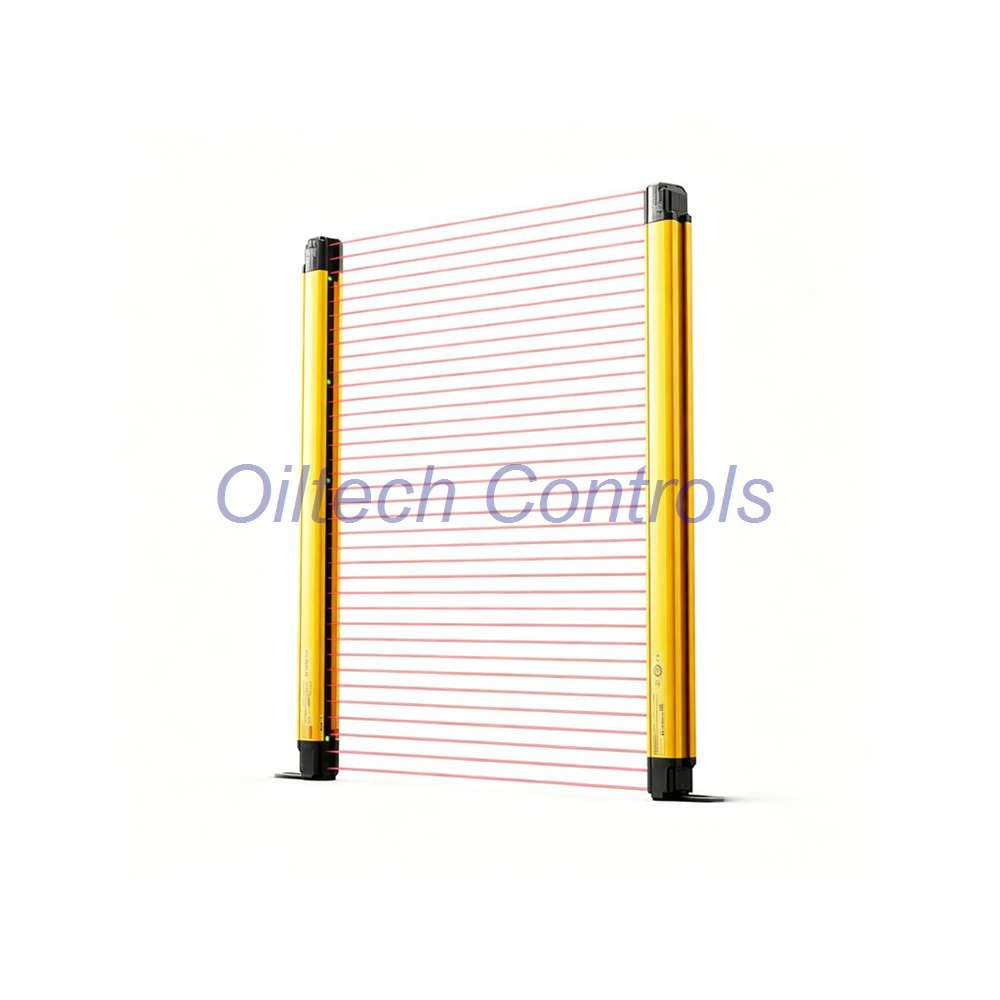

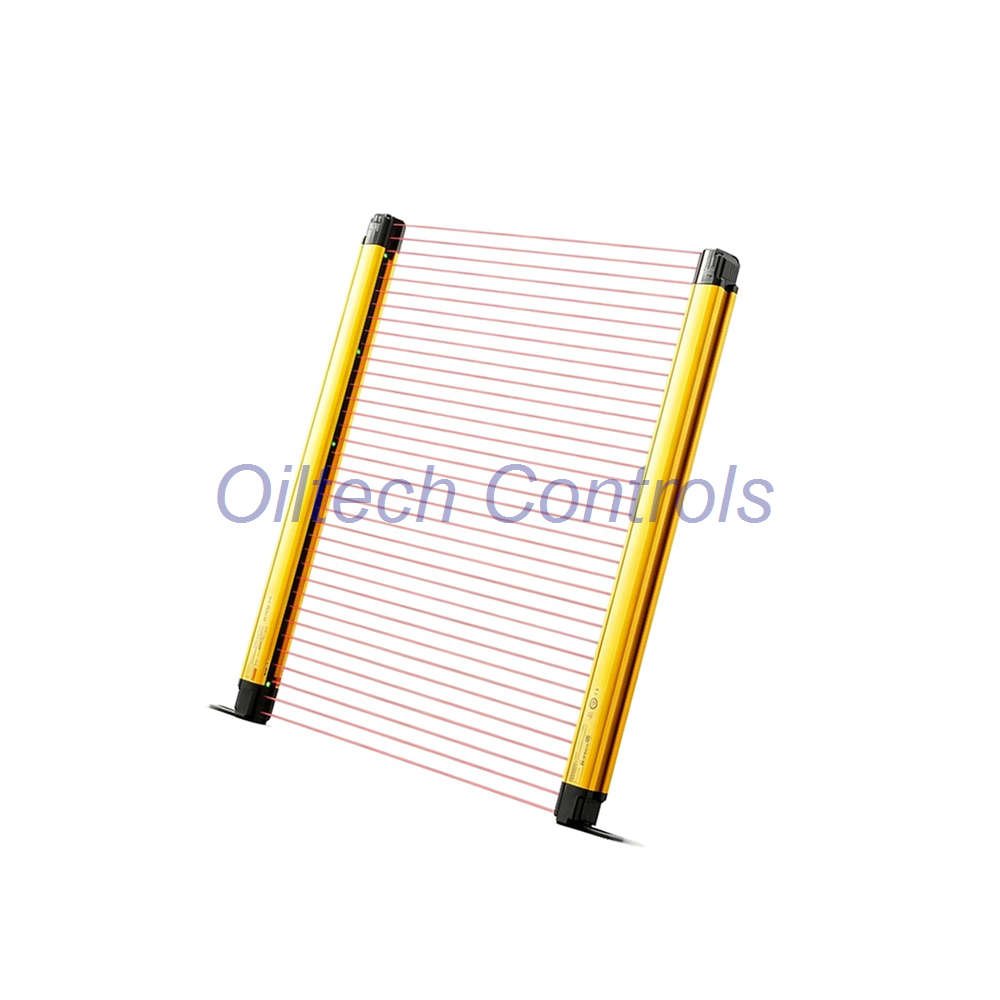

Keyence GL-VM207FP is a Type 4 safety light curtain from the GL-V series. It uses 207 infrared beam axes for finger protection. The metal housing suits harsh factory floors. It pairs a transmitter and receiver with optical synchronization. No separate sync line is needed. The unit detects a ø14 mm object and covers a 2060 mm detection height. It responds in max. 12.5 ms. This fast trip time helps reduce stopping distance. The PNP OSSD output connects to safety relays or controllers. It is active in official Keyence production status. Oiltech Controls supplies tested units with a 12-month warranty.
Technical Specifications
| Brand | Keyence |
| Model | GL-VM207FP |
| Series | GL-V series |
| Module Type | Type 4 safety light curtain, transmitter + receiver set |
| Protection Type | Finger protection |
| Number of Beam Axes | 207 |
| Beam Axis Spacing | 10 mm |
| Minimum Detectable Object | ø14 mm |
| Detection Height | 2060 mm |
| Total Length | 2080 mm |
| Detecting Distance | 0.3 to 12 m |
| Response Time | Max. 12.5 ms (OSSD, channel 0, ON to OFF) |
| Light Source | Infrared LED, 850 nm, Exempt Group (IEC62471) |
| Effective Angular Aperture | Up to ±2.5° at 3 m or above |
| Synchronization | Optical synchronization |
| Detection Mode | ON when all beam axes are received |
| Interference Prevention | Up to 2 units by series connection and switch setting |
| Supply Voltage | 24 VDC -20/+25%, ripple 10% or less, Class 2 |
| Current Consumption | Transmitter max. 191 mA; receiver max. 219 mA (indicator ON, OSSD current excluded) |
| Control Output | Transistor output x2, PNP |
| Maximum Load Current | 150 mA or less |
| Residual Voltage | ON: up to 2.5 V; OFF: up to 2.0 V (5 m cable) |
| Leakage Current | Up to 0.8 mA |
| Max. Load Capacity | 0.8 µF |
| Load Wiring Resistance | Up to 2.5 Ω |
| Inputs | Short-circuit current approx. 3 mA |
| Protection Circuit | Supply reverse-connection, per-output short-circuit and surge protection |
| Communication | None. No built-in ports, protocols, or expansion. |
| Operating Temperature | -30 to +55 °C (no freezing) |
| Storage Temperature | -30 to +70 °C (no freezing) |
| Relative Humidity | Up to 95 % RH, no condensation |
| Ambient Light | Incandescent lamp 3,000 lux or less; sunlight 20,000 lux or less |
| Protection Rating | IP65/IP67 (IEC60529) |
| Overvoltage Category | II |
| Vibration Resistance | 5 to 150 Hz, 1G, 10 cycles each in X/Y/Z |
| Shock Resistance | 15 G, 6 ms pulses, 100 times each in X/Y/Z |
| Material | Main unit aluminum alloy; upper/lower case PPS (GF40%); front cover polycarbonate, SUS304 |
| Weight | Transmitter 1350 g; receiver 1370 g |
| Dimensions (H×W×D) | Not available |
Installation Guide
- Mount the transmitter and receiver facing each other. Keep the optical axis aligned.
- Use the 0.3 to 12 m detecting distance. Do not exceed this range.
- Keep the ±2.5° angular aperture in mind during alignment.
- Connect 24 VDC Class 2 power. Observe polarity.
- Wire the PNP OSSD outputs to a safety relay or safety controller.
- For two-unit use, set the series connection and switch setting to prevent interference.
- Mount the metal housing on a stable frame. This avoids vibration and shock issues.
- Check the IP65/IP67 seal after installation.
Setup and Maintenance
- Clean the front cover with a soft cloth. Do not use abrasive cleaners.
- Check the optical alignment after any impact or frame movement.
- Confirm the OSSD output state during regular safety checks.
- Inspect the cable and connector for damage.
- Keep the ambient light below 3,000 lux for incandescent lamps.
- Keep sunlight below 20,000 lux.
- Store the unit between -30 and +70 °C.
- Operate the unit between -30 and +55 °C.
Compatibility
- Works with standard 24 VDC industrial power supplies.
- Connects to safety relays and safety controllers that accept PNP OSSD signals.
- Fits GL-V series mounting and alignment accessories.
- Supports up to 2 units in a series connection with switch setting.
- No fieldbus or communication expansion is available.
- Suitable for retrofits where a Type 4 finger protection barrier is required.
Certifications
- IEC61496-1/-2 Type 4 ESPE/AOPD
- EN ISO13849-1 Category 4, PL e
- IEC61508 SIL3
- UL60947-1 / CSA C22.2 No.60947-1
- UL1998
- IEC/EN61496-1, EN55011 Class A, FCC Part15B Class A, ICES-003 Class A
Package List
- GL-VM207FP transmitter x1
- GL-VM207FP receiver x1
- Mounting hardware as supplied
- Quick reference documentation as supplied
Warranty and Shipping
- 12-month warranty on the supplied unit.
- Technical verification before shipment.
- Shipping by FedEx, UPS, or DHL.
- Global shipment support for industrial automation spare parts.
Typical Applications
- Finger protection on press machines and assembly cells.
- Perimeter guarding on automated production lines.
- Safety barriers on robotic work cells.
- Entry protection on packaging and material handling equipment.
- Retrofit safety upgrades for obsolete control systems.
- Metalworking, automotive, and electronics manufacturing.
Diagnostics
- OSSD output state shows beam reception status.
- Indicator ON confirms power and operation.
- Response time is max. 12.5 ms for fast fault reaction.
- Optical synchronization removes sync wiring faults.
- Short-circuit and surge protection reduce downtime risk.
- Interference prevention supports stable dual-unit operation.
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts.
- Worldwide shipment support.
- Tested industrial surplus and refurbished options.
- 12-month warranty on eligible items.
- Technical verification before dispatch.
- Help for obsolete control systems.
FAQ
Q: What is the detection height?
A: The detection height is 2060 mm.
Q: What object size can it detect?
A: It detects a ø14 mm minimum object.
Q: What is the response time?
A: The response time is max. 12.5 ms.
Q: What output type does it use?
A: It uses PNP OSSD transistor output x2.
Q: Does it need a sync cable?
A: No. It uses optical synchronization.
Q: What is the supply voltage?
A: The supply voltage is 24 VDC Class 2.
Q: What is the protection rating?
A: The protection rating is IP65/IP67.
Q: What is the operating temperature?
A: The operating temperature is -30 to +55 °C.
Q: Can two units work near each other?
A: Yes. Use series connection and switch setting for up to 2 units.
Q: What is the warranty?
A: Oiltech Controls offers a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, or DHL.
Q: How can I contact you?
A: Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
Contact us for inquiries: info@oiltechcontrols.com or +86 158 8020 0923. We support global shipment and technical verification before shipment.
