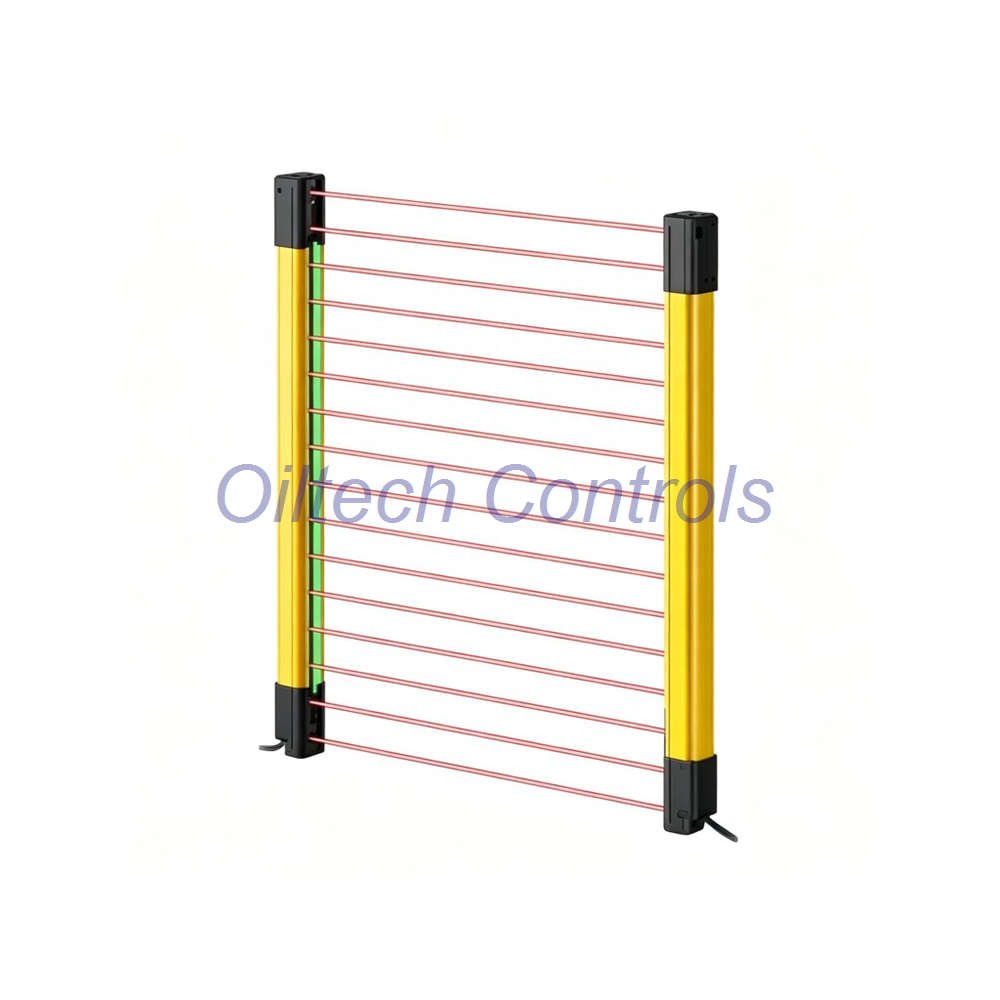

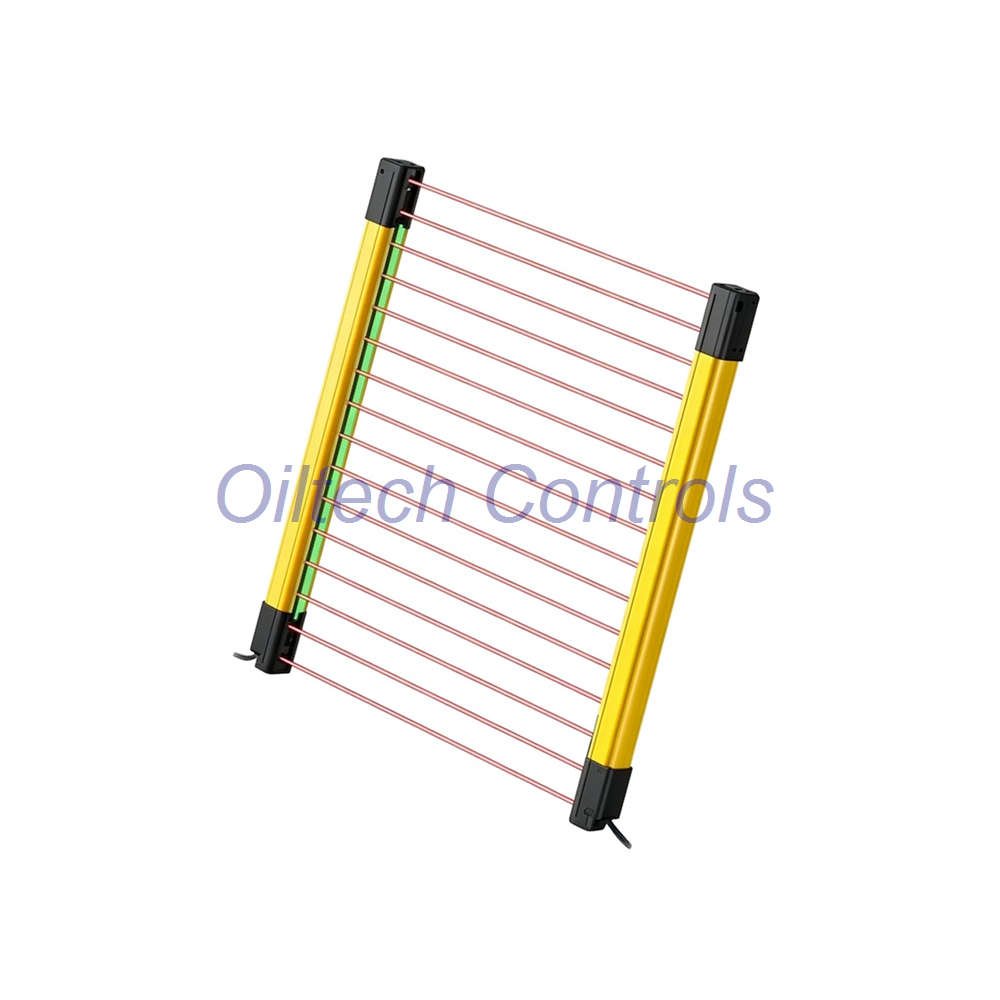

GL-VM30LP Keyence GL-V Series 30-Beam PNP Safety Light Curtain

GL-VM30LP Keyence Safety Light Curtain: 1200 mm PNP Body Guarding

The GL-VM30LP is the PNP counterpart to the GL-VM30LN in the Keyence GL-V series. It uses 30 beam axes across a 1160 mm detection height. The 40 mm beam spacing targets body access, not finger contact. A 1200 mm total length covers full walk-in zones. PNP output suits sourcing PLC inputs common in European and American panels.

Quick Specification Reference

• Model: GL-VM30LP
• Brand: Keyence
• Series: GL-V series
• Type: Type 4 ESPE / AOPD, body protection
• Beam axes: 30 axes at 40 mm spacing
• Detection height: 1160 mm
• Total length: 1200 mm
• Detectable object: ø45 mm
• Range: 0.3 to 15 m
• Response time: max. 5.1 ms (OSSD channel 0, ON→OFF)
• Output: PNP transistor x2 (OSSD)
• Weight: 780 g transmitter, 790 g receiver

Output Type Selection: PNP or NPN

• GL-VM30LP sources positive voltage to the PLC input.
• GL-VM30LN sinks current to 0 V for NPN inputs.
• Pick PNP when your safety relay expects a high signal.
• Pick NPN when your input card pulls to ground.
• Check your panel standard before ordering to avoid rewiring.

Electrical Behavior and Load Limits

• Supply runs at 24 VDC with -20/+25% tolerance and 10% ripple.
• Transmitter draws 128 mA; receiver draws 142 mA with indicator ON.
• Maximum load current stays at 150 mA or less.
• ON residual voltage reaches 2.5 V; OFF voltage stays below 2.0 V.
• Leakage current maxes at 0.8 mA with 0.8 µF load capacity.
• Load wiring resistance should not exceed 2.5 Ω.
• Input short-circuit current sits near 3 mA.

Mechanical Build and Environmental Tolerance

• Main body uses aluminum alloy for structural rigidity.
• Upper and lower case use PPS with 40% glass fiber.
• Front cover combines polycarbonate and SUS304.
• Operating range spans -30 to +55 °C without freezing.
• Storage range spans -30 to +70 °C.
• Humidity tolerance reaches 95% RH without condensation.
• Ambient light immunity handles 3,000 lux incandescent and 20,000 lux sunlight.
• IP65/IP67 rating supports washdown and dusty floors.
• Vibration resistance covers 5 to 150 Hz at 1G in X, Y, Z.
• Shock resistance handles 15 G pulses for 6 ms, 100 times per axis.

Optical Design and Safety Integrity

• Infrared LED at 850 nm falls under Exempt Group IEC62471.
• Effective angular aperture reaches ±2.5° at 3 m or more.
• Detection turns ON only when all 30 beam axes are received.
• Optical synchronization removes the sync cable between units.
• Interference prevention supports 2 units via series connection.
• Protection circuits cover reverse connection, short circuit, and surge.

Certifications and Compliance

• IEC61496-1/-2 Type 4 ESPE / AOPD
• EN ISO13849-1 Category 4, PL e
• IEC61508 SIL3
• UL60947-1 and CSA C22.2 No.60947-1
• UL1998
• EMC: EN55011 Class A, FCC Part15B Class A, ICES-003 Class A

Machines and Zones That Suit the GL-VM30LP

• Hydraulic and mechanical press bodies
• Robot cell entry doors and gates
• Palletizer and depalletizer openings
• Large packaging and wrapping machines
• Vertical lift and storage openings
• Legacy GL-V replacements with fixed 1200 mm mounting

Oiltech Controls’s Insight: GL-VM30LP in the Field

• The 1200 mm length fits most standard press guards without adapters.
• PNP output speeds retrofits on European and American control panels.
• Low current draw avoids overloading small 24 VDC supplies.
• Optical sync shortens installation time on long runs.
• Always confirm the 1160 mm detection height against the real opening.

FAQ: GL-VM30LP Engineering and Buying Guide

Q: Can I swap this unit with the NPN version directly?

A: No. The output wiring differs. The GL-VM30LN sinks current, while the GL-VM30LP sources it. Match your PLC input type first.

Q: Is 40 mm beam spacing enough for finger protection?

A: No. Use a 20 mm or 25 mm pitch model for hand or finger detection. This model targets body access.

Q: What safety distance should I plan for?

A: Apply ISO 13855 with the 5.1 ms response time plus machine stop time and operator approach speed.

Q: Can I mount two sets on the same machine?

A: Yes. Series connection and switch setting prevent interference for up to 2 units.

Q: When is refurbished better than new?

A: Choose refurbished when the model is discontinued but the mounting fixture stays. Choose new for warranty-critical production lines.
