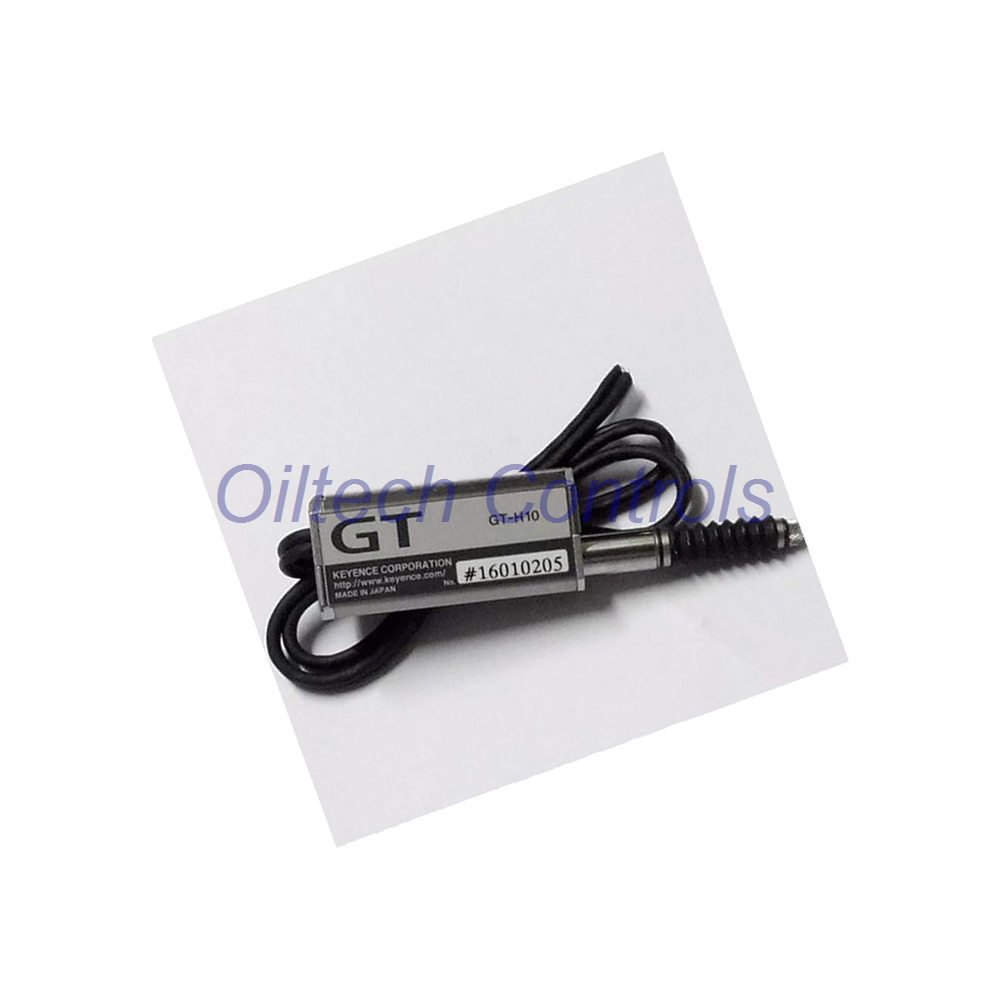

GT-H10 Keyence GT Series Digital Contact Sensor Head
GT-H10 is a standard digital contact sensor head from the Keyence GT Series. It uses LVDT technology for precise displacement measurement. The unit offers a 10 mm measuring range with 3 µm repeatability. It connects to a GT series amplifier for power and signal output.
This model is active in Keyence production. Oiltech Controls supplies tested units for industrial automation users. The compact body and IP67 rating suit harsh factory floors.
Technical Specifications
| Brand | Keyence |
| Model | GT-H10 |
| Series | GT Series |
| Type | Digital contact sensor head, standard |
| Sensor Technology | LVDT displacement sensor |
| Measuring Range | 10 mm |
| Measuring Force (Down) | 1.0 N |
| Measuring Force (Side) | 0.9 N |
| Measuring Force (Up) | 0.8 N |
| Mechanical Response | 10 Hz at 23 °C |
| Repeatability | 3 µm at 23 °C, 100 ms response |
| Built-in Ports | None |
| Protocols | None |
| Supply Voltage | Via GT series amplifier |
| Output Type | Via GT series amplifier |
| Temperature Range | -10 to +55 °C (no freezing) |
| Humidity | 35 to 85 % RH (no condensation) |
| Protection Rating | IP67 |
| Weight | Approx. 115 g with 2-m cable |
| Dimensions | Not available |
Note: This sensor head has no built-in port. It connects to a GT Series amplifier for power and data. All outputs and protocols pass through the amplifier.
Key Performance Data
- Measurement range: 10 mm total stroke
- Repeatability: 3 µm at 23 °C with 100 ms response
- Mechanical response: 10 Hz at 23 °C
- Sensitivity: LVDT core provides linear output
- Linearity: Stable across full 10 mm stroke
- Resolution: Depends on connected GT amplifier
- Environmental tolerance: -10 to +55 °C, IP67
- Noise immunity: LVDT design resists electrical noise
Installation Guide
- Mount the GT-H10 with the contact tip facing the target.
- Keep the stroke within the 10 mm range. Avoid overtravel.
- Measuring force changes with mounting direction. Down: 1.0 N. Side: 0.9 N. Up: 0.8 N.
- Use the 2-m cable to reach the GT amplifier.
- Do not exceed -10 to +55 °C operating temperature.
- Avoid condensation. Keep humidity between 35 and 85 % RH.
- The IP67 rating blocks dust and water jets.
Setup and Maintenance Convenience
- LVDT design needs no calibration after mounting.
- Contact tip wears slowly under normal use.
- Replace the tip when repeatability drifts.
- Check cable routing to prevent strain on the connector.
- Clean the contact tip with a dry cloth.
- No internal electronics to service. All setup runs through the GT amplifier.
- Light weight of 115 g simplifies fixture design.
Compatibility Notes
- Only compatible with Keyence GT Series amplifiers.
- No direct communication port. All data goes through the amplifier.
- No built-in protocol. Network and PLC links require the amplifier.
- Uses the factory 2-m cable. Do not extend beyond amplifier limits.
- This model is active. Keyence still produces it.
- Oiltech Controls tests each unit before shipment.
Certifications and Warranty
- Protection rating: IP67 (dust tight, water jet resistant)
- Warranty: 12 months from Oiltech Controls
- Certifications: Not listed by manufacturer for this model
- Each unit undergoes technical verification before dispatch
- Warranty covers defects under normal use
- Contact info@oiltechcontrols.com for warranty claims
- WhatsApp: +86 158 8020 0923
Packaging and Shipping
- 1 x GT-H10 sensor head
- 2-m cable attached
- Anti-static protective packaging
- Shipping via FedEx, UPS, or DHL
- Global shipment support from Oiltech Controls
- Tracking number provided after dispatch
- Contact info@oiltechcontrols.com for shipping quotes
Typical Applications
- Thickness measurement on production lines
- Height and step detection
- Wear inspection on tools and dies
- Position feedback on automated fixtures
- Dimension checks on machined parts
- Go/no-go gauging with GT amplifier
- Legacy GT Series system maintenance
Diagnostic Capabilities
- LVDT output shows real-time displacement
- GT amplifier displays measured values and error codes
- Repeatability check confirms sensor health
- Contact tip wear affects readings. Inspect regularly.
- IP67 rating allows use in wet areas
- No internal diagnostics. All checks run through the GT amplifier
- Compare readings against a known master for validation
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support with FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on every unit
- Technical verification before shipment
- Support for obsolete control systems
- Direct contact: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
FAQ
Q: Does the GT-H10 work without an amplifier?
No. It needs a GT Series amplifier to power and output data.
Q: What is the measuring range?
10 mm total stroke.
Q: What is the repeatability?
3 µm at 23 °C with 100 ms response.
Q: Does measuring force change with mounting direction?
Yes. Down: 1.0 N. Side: 0.9 N. Up: 0.8 N.
Q: Is this model discontinued?
No. Keyence still produces the GT-H10.
Q: What is the warranty period?
12 months from Oiltech Controls.
Q: How fast is shipping?
We ship via FedEx, UPS, or DHL. Delivery time depends on your location.
Q: What is the protection rating?
IP67. Dust tight and protected against water jets.
Q: How do I contact support?
Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
