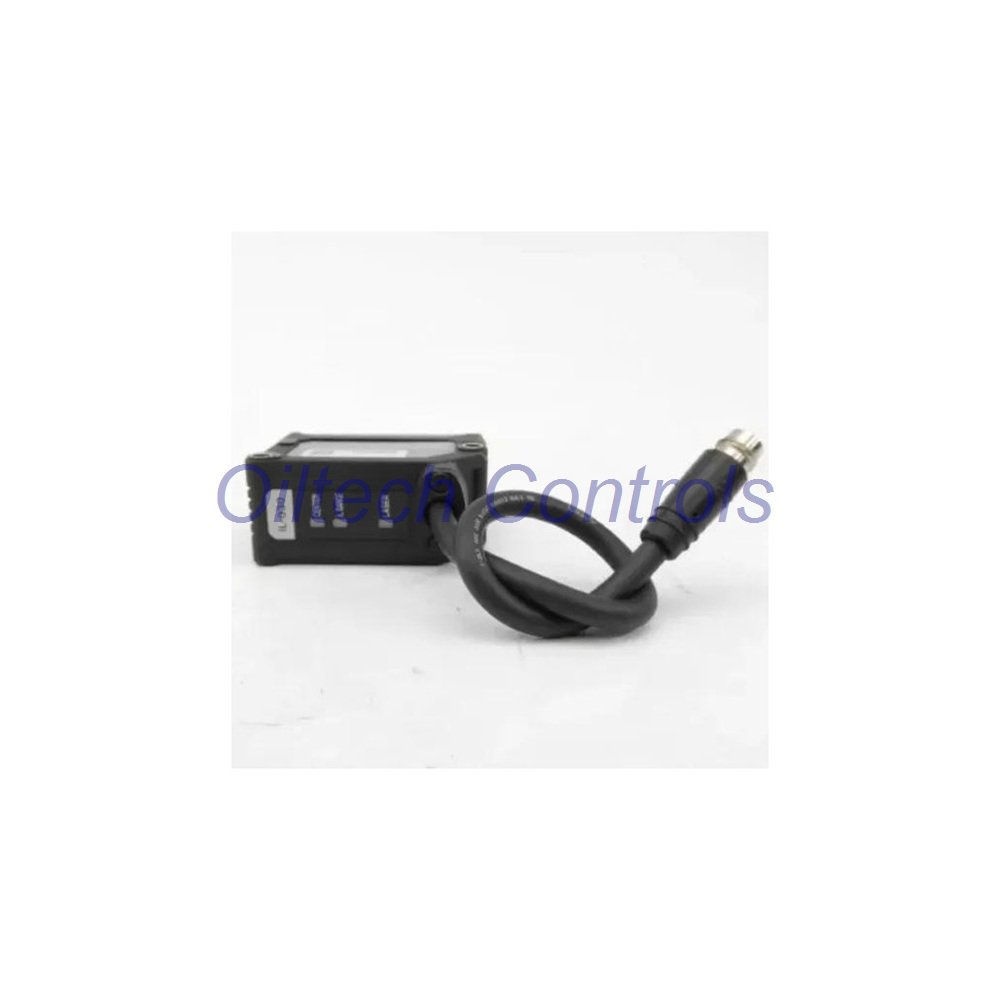

IL-030 CMOS Laser Displacement Sensor Head by Keyence
The Keyence IL-030 is a short-range, high-accuracy CMOS laser displacement sensor head. It uses reflective triangulation. Moreover, it belongs to the IL series. This sensor head connects to an IL amplifier unit. Therefore, it sends no data alone. Because of this design, the head stays small and strong. As a result, it fits tight machines and fast lines.
With a 30 mm reference distance, the IL-030 covers a 20 to 45 mm range. In addition, it reaches 1 µm repeatability on a white diffuse target. Linearity stays within ±0.1% of F.S. from 25 to 35 mm. The red laser is Class 1, so it is safe for normal use. Furthermore, the housing meets IP67 for dusty and wet areas.
This head suits industrial automation users who need stable short-range measurement. For example, it works well for position checks, thickness checks, edge detection, and small part inspection. Besides that, the IL-030 is active and in production. Last verified: 2026-09.
Why Buy From Oiltech Controls?
- We bring 15+ years of industrial automation spare parts experience.
- We ship worldwide with FedEx, UPS, and DHL.
- We offer tested industrial surplus and refurbished options.
- Every item includes a 12-month warranty.
- We verify technical details before shipment.
- We support obsolete control systems and hard-to-find parts.
Need a quote or a compatibility check? Email us at info@oiltechcontrols.com or message us on WhatsApp at +86 158 8020 0923.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Keyence |
| Model | IL-030 |
| Series | IL series |
| Module Type | CMOS laser displacement sensor head |
| Sensor Type | Triangulation, reflective |
| Reference Distance | 30 mm |
| Measurement Range | 20 to 45 mm |
| Light Source | Red semiconductor laser, 655 nm visible light |
| Laser Output | 220 µW |
| Laser Class | Class 1 (IEC 60825-1; FDA CDRH Part1040.10) |
| Spot Diameter | Approx. 200 x 750 µm at standard distance |
| Linearity | ±0.1% of F.S. (25 to 35 mm) |
| Repeatability | 1 µm with standard white diffuse target, 1 ms sampling |
| Sampling Rate | 0.33 / 1 / 2 / 5 ms, 4 levels selectable |
| Frequency Response | Depends on selected sampling rate |
| Sensitivity | High accuracy for short-range reflective targets |
| Resolution | 1 µm repeatability class |
| Temperature Characteristics | 0.05% of F.S./°C |
| Operating Temperature | -10 to +50 °C, no condensation or freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67 |
| Communication | None built in; connects to IL amplifier unit |
| Supply Voltage | Powered by IL series amplifier unit |
| Output Type | Sensor head only; output comes from IL amplifier |
| Dimensions | Not available |
| Weight | Approx. 60 g |
| Lifecycle | Active; official Keyence production status confirmed |
Installation Guide
- Mount the IL-030 firmly on a stable bracket.
- Keep the head at the 30 mm reference distance.
- Stay inside the 20 to 45 mm measurement range.
- Avoid strong backlight and direct sunlight.
- Keep the laser beam square to the target.
- Connect the head to a compatible IL series amplifier.
- Use the amplifier to set sampling rate and output.
- Check zero and span after mounting.
Setup and Maintenance
- Clean the lens with a soft, dry cloth.
- Do not use solvent on the lens or housing.
- Check the cable for cuts or loose plugs.
- Keep the head dry and free of dust.
- Use the amplifier display for fast setup.
- Recheck linearity after a target or fixture change.
- Replace the head if repeatability drifts.
Compatibility
- Works with Keyence IL series amplifier units.
- No built-in communication port.
- No standalone protocol support.
- No communication expansion inside the head.
- System output depends on the connected amplifier.
- Check amplifier model before ordering.
Certifications
- Laser Class 1 per IEC 60825-1.
- FDA CDRH Part1040.10 compliant.
- IP67 protection rating.
- Official Keyence production status confirmed.
Package List
- 1 x Keyence IL-030 sensor head
- Protective packing
- Test report or verification record where available
- Order and warranty documents
Warranty and Shipping
All products include a 12-month warranty. We ship by FedEx, UPS, and DHL. We test and verify each item before shipment. In addition, we support global delivery and obsolete control systems.
For inquiries, email info@oiltechcontrols.com or chat on WhatsApp at +86 158 8020 0923.
Typical Applications
- Small part position checks
- Thickness and height measurement
- Edge detection on fast lines
- Gap and step inspection
- Automated assembly feedback
- Quality control in tight spaces
- Replacement for obsolete IL series setups
Diagnostic Capability
- Amplifier display shows live measurement values.
- Sampling rate changes help match line speed.
- Stable readings confirm correct mounting.
- Drift can point to heat, dust, or cable issues.
- No signal often means a bad amplifier link.
- Weak signal often means wrong distance or angle.
FAQ
Q: Does the IL-030 work alone?
A: No. It needs a Keyence IL series amplifier unit.
Q: What is the measurement range?
A: The range is 20 to 45 mm.
Q: What is the reference distance?
A: The reference distance is 30 mm.
Q: What repeatability does it offer?
A: It offers 1 µm with a white diffuse target at 1 ms.
Q: Is it safe for normal use?
A: Yes. It is a Class 1 laser product.
Q: Can it work in wet areas?
A: Yes. The housing is IP67 rated.
Q: What is the warranty?
A: We provide a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Do you test before shipping?
A: Yes. We verify technical details before shipment.
Q: Can you support obsolete systems?
A: Yes. We support obsolete control systems and rare parts.
