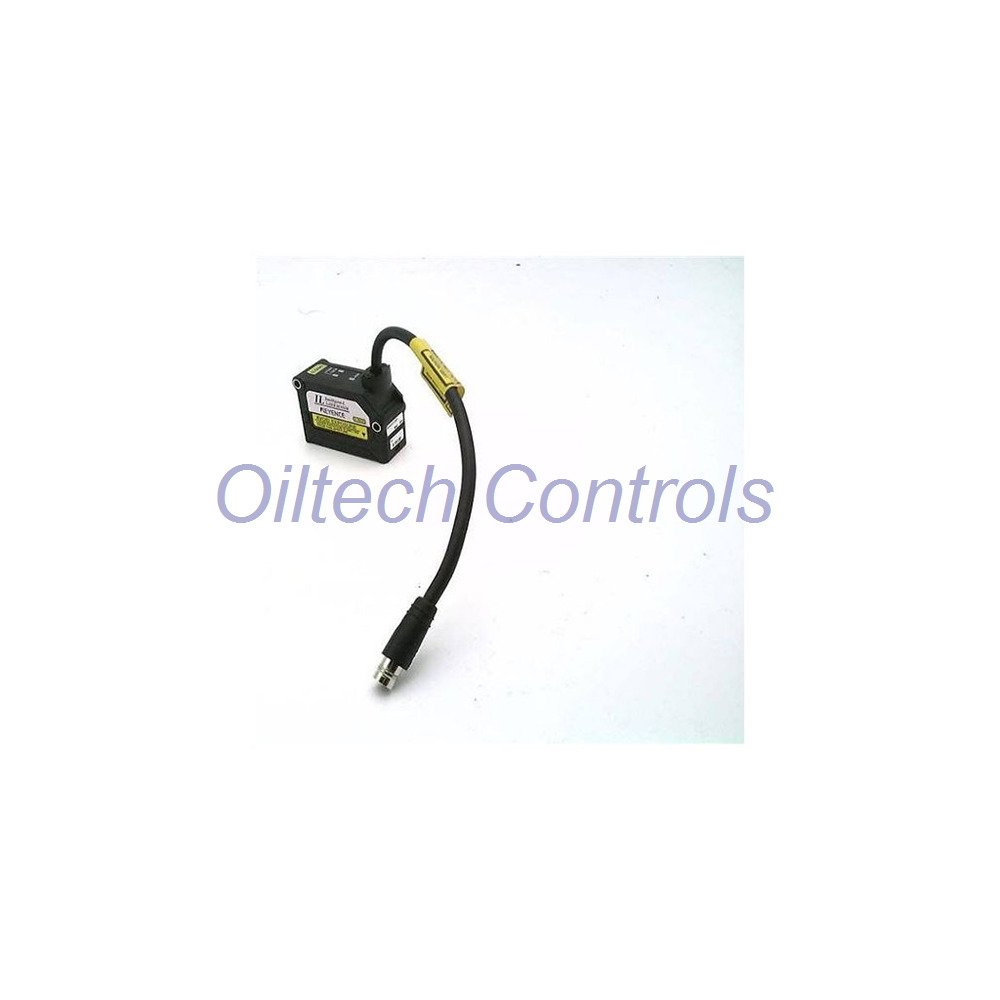

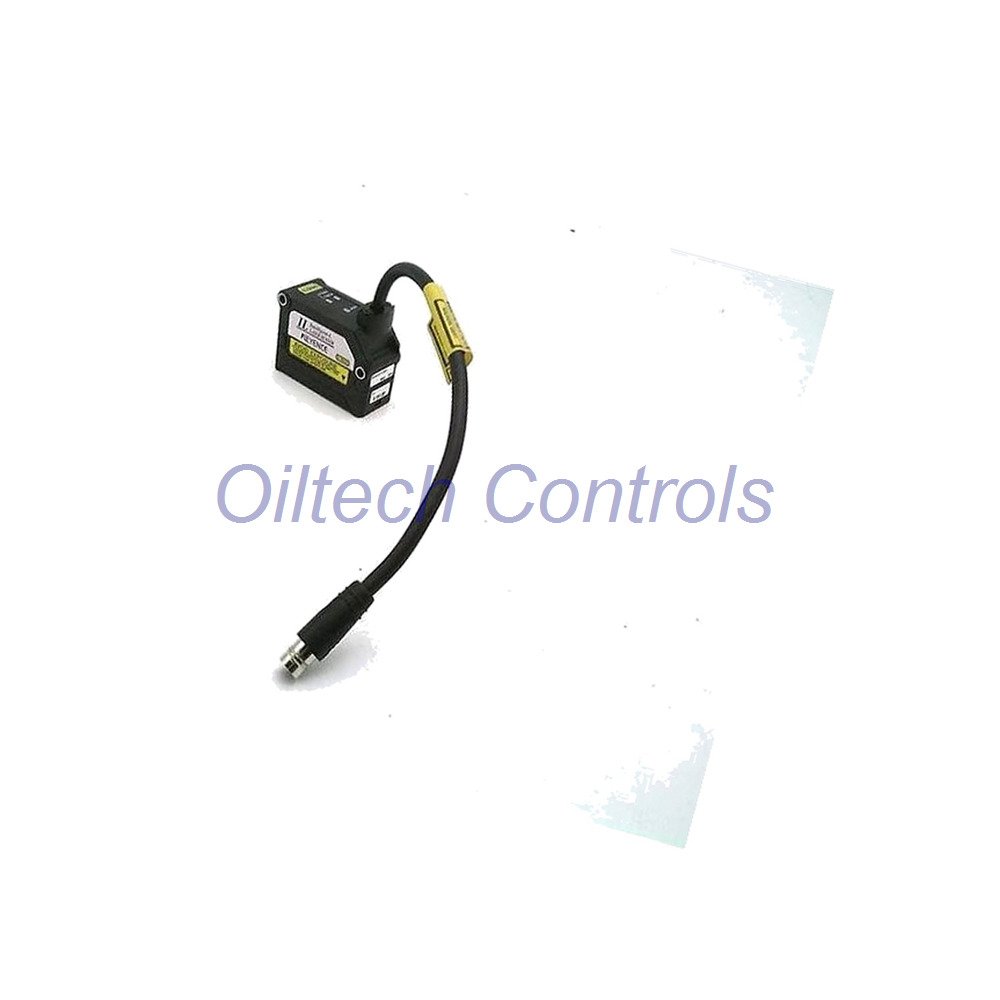

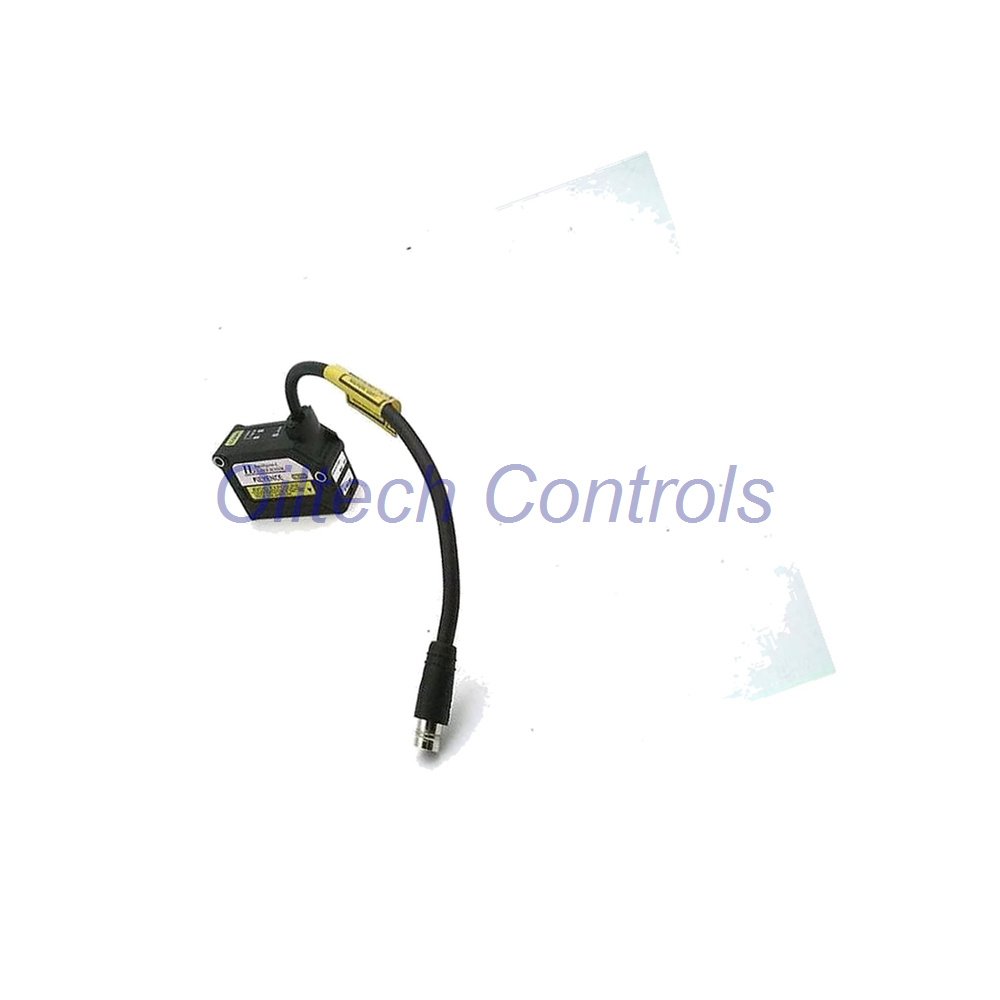

IL-S025 CMOS Laser Displacement Sensor Head
Brand: Keyence | Model: IL-S025 | Series: IL Series
The Keyence IL-S025 is an ultra-compact reflective CMOS laser displacement sensor head. It uses laser triangulation for short-range measurement. The reference distance is 25 mm. The measurement range is 20 to 30 mm. It connects to an IL series amplifier unit. No built-in communication port exists on the head. This sensor suits tight spaces and fast inline inspection.
Core selling point: 1 µm repeatability with a 0.33 ms fastest sampling rate. It delivers stable data for small part measurement, profile checking, and position feedback.
Technical Specifications
| Brand | Keyence |
| Model | IL-S025 |
| Series | IL Series |
| Sensor Type | CMOS laser displacement sensor head, triangulation, reflective |
| Reference Distance | 25 mm |
| Measurement Range | 20 to 30 mm |
| Light Source | Red semiconductor laser, 655 nm visible light |
| Laser Output | 560 µW |
| Laser Class | Class 2 (IEC 60825-1; FDA CDRH Part 1040.10) |
| Spot Diameter | Approx. 25 x 1,200 µm at standard distance |
| Linearity | ±0.075 % of F.S. (20 to 25 mm); ±0.1 % of F.S. (20 to 30 mm) |
| Repeatability | 1 µm (standard white diffuse target, 1 ms sampling) |
| Sampling Rate | 0.33 / 1 / 2 / 5 ms (4 levels selectable) |
| Temperature Characteristics | 0.03 % of F.S./°C |
| Built-in Ports | None |
| Protocols | None |
| Communication Expansion | None |
| Supply Voltage | Not available; powered by IL series amplifier unit |
| Power Consumption | Not available |
| Output Type | Not available; sensor head connects to IL amplifier |
| Operating Temperature | -10 to +50 °C (no condensation or freezing) |
| Storage Temperature | Not available |
| Relative Humidity | 35 to 85 % RH (no condensation) |
| Protection Rating | IP67 |
| Dimensions (H×W×D) | Not available |
| Weight | Approx. 60 g |
| Lifecycle | Active; official Keyence production status confirmed via product/spec page (Last verified: 2026-09) |
Key Performance Summary
- Measurement range: 20 to 30 mm, short-range reflective setup.
- Frequency response: sampling from 0.33 ms to 5 ms, 4 selectable levels.
- Sensitivity: detects small surface changes at 1 µm repeatability.
- Linearity: ±0.075 % F.S. in 20 to 25 mm; ±0.1 % F.S. in 20 to 30 mm.
- Resolution: 1 µm under standard white diffuse target and 1 ms sampling.
- Temperature range: -10 to +50 °C operating.
- Environmental tolerance: IP67 protection and 35 to 85 % RH humidity limit.
- Anti-interference ability: stable CMOS triangulation design; use shielded IL cabling and stable supply from the amplifier.
Installation Guide
- Mount the IL-S025 at the 25 mm reference distance.
- Keep the target inside 20 to 30 mm for best linearity.
- Angle the head to avoid direct mirror reflection.
- Use the IL series amplifier unit for power and signal output.
- Route cables away from motors, drives, and high-current lines.
- Tighten the mounting bracket to reduce vibration drift.
Debugging and Maintenance
- Check the spot position on the target before zeroing.
- Set sampling time to match the production cycle.
- Clean the front window with soft lens paper and alcohol.
- Do not touch the lens with bare hands.
- Verify repeatability with a standard white diffuse target.
- Replace damaged cables before they affect data stability.
Compatibility
The Keyence IL-S025 works only with IL series amplifier units. It has no built-in communication port. It does not support standalone protocols. All power, output, and expansion functions come from the IL amplifier. This head fits existing IL systems and replacement projects.
Certifications
- Laser Class 2 per IEC 60825-1.
- FDA CDRH Part 1040.10 compliance.
- IP67 protection rating.
Packing List
- 1 x Keyence IL-S025 sensor head
- 1 x protective packing box
- 1 x quick verification record from Oiltech Controls
Warranty and Shipping
All products include a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking is provided after dispatch. Contact us for stock checks and lead times.
Typical Applications
- Small part height and thickness measurement.
- Inline profile checking on automated lines.
- Position feedback for pick-and-place heads.
- Gap, step, and surface runout inspection.
- Obsolete IL system replacement and repair.
Diagnostic Capability
The IL-S025 sends raw displacement data to the IL amplifier. The amplifier handles judgment, scaling, and alarm output. Users can monitor received light intensity and measurement stability. This helps find target tilt, surface color change, or cable noise. Fast sampling supports short-cycle diagnostics.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support through FedEx, UPS, and DHL.
- Tested industrial surplus and refurbished options available.
- 12-month warranty on eligible products.
- Technical verification before shipment to reduce fit issues.
- Support for obsolete control systems and hard-to-find parts.
FAQ
Q: Does the IL-S025 work alone?
A: No. It needs an IL series amplifier unit.
Q: What is the measurement range?
A: The range is 20 to 30 mm with a 25 mm reference distance.
Q: What is the repeatability?
A: It reaches 1 µm with a standard white diffuse target at 1 ms sampling.
Q: Is it protected against dust and water?
A: Yes. The rating is IP67.
Q: How fast can it sample?
A: The fastest setting is 0.33 ms. Other options are 1, 2, and 5 ms.
Q: What is the warranty?
A: We provide a 12-month warranty.
Q: How do you ship?
A: We use FedEx, UPS, and DHL.
Q: Can you support obsolete systems?
A: Yes. We support obsolete control systems and legacy IL setups.
