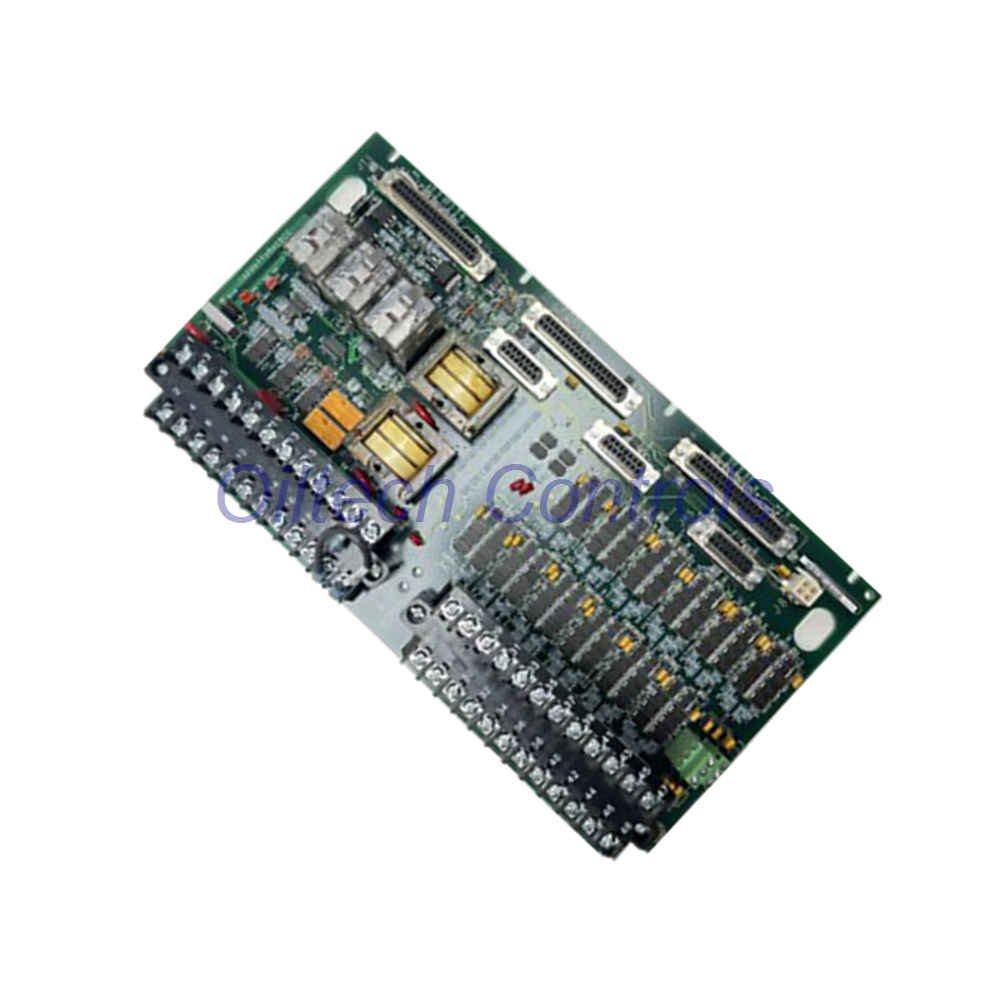

IS200TTURH1BCC Turbine Terminal Board – Mark VI Speedtronic

IS200TTURH1BCC Primary Protection Input Board

Product Overview

The IS200TTURH1BCC is a primary protection input board from General Electric for the Mark VI Speedtronic series. This turbine termination board (TTUR) manages essential I/O for generator synchronization, speed sensing, and voltage monitoring. It provides 125 V DC output for the main breaker coil (52G). It supports both Simplex and TMR systems for reliable turbine control. This board uses surface mount technology for compact industrial design.

Technical Specifications

Key Features & Diagnostics

• Speed Sensing: 12 passive MPU inputs for turbine speed (2 Hz – 20 kHz, 0.05% accuracy).
• Generator & Bus Voltage: Dual PT inputs (115 V rms) with 1,500V isolation.
• Relay Drivers: Three relays (K25, K25P, K25A) for 52G breaker closure.
• Shaft Monitoring: Processes voltage and current from shaft sensors.
• Jumper Config: JP1/JP2 select Simplex or TMR (Triple Modular Redundancy).
• Diagnostic Capability: Onboard monitoring of MPU pulse integrity and relay status.
• EMI Protection: Shielded terminals and conformal coating enhance noise immunity.
• Cable Length: Supports PT wiring up to 1,000 ft (18 AWG).

Installation & Wiring Guide

• Connectors: Use JR5 for speed signals; JR1 for other I/O. TMR uses JR5, JS5, JT5, JR1, JS1, JT1.
• Terminal Blocks: TB1 and TB2 accept up to #12 AWG. Each has a shield ground strip.
• Jumper Settings: Set JP1/JP2 for Simplex or TMR mode before installation.
• Optional TTL: TB3 supports external power for active speed pickups.
• Grounding: Use chassis ground on shield strips to reduce interference.
• PT Wiring: Keep twisted pairs and maintain isolation for 115 V rms inputs.
• Coil Output: 125 V dc to breaker coil – verify polarity and current rating.

Compatibility & System Integration

• Designed for GE Mark VI Speedtronic control systems.
• Supports Simplex and TMR architectures with jumper selection.
• Works with standard magnetic pickups, shaft sensors, and potential transformers.
• Integrates with Modicon Quantum series for hybrid control upgrades.
• Fully compatible with existing GE I/O processors and terminal boards.
• Replaces earlier TTUR revisions (B and C).

Environmental & Certifications

• Temperature Range: -30 to 65 °C (operational).
• Humidity: 5–95% non-condensing.
• EMC: Designed for heavy industrial environments.
• Isolation: 1,500 V rms (magnetic).
• Manufactured in the USA with conformal coating for moisture/dust protection.
• Complies with GE Mark VI safety and performance standards.

Why Buy From Oiltech Controls?

• Over 15 years in industrial automation spare parts.
• Global express shipping via FedEx, UPS, or DHL.
• All units tested and verified before shipment.
• 12-month warranty on every board.
• Expert support for obsolete control systems.
• Technical verification ensures proper configuration.

Package & Warranty

• Package Includes: One IS200TTURH1BCC board, anti-static packaging, and installation guide.
• Warranty: 12 months against manufacturing defects.
• Shipping: FedEx, UPS, or DHL – tracked and insured.
• All items are industrial surplus or refurbished with full testing.

Frequently Asked Questions

Q: Is this board new or used?
We offer tested surplus and refurbished options, fully functional with 12-month warranty.

Q: Can I use this in a TMR system?
Yes, set jumpers JP1/JP2 to TMR – the board supports all six connectors for redundancy.

Q: What is the maximum cable length for PT inputs?
Up to 1,000 ft with 18 AWG wire for minimal signal loss.

Q: How do I verify speed pulse accuracy?
Use the on-board MPU monitoring; accuracy is 0.05% of reading from 2 Hz to 20 kHz.

Q: Does this board work with Modicon Quantum?
Yes, it integrates through standard I/O mapping – see Modicon Quantum.
