Product Overview

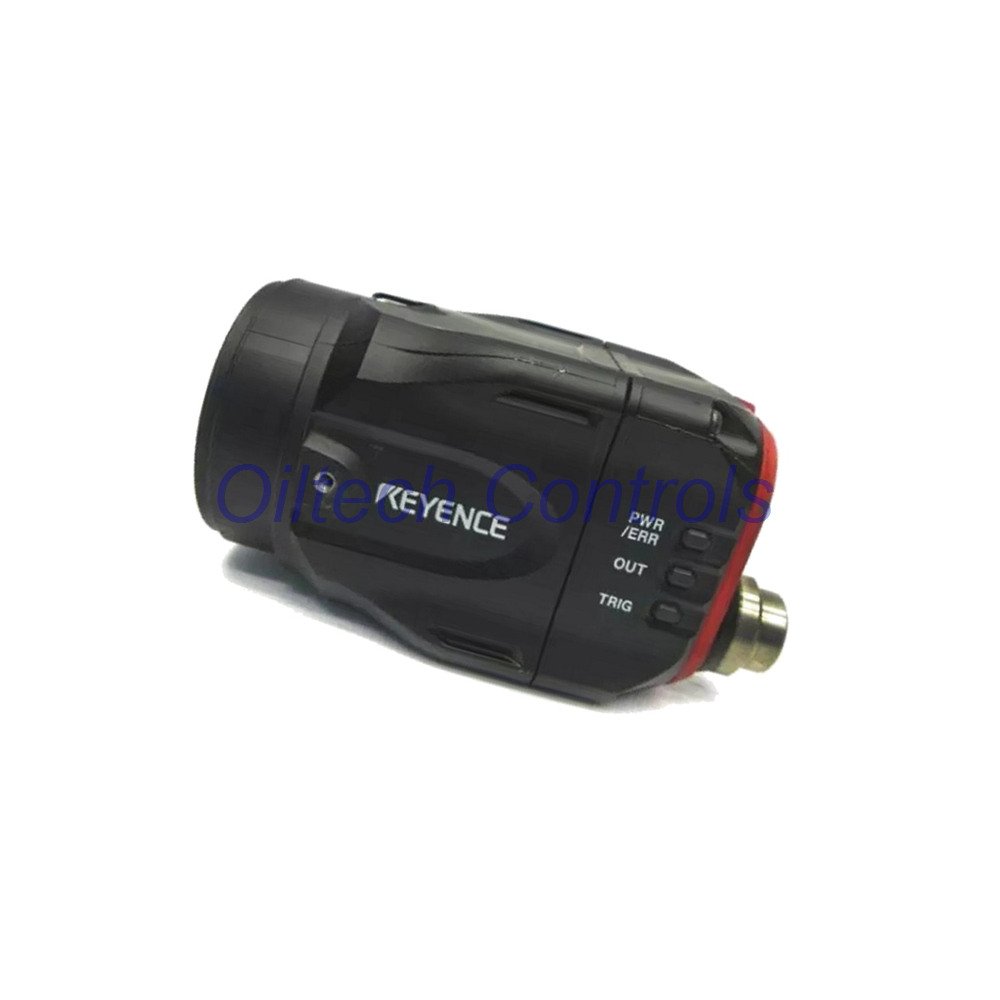

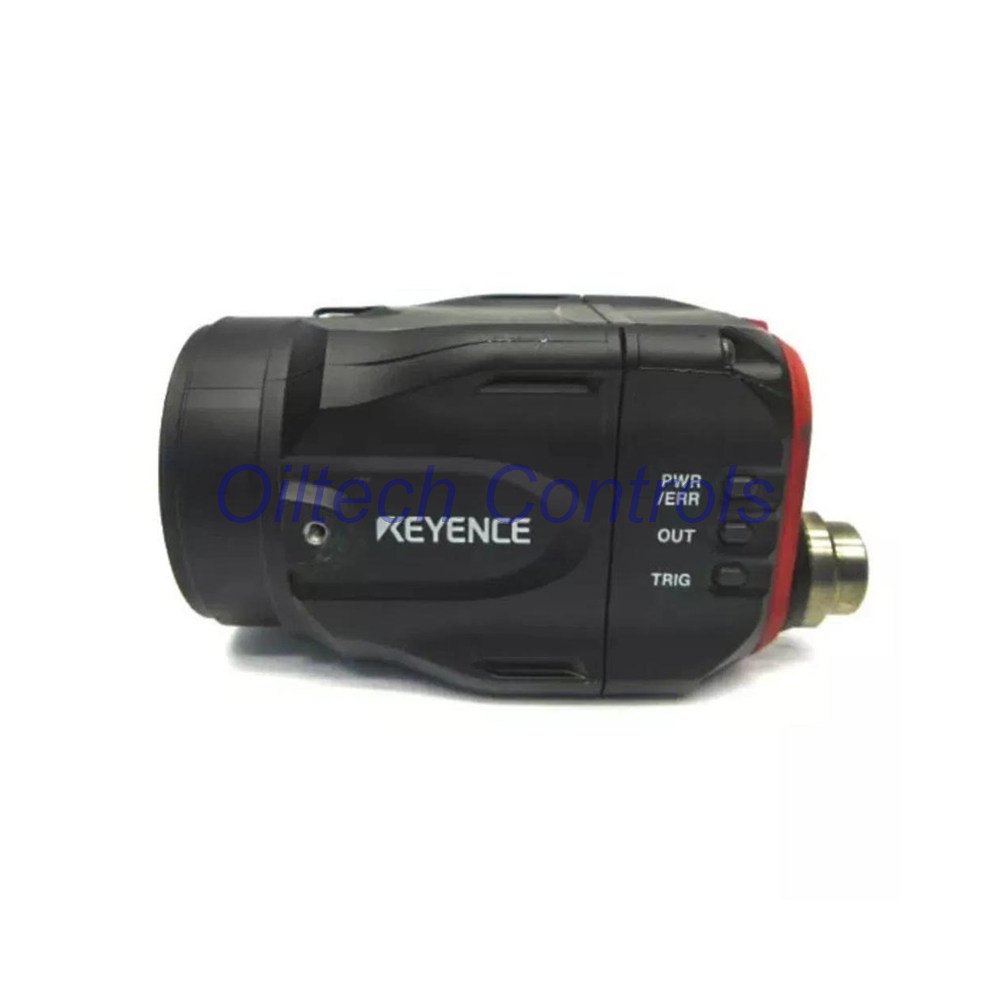

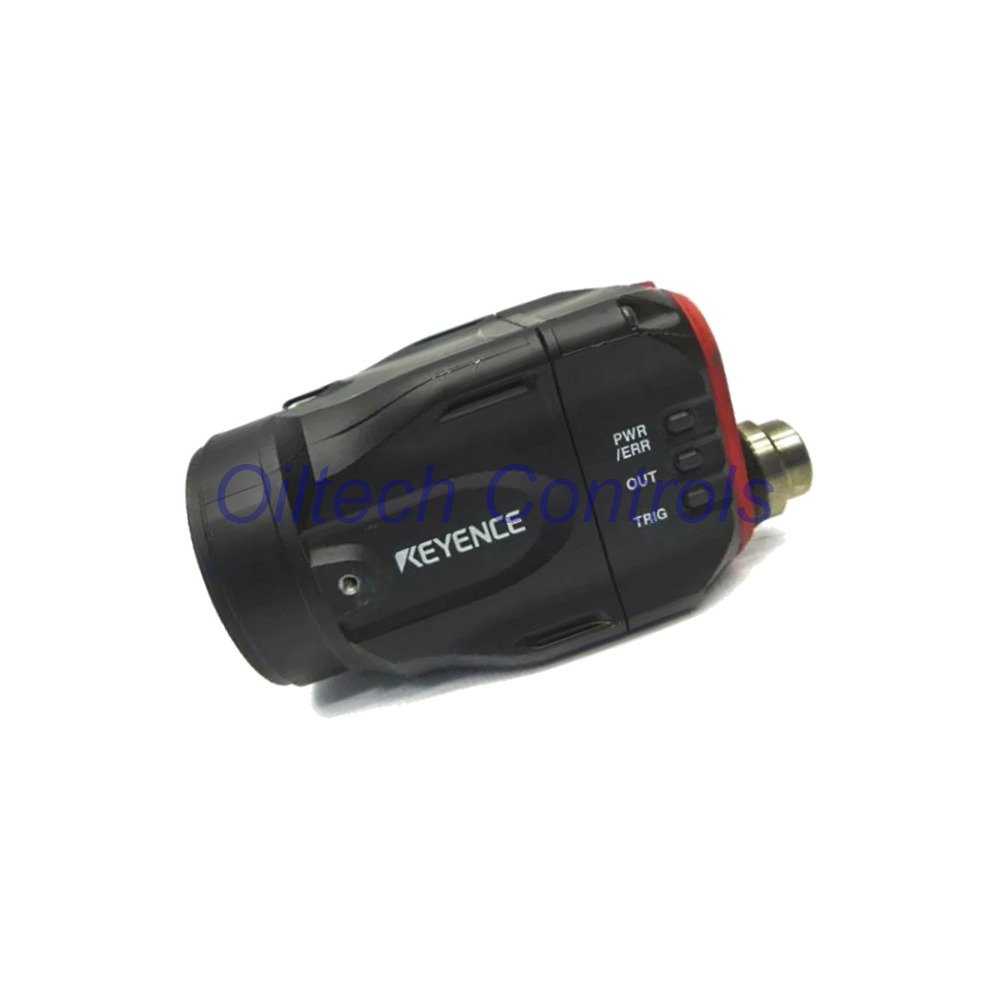

Model IV-500M from Keyence is a compact integrated vision sensor. It belongs to the IV Series. This monochrome sensor uses manual focus. It is built for standard distance work. The sensor delivers stable inspection in tight spaces. It suits industrial automation lines. The IV-500M supports shape detection, color area, and position adjustment. It offers 32 programs and 16 detection tools. The unit has a red LED light. Pulse and DC lighting are switchable. The IV-500M connects via M12 4-pin Ethernet. It speaks FTP, EtherNet/IP, and PROFINET. The housing is aluminium die-cast. Protection rating is IP67. This sensor is active and in production. Last verified: 2026-09.
Technical Specifications
| Brand | Keyence |
| Model | IV-500M |
| Series | IV Series |
| Type | Integrated vision sensor, monochrome, manual focus |
| Install Distance | 50 to 500 mm |
| Field of View | 50 mm: 25 x 18 mm; 500 mm: 210 x 157 mm |
| Image Sensor | 1/3 inch monochrome CMOS, 752 x 480 pixels |
| Lighting | Red LED, pulse or DC switchable |
| Tools | Shape detection, color area, area, position adjustment |
| Tool Count | 16 detection tools, 1 position adjustment tool |
| Programs | 32 |
| Ports | M12 4-pin, 100BASE-TX/10BASE-T |
| Protocols | FTP client, EtherNet/IP, PROFINET |
| Supply Voltage | 24 VDC +/-10% |
| Power Draw | 0.6 A or less |
| Output | Open collector, NPN/PNP switchable, N.O./N.C. switchable, 26.4 V 50 mA max |
| Inputs | 6 (IN1 to IN6) |
| Outputs | 4 (OUT1 to OUT4) |
| Temperature Range | 0 to +50°C, no freezing |
| Humidity | 35 to 85% RH, no condensation |
| Protection | IP67 (except with OP-87436/OP-87437 filter) |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm double amplitude, 2 hours per axis |
| Shock Resistance | 500 m/s², 3 times in 6 directions |
| Material | Case: aluminium die-cast. Packing: NBR. Front cover: acrylic. Adapter: POM. |
| Weight | Approx. 270 g |
Resolution: 752 x 480 pixels. Linearity: not specified. Sensitivity: not specified. Frequency response: not specified. Anti-interference: stable under 10-55 Hz vibration and 500 m/s² shock. The IV-500M handles tough factory floors.
Installation Guide
- Mount the IV-500M with the POM adapter.
- Keep distance between 50 mm and 500 mm.
- Use the manual focus ring to sharpen the image.
- Connect the M12 4-pin cable for Ethernet.
- Set pulse or DC lighting based on your line speed.
- Do not mount the dome attachment IV-D10 in high shock areas.
Debug and Maintenance
- Use the 32 programs for fast product changeover.
- Adjust position tool first, then shape and area tools.
- Clean the acrylic front cover with a soft cloth.
- Check the red LED light for correct pulse timing.
- Verify IP67 seal after any filter change.
Compatibility Notes
The IV-500M works with Keyence IV Series accessories. It supports FTP client for image transfer. It talks to EtherNet/IP and PROFINET PLCs. The sensor has no communication expansion slot. Use the built-in M12 port only. This model fits lines that need a small, fast vision sensor. It replaces older IV units without protocol changes.
Certifications and Compliance
Keyence builds the IV-500M to meet CE and RoHS standards. The IP67 rating confirms dust and water resistance. The unit follows Keyence quality rules. Always check local electrical codes before wiring. This sensor is active and supported.
Package List
- 1 x IV-500M sensor
- 1 x mounting adapter
- 1 x quick guide
Note: cables and power supply are not included.
Warranty and Shipping
Oiltech Controls offers a 12-month warranty on this IV-500M. We ship by FedEx, UPS, and DHL. Every unit gets a technical check before dispatch. We support obsolete control systems. Contact us for stock and lead time.
Typical Applications
- Presence and absence checks on assembly lines.
- Shape and position verification for small parts.
- Color area sorting in packaging.
- Robot guidance with EtherNet/IP.
- Quality gates on high-speed conveyors.
Diagnostic Capabilities
The IV-500M shows live images over Ethernet. It logs inspection results for FTP export. The 16 tools run at the same time. You can monitor tool pass/fail counts. The sensor gives open collector outputs for alarms. Use the 6 inputs for trigger and reset. This helps you find faults fast.
Why Buy From Oiltech Controls?
- We bring 15+ years of industrial automation spare parts experience.
- We ship worldwide with global shipment support.
- We offer tested industrial surplus and refurbished options.
- Every IV-500M comes with a 12-month warranty.
- We do technical verification before shipment.
- We support obsolete control systems.
Email us at info@oiltechcontrols.com or call +86 158 8020 0923 on WhatsApp.
FAQ
Q: What is the field of view at 100 mm?
A: The view scales between 50 mm and 500 mm. At 50 mm it is 25 x 18 mm. At 500 mm it is 210 x 157 mm.
Q: Does the IV-500M work with PROFINET?
A: Yes. It supports FTP client, EtherNet/IP, and PROFINET.
Q: Can I use it outdoors?
A: No. Keep it between 0 and +50°C. Avoid condensation.
Q: What is the warranty?
A: Oiltech Controls gives a 12-month warranty on this unit.
Q: How fast is shipping?
A: We use FedEx, UPS, and DHL. Delivery time depends on your location.
Q: Is the IV-500M still produced?
A: Yes. Keyence confirms active status. Last verified: 2026-09.
