Product Overview

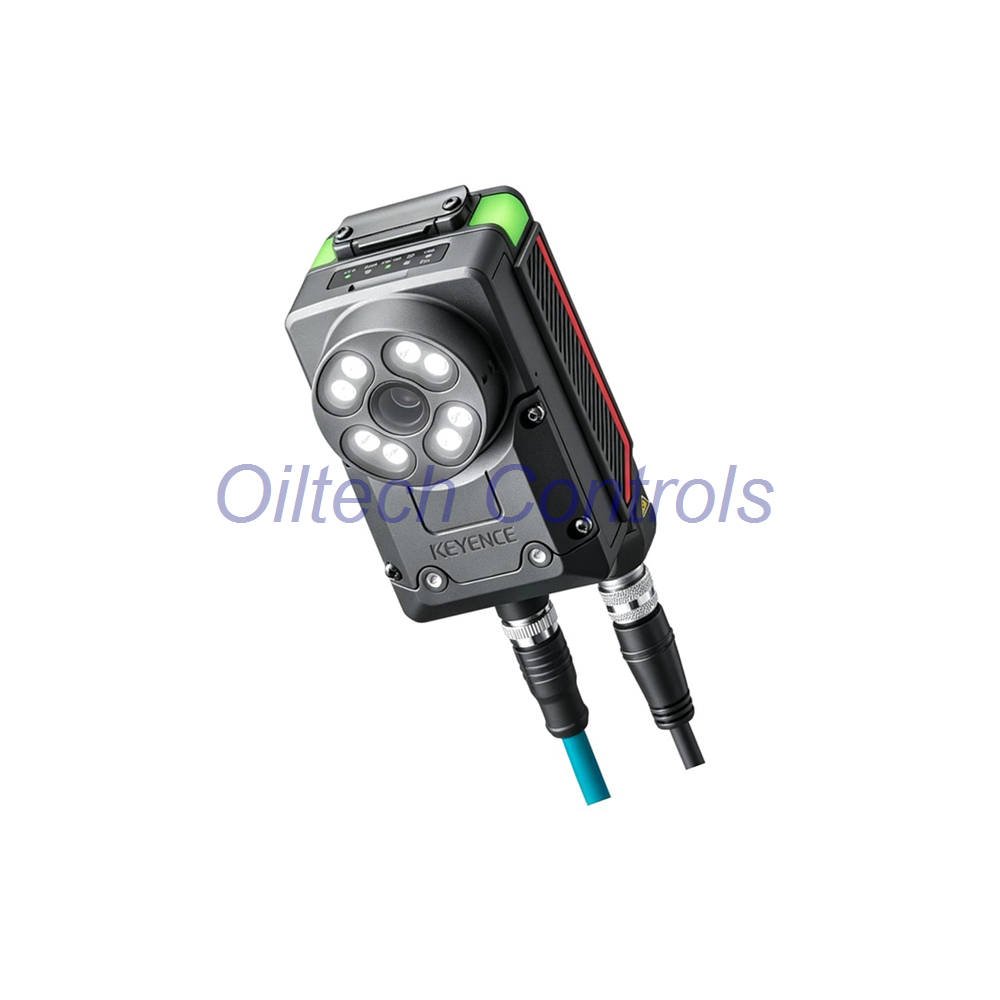

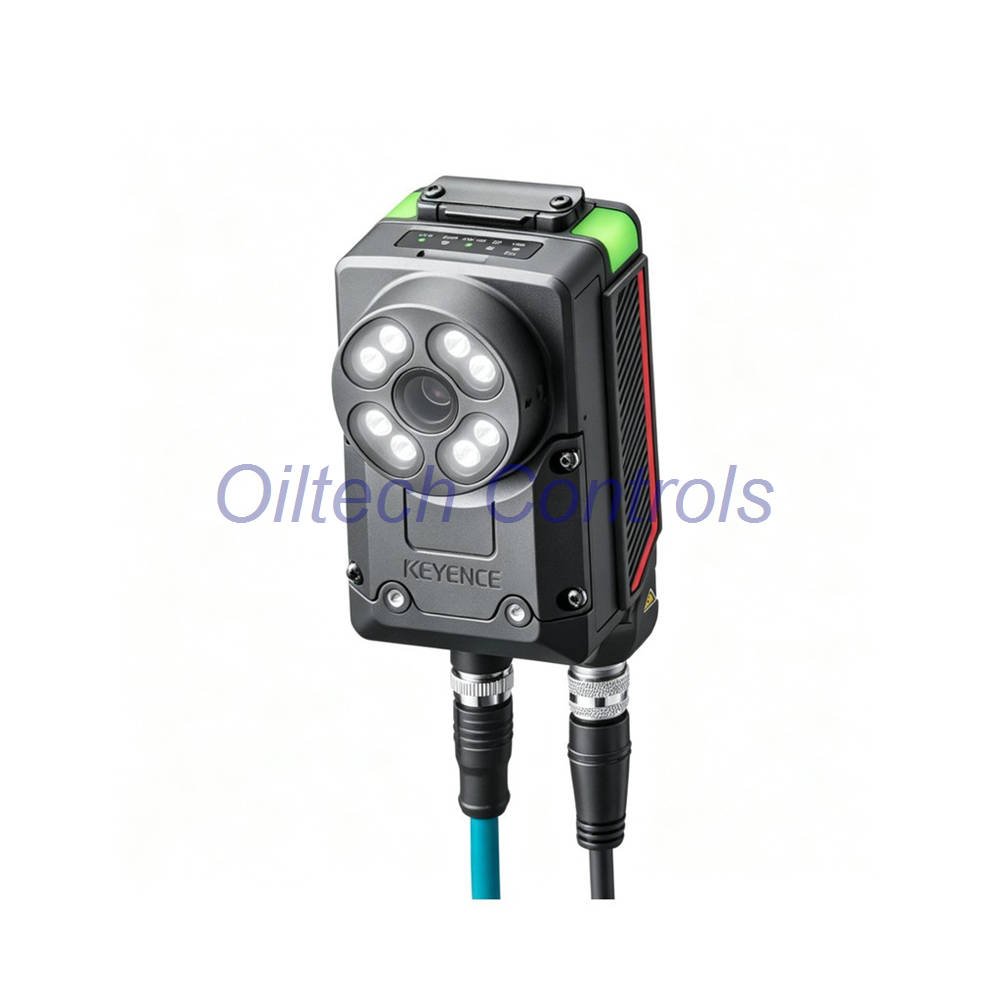

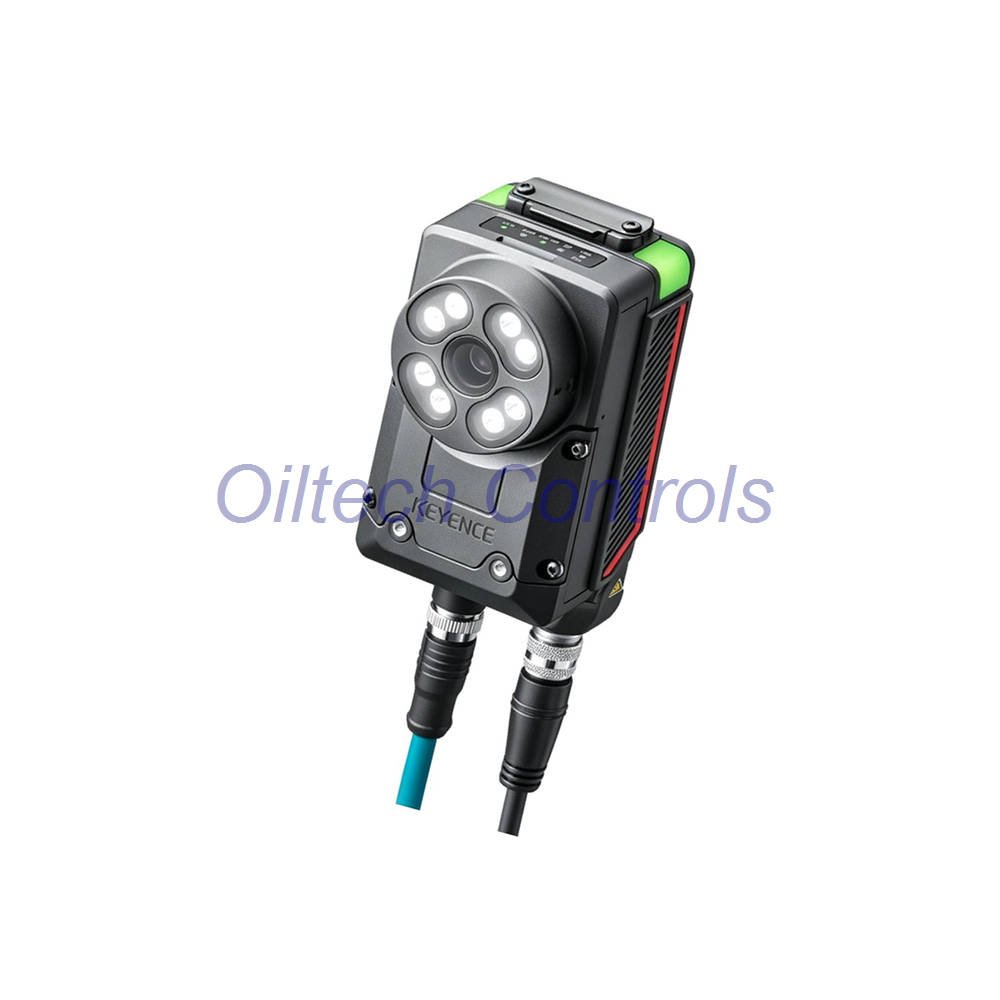

The IV4-500CA is a color smart camera from the Keyence IV4 Series. It has built-in AI and a standard field of view. This vision sensor handles inspection, sorting, and AI through count tasks. It fits production lines that need fast image checks and stable output. The unit uses a 1/2.9 inch color CMOS sensor with 1280 x 960 pixels. It supports auto focus and white LED lighting. You can switch between pulse and continuous lighting. It offers 65 tools for flexible setup. Built-in Ethernet supports 1000BASE-T and 100BASE-TX. The camera also works with EtherNet/IP, PROFINET CC-B, OPC UA, MQTT, and other factory protocols.
Technical Specifications
| Brand | Keyence |
| Model | IV4-500CA |
| Series | IV4 Series |
| Type | Smart camera, standard field of view, color model |
| Field of View | 50 mm distance: 22 x 16 mm; 3000 mm distance: 1184 x 888 mm |
| Image Sensor | 1/2.9 inch color CMOS, 1280 x 960 pixels |
| Focus | Auto |
| Exposure Time | 12 us to 10 ms |
| Lighting | White LED, pulse or continuous |
| Tools | 65 |
| Modes | Standard, Sorting, AI Through Count |
| Ethernet Port | M12 8-pin X-code female, 1000BASE-T/100BASE-TX |
| Protocols | EtherNet/IP, PROFINET CC-B, TCP/IP, FTP, SFTP, SNTP, OPC UA, MQTT |
| Supply Voltage | 24 VDC +25%, -20% |
| Power Consumption | 3.4 A or less at 19.2 V; 2.7 A or less at 24.0 V |
| Average Power | 9.3 W without illumination unit; 12.8 W with illumination unit |
| Output | Open collector, NPN/PNP switchable, N.O./N.C. switchable, 30 V 50 mA max |
| PoE | Power Class 4/6 |
| Inputs / Outputs | 6 inputs, 6 outputs, 3 selectable IN/OUT |
| Operating Temperature | 0 to +50°C, no freezing |
| Humidity | 85% RH or less, no condensation |
| Protection | IP67, except with certain polarizing filters |
| Vibration | 10 to 500 Hz, 0.816 G²/Hz, X/Y/Z |
| Shock | 500 m/s², 3 times in 6 directions |
| Weight | Approx. 370 g without illumination unit; approx. 560 g with illumination unit |
Installation Guide
- Mount the camera at a stable distance from the target.
- Keep the front cover clean and free from glare.
- Use the M12 Ethernet port for network connection.
- Connect 24 VDC power within the rated range.
- Set focus to auto for quick startup.
- Choose pulse or continuous lighting based on line speed.
- Use shielded cables to reduce electrical noise.
- Confirm IP67 sealing after installation.
Setup and Maintenance
Setup is simple. The IV4-500CA supports auto focus and built-in AI. You can configure tools through the network. The camera offers 65 tools for many inspection tasks. Routine maintenance is limited. Check the lens cover and LED window. Clean with a soft cloth. Do not use harsh chemicals. Confirm cable seals and connector caps. Review exposure and lighting if the line speed changes. Use OPC UA or MQTT for data collection. This helps with remote diagnostics and process tracking.
Compatibility
The camera works with IV4-CU1 communication unit for PROFINET CC-C and EtherCAT. It also supports DL Series units for EtherCAT, CC-Link, DeviceNet, and RS-232C. Built-in protocols include EtherNet/IP, PROFINET CC-B, TCP/IP, FTP client, SFTP client, SNTP client, OPC UA server, and MQTT client. This makes it easy to connect to PLCs, HMIs, and factory software.
Certifications and Standards
- ESD safe, IEC61340-5-1 compliant
- IP67 protection rating
- PoE Power Class 4/6
- Official Keyence production status confirmed
Packing List
- IV4-500CA smart camera
- Power supply connector waterproof cap
- Ethernet connector waterproof cap
- Documentation as supplied
Warranty and Shipping
All units include a 12-month warranty. We ship by FedEx, UPS, and DHL. Every item is tested before dispatch. We support global delivery and urgent line-down needs.
Typical Applications
- Presence and absence checks
- Color sorting
- Part counting with AI through count
- Assembly verification
- Label and print inspection
- Packaging quality control
- Small part detection
Diagnostic Capabilities
The camera supports OPC UA server and MQTT client. These features help with remote monitoring. You can track tool results, image history, and device status. The built-in Ethernet port supports fast data transfer. This makes troubleshooting easier on high-speed lines.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested industrial surplus and refurbished options
- 12-month warranty
- Technical verification before shipment
- Support for obsolete control systems
FAQ
Q: What is the field of view?
A: It ranges from 22 x 16 mm at 50 mm to 1184 x 888 mm at 3000 mm.
Q: Does it support PoE?
A: Yes, PoE Power Class 4/6.
Q: What is the warranty?
A: 12 months.
Q: How does it ship?
A: By FedEx, UPS, or DHL.
Q: Can it connect to a PLC?
A: Yes, it supports EtherNet/IP and PROFINET CC-B.
Q: Is it still active?
A: Yes, official Keyence status is active.
