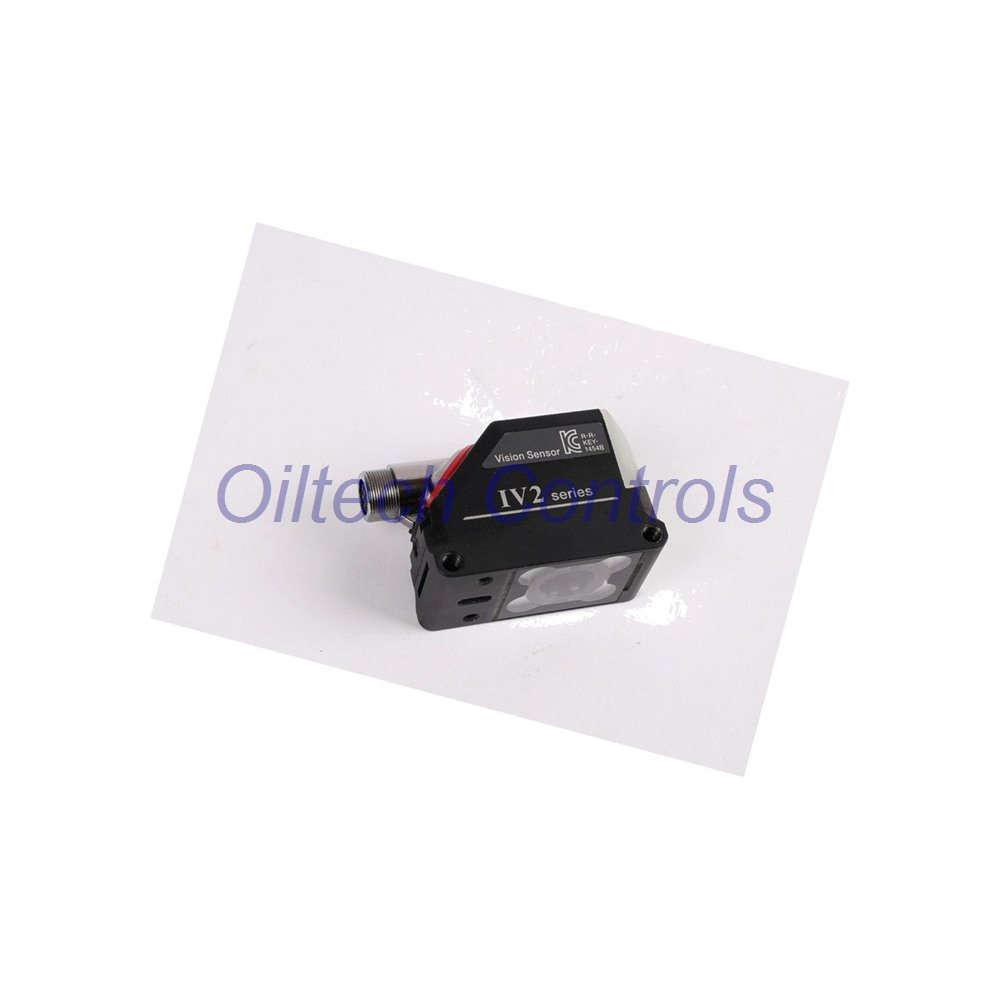

IV2-G300CA Keyence Sensor Head – Wide 300 Field of View, Color Type
IV2-G300CA is a color sensor head for the Keyence IV2 Series. It works with IV2-G30 and IV2-G30F amplifiers. This model offers a wide 300 field of view. It is built for industrial inspection tasks.
The sensor head uses a 1/3 inch color CMOS with 752 x 480 pixels. It has auto focus and fast exposure control. A white LED provides illumination. You can switch between pulse and DC lighting.
Technical Specifications
| Brand | Keyence |
| Model | IV2-G300CA |
| Series | IV2 Series |
| Type | Sensor head, wide 300 field of view, color |
| Reference distance | 40 to 300 mm |
| Field of view | 40 mm: 42 (H) x 31 (V) mm; 300 mm: 275 (H) x 206 (V) mm |
| Image element | 1/3 inch color CMOS, 752 (H) x 480 (V) pixels |
| Focus | Auto |
| Exposure time | 1/25 to 1/50000 |
| Illumination | White LED |
| Lighting method | Pulse or DC, switchable |
| Supply voltage | From connected amplifier |
| Power consumption | Not available |
| Output type | Via amplifier |
| Operating temperature | 0 to +50°C (no freezing) |
| Relative humidity | 35 to 85% RH (no condensation) |
| Protection rating | IP67 (except with certain attachments) |
| Vibration resistance | 10 to 55 Hz, 1.5 mm, 2 hours X/Y/Z |
| Shock resistance | 500 m/s², 6 times, 3 directions |
| Dimensions | Not available |
| Material | Zinc die-cast case, acrylic cover, TPU indicator |
| Weight | Approx. 75 g |
| Built-in ports | None (dedicated cable to amplifier) |
| Protocols | None |
| Communication expansion | Via amplifier |
| Lifecycle | Active – Keyence production confirmed (Last verified: 2026-09) |
Installation Guide
- Mount the IV2-G300CA at 40 to 300 mm from the target.
- Connect to IV2-G30 or IV2-G30F using the dedicated cable.
- Keep the front cover clean for best image quality.
- Avoid mounting near strong vibration sources when using dome attachments.
- Use IP67 protection only without optional filters or lenses.
Setup and Maintenance
- Auto focus reduces setup time.
- Exposure adjusts from 1/25 to 1/50000 for varied line speeds.
- Switch lighting mode to match moving or static targets.
- Clean the acrylic cover with a soft, damp cloth.
- Check cable connection to the amplifier regularly.
Compatibility
This sensor head works only with IV2-G30 and IV2-G30F amplifiers. It does not have built-in ports or protocols. All outputs and communication go through the amplifier. Optional attachments include polarized light filters OP-87899, OP-87900, OP-87901, magnifying lens OP-87902, and dome attachments IV2-GD05 and IV2-GD10.
Certifications and Packaging
- CE and RoHS compliance typical for Keyence IV2 Series. Check label for details.
- Package includes: 1x IV2-G300CA sensor head, 1x dedicated cable, 1x quick guide.
- Optional attachments sold separately.
Warranty and Shipping
All products from Oiltech Controls come with a 12-month warranty. We ship via FedEx, UPS, and DHL. Tracking is provided for every order.
Typical Applications
- Presence and position checks on production lines.
- Color inspection of parts, labels, and packaging.
- Wide area detection at up to 300 mm distance.
- Quality control in automotive, electronics, and food industries.
- Robotic guidance and error proofing.
Diagnostic Capabilities
- Real-time image monitoring via amplifier.
- Lighting and exposure diagnostics through amplifier software.
- Status indicator on sensor head for quick checks.
- Error codes displayed on amplifier for fast troubleshooting.
FAQ
Q: Does the IV2-G300CA work without an amplifier?
A: No. It needs an IV2-G30 or IV2-G30F amplifier for power and output.
Q: What is the field of view at 300 mm?
A: At 300 mm, the field of view is 275 (H) x 206 (V) mm.
Q: Is the sensor head waterproof?
A: Yes, it is IP67 rated. But not with certain optional filters or lenses.
Q: Can I use it outdoors?
A: It works in 0 to +50°C and 35 to 85% RH. Avoid direct sunlight and rain.
Q: What is the warranty?
A: 12 months from Oiltech Controls.
