IV3-CP50 Keyence Control Panel for IV3 / IV2 / IV Series Vision Sensors

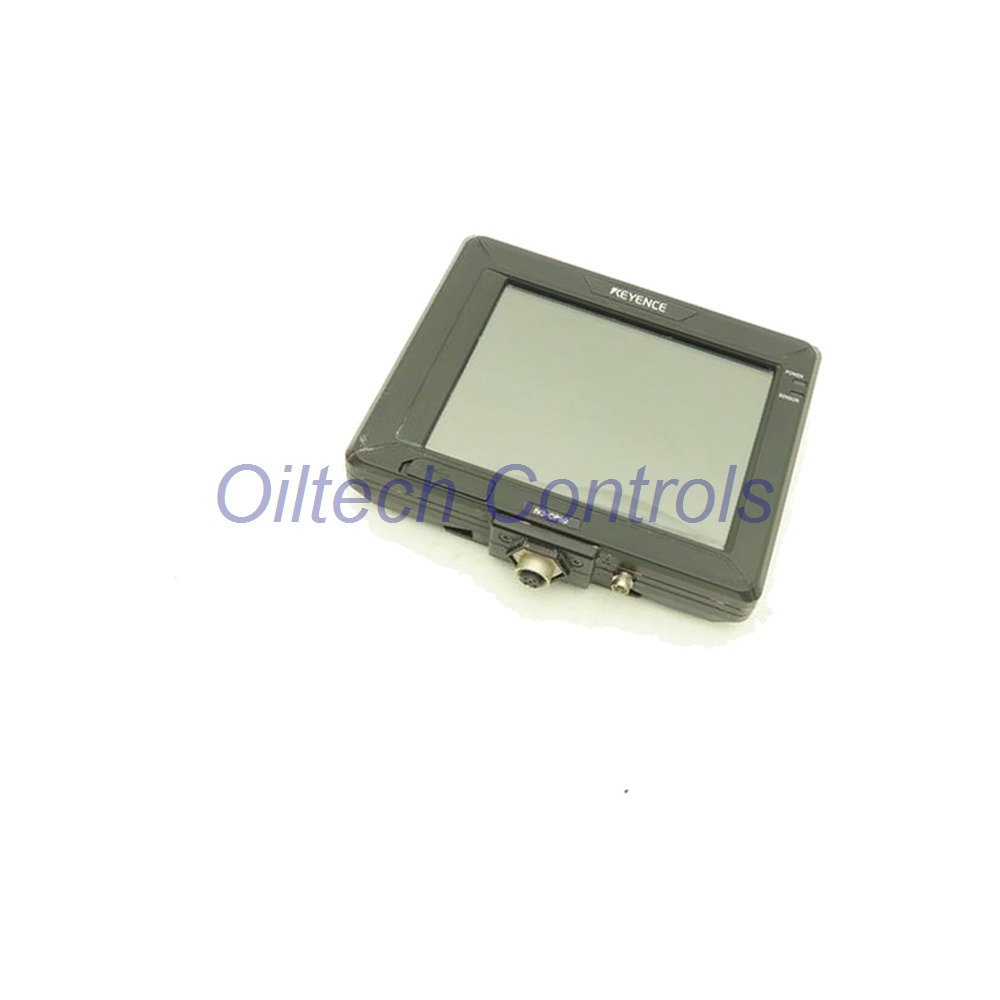

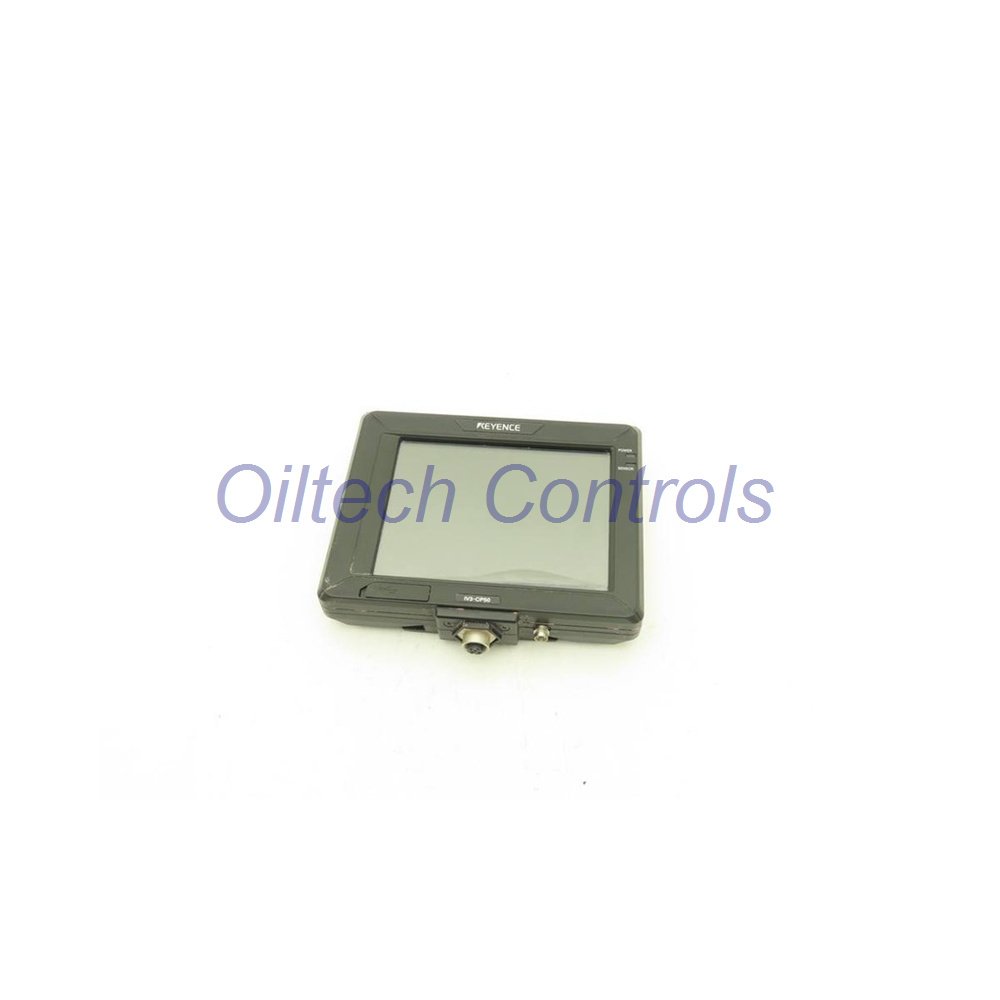

IV3-CP50 is a 5.7-inch touchscreen control panel from the Keyence IV3 Series. It gives you direct setup, monitoring, and diagnostics for IV3, IV2, and IV series vision sensors. The panel is built for factory floors. It uses a 24 VDC supply and draws 0.3 A or less. The analog resistive touch panel needs only 0.8 N or less actuating force. A white LED backlight lasts about 50000 hours at 25 C. The unit also survives a 1.3 m drop onto concrete and vibration from 10 to 55 Hz.
This control panel is a practical choice for machine builders and maintenance teams. It supports Ethernet 100BASE-TX and USB. It works with connected Keyence vision sensors. The IP40 rating suits control cabinets and indoor industrial use. The operating range is 0 to +50°C and 35 to 85% RH without condensation. The main case uses PC material. Connectors use brass + Ni coating, zinc + Ni coating, PA, and EPDM for reliable daily use.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support through FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on eligible products
- Technical verification before shipment
- Support for obsolete control systems
Email: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
Technical Specifications
| Brand | Keyence |
| Model | IV3-CP50 |
| Series | IV3 Series |
| Type | Control panel |
| Display | 5.7-inch TFT color LCD, 640 x 480 (VGA) |
| Touch Panel | Analog resistive, actuating force 0.8 N or less |
| Backlight | White LED, approx. 50000 hours at 25 C |
| Built-in Ports | M12 4-pin Ethernet 100BASE-TX, USB |
| Protocols | Via connected sensor |
| Communication Expansion | None |
| Supply Voltage | 24 VDC +/-10% including ripple |
| Power Consumption | 0.3 A or less |
| Operating Temperature | 0 to +50°C, no freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP40 |
| Drop Resistance | 1.3 m onto concrete, 2 times, any direction |
| Vibration Resistance | 10 to 55 Hz, double amplitude 0.7 mm, 2 hours in X/Y/Z directions |
| Dimensions (H×W×D) | Not available |
| Weight | Approx. 450 g control panel; approx. 485 g with wall mounting adapter and stylus |
| Material | Main case PC; power connector brass + Ni coating; Ethernet connector zinc + Ni coating, PA; USB cover EPDM; pen holder PC; hook POM; LED cover PC; adapter PC; stylus POM |
Core Performance Data
- Measurement range: depends on connected IV3 / IV2 / IV sensor
- Frequency response: depends on sensor and setup
- Sensitivity: set through the touchscreen interface
- Linearity: maintained by the paired Keyence sensor
- Resolution: 640 x 480 (VGA) display output
- Temperature range: 0 to +50°C
- Environmental tolerance: IP40, 35 to 85% RH
- Interference resistance: stable with proper shielding and grounding
Installation Guide
- Mount the panel in a dry control cabinet or indoor station.
- Use the wall mounting adapter for fixed installation.
- Connect 24 VDC power with correct polarity.
- Use the M12 4-pin Ethernet port for sensor communication.
- Keep USB cover closed when the port is not in use.
- Leave space for heat release around the panel.
- Ground the machine frame to reduce electrical noise.
Setup and Maintenance
- Use the stylus or finger on the resistive touch panel.
- Set sensor parameters through the 5.7-inch screen.
- Check the LED backlight for status during operation.
- Clean the screen with a soft, dry cloth.
- Do not use solvents on the PC case or EPDM cover.
- Verify cable seating at the M12 and USB ports.
- Replace damaged covers or stylus early.
Compatibility
- Keyence IV3 Series vision sensors
- Keyence IV2 Series vision sensors
- Keyence IV Series vision sensors
- 24 VDC industrial power systems
- 100BASE-TX Ethernet networks
- USB data access where supported
Certifications and Compliance
Certification details are not listed in the supplied data. Please confirm the required standard for your line before order. Oiltech Controls can check the label and documents before shipment. This helps you meet site compliance and safety rules.
Packing List
- IV3-CP50 control panel
- Wall mounting adapter
- Stylus
- Protective packing
- Order and test documents where available
Warranty and Shipping
Oiltech Controls offers a 12-month warranty on eligible products. We test and verify key functions before dispatch. We ship by FedEx, UPS, and DHL. Tracking is provided after shipment. Packing follows industrial transport needs for safe delivery.
Typical Applications
- Inline vision inspection stations
- Presence and position checks
- Assembly verification
- Label and mark inspection
- Robot cell sensor setup
- Packaging machine control
- Obsolete Keyence vision system support
Diagnostic Capabilities
- Live sensor image display on the touchscreen
- Parameter review and adjustment on site
- Status check for connected IV series sensors
- Fault finding through the display interface
- Quick setup changes during changeover
- Support for maintenance and troubleshooting teams
FAQ
Q: What is the IV3-CP50?
A: It is a 5.7-inch touchscreen control panel for Keyence IV series vision sensors.
Q: Which sensors work with this panel?
A: It supports IV3, IV2, and IV series vision sensors.
Q: What power does it need?
A: It needs 24 VDC +/-10% and draws 0.3 A or less.
Q: What ports are built in?
A: It has M12 4-pin Ethernet 100BASE-TX and USB.
Q: What is the protection rating?
A: The rating is IP40.
Q: What is the operating temperature?
A: The range is 0 to +50°C with no freezing.
Q: Does it come with a warranty?
A: Yes. Eligible products carry a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
