IV4-600MA AI Vision Sensor by Keyence | IV4 Series Wide Field Monochrome Smart Camera

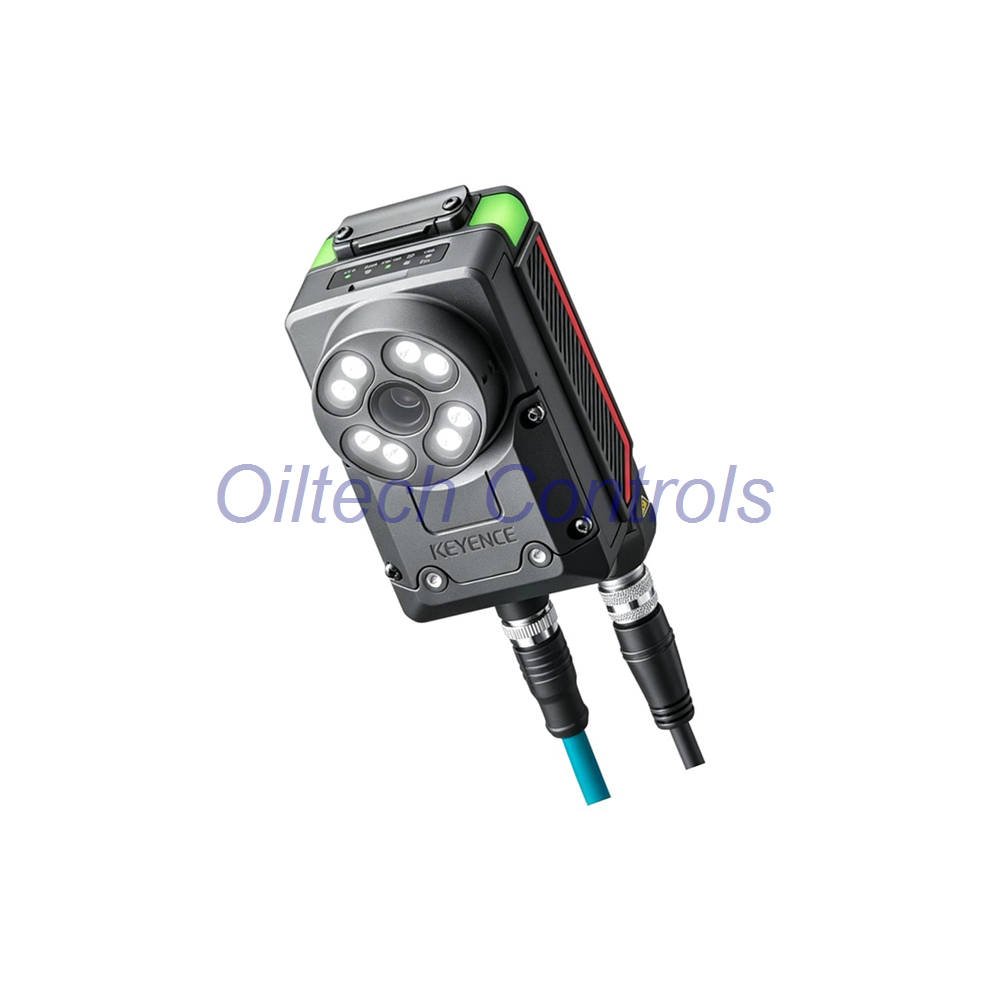

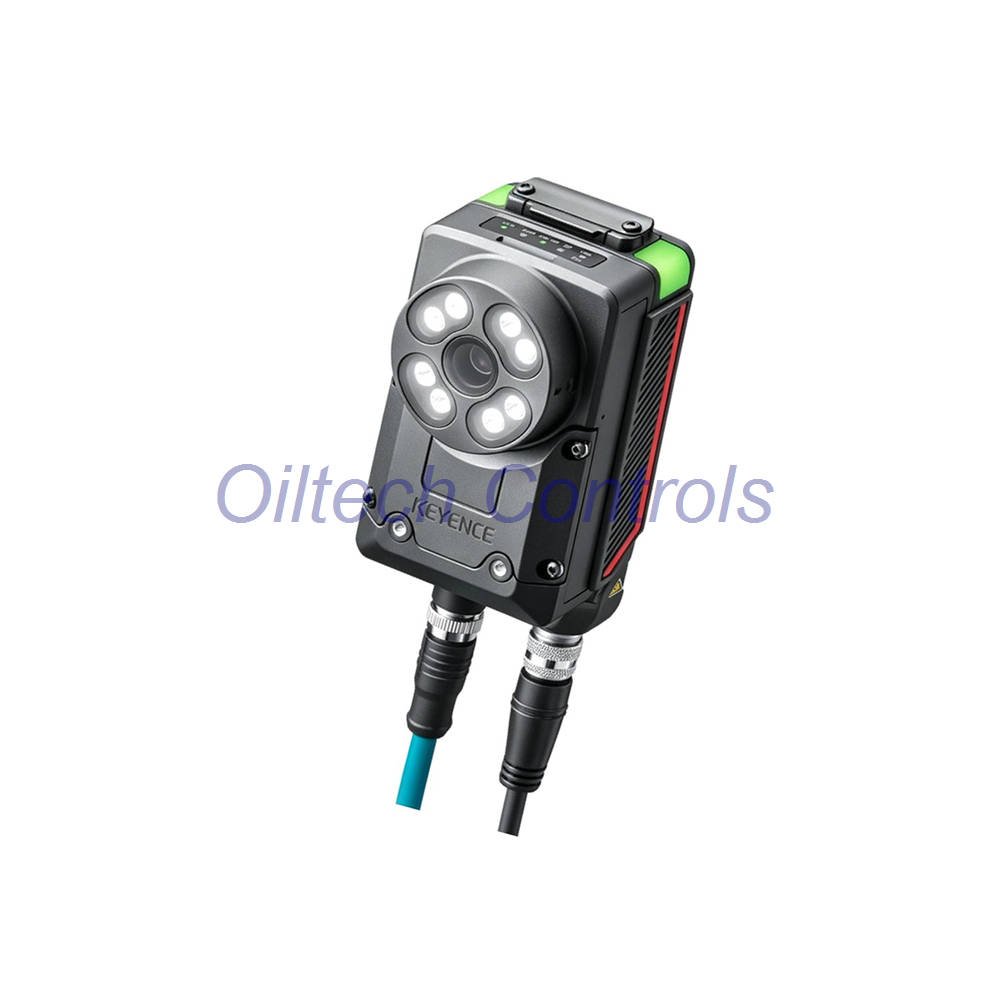

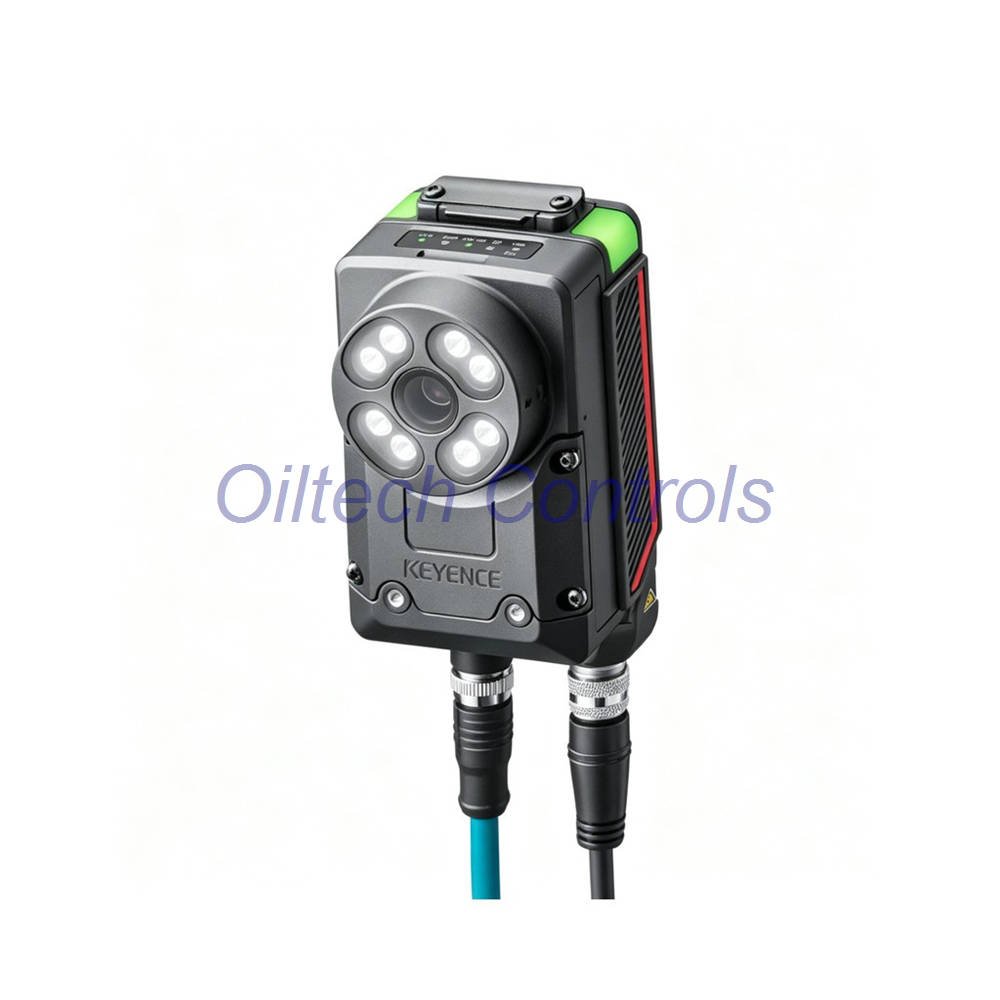

Model IV4-600MA is a wide field of view smart camera from the Keyence IV4 Series. It has built-in AI. The mono model uses a 1/2.9 inch CMOS sensor. It offers 1280 x 960 pixels. This vision sensor suits inline inspection, sorting, and AI through count tasks. The camera works from 50 mm to 3000 mm. It covers a large view at long range. It fits many factory floors.
Why Buy From Oiltech Controls?
- More than 15 years in industrial automation spare parts.
- Global shipment support for hard to find items.
- Tested industrial surplus and refurbished options.
- 12 month warranty on eligible products.
- Technical verification before every shipment.
- Support for obsolete control systems and legacy lines.
Questions? Email info@oiltechcontrols.com or chat on +86 158 8020 0923. We reply fast.
Technical Specifications
| Brand | Keyence |
| Model | IV4-600MA |
| Series | IV4 Series |
| Type | Smart camera, wide field of view, monochrome |
| Image Sensor | 1/2.9 inch monochrome CMOS, 1280 x 960 pixels |
| Field of View | 50 mm distance: 51 x 38 mm. 3000 mm distance: 2730 x 2044 mm. Reference values. |
| Install Distance | From 50 mm |
| Focus | Auto |
| Exposure Time | 12 us to 10 ms |
| Lighting | Infrared LED, pulse lighting |
| Tools | 65 tools |
| Modes | Standard Mode, Sorting Mode, AI Through Count Mode |
| Ethernet Port | M12 8 pin X code female, 1000BASE-T / 100BASE-TX |
| Protocols | EtherNet/IP, PROFINET CC-B, TCP/IP, FTP, SFTP, SNTP, OPC UA server, MQTT client |
| Expansion | IV4-CU1 unit for PROFINET CC-C and EtherCAT. DL Series units for EtherCAT, CC-Link, DeviceNet, RS-232C |
| Supply Voltage | 24 VDC +25% / -20%, ripple included |
| Power Draw | 3.4 A or less at 19.2 V. 2.7 A or less at 24.0 V. |
| Average Power | 9.3 W without AI illumination unit. 12.8 W with AI illumination unit. |
| Output | Open collector, NPN/PNP switchable, N.O./N.C. switchable, max 30 V 50 mA |
| PoE | PoE Power Class 4/6 |
| I/O | 6 inputs, 6 outputs, 3 selectable IN/OUT |
| Temperature Range | 0 to +50°C, no freezing |
| Humidity | 85% RH or less, no condensation |
| Protection | IP67 except with polarizing filters OP-88640 / OP-88641 / OP-88644 / OP-88645 |
| Vibration | 10 to 500 Hz, 0.816 G^2/Hz, X/Y/Z |
| Shock | 500 m/s^2, 3 times in 6 directions |
| Weight | Approx. 370 g without AI illumination unit. Approx. 560 g with AI illumination unit. |
| Material | Aluminum die cast case. Acrylic front cover. PBT back cover and lid. TPU indicator cover. ESD safe, IEC61340-5-1 compliant. |
| Lifecycle | Active. Keyence production status confirmed. Last verified 2026-09. |
Installation Guide
- Mount the camera on a stable bracket.
- Keep the lens free from glare and dust.
- Set the install distance from 50 mm.
- Use auto focus for quick setup.
- Connect Ethernet with an M12 X code cable.
- Use 24 VDC power with correct polarity.
- Check IP67 seals after filter changes.
Setup and Maintenance
- Auto focus cuts setup time.
- Pulse lighting lowers heat and power use.
- Clean the front cover with a soft cloth.
- Check connectors for tight fit.
- Use OPC UA or MQTT for data logs.
- Run a test pass after any change.
Compatibility
- Works with EtherNet/IP and PROFINET CC-B.
- Supports TCP/IP, FTP, SFTP, SNTP, OPC UA, and MQTT.
- Adds PROFINET CC-C and EtherCAT via IV4-CU1.
- Adds EtherCAT, CC-Link, DeviceNet, and RS-232C via DL Series units.
- Fits Keyence IV4 Series accessories and filters.
Certifications and Compliance
- ESD safe per IEC61340-5-1.
- IP67 rated for dust and water resistance.
- PoE Power Class 4/6.
- RoHS and CE support depend on final setup.
Packing List
- 1 x Keyence IV4-600MA vision sensor
- 1 x power supply connector
- 1 x Ethernet connector cap
- 1 x power connector waterproof cap
- 1 x quick guide
Warranty and Shipping
All eligible items come with a 12 month warranty. We ship by FedEx, UPS, and DHL. Tracking is provided. Contact info@oiltechcontrols.com or +86 158 8020 0923 for a quote.
Typical Applications
- Inline part presence and absence checks.
- Sorting by shape, size, or pattern.
- AI through count on fast lines.
- Wide area inspection at long range.
- Error proofing in automotive and electronics.
- Packaging and label verify tasks.
Diagnostics
- Built in AI flags weak matches.
- Tool level results show pass or fail.
- OPC UA and MQTT send live status.
- Ethernet ports support remote checks.
- Indicator cover shows run state.
- Event logs help trace faults.
FAQ
Q: What is the field of view?
A: It ranges from 51 x 38 mm at 50 mm to 2730 x 2044 mm at 3000 mm. Values are reference only.
Q: Does it support AI?
A: Yes. It has built in AI and AI Through Count Mode.
Q: What is the warranty?
A: Eligible items carry a 12 month warranty.
Q: How do you ship?
A: We use FedEx, UPS, and DHL. Tracking is included.
Q: Can you test before shipment?
A: Yes. We verify technical condition before dispatch.
Q: Do you support old systems?
A: Yes. We support obsolete control systems and legacy lines.
