Product Overview

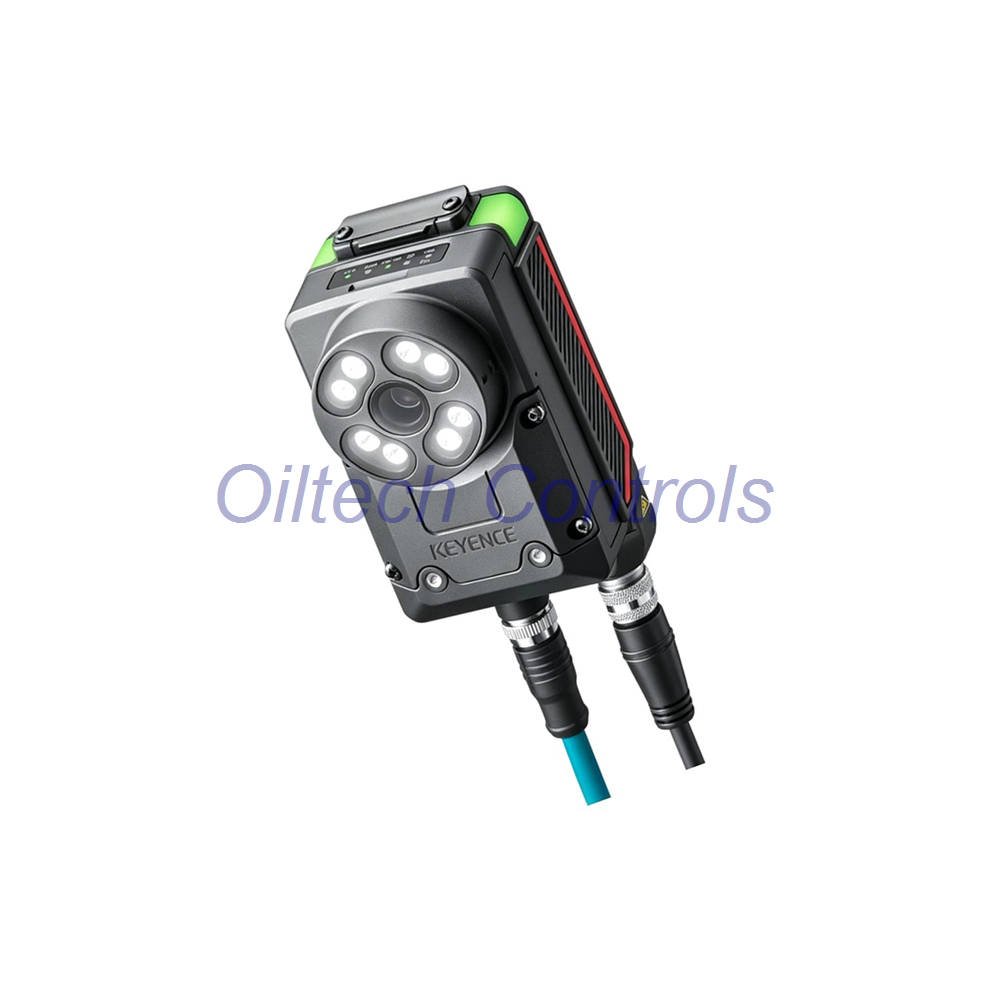

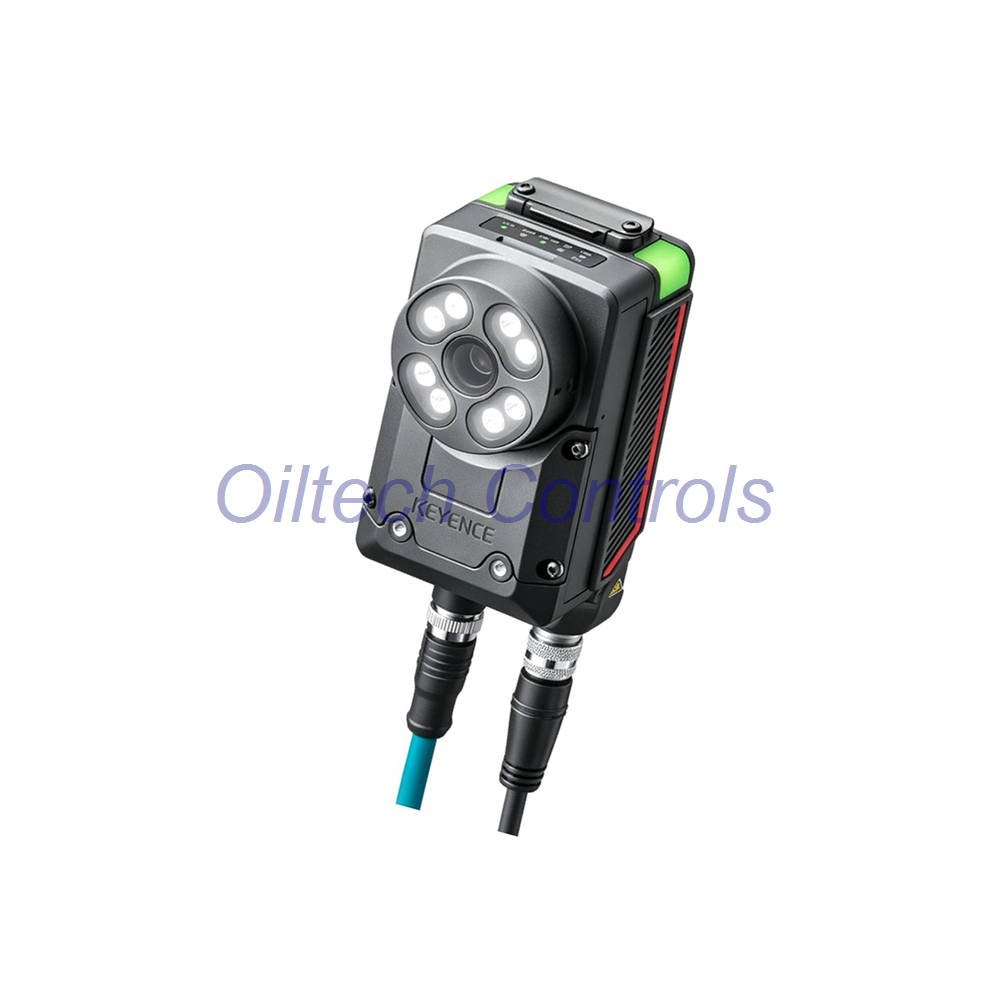

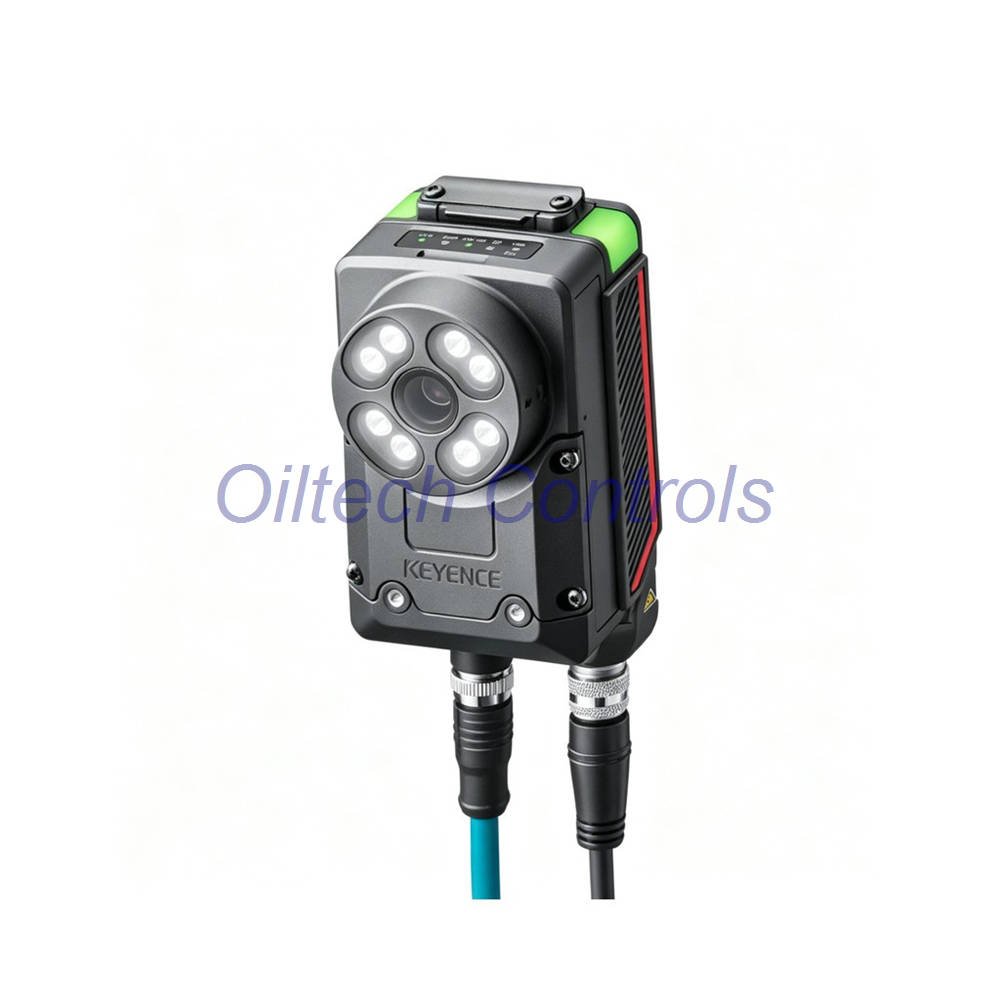

Model IV4-400MA from Keyence is a smart camera with built-in AI. It belongs to the IV4 Series. This monochrome model has a narrow field of view. It is designed for industrial automation tasks. The camera offers reliable inspection and sorting. It supports multiple communication protocols. The IV4-400MA is a powerful vision sensor for demanding applications.
Technical Specifications
| Brand | Keyence |
| Model | IV4-400MA |
| Series | IV4 Series |
| Type | Smart camera, narrow field of view |
| Field of View | 58 x 44 mm at 400 mm; 464 x 348 mm at 3000 mm (reference) |
| Image Sensor | 1/2.9 inch monochrome CMOS, 1280 x 960 pixels |
| Focus | Auto |
| Exposure Time | 12 us to 10 ms |
| Illumination | Infrared LED, pulse lighting |
| Number of Tools | 65 |
| Modes | Standard, Sorting, AI Through Count |
| Supply Voltage | 24 VDC +25%, -20% (with ripple) |
| Power Consumption | 3.4 A max at 19.2 V; 2.7 A max at 24.0 V |
| Average Power | 9.3 W (without AI illumination); 12.8 W (with AI illumination) |
| Output Type | Open collector, NPN/PNP switchable, N.O./N.C. switchable |
| Max Output Rating | 30 V, 50 mA |
| PoE | Power Class 4/6 |
| Inputs / Outputs | 6 inputs (3 selectable IN/OUT), 6 outputs (3 selectable IN/OUT) |
| Operating Temperature | 0 to +50°C (no freezing) |
| Humidity | 85% RH or less (no condensation) |
| Protection Rating | IP67 (except with polarizing filters OP-88640/OP-88641/OP-88644/OP-88645) |
| Vibration Resistance | 10 to 500 Hz, 0.816 G^2/Hz, X/Y/Z directions |
| Shock Resistance | 500 m/s^2, 3 times in each of 6 directions |
| Weight | Approx. 370 g (no AI illumination); approx. 560 g (with AI illumination) |
| Material | Aluminum die-casting, acrylic, PBT, TPU, PA/POM, copper alloy + nickel plating, PC, PC+ABS |
| ESD Safe | IEC61340-5-1 compliant |
| Lifecycle | Active; official Keyence production status confirmed (Last verified: 2026-09) |
Communication & Compatibility
- Built-in Ports: M12 8-pin X-code female Ethernet (1000BASE-T/100BASE-TX)
- Protocols: EtherNet/IP, PROFINET CC-B, TCP/IP non-procedural comm (x2), FTP client, SFTP client, SNTP client, OPC UA server, MQTT client
- Expansion: IV4-CU1 communication unit (PROFINET CC-C, EtherCAT); DL Series units (EtherCAT, CC-Link, DeviceNet, RS-232C)
- Compatibility: Works with Keyence IV4 Series accessories and communication units. Supports major industrial Ethernet protocols. Easy integration into existing control systems.
Installation Guide
Mount the IV4-400MA at a distance of 400 mm or more. Use the auto focus to adjust. Connect power via 24 VDC. Use the M12 Ethernet port for network. The camera supports PoE. Install in a dry location. Avoid extreme temperatures. The IP67 rating protects against dust and water. Do not install polarizing filters if you need IP67. Follow local electrical codes. For best results, use shielded cables.
Debugging & Maintenance
Use the built-in tools for setup. The camera has 65 tools. Switch between Standard, Sorting, and AI Through Count modes. Check the operation indicator. Clean the front cover with a soft cloth. Do not use harsh chemicals. The camera has no user-serviceable parts. For firmware updates, contact support. Regular checks ensure stable performance. The AI functions help with quick diagnostics.
Diagnostic Capabilities
The IV4-400MA offers advanced diagnostics. It can count through AI mode. It sorts objects. It detects errors. The camera provides real-time feedback. Use the OPC UA server for data. MQTT client sends alerts. This helps reduce downtime. The 65 tools cover many inspection tasks.
Typical Applications
- Automotive parts inspection
- Electronics assembly verification
- Pharmaceutical packaging check
- Food and beverage sorting
- Logistics and warehouse automation
- Robotic guidance
- Quality control on production lines
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support via FedEx, UPS, DHL
- Tested industrial surplus and refurbished options available
- 12-month warranty on all products
- Technical verification before shipment to ensure quality
- Support for obsolete control systems to keep you running
Certifications & Packaging
Certifications: ESD safe, IEC61340-5-1 compliant. CE, RoHS, and other standards may apply. Check with your local authority.
Packaging List: 1x IV4-400MA camera, 1x power connector, 1x Ethernet waterproof cap, 1x power supply waterproof cap, documentation. (Accessories may vary. Contact us for details.)
Warranty: 12 months from date of purchase. Covers manufacturing defects. Does not cover misuse or damage.
Shipping: We ship via FedEx, UPS, and DHL. Fast and reliable delivery worldwide.
FAQ
Q: What is the field of view?
A: 58 x 44 mm at 400 mm distance. Up to 464 x 348 mm at 3000 mm.
Q: Does it support PoE?
A: Yes, PoE Power Class 4/6.
Q: What is the warranty?
A: 12 months.
Q: Can I use it outdoors?
A: It has IP67 rating. But avoid direct sunlight and extreme temperatures.
Q: How many tools does it have?
A: 65 tools.
Q: What communication protocols are supported?
A: EtherNet/IP, PROFINET, TCP/IP, FTP, SFTP, SNTP, OPC UA, MQTT.
Q: Is it compatible with obsolete systems?
A: Yes, we provide support for obsolete control systems.
