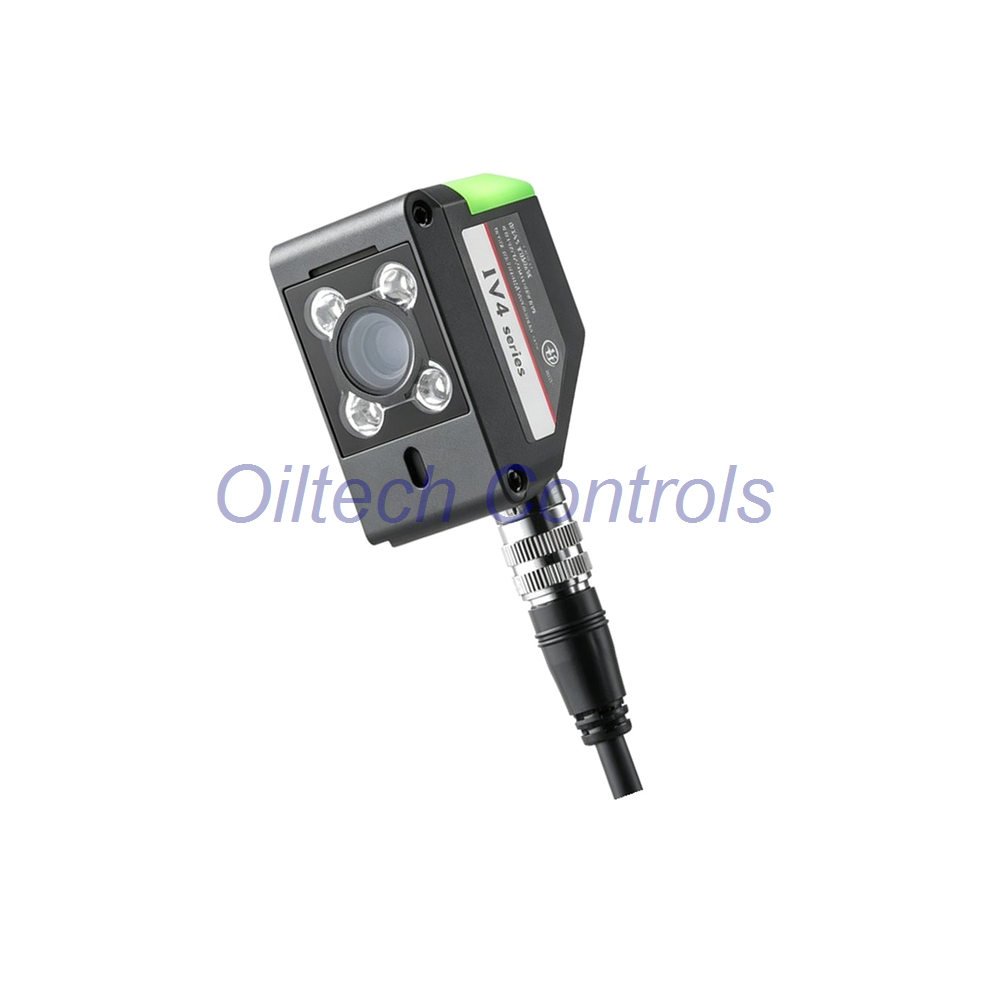

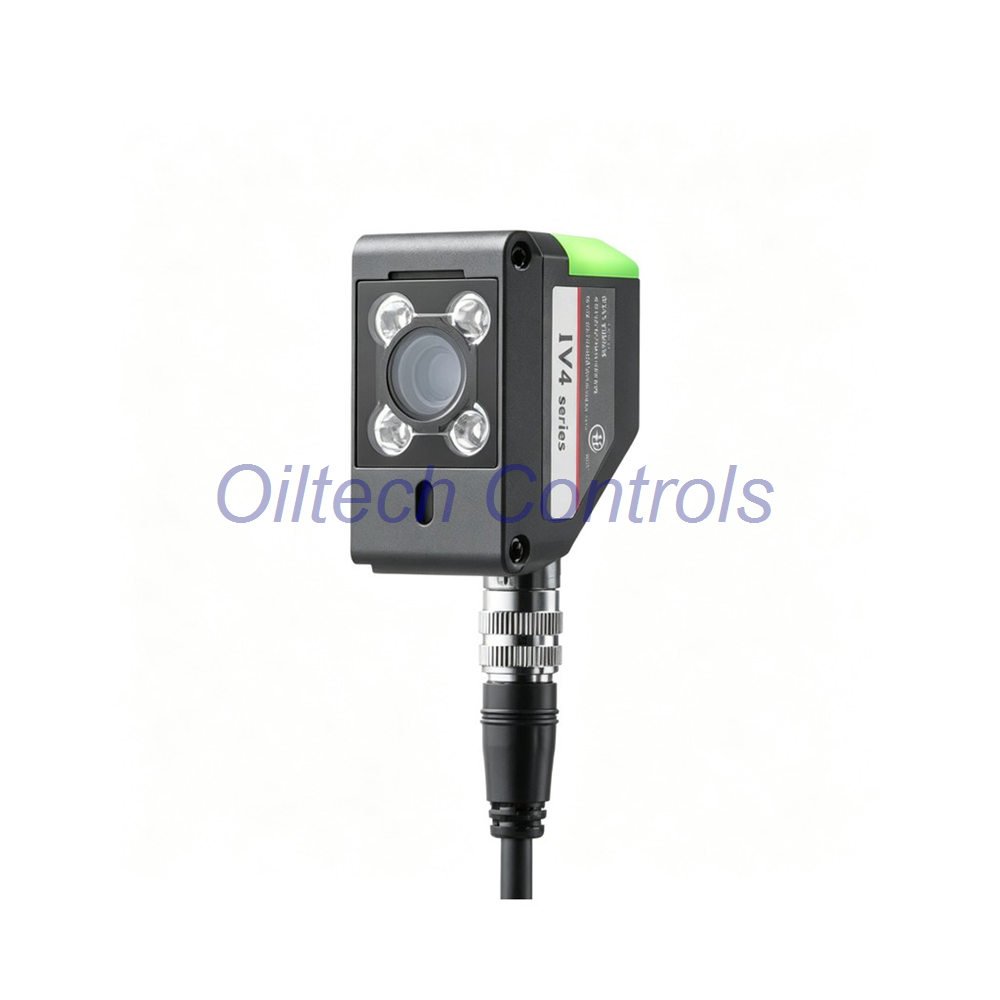

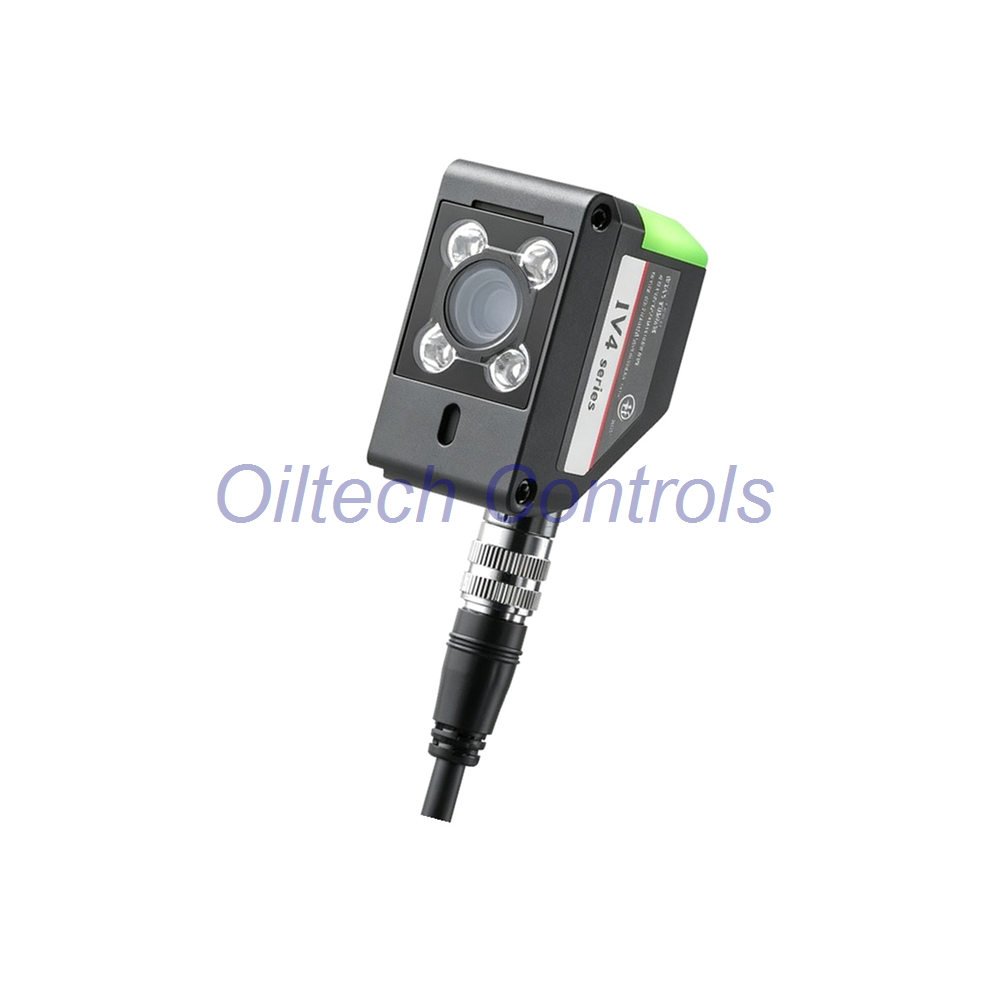

IV4-G400MA Keyence Compact Sensor Head – Narrow Field of View for IV4-G120 Amplifier
Model: IV4-G400MA | Brand: Keyence | Series: IV4 Series
This IV4-G400MA is a compact sensor head for the IV4-G120 amplifier. It uses a 1/2.9 inch monochrome CMOS with 1280 x 960 pixels. The narrow field of view suits precise positioning, presence checks, and small part inspection. It has auto focus, infrared LED illumination, and pulse lighting. The unit connects to the amplifier with a dedicated sensor head cable. It has no built-in ports or protocols. Power comes from the connected amplifier. The IP67 rating handles washdown and dusty areas. This sensor head is active in Keyence production as of September 2026.
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts
- Worldwide shipping support
- Tested surplus and refurbished options
- 12-month warranty on all units
- Technical check before dispatch
- Legacy system support for obsolete controls
Reach us at info@oiltechcontrols.com or +86 158 8020 0923 (WhatsApp).
Oiltech Controls Review
- Engineers choose this head for tight spaces and short range
- The narrow FOV reduces false triggers on busy lines
- Auto focus cuts setup time after head changes
- Infrared LED works well in low-light cells
- Pulse lighting freezes motion without blur
- Pairs with IV4-G120 for AI imaging tasks
Oiltech Controls’s Insight
- Use this head when the target is small or far
- The 400 mm minimum distance needs a stable mount
- Exposure time from 12 µs to 9 ms covers fast and slow lines
- Add the AI imaging illumination unit for difficult surfaces
- Check IP67 limits when polarizing filters are installed
- Keep spare cables for quick swap during shift changes
Technical Specifications
- Brand: Keyence
- Model: IV4-G400MA
- Series: IV4 Series
- Type: Compact sensor head, narrow field of view
- Installed distance: From 400 mm
- Field of view: 400 mm: 58 x 44 mm to 3000 mm: 464 x 348 mm (reference)
- Image element: 1/2.9 inch monochrome CMOS, 1280 x 960 pixels
- Focus: Auto
- Exposure time: 12 µs to 9 ms
- Illumination: Infrared LED, pulse lighting
- Built-in ports: None (connects via dedicated cable to IV4-G120)
- Protocols: None
- Communication expansion: Via IV4-G120 amplifier
- Supply voltage: Supplied by connected amplifier
- Power consumption: 2.5 W (no AI illumination), 6.6 W (with AI illumination)
- Output type: Not available (outputs via amplifier)
- Operating temperature: 0 to +50 °C (no freezing)
- Relative humidity: 85% RH or less (no condensation)
- Protection rating: IP67 (except with polarizing filters OP-88642/43/46/47)
- Vibration resistance: 10 to 500 Hz, 0.816 G²/Hz, X/Y/Z
- Shock resistance: 500 m/s², 3 times in 6 directions
- Dimensions: Not available
- Material: Zinc die-casting case, acrylic front cover, TPU indicator cover
- ESD safe: IEC61340-5-1 compliant
- Weight: Approx. 75 g (no AI unit), approx. 225 g (with AI unit)
- Lifecycle: Active; Keyence production confirmed (verified 2026-09)
Compatible Equipment
- IV4-G120 amplifier unit
- Keyence IV4 series vision systems
- AI imaging illumination units
- Polarizing filters OP-88642, OP-88643, OP-88646, OP-88647
- Dedicated sensor head cables
- Inline inspection stations with narrow targets
Installation Guide
- Mount the head at 400 mm or more from the target
- Use the dedicated cable to connect to the IV4-G120
- Power comes from the amplifier; no separate supply needed
- Let auto focus run after mounting
- Set exposure between 12 µs and 9 ms
- Keep the front cover clean for best image quality
Debugging and Maintenance
- Check cable seating if the amplifier shows no image
- Adjust exposure for motion blur or dark scenes
- Use pulse lighting to freeze fast parts
- Clean the acrylic cover with a soft cloth
- Do not open the zinc die-cast case
- Replace the head if shock damage occurs
Certification and Packaging
- ESD safe: IEC61340-5-1 compliant
- IP67 rated (with filter limits noted)
- Package includes 1 IV4-G400MA sensor head
- No amplifier, no cable, no filter included
- Warranty: 12 months from Oiltech Controls
- Ships in 24-28 hours via FedEx, UPS, or DHL
Typical Applications
- Small part presence on assembly lines
- Position checks in tight machine cells
- Label and print inspection
- Edge detection on narrow webs
- Robot guidance with short range targets
- Obsolete IV4 system replacements
FAQ
Q: Does the IV4-G400MA work without the IV4-G120 amplifier?
A: No. It needs the IV4-G120 for power, control, and output. The head has no standalone output.
Q: What is the minimum installation distance?
A: 400 mm. Closer mounting will not focus correctly. The field of view grows as distance increases.
Q: Can I use this head outdoors or in wet areas?
A: It is IP67 rated, so it handles washdown and dust. But when you install polarizing filters, the IP67 rating does not apply.
Q: How do I choose between the standard and AI illumination version?
A: Pick the AI imaging illumination unit for shiny, low-contrast, or uneven surfaces. It raises power use to 6.6 W and weight to 225 g.
Q: What should I check before buying a used or surplus IV4-G400MA?
A: Confirm the front cover is clear and the cable connector is undamaged. Ask for a test image from the seller. Verify the auto focus moves smoothly. Check the zinc case for cracks or impact marks.
