Overview

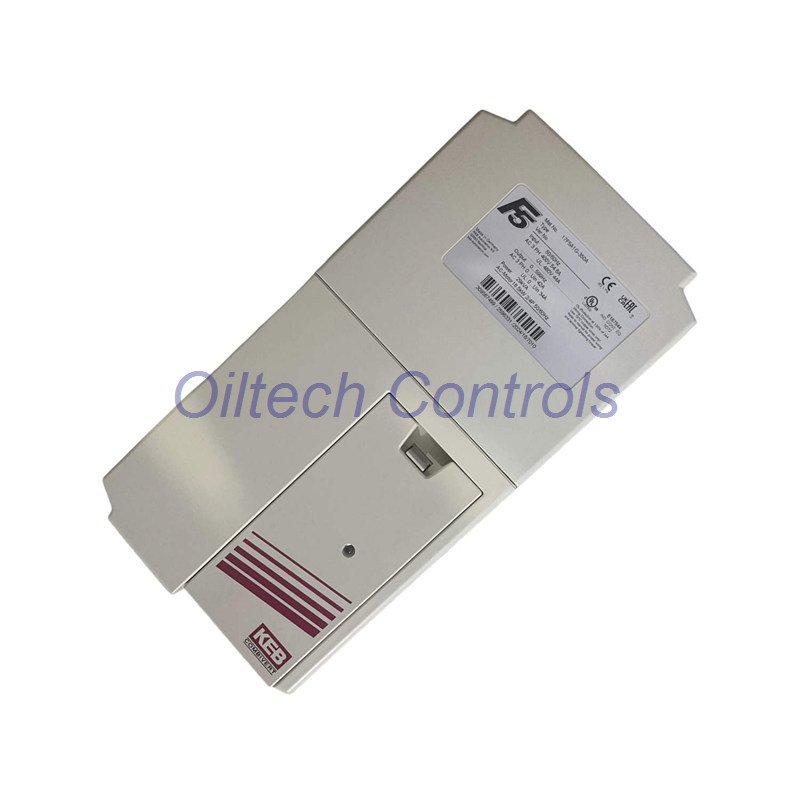

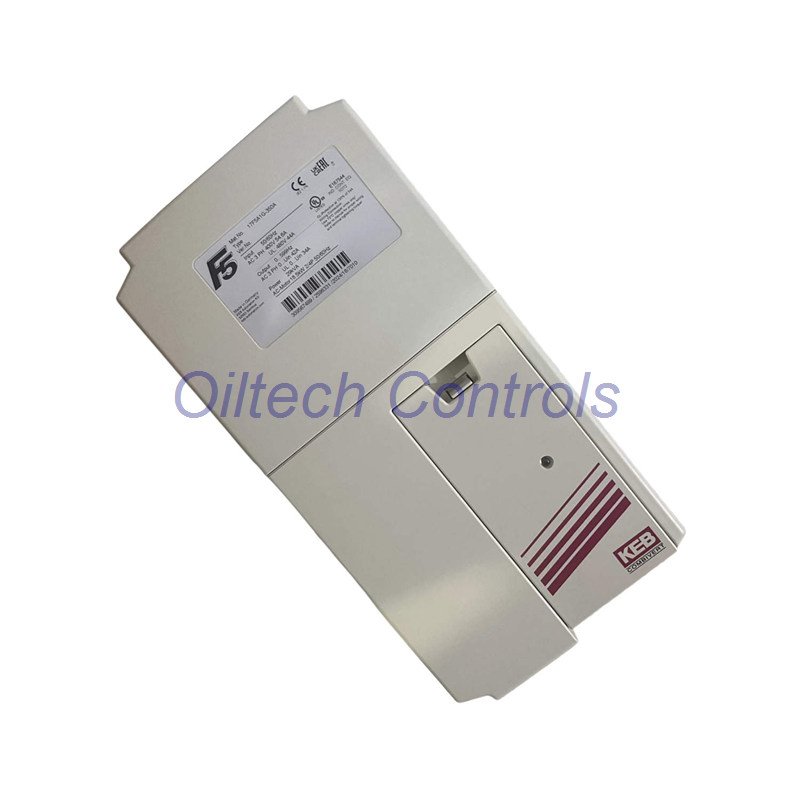

KEB 17F5A1G-350A is a high-power axis drive designed for complex and demanding industrial motor control tasks.
Power Rating and Electrical Capacity
- Brand: KEB, Model: 17F5A1G-350A, Series: F5 Combivert Axis Drive.
- Rated motor power reaches 18.5 kW for high-load applications.
- Nominal current (In) reaches 42 A during continuous operation.
- Maximum current (Imax) reaches 75 A for short peak loads.
- Three-phase input voltage operates at 400 V AC.
Motor Control Technology
- Field-oriented control ensures accurate torque and speed regulation.
- Synchronous motor control supports advanced motor applications.
- Optional KEB-SMM enables sensorless motor management.
- Stable control reduces vibration and improves motor lifespan.
Signal Inputs and Control Interfaces
- Two analog inputs support 0–10 V, ±10 V, and 0/4–20 mA signals.
- Eight programmable digital inputs support flexible control logic.
- Fast signal processing improves system response time.
Switching and Performance Characteristics
- Selectable switching frequency of 4 kHz or 16 kHz.
- Higher switching frequency reduces motor noise.
- Lower switching frequency improves efficiency under high load.
Environmental Limits and Protection
- IP20 protection class suits protected indoor installations.
- Operating temperature range spans from -10°C to +45°C.
- Storage temperature range spans from -25°C to +70°C.
- Protection design follows VBG 4 safety requirements.
Compliance and EMC Standards
- Conforms to EN 61800-2 and EN 61800-5-1 standards.
- Meets EN 61800-3 requirements for interference emission.
- Designed for use with sensitive industrial control equipment.
Key Product Advantages
- High peak current supports demanding acceleration cycles.
- Advanced motor control improves process precision.
- Wide input signal range increases system compatibility.
- Robust thermal design ensures long service life.
Packaging, Warranty, and Shipping
- Each unit ships in reinforced industrial packaging.
- The product includes a 12-month warranty.
- Worldwide shipping available via FedEx, UPS, or DHL.
Professional FAQ
- What motor sizes work best with this axis drive?
This drive suits motors rated up to 18.5 kW at 400 V. - Can the switching frequency be changed during setup?
The switching frequency can be selected during parameter configuration. - Is encoder feedback required for operation?
Sensorless control is available using optional KEB-SMM. - Does this drive handle short-term overload conditions?
The 75 A peak current supports short overload cycles. - Is this model suitable for EMC-sensitive environments?
The design complies with EN 61800-3 emission standards.
