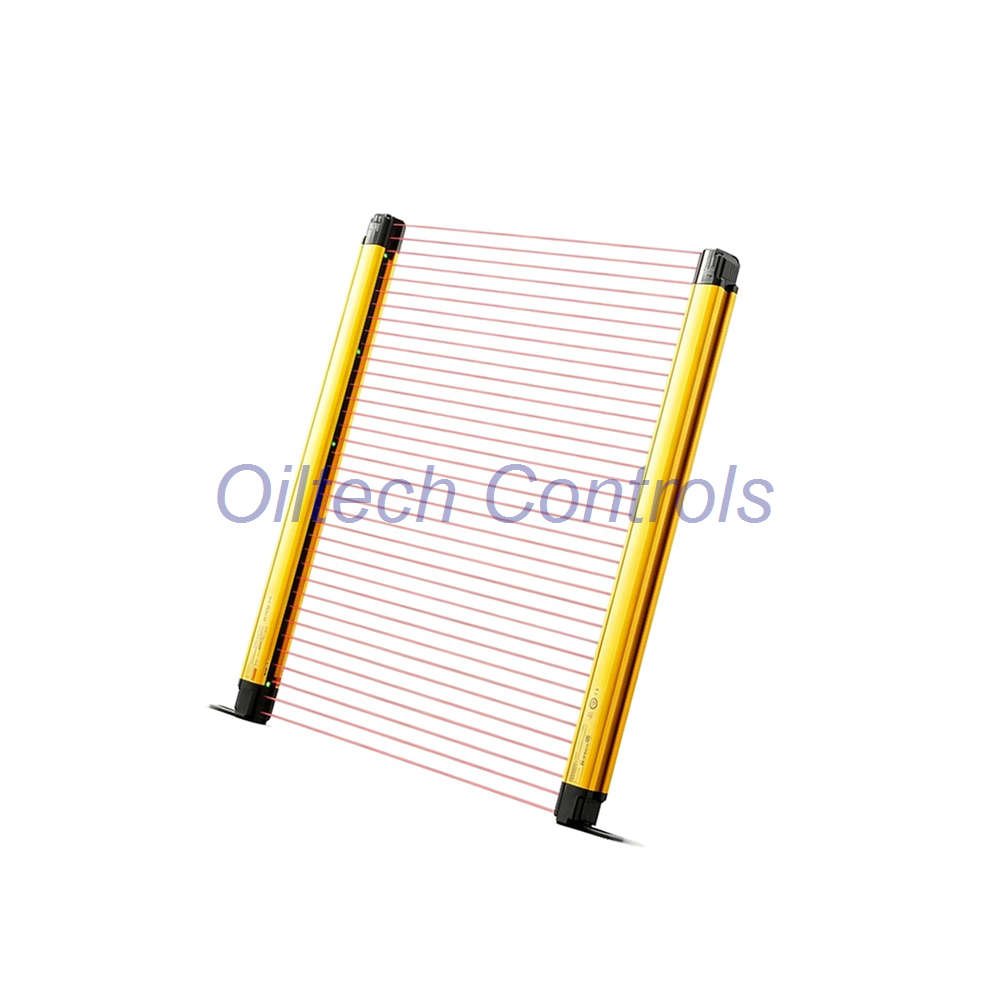

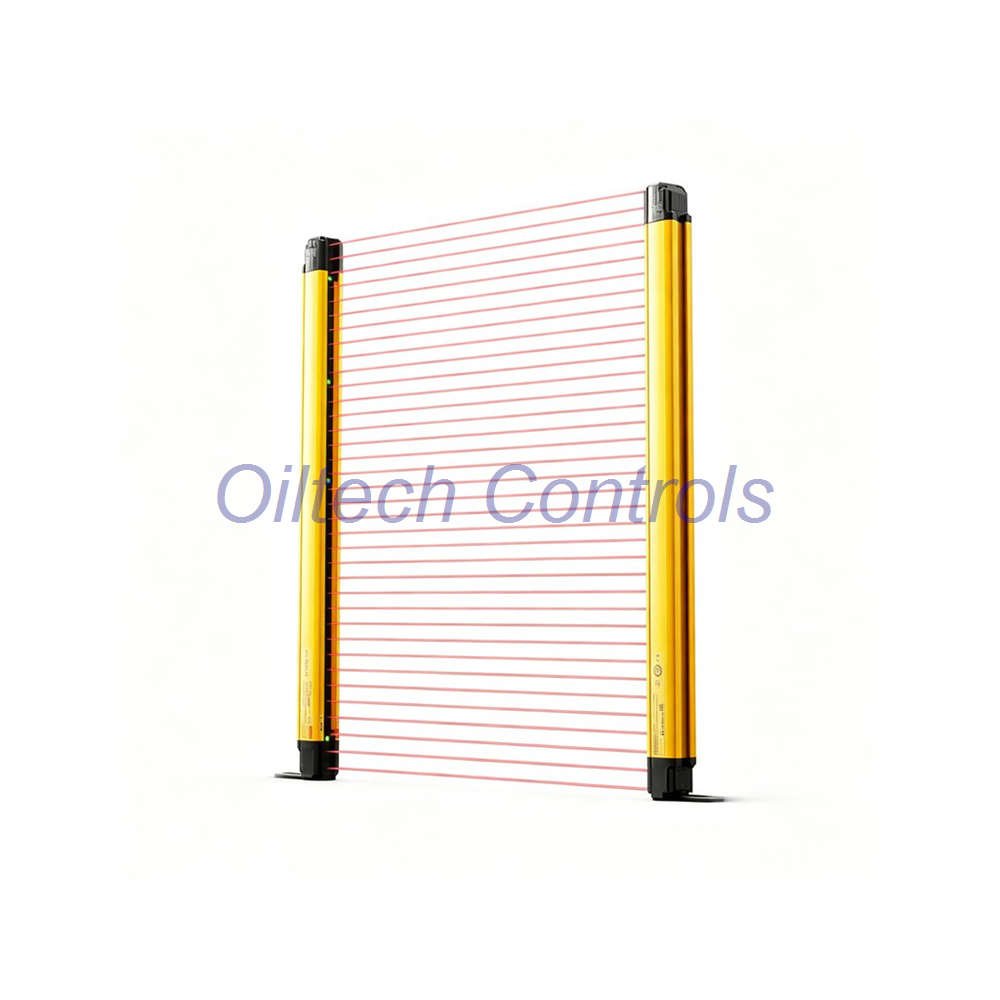

Keyence GL-VM40HP GL-V Series Safety Light Curtain 40 Beam PNP

Keyence GL-VM40HP Type 4 Safety Light Curtain

The GL-VM40HP is a compact Type 4 safety light curtain from the Keyence GL-V series. It uses 40 beam axes for hand protection. The PNP output suits many safety circuits. The metal body is small and strong. Therefore, it fits tight machine guards. The transmitter and receiver work as an ESPE / AOPD set. Optical synchronization removes the sync cable. The infrared LED runs at 850 nm. The unit turns ON only when all beams are received. As a result, it protects operators near moving parts.

Technical Data

• Brand: Keyence
• Model: GL-VM40HP
• Series: GL-V series
• Type: Type 4 ESPE / AOPD, hand protection
• Beam axes: 40
• Beam spacing: 20 mm
• Detection height: 780 mm
• Total length: 800 mm
• Min. object: ø25 mm
• Range: 0.3 to 15 m
• Response time: max. 5.5 ms
• Output: PNP transistor x2
• Supply: 24 VDC, Class 2
• Load current: 150 mA or less
• Housing: IP65 / IP67
• Temp range: -30 to +55 °C
• Weight: 530 g each
• Lifecycle: Active

Installation Notes

• Mount transmitter and receiver face to face.
• Keep range between 0.3 m and 15 m.
• Align units before tightening brackets.
• Use optical sync. No sync cable needed.
• Set switch for two-unit interference prevention.
• Wire PNP OSSD to the safety circuit.
• Keep load current under 150 mA.
• Check IP65 / IP67 seal after washdown.

Setup and Maintenance

• Power unit and check indicator LEDs.
• Confirm all 40 beams are received.
• Test response time with a safety tester.
• Clean front cover with a soft cloth.
• Avoid abrasive cleaners on polycarbonate.
• Inspect cable and bracket at each service.
• Store between -30 °C and +70 °C.
• Keep ambient light under 3,000 lux.

Compatibility

• PNP output fits many PLC and relay inputs.
• Optical sync cuts cable runs.
• Series connection supports up to 2 units.
• No built-in port or protocol.
• No communication expansion.
• Works with 24 VDC Class 2 supplies.
• Has reverse-connection and surge protection.
• Suits Type 4 hand protection machines.

Certifications

• IEC61496-1 / -2: Type 4 ESPE / AOPD
• EN ISO13849-1: Category 4, PL e
• IEC61508: SIL3
• UL60947-1 / CSA C22.2 No.60947-1
• UL1998
• EMC: EN55011 Class A, FCC Part15B Class A
• IP65 / IP67 (IEC60529)
• Overvoltage category II

Best Fit Equipment

• Press and stamping machines
• Robot cells
• Assembly lines
• Packaging machines
• Material handling systems
• Machine guarding doors
• Palletizing systems
• Obsolete control system upgrades

Oiltech Controls’s Insight

The GL-VM40HP is a strong pick for narrow guards. It has 40 beams in an 800 mm body. The 20 mm spacing gives good hand detection. The PNP output suits many Asian and European controllers. The 5.5 ms response helps fast stopping. The IP65 / IP67 housing handles dust and water. For engineers, this model is a practical Type 4 choice.

Oiltech Controls Review

• Good size for tight machine frames.
• PNP output matches many safety relays.
• Fast response for hand protection.
• Optical sync reduces wiring work.
• Strong metal case for factory use.
• Active Keyence status confirmed.
• Good option for obsolete curtain replacement.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spare parts
• Global shipping by FedEx, UPS, and DHL
• Tested surplus and refurbished options
• 12-month warranty on eligible items
• Technical check before shipment
• Support for obsolete control systems

Package List

• 1 x Keyence GL-VM40HP transmitter
• 1 x Keyence GL-VM40HP receiver
• 1 x Manual, if available
• 1 x Protective packing set
• Brackets and cables depend on stock

Shipping and Warranty

• Ships in 24 to 28 hours
• FedEx, UPS, and DHL options
• Tracking number provided
• 12-month warranty for eligible products
• Covers non-human damage under normal use
• Contact us for RMA steps before return

FAQ

Q: What is the main difference between GL-VM40HP and GL-VM48HN?

A: The GL-VM40HP has 40 beams and PNP output. The GL-VM48HN has 48 beams and NPN output. The GL-VM40HP is 800 mm long. The GL-VM48HN is 960 mm long. Choose based on guard height and controller input type.

Q: How do I know if PNP output fits my machine?

A: Check your safety relay or PLC input card. If it needs a positive switching signal, PNP fits. If it needs a negative switching signal, choose an NPN model. Our team can check this before shipment.

Q: Can I replace an old curtain with the GL-VM40HP?

A: Often yes. First check beam count, height, range, and output type. Then check bracket space and cable length. Send us the old model number. We will cross-check it for you.

Q: Why does the unit not turn ON after wiring?

A: Check supply polarity first. Then check that all 40 beams are aligned. Also check load current and cable resistance. If one beam is blocked, the OSSD stays OFF.

Q: What should I check before buying a surplus unit?

A: Confirm the model number and output type. Ask for test records. Check the housing and front cover. Also confirm cable and bracket supply. Oiltech Controls verifies these points before shipment.
