Product Overview

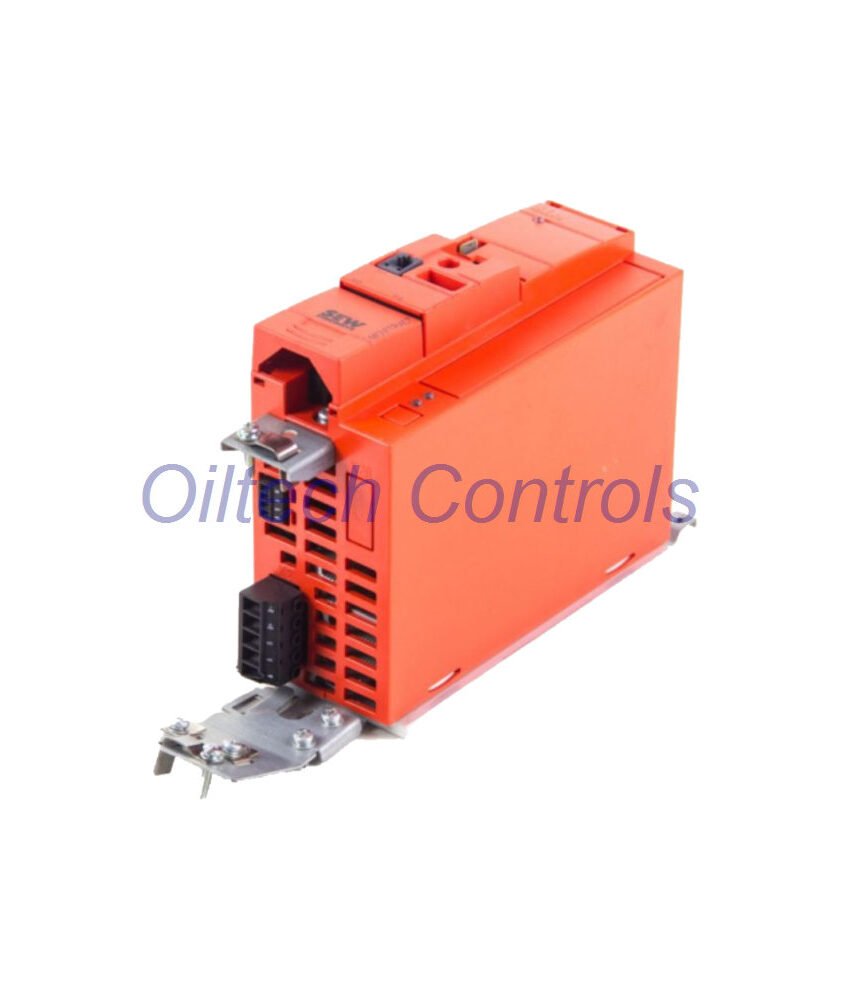

MC07B0005-5A3-4-00 is a SEW MOVITRAC® B frequency inverter. It drives 3-phase AC motors in compact industrial setups. The unit accepts 380–500 VAC input. It delivers 0.55 kW / 0.74 HP motor power. Rated output current is AC 2.0 A. Size 0S. Weight 1.5 kg. This drive includes a 4Q brake chopper and C2 suppression. It suits variable-speed control in tight cabinets and retrofit projects.
Technical Specifications
| Brand | SEW-Eurodrive |
| Model | MC07B0005-5A3-4-00 |
| Series | MOVITRAC® B |
| Part Number | MC07B0005-5A3-4-00 (alt. 08285179) |
| Power Supply | 400 V, 3-phase, 380–500 VAC, 50/60 Hz |
| Motor Power | 0.55 kW / 0.74 HP |
| Rated Output Current | AC 2.0 A |
| Size | 0S |
| Weight | 1.5 kg / 3.3 lb |
| Drive Type | 4Q with brake chopper |
| EMC | C2 suppression |
| Control Method | Variable-speed AC motor control |
| Frequency Response | Standard MOVITRAC® B control dynamics |
| Resolution | Digital setpoint and feedback resolution per MOVITRAC® B firmware |
| Temperature Range | Use within SEW cabinet and ambient limits |
| Environmental Tolerance | Industrial cabinet environment, C2 suppression |
| Noise Immunity | Built for industrial EMC conditions with proper wiring |
| Sensitivity / Linearity | Stable speed control for AC motor loads |
Installation Guide
- Mount the drive vertically in a clean cabinet. Keep airflow clear.
- Use 380–500 VAC 3-phase supply. Match fuses and cables to 2.0 A output.
- Connect motor cables with shielded cable for C2 EMC performance.
- Wire the brake chopper only with a compatible brake resistor.
- Check PE grounding. Keep control wires away from power cables.
- Set motor data before first run. Confirm rotation direction.
Commissioning and Maintenance
- Use the MOVITRAC® B keypad or setup tool for parameter entry.
- Run a no-load test first. Then couple the motor to the load.
- Check DC link and brake chopper wiring before power-up.
- Clean heatsink fins on a planned schedule.
- Inspect fan, terminals, and cable shields during service.
Compatibility Notes
- Replaces MC07B0005-5A3-4-00 and alternate part 08285179.
- Works with standard 3-phase AC motors in the 0.55 kW class.
- Fits SEW MOVITRAC® B size 0S mounting points.
- Supports 4Q braking with an external brake resistor.
- Use SEW-compatible options for encoder or fieldbus tasks.
Certification and Shipping
- SEW drive technology with C2 suppression for industrial EMC.
- Compliance follows the SEW MOVITRAC® B series documentation.
- Packed with anti-static and shock protection.
- Package includes the inverter only unless stated otherwise.
- We ship by FedEx, UPS, and DHL.
- 12-month warranty covers functional defects.
Typical Applications
- Conveyor speed control in packaging lines.
- Small pumps and fans with variable demand.
- Retrofit of existing SEW MOVITRAC® B cabinets.
- Material handling stations with 4Q braking needs.
- Compact machine builds with 0.55 kW motors.
Diagnostics and FAQ
- Q: What supply voltage does this drive accept? A: 380–500 VAC, 3-phase, 50/60 Hz.
- Q: What is the rated motor power? A: 0.55 kW / 0.74 HP.
- Q: What is the output current? A: AC 2.0 A.
- Q: Does it include a brake chopper? A: Yes, it is a 4Q drive with brake chopper.
- Q: How do I diagnose faults? A: Use the MOVITRAC® B status display and fault codes.
- Q: Is the drive tested before shipment? A: Yes, we verify key functions before dispatch.
