MIDAS-I-COS Carbonyl Sulfide Sensor | Honeywell Gas Detection Cartridge

Honeywell Analytics MIDAS S2 Carbonyl Sulfide Gas Detector

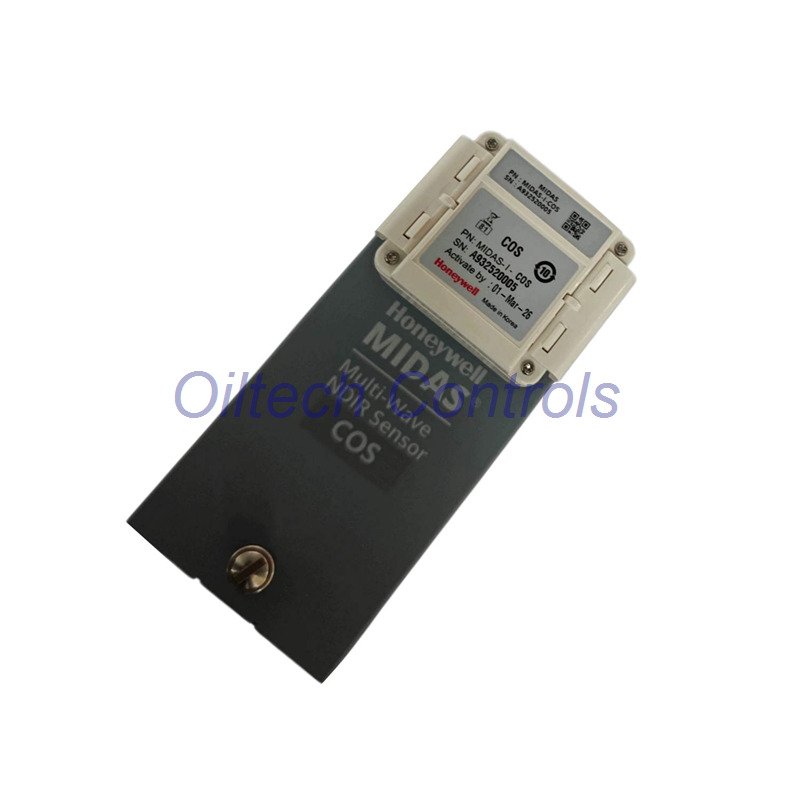

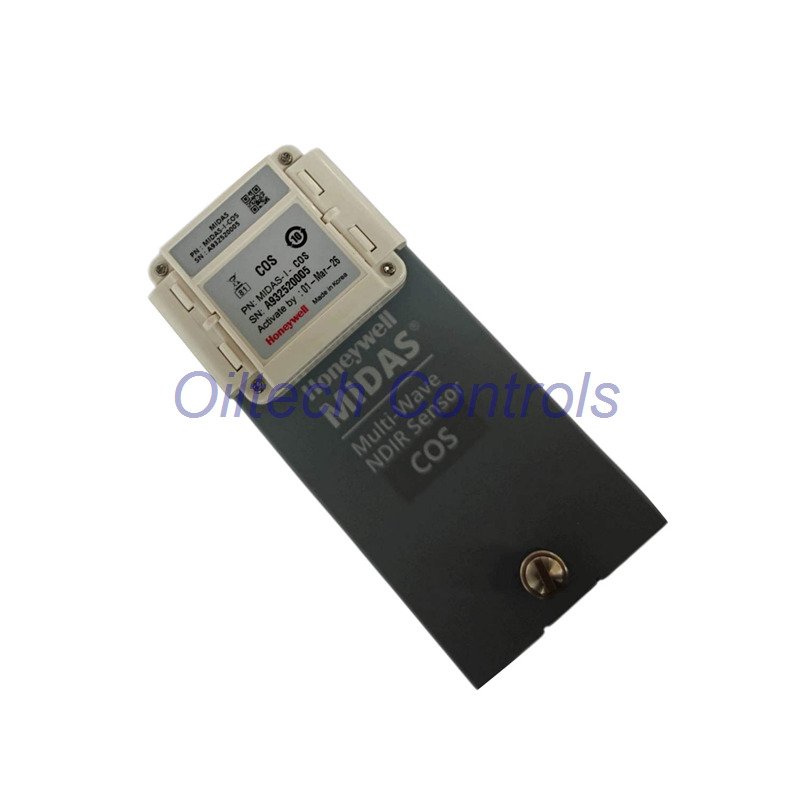

This is the Honeywell MIDAS S2-I-COS gas sensor cartridge. It detects Carbonyl Sulfide (COS) gas. This sensor uses reliable infrared technology. It gives accurate readings for industrial safety. The cartridge has a long 5-year life. It fits into Honeywell MIDAS gas detection systems.

Detailed Technical Specifications

• Brand & Model: Honeywell Analytics MIDAS S2-I-COS
• Series: MIDAS S2 Infrared Gas Sensor
• Gas Detected: Carbonyl Sulfide (COS)
• Detection Technology: Non-Dispersive Infrared (NDIR)
• Measurement Range: 0 to 20 ppm
• First Alarm Level (Default): 5 ppm
• Second Alarm Level (Default): 10 ppm
• Lower Detection Limit (LDL): 3 ppm
• Lower Alarm Limit (LAL): 5 ppm
• Display Resolution: 1 ppm
• Measurement Accuracy: ±10% of reading
• Typical Response Time (T62.5): 30 seconds
• Warm-Up Time: Under 10 minutes
• Sensor Cartridge Life: 5 years from date of manufacture
• Operating Temperature Range: +15°C to +35°C (+59°F to +95°F)
• Temperature Effect on Reading: ±15% over operating range
• Operating Humidity Range: 0 to 90% RH (non-condensing)
• Operating Pressure Range: 90 kPa to 110 kPa
• Recommended Calibration Gas: 10 ppm COS in air
• Storage Temperature: +5°C to +25°C (+41°F to +77°F)
• Output Compatibility: 4-20 mA signal via MIDAS transmitter
• Sensor Housing Material: Engineering plastic (compatible with MIDAS housing)
• Expected Maintenance Interval: Annual calibration check recommended

Low Cross-Sensitivity to Other Gases

The MIDAS S2-I-COS sensor is highly specific. It shows little to no reaction to many other gases found in industrial settings. This means fewer false alarms and more reliable monitoring. Test data shows a “0 ppm” COS reading when exposed to the following gases at the concentrations listed:

• Carbon Monoxide (CO): 3000 ppm applied
• Hydrogen Sulfide (H₂S): 5 ppm applied
• Sulfur Dioxide (SO₂): 75 ppm applied
• Nitrogen Dioxide (NO₂): 50 ppm applied
• Chlorine (Cl₂): 1 ppm applied
• Hydrogen (H₂): 500 ppm applied
• Hydrogen Cyanide (HCN): 100 ppm applied
• Hydrogen Chloride (HCl): 4 ppm applied
• Ethylene (C₂H₄): 10,000 ppm applied
• Nitric Oxide (NO): 50 ppm applied
• iso-Propyl Alcohol (IPA): 2000 ppm applied
• Ethanol: 1000 ppm applied
• FC-3283 (a fluorocarbon): 500 ppm applied

Shipping, Delivery & Warranty

• Fast Global Shipping: We deliver worldwide using FedEx, UPS, and DHL express services.
• Full Warranty Coverage: This product is sold with a complete 12-month warranty against defects.
• You will receive a tracking number as soon as your order is dispatched.
