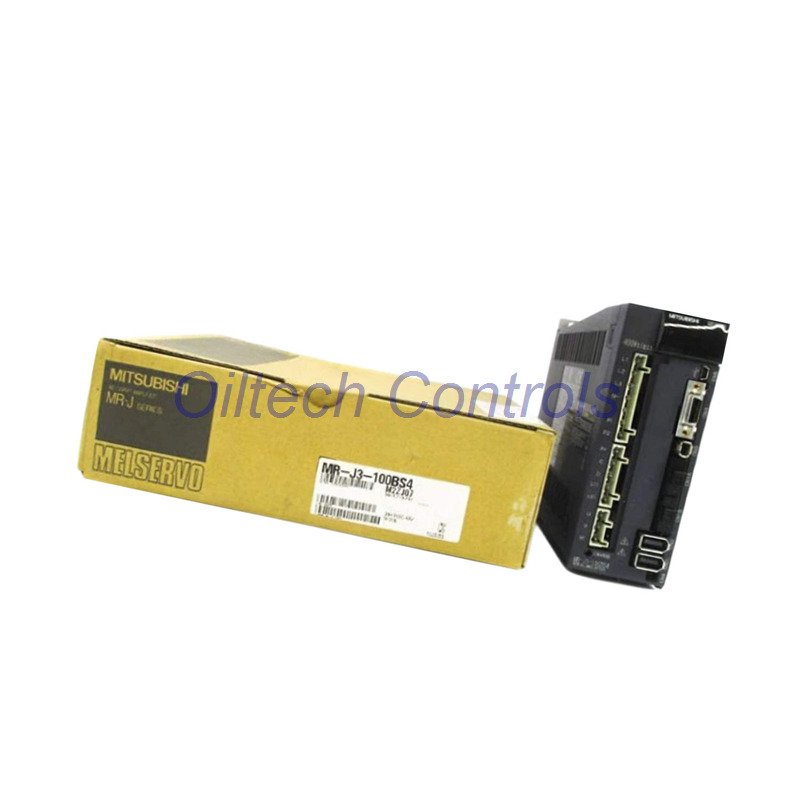

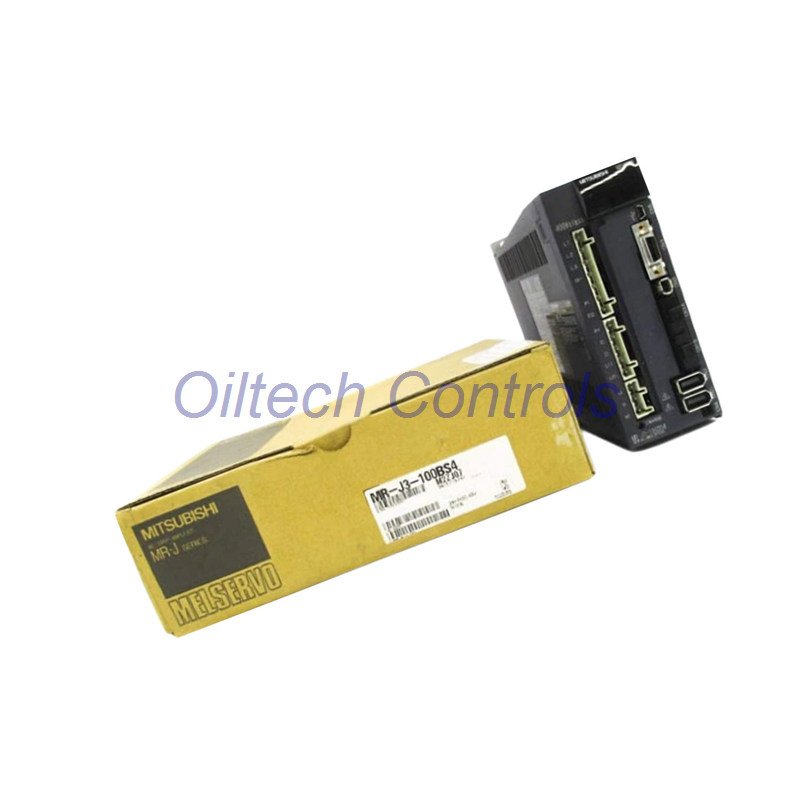

Product Identity
- Manufacturer: Mitsubishi
- Model Number: MR-J3-100BS4
- Series: MELSERVO MR-J3
- Device Type: AC Servo Drive
- Built for accurate motion control.
Power and Supply Details
- Rated Output: 1.0 kW
- Input Voltage: 200 to 230 VAC
- Phase: Three-phase supply
- Input Frequency: 50 or 60 Hz
- Stable output under load changes.
Control Functions
- Position control for precise moves.
- Speed control for smooth motion.
- Torque control for force tasks.
- Fast response improves accuracy.
Interface and Signal Support
- Digital input and output channels.
- Analog command inputs.
- Pulse train input support.
- Easy link with PLC systems.
Mechanical and Cooling Design
- Cooling Method: Forced air cooling
- Structure: Open, self-cooled type
- Weight: 0.82 kg
- Compact size saves panel space.
Environmental Operating Range
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 65°C
- Humidity: 10% to 90%
- Stable work in humid rooms.
Extended Performance Features
- High overload tolerance.
- Low vibration during motion.
- Consistent torque output.
- Long service life design.
Installation Advantages
- Simple mounting in control cabinets.
- Clear terminal layout.
- Fast wiring reduces setup time.
- Easy access for maintenance.
Typical Application Areas
- Packaging machines.
- Assembly lines.
- Material handling systems.
- Industrial automation equipment.
Logistics and Delivery
- Carefully packed for transport.
- Worldwide shipping available.
- Delivery via FedEx, UPS, DHL.
Warranty Information
- Warranty Period: 12 months
- Covers manufacturing defects.
- Technical support included.
Professional FAQ
- Can MR-J3-100BS4 run different motor sizes?
- It is optimized for 1.0 kW motors.
- Is forced cooling always required?
- Yes, airflow keeps stable performance.
- Does this drive support fast stop?
- Yes, it supports quick deceleration.
- Can it work with older MR-J3 motors?
- Yes, when specifications match.
- What improves drive lifespan?
- Clean air and correct wiring.
