Product Overview – Pyramid Structure

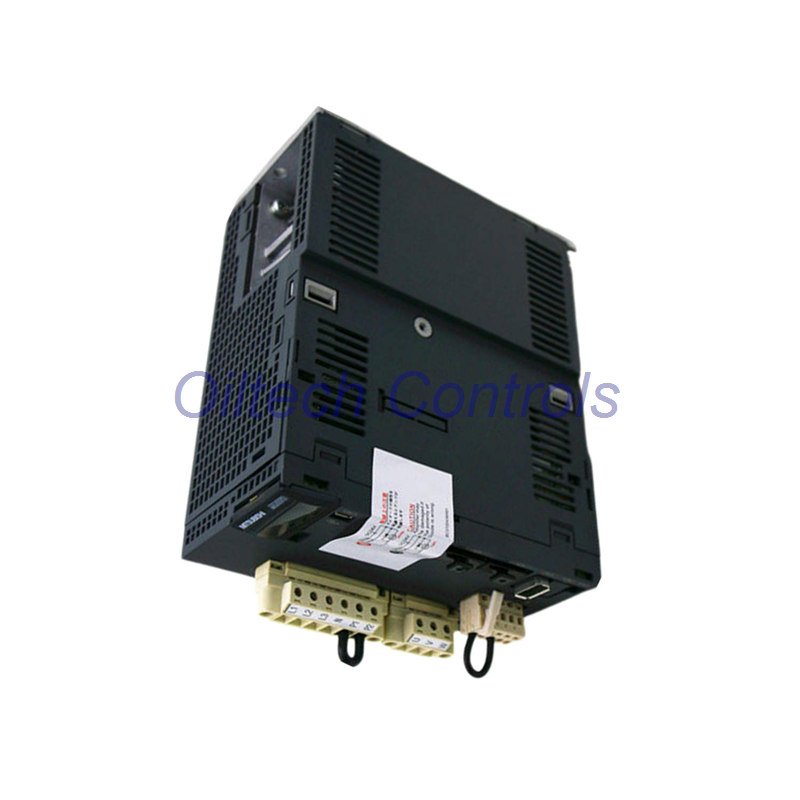

- MR-J3-200B delivers high-speed motion control for precision industrial automation systems.
- This Mitsubishi MELSERVO MR-J3 series amplifier ensures stable torque and accurate positioning.
- The drive handles complex mechanical loads with fast tuning and strong vibration suppression.
- The modular structure simplifies integration into modern control cabinets.
Electrical and Performance Specifications
- Brand: Mitsubishi Electric
- Series: MELSERVO MR-J3
- Model: MR-J3-200B
- Rated output power reaches 2000W for demanding servo applications.
- Input voltage supports 200–230VAC single-phase or three-phase supply.
- Permissible voltage fluctuation ranges from 170VAC to 253VAC.
- Rated output current reaches 11A for stable motor control.
- Control voltage operates at 24VDC with ±10 percent tolerance.
- Ambient operating temperature ranges from 0°C to +55°C.
Encoder and Motion Precision
- The built-in absolute position encoder provides 18-bit resolution.
- Total feedback accuracy reaches 262,144 pulses per revolution.
- High resolution improves positioning repeatability and motion stability.
- The system maintains consistent linearity during continuous operation.
Communication and Compatibility
- The amplifier supports SSCNET III/H high-speed motion communication.
- Compatibility includes Mitsubishi rotary and linear servo motors.
- Linear motor thrust compatibility reaches up to 400N.
- Plug-and-play wiring simplifies installation and maintenance.
Environmental and Interference Resistance
- The internal design resists electrical noise in harsh industrial environments.
- Efficient thermal management supports long-term continuous operation.
- Stable output performance remains consistent under heavy load cycles.
Packaging and Delivery
- The package includes one Mitsubishi servo amplifier unit.
- Each unit ships with standard factory protective packaging.
- Available shipping methods include FedEx, UPS, and DHL.
Frequently Asked Questions
- What motor types are compatible with this amplifier?
- The drive supports Mitsubishi rotary and linear servo motors.
- Does this model include braking functionality?
- The amplifier includes a built-in dynamic brake and regenerative resistor.
- Is the encoder absolute or incremental?
- The system uses a built-in absolute position encoder.
Manufacturer and Supplier Information
- This product belongs to Mitsubishi Electric’s trusted motion control portfolio.
- Oiltech Controls supplies original industrial automation components globally.
- Author: Oiltech Controls
