High-Level Product Highlights

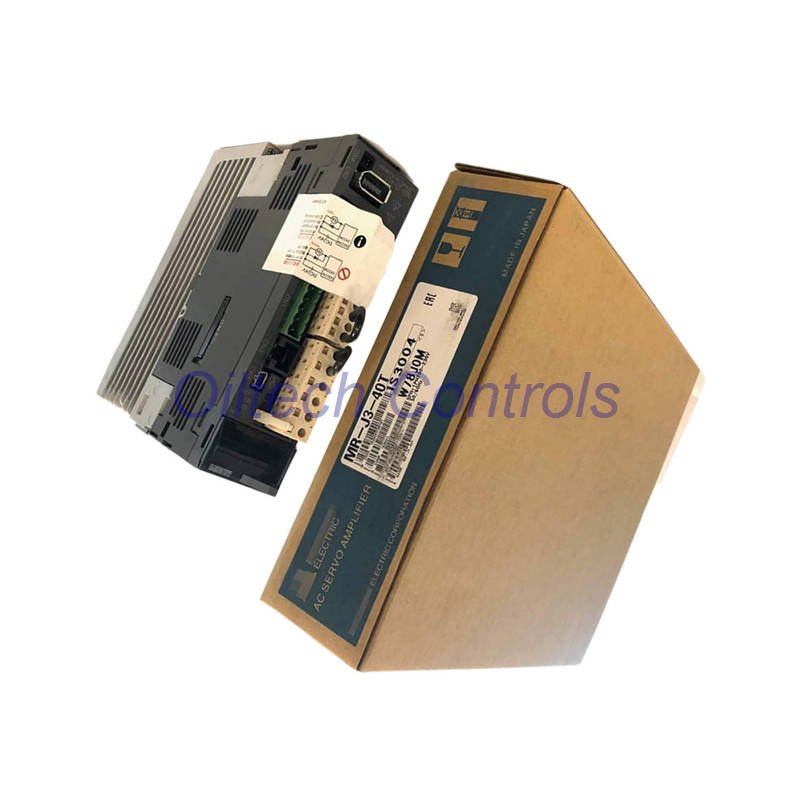

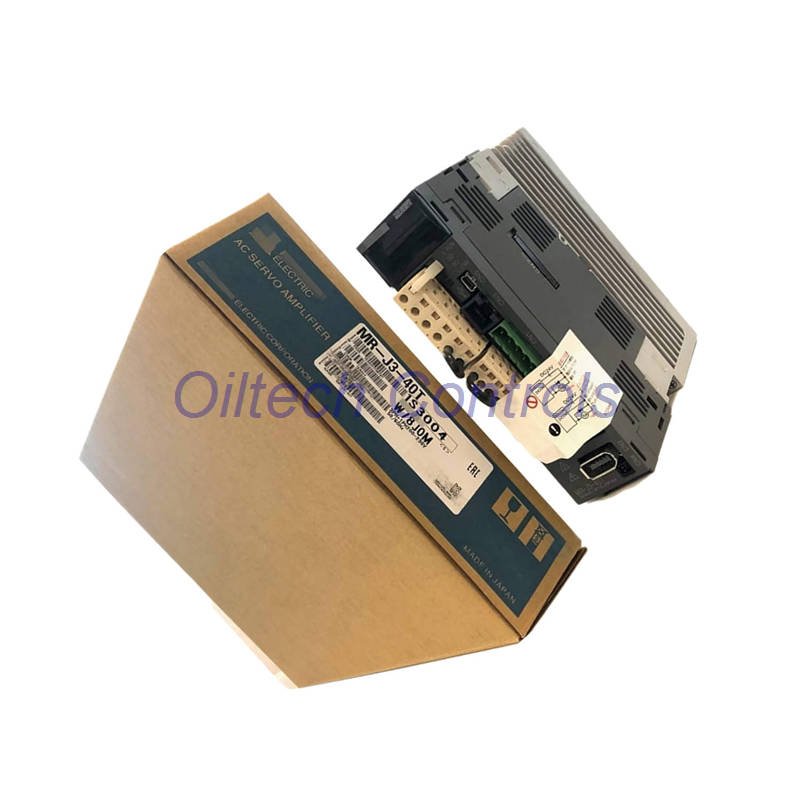

- The **Mitsubishi MR-J3-40T** servo amplifier delivers fast and accurate motion control.
- This model uses CC-Link communication for simple wiring and fast response.
- 0.4 kW rated output fits compact automation systems.
- The slim body saves space in crowded control cabinets.
Power Supply & Electrical Design
- The **MR-J3-40T** operates on single-phase AC 200V power.
- The supply voltage range supports 200V to 230V AC.
- Rated current reaches 2.8 amps during normal operation.
- Input current consumption stays low at 2.6 amps.
Motion Control & Accuracy
- The servo drive achieves positioning accuracy up to 0.01%.
- Built-in positioning functions reduce controller load.
- The drive supports smooth start and stop control.
- Advanced algorithms ensure stable speed regulation.
Communication & System Integration
- The amplifier supports CC-Link network communication.
- RS-422 interface allows stable signal transmission.
- Distributed servo systems benefit from reduced wiring.
- Remote register control supports multi-axis setups.
Mechanical Size & Environment
- Overall dimensions measure 168 × 40 × 170 mm.
- The narrow width fits slim electrical panels.
- Total weight remains light at only 0.99 kg.
- The design supports continuous industrial operation.
Protection & Reliability
- The system includes overcurrent protection.
- Overvoltage protection safeguards internal circuits.
- Motor overheating detection prevents damage.
- Stable performance supports medical and robotic use.
Extended Technical Specifications
- Brand: Mitsubishi Electric
- Model: **MR-J3-40T**
- Series: MELSERVO J3
- Product Type: AC Servo Amplifier
- Rated Output Power: 0.4 kW
- Power Consumption: 30 W
- Input Phase: Single-phase / Three-phase compatible
- Communication Protocol: CC-Link, RS-422
- Control Accuracy: 0.01%
Installation Notes
- Mount the drive vertically for proper cooling.
- Leave space around the unit for airflow.
- Connect CC-Link cables securely.
- Check voltage before system startup.
Package & Warranty
- 1 × Mitsubishi MR-J3-40T Servo Amplifier
- 1 × Standard product documentation
- Warranty period: 12 months
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- Is this drive suitable for robotic arms?
- Yes, it supports high precision motion and fast response.
- Does the unit support networked servo control?
- Yes, CC-Link enables distributed servo communication.
- Can it operate with limited cabinet space?
- Yes, the slim width design fits compact panels.
- Does it support remote speed adjustment?
- Yes, speed control works through remote registers.
- What applications benefit most from this model?
- Medical devices, machine tools, and automation lines benefit most.
