Product Overview

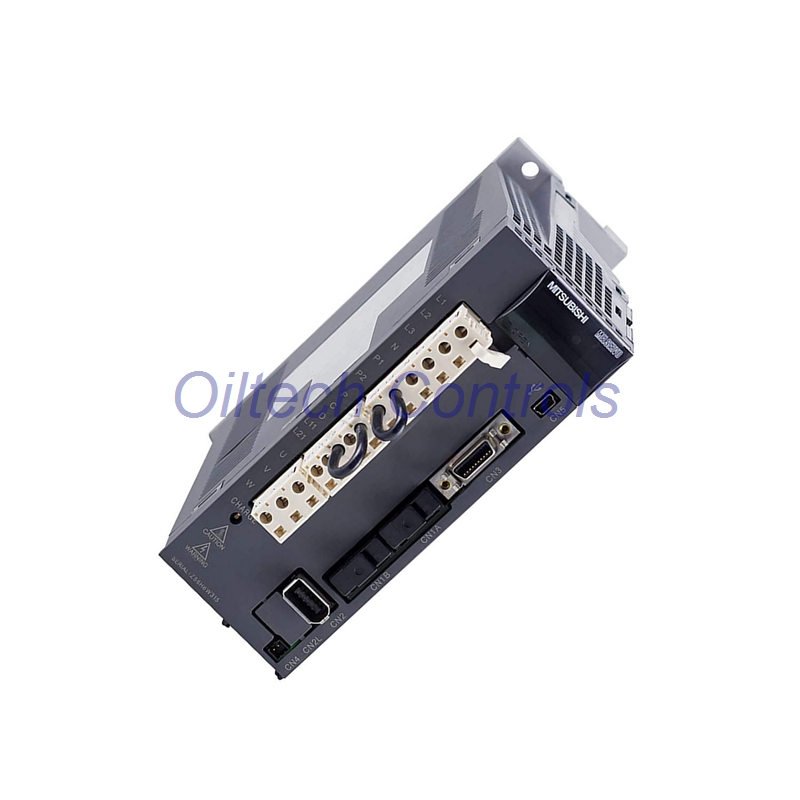

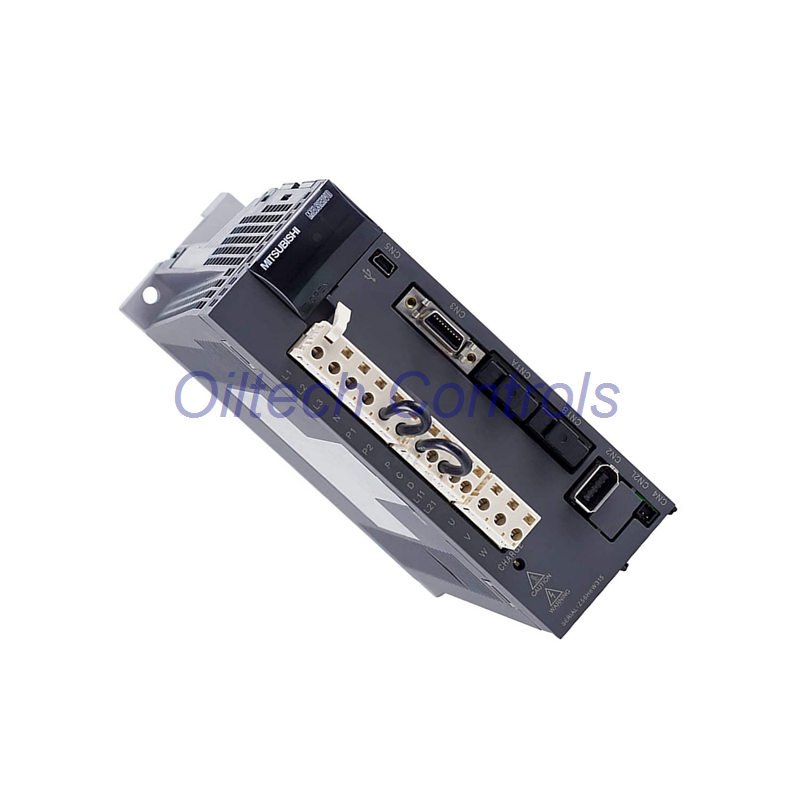

- The MR-J3-100A from Mitsubishi Electric delivers 1kW AC servo control for industrial motion systems.
- This MELSERVO J3 servo amplifier ensures stable speed and torque control with high positioning accuracy.
Key Technical Specifications
- Brand: Mitsubishi Electric, Model: MR-J3-100A, Series: MELSERVO J3.
- Rated output power reaches 1000W with a rated output current of 6A.
- Main circuit input supports 200–230VAC, three-phase, at 50/60Hz.
Control and Performance
- The servo drive uses sine-wave PWM with fast current control for smooth motor operation.
- RS-422 communication supports reliable absolute encoder feedback and fast signal response.
Safety and Energy Management
- A built-in dynamic brake ensures controlled deceleration during emergency or rapid stops.
- The integrated regenerative resistor efficiently absorbs braking energy during operation.
Mechanical Design and Environment
- The open-frame, force-cooled structure improves heat dissipation and long-term reliability.
- Operating temperature ranges from 0 to +55°C.
Installation and Handling
- Compact size and 1.4kg weight simplify panel mounting and system integration.
- A five-digit LED display enables fast parameter setting and clear status indication.
Package Contents
- One Mitsubishi Electric MR-J3-100A AC servo amplifier.
- Secure industrial packaging for international shipping.
Shipping Options
- Orders ship worldwide via FedEx, UPS, or DHL express services.
FAQ
- Which motors match this servo amplifier?
It supports Mitsubishi AC servo motors designed for the MELSERVO J3 series. - Does this model support absolute encoders?
Yes, the drive fully supports absolute position encoder feedback.
