Product Overview

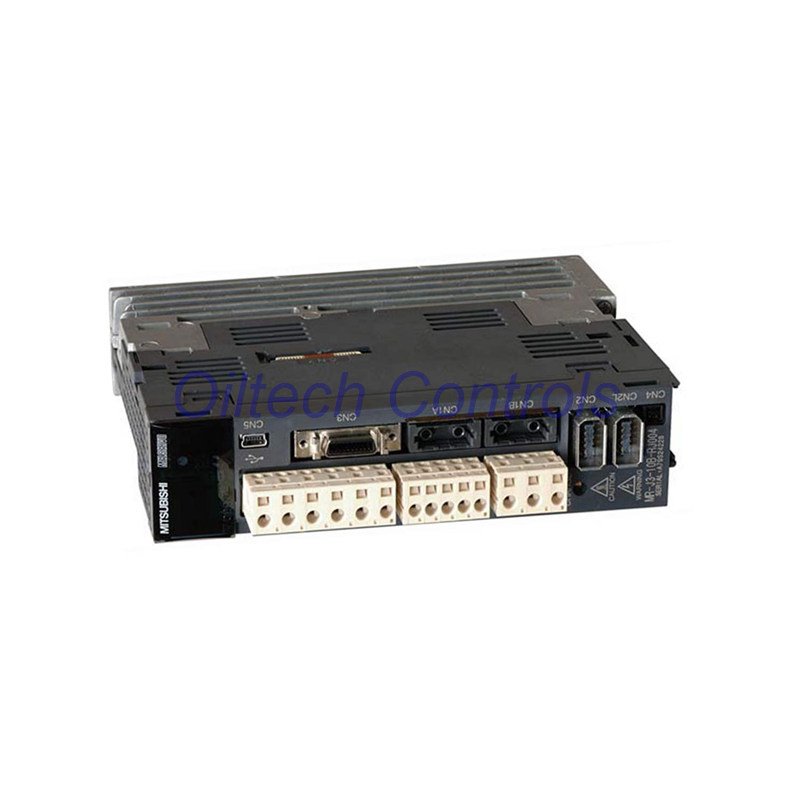

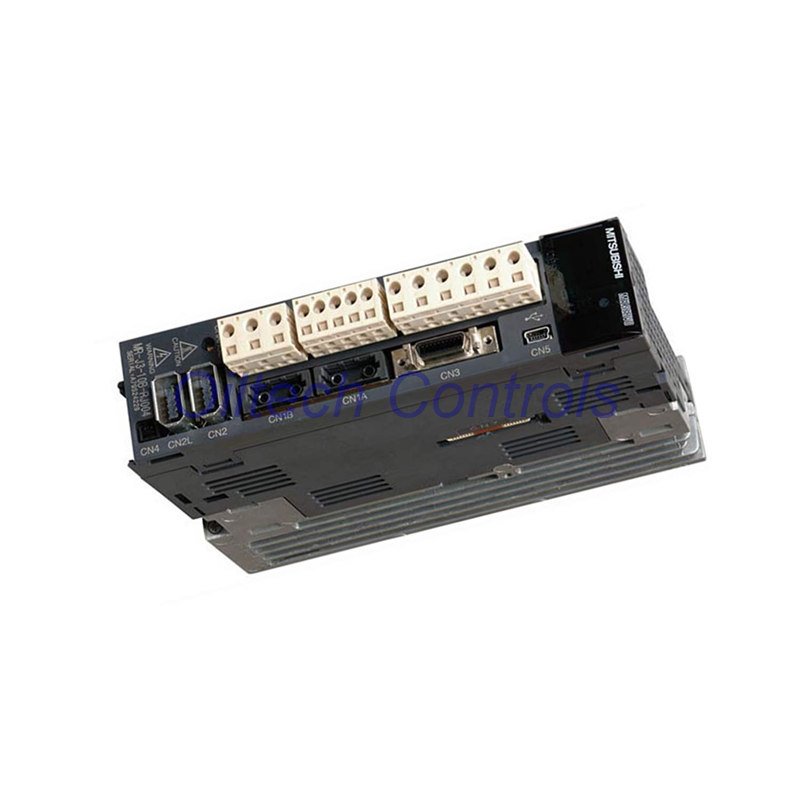

- The Mitsubishi MR-J3-100A4-RJ070 is a 1.0 kW servo drive for fast and stable motion control.
- Built for MELSERVO MR-J3 systems that need simple setup and smooth load handling.
- Works with 3-phase 400 VAC in industrial automation cabinets.
- Supports tight control for assembly lines, robots, packaging systems, and CNC stages.
Core Technical Details
- Rated Power Output: 1.0 kW
- Input Voltage: 3-phase 400 VAC
- Frequency: 50/60 Hz operation
- Operating Range: 0°C to 55°C ambient
- Safety: Safe Torque Off (STO) function included
- Control Modes: Position, speed, and torque modes
- Structure: Self-cooled, ventilation open type
- Mass: 1.7 kg for compact mounting
- Enclosure: IP00 open rating
Extended Specifications
- Peak Torque Support: Short surge loads allowed
- Feedback Ready: Encoder link compatible
- Response Speed: Fast control loop for sharp moves
- Signal System: Low-noise output for clean command input
- Installation: Panel interior with airflow clearance
Key Advantages
- Simple wiring helps fast commissioning
- Stable performance under frequent speed changes
- Lightweight unit reduces panel loading
- Clear status display for quick diagnostics
- Optimized for repeat cycle tasks and rapid motion
Warranty and Shipping
- Warranty Period: 12 months product support
- Shipping Options: FedEx, UPS, DHL global delivery
- Inspection before dispatch for quality control
Application Scenarios
- Robot control and pick-and-place units
- Factory conveyors with variable torque
- Linear motion stages for cutting machines
- High-cycle packaging and labeling systems
- Retrofit upgrades for older automation racks
Professional FAQ
- Can this unit run in a cabinet with low airflow?
Yes, but spacing is needed around the vents. - Does the STO need extra modules?
No, the protection function is built in. - What causes unstable speed?
Loose terminals or encoder noise from nearby drives. - Is torque tuning automatic?
Basic tuning is automatic; fine tuning can be manual. - Can it share power with other drives?
Yes, if the supply rating is large enough.
