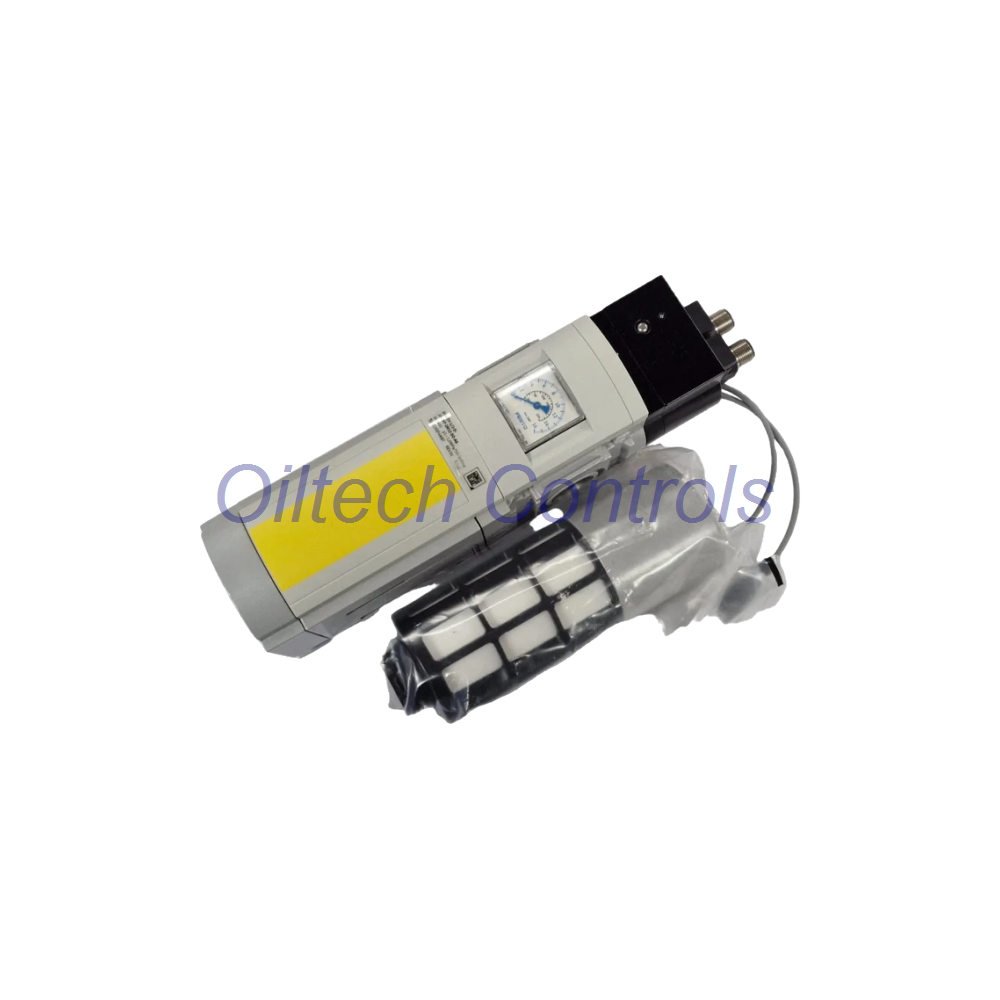

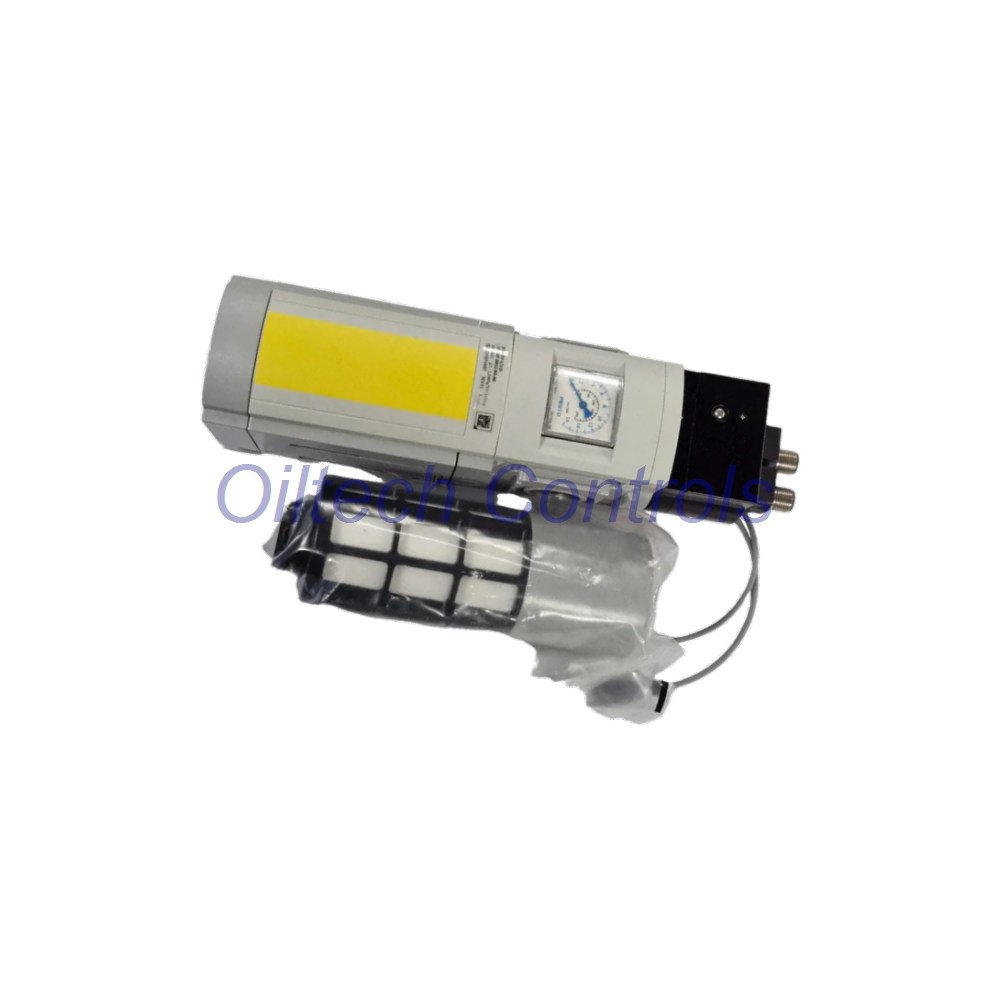

Festo MS6-SV-1/2-D-10V24P-2M12-SO-AG Soft Start / Quick Exhaust Valve
Brand: Festo | Series: MS6 | Part No.: 8038491
This MS6 soft start / quick exhaust valve gives you smooth pressure build-up and fast dump. It uses a 3/2 pilot configuration and 24 VDC coil. The 1/2″ port and 4300 l/min flow suit demanding pneumatic lines. Two M12 connectors and SMT proximity sensors make feedback easy. Ideal for safety circuits and industrial automation.
Technical Data
| Brand | Festo |
| Model | MS6-SV-1/2-D-10V24P-2M12-SO-AG |
| Series | MS6 |
| Part Number | 8038491 |
| Type | Soft Start / Quick Exhaust |
| Configuration | 3/2 pilot |
| Port Size | 1/2″ |
| Coil Voltage | 24 VDC |
| Operating Voltage | 10 V |
| Flow Rate | 4300 l/min |
| Operating Pressure | 3.5 to 10 bar |
| Media | Air |
| Connectors | 2 x M12 |

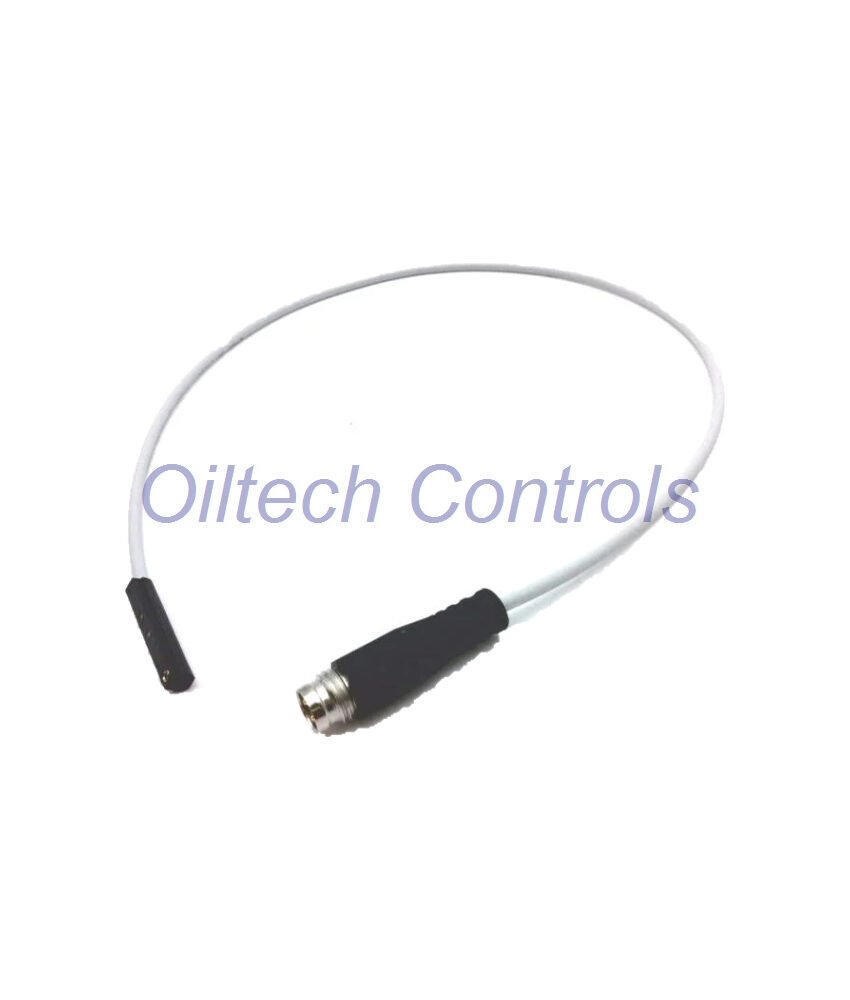

| Sensors | 2 x SMT proximity |
| Temperature Range | -10°C to +60°C |
| Protection | IP65 |
| UNSPSC | 27130000 |
Note: Operating voltage is 10 V signal. Control voltage is 24 VDC. Verify pressure and temperature limits before use.
Installation Guide
- Mount valve near the actuator.
- Use 1/2″ pneumatic connections.
- Connect 2 x M12 cables.
- Wire coil to 24 VDC supply.
- Keep pressure between 3.5 and 10 bar.
- Do not exceed 10 bar max.
- Check sensor feedback after install.
Commissioning & Maintenance
- Test soft start with low pressure first.
- Confirm quick exhaust time.
- Check M12 connectors for tightness.
- Clean air supply to avoid debris.
- Replace seals if leakage appears.
- No special tools needed for coil swap.
Compatibility
- Works with Festo MS6 series.
- Fits 1/2″ pneumatic lines.
- Uses standard M12 cordsets.
- Accepts 24 VDC control signals.
- Compatible with SMT proximity sensors.
Diagnostics
- LED status on coil shows power.
- Sensors give position feedback.
- Quick exhaust time reveals blockage.
- Pressure drop indicates seal wear.
- Use M12 tester for signal check.
Typical Applications
- Pneumatic systems
- Industrial automation
- Process control
- Safety circuits
- Machine start-up control
Why Buy From Oiltech Controls?
- 15+ years in industrial automation parts.
- Global shipment via FedEx, UPS, DHL.
- Tested surplus and refurbished options.
- 12-month warranty on every unit.
- Technical verification before dispatch.
- Support for obsolete control systems.
Packing List & Warranty
- 1 x Festo MS6-SV-1/2-D-10V24P-2M12-SO-AG valve
- 2 x M12 connectors (pre-installed)
- 2 x SMT proximity sensors
- 12-month warranty against defects
- Shipping: FedEx, UPS, DHL
Certifications
- CE marked
- RoHS compliant
- UNSPSC 27130000
FAQ
Q: What is the operating voltage?
A: 10 V signal, 24 VDC coil.
Q: What is the flow rate?
A: 4300 l/min.
Q: Can I use it for safety exhaust?
A: Yes, it has quick exhaust function.
Q: What connectors does it use?
A: 2 x M12.
Q: Is it compatible with MS6 series?
A: Yes, it is MS6 series.
