Product Overview

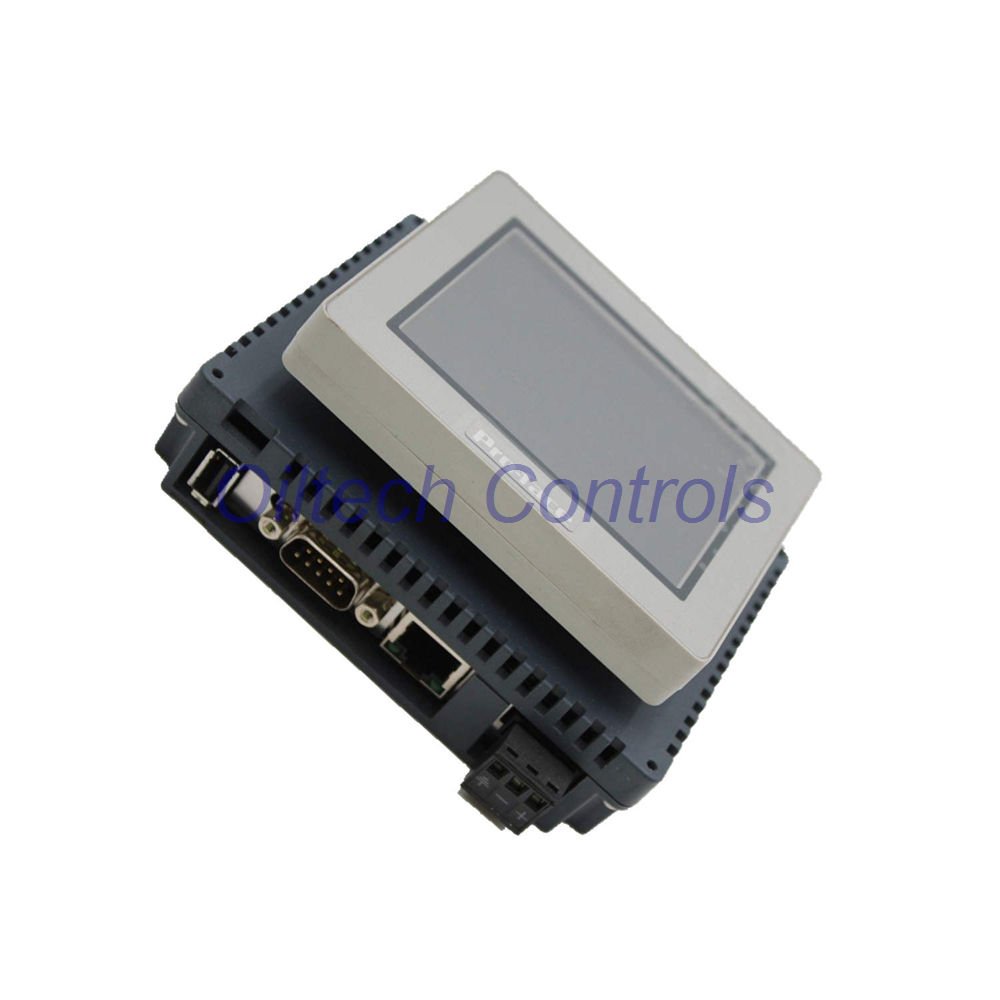

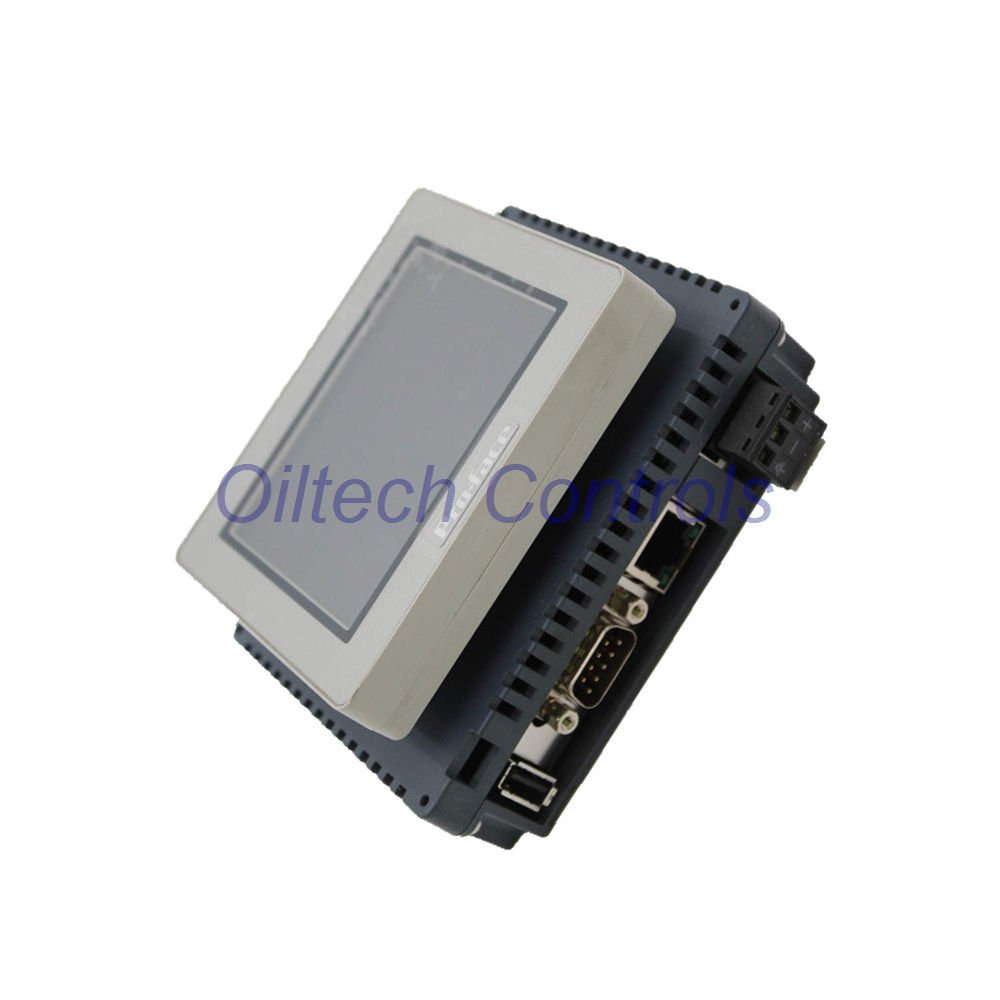

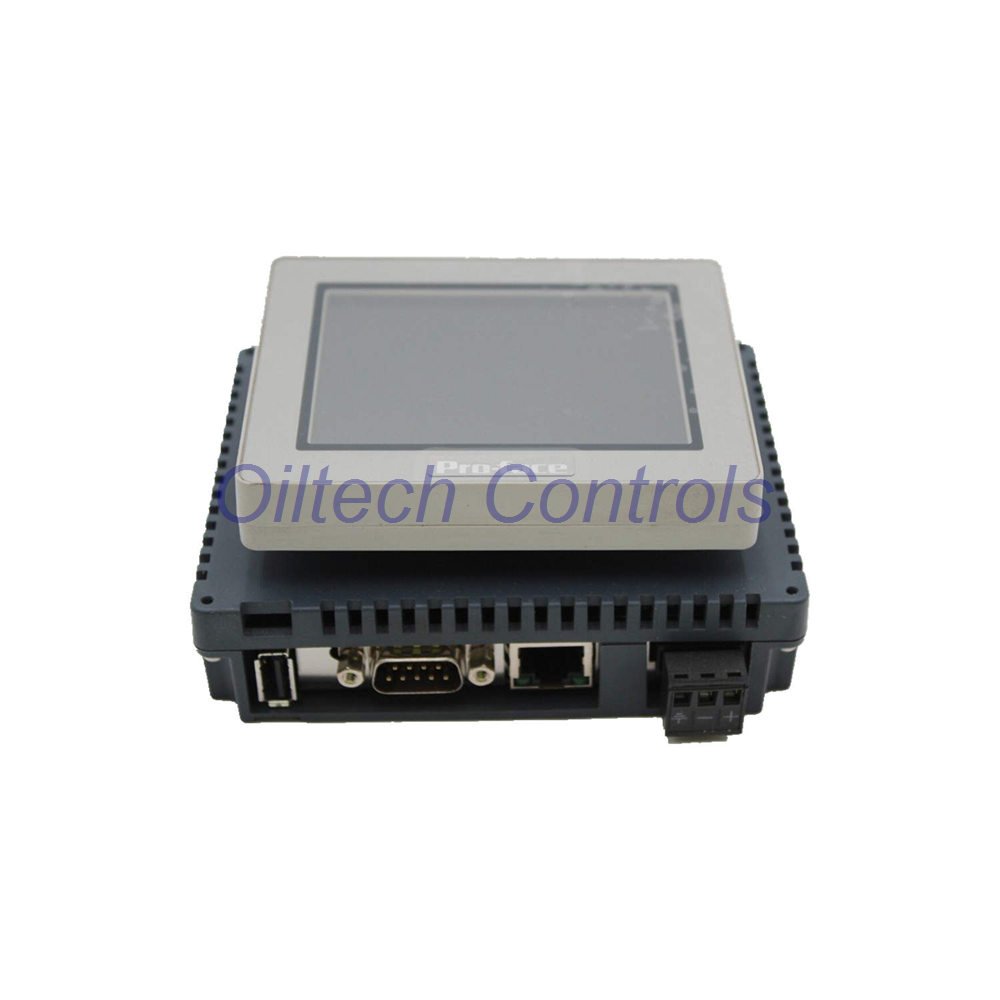

PFXGM4201TAD is a Pro-face GP4000M Series 3.5″ modular HMI. It offers DC analog input, TFT color LCD, and a resistive touch panel. This unit is ideal for compact control panels. It is now end of sales. A recommended substitute is PFXSTM6200WADE from the STM6000 Series.
Key replacement note: The PFXSTM6200WADE keeps the same panel cut-out size but has a different display resolution. The PFXST6200WADE (ST6000 Series) has a different cut-out and resolution. Always check the replacement book before ordering.
Technical Specifications
| Brand | Pro-face |
| Model | PFXGM4201TAD |
| Series | GP4000M Series |
| Module Type | Modular HMI, DC Analog |
| Display Size | 3.5″ TFT Color LCD |
| Resolution | 320 x 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Backlight | White LED, 50,000 hrs (not user replaceable) |
| Brightness Control | 16 levels via touch panel or software |
| Touch Panel | Resistive Film (analog), 1,000,000 operations |
| Rated Input Voltage | 24 Vdc |
| Input Voltage Limits | 20.4 to 28.8 Vdc |
| Power Consumption | 6.5 W or less |
| In-rush Current | 30 A or less |
| Noise Immunity | IEC61000-4-4, 2kV power, 1kV signal |
| Voltage Endurance | 1,000 Vac, 20 mA for 1 minute |
| Insulation Resistance | 500 Vdc, 10 MΩ or more |
| Operating Temperature | 0 to 50 °C [32 to 122 °F] |
| Storage Temperature | -20 to +60 °C [-4 to 140 °F] |
| Ambient Humidity | 85 % RH max, no condensation |
| Vibration Resistance | IEC/EN 61131-2, 5 to 9 Hz, 3.5 mm |
| ESD Immunity | IEC61000-4-2, 6 kV contact, 8 kV air |
| Drop Resistance | IEC/EN 61131-2, 147 m/s² |
| Memory (App) | 8 MB FLASH EPROM screen area |
| Backup Memory | nvSRAM 128 KB |
| Serial (COM1) | RS-232C/422/485, up to 115.2 kbps |
| USB | Type A (5 Vdc) and mini-B |
| Ethernet | 10BASE-T / 100BASE-TX, RJ-45 |
| Cooling | Natural air circulation |
| Structure | NEMA#250 TYPE 4X (indoor), IP65F front, IP20 rear |
| Weight | 0.36 kg [0.80 lb] or less |
Why Buy From Oiltech Controls?
- 15+ years of industrial automation spare parts experience
- Global shipment support via FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on every unit
- Technical verification before shipment to ensure function
- Support for obsolete control systems – we help you find alternatives
For inquiries: info@oiltechcontrols.com or +86 158 8020 0923 (WhatsApp).
Installation Guide
- Panel cut-out size must match the original GP4000M series.
- Use a 24 Vdc power supply with 20.4–28.8 Vdc limits.
- Ground FG and SG terminals with 100 Ω or less resistance.
- Allow natural air circulation. Do not block vents.
- Front module meets IP65F. Rear module is IP20.
- Mount in an enclosure rated NEMA Type 4X (indoor).
Commissioning and Maintenance
- Configure with GP-Pro EX software.
- Backlight is not user replaceable. Contact your distributor for service.
- Clean touch panel with a soft, damp cloth. Do not use solvents.
- Check power connections regularly to avoid voltage drop over 10 ms.
- Clock function uses an external device clock. Set up via editor software.
Compatibility Notes
- Direct replacement: PFXSTM6200WADE (STM6000 Series, same cut-out, different resolution).
- Alternative: PFXST6200WADE (ST6000 Series, different cut-out and resolution).
- Also compatible with PFXSTM6200WAD (STM6000, same cut-out).
- Uses GP-Pro EX for programming. Logic program area: 132 KB (15,000 steps).
- Fonts: Japanese, ANK, plus Korean, Chinese, Thai, Cyrillic from editor.
Certifications and Standards
- IEC/EN 61131-2 (vibration, drop)
- IEC61000-4-4 (noise immunity)
- IEC61000-4-2 (ESD immunity)
- NEMA#250 TYPE 4X (indoor)
- IP65F (front), IP20 (rear)
- Pollution Degree 2 environment
Packing List
- 1x PFXGM4201TAD HMI unit
- 1x Quick start guide (if available)
- 1x Mounting brackets and screws
- 12-month warranty card
Shipping: FedEx, UPS, or DHL. Tracking provided.
Typical Applications
- Compact machine control panels
- Obsolete system replacement
- Factory automation with serial or Ethernet
- Data backup via nvSRAM
- HMI for PLC systems using RS-232C/422/485
Diagnostic Capabilities
- Brightness adjustment in 16 levels for clear visibility.
- Backlight life monitor (50,000 hrs).
- Noise immunity helps in noisy industrial environments.
- Voltage endurance and insulation resistance ensure safe operation.
- Error messages via GP-Pro EX software.
FAQ
Q: What is the replacement for PFXGM4201TAD?
A: Use PFXSTM6200WADE from STM6000 Series. Same cut-out, different resolution.
Q: Is the backlight replaceable?
A: No. It is not user replaceable. Contact your local distributor.
Q: What software is needed?
A: GP-Pro EX for screen and logic programming.
Q: Does it have a clock?
A: It uses an external device clock. Set up via editor software.
Q: What is the warranty?
A: 12 months from Oiltech Controls Limited.
