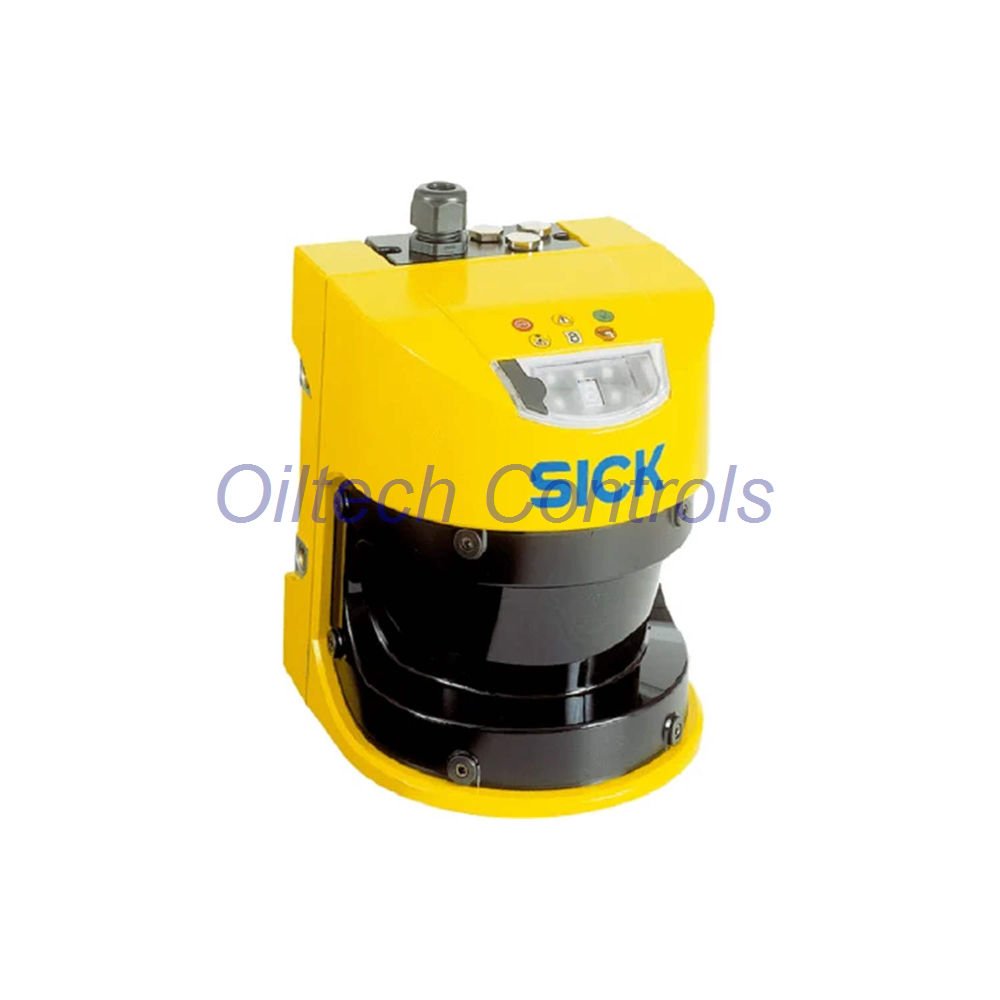

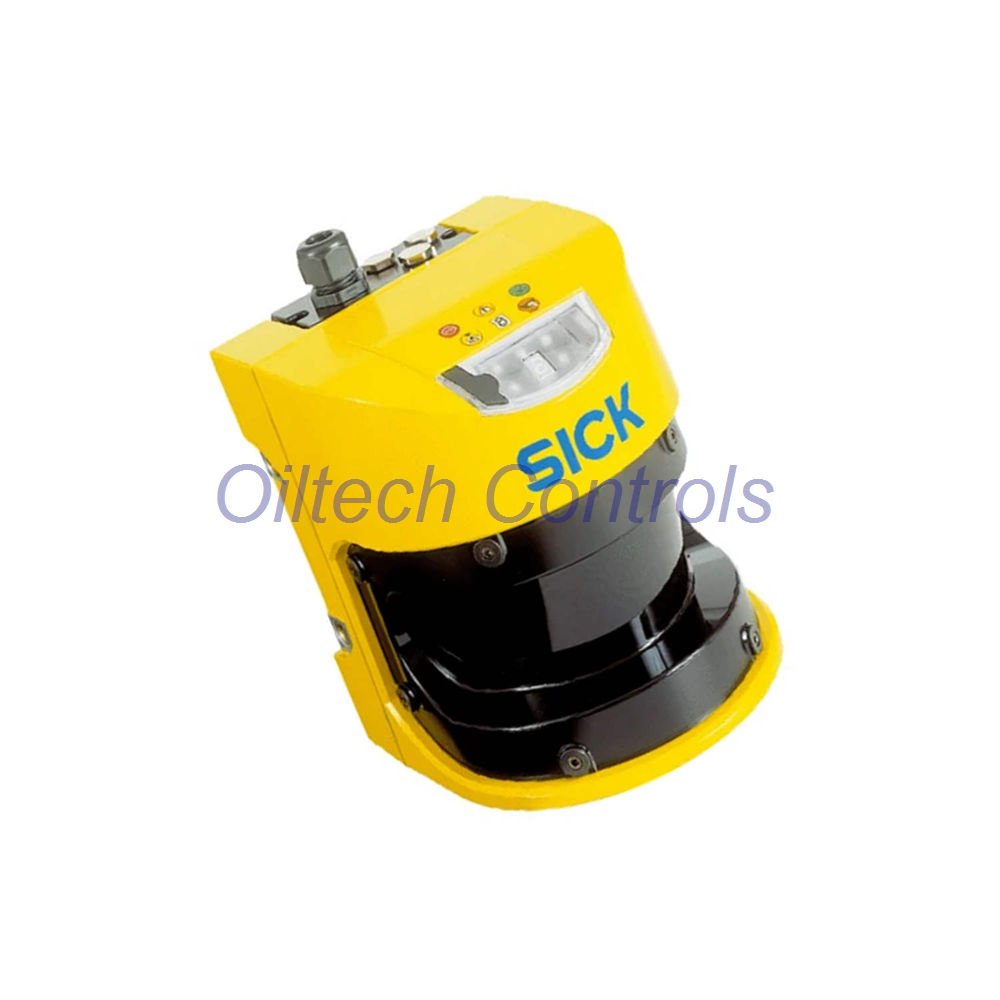

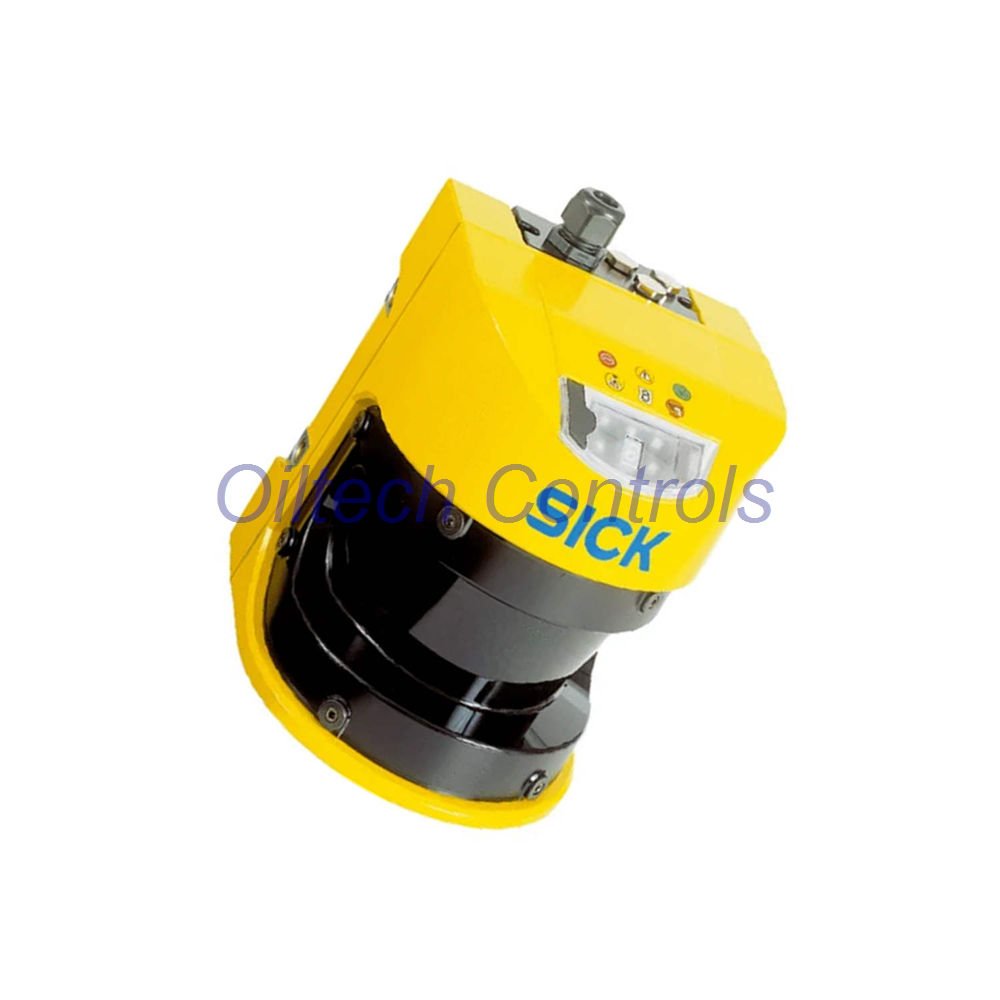

S30A-4011CA SICK S3000 Advanced Safety Laser Scanner 4m Protection

S30A-4011CA Industrial Safety Laser Scanner Overview

• S30A-4011CA is a professional safety laser scanner from SICK.
• It belongs to the S3000 Advanced safety scanner family.
• Designed for machine guarding and mobile platform protection.
• Provides reliable area monitoring with high scanning precision.
• Wide 190° scanning angle covers large machine zones.
• Suitable for indoor industrial automation environments.
• Commonly used in robot cells, AGV areas, and conveyor lines.

Key Product Advantages

• Accurate obstacle detection using pulsed laser technology.
• Up to 4 m protective field range.
• Long 49 m warning field detection capability.
• Large 190° scanning angle for wide coverage.
• High safety reliability with SIL2 safety certification.
• Multiple protective field configurations.
• Fast response for real-time machine protection.
• Robust aluminum housing for industrial environments.
• Scratch-resistant optical window.

Configuration Breakdown (Suffix Structure)

• S30A-4011CA
• • S30A
    • S3000 Advanced series safety laser scanner
    • Industrial machine safety monitoring device
  • 40
    • Protective field range up to 4 meters
  • 11
    • Standard safety configuration
    • Supports multiple protective field monitoring
  • CA
    • M12 male connector interface
    • 5-pin industrial connection

Detection and Scanning Performance

• Protective field range: 4 m
• Warning field detection range: 49 m
• Distance measuring range: 49 m
• Scanning angle: 190°
• Angular resolution: 0.25° or 0.5°
• Configurable field resolution: 30 / 40 / 50 / 70 / 150 mm
• Response time: 60 ms
• Protective field supplement: 100 mm
• Multiple sampling: 2 to 16 times adjustable
• Reset delay setting: 2 to 60 seconds

Safety Performance

• Safety type: Type 3 according to IEC 61496
• Safety integrity level: SIL 2
• Performance level: PL d
• Safety category: Category 3
• PFHD: 8.0 × 10⁻⁸ per hour
• Mission time: 20 years
• Safe fault state: OSSD outputs switch OFF

Electrical Specifications

• Supply voltage: 24 V DC
• Operating voltage range: 16.8 – 28.8 V DC
• Typical power consumption: 0.8 A
• Maximum current: 2.3 A
• OSSD outputs: 2 × 500 mA
• Diagnostic outputs: 3 × 100 mA

Mechanical Structure

• Dimensions: 155 × 185 × 160 mm
• Weight: 3.3 kg
• Housing material: Aluminum die-cast
• Housing color: Industrial safety yellow
• Front screen: Polycarbonate
• Optical window coating: Scratch resistant

Environmental Resistance

• Protection class: IP65
• Operating temperature: −10 °C to +50 °C
• Storage temperature: −25 °C to +50 °C
• Vibration resistance: IEC 60068 standards
• Shock resistance: IEC 60068-2-27
• Continuous shock: up to 100 m/s²

Laser and Optical System

• Light source: Pulsed laser diode
• Laser wavelength: 905 nm
• Laser safety class: Class 1
• Detectable remission factor: 1.8 % to >1000 %

Typical Industrial Applications

• Robot safety zones
• Automated guided vehicles (AGV)
• Packaging machine protection
• Automated warehouse systems
• Assembly production lines

Package Contents

• 1 × SICK S30A-4011CA safety laser scanner
• Factory protective packaging
• Product identification label
• Quality inspection confirmation

Warranty and Shipping

• 12-month product warranty
• Secure industrial packaging
• Fast global delivery
• Shipping via FedEx, UPS, DHL

Frequently Asked Questions (FAQ)

• How do I select the correct safety scanner range?
• Choose a model with protective field larger than the machine danger zone.
• Can this scanner protect mobile robots?
• Yes. It is widely used for AGV and mobile safety monitoring.
• What affects the detection distance?
• Object reflectivity, resolution setting, and environment light.
• How should the scanner be installed?
• Install at stable height and keep the scanning window clean.
• How can users improve detection stability?
• Use proper resolution settings and avoid reflective surfaces.
