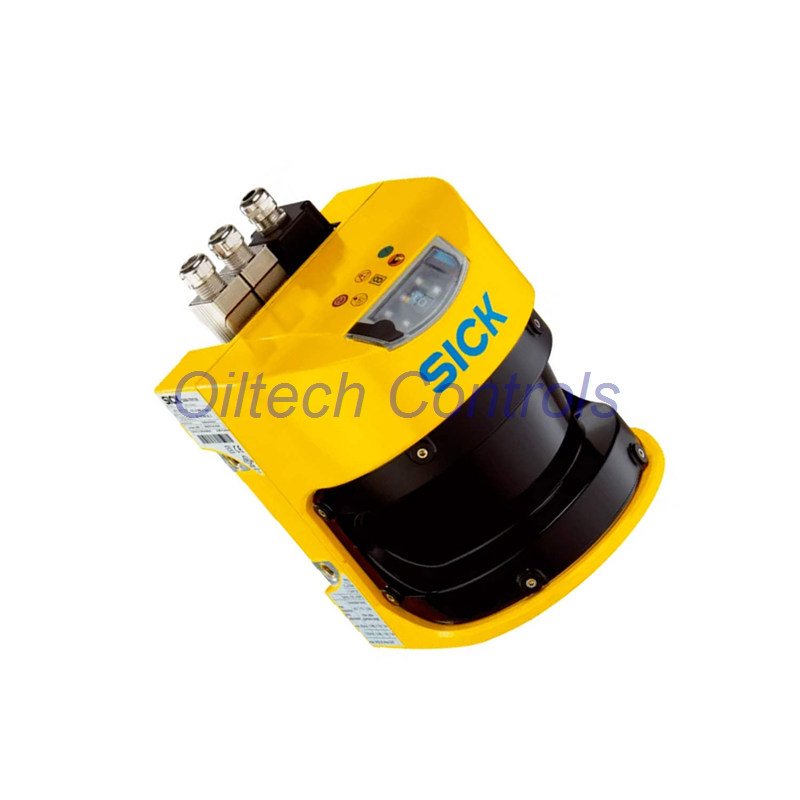

SICK S30A-7111CL Safety Laser Scanner | S3000 PROFINET IO Advanced Sensor

Product Overview

• S30A-7111CL is a safety laser scanner from SICK Sensors.
• The scanner belongs to the S3000 PROFINET IO Advanced safety series.
• The device operates only within a PROFINET IO safety network.
• The sensor head comes without a system plug.

Safety Protection Performance

• The protective field range reaches 7 meters for personnel safety.
• The warning field range extends up to 49 meters.
• The scanner monitors two protective fields at the same time.
• Dual field sets support flexible safety strategies.

Scanning and Detection

• The scanner provides a wide 190-degree scanning angle.
• The distance measuring range reaches 49 meters.
• Configurable resolution options include 30 mm to 150 mm.
• The response time remains fast at 60 milliseconds.

Field Configuration

• The device supports four field sets.
• Up to eight fields allow precise area definition.
• Four monitoring cases support different machine states.
• The protective field supplement adds 100 mm safety margin.

Safety Standards

• The scanner meets Type 3 requirements under IEC 61496.
• The safety level reaches SIL 2 under IEC 61508.
• The design achieves Category 3 and PL d compliance.
• The PFHD value remains low at 8.0 × 10⁻⁸.

Environmental and Mechanical Data

• The scanner supports indoor industrial environments.
• The unit weight is approximately 3.3 kg.
• The mission time reaches 20 years.
• The safe state outputs logic 0 during fault conditions.

Installation Notes

• Install the scanner with clear visibility of the monitored area.
• Connect the device through a PROFINET IO safety controller.
• Configure safety fields via the control system.

Package Contents

• SICK Sensors safety laser scanner unit
• Protective industrial packaging
• Basic installation documentation
• Shipping via FedEx, UPS, or DHL
