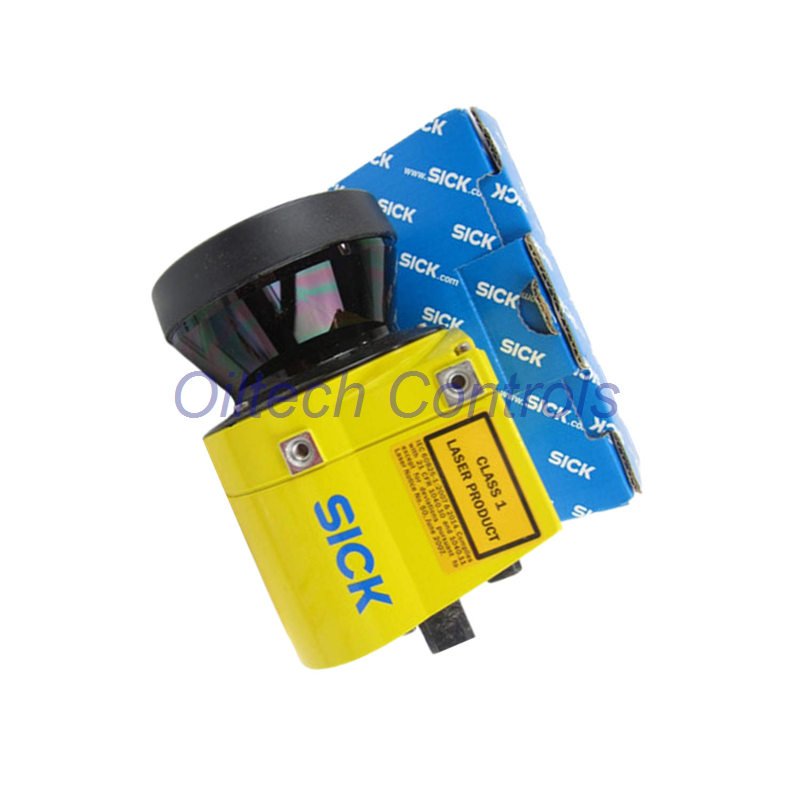

SICK S30B-2011BA Safety Laser Scanner
The SICK S30B-2011BA provides reliable safety protection for industrial machines. This S300 Standard scanner creates effective safety zones around equipment. It detects personnel and objects entering hazardous areas. The scanner offers essential safety functions at competitive value. You get certified protection for your workplace.
Essential Safety Specifications
- Brand & Model: SICK S30B-2011BA
- Product Series: S300 Standard Safety Laser Scanner
- Protective Field Range: 0 to 2 meters basic protection
- Warning Field Range: Up to 8 meters maximum
- Distance Measurement: Up to 30 meters detection range
- Scanning Angle: Full 270-degree coverage area
- Response Time: 80 milliseconds fast reaction
- Safety Level: SIL 2 (IEC 61508), PL d (ISO 13849)
- Safety Category: Category 3 for reliable operation
- Safety Type: Type 3 (IEC 61496) certified
- Field Sets: 1 configurable field set available
- Monitoring Cases: 1 monitoring case standard
- Resolution Options: 30mm, 40mm, 50mm, 70mm selectable
- Angular Resolution: 0.5-degree precision
- PFHD Value: 8.0 × 10⁻⁸ high reliability
- Mission Time: 20 years designed lifespan
Core Safety Functions
- Basic Protection: Single protective field for straightforward applications.
- Restart Interlock: Prevents automatic restart after safety stop.
- External Device Monitoring: Monitors connected safety relays.
- Contour Teaching: Learns and references machine shapes.
- Multiple Sampling: Configurable 2 to 16 samples for reliability.
- Integrated Memory: Stores configuration without external devices.
- Safe Communication: EFI protocol for device networking.
- Diagnostic Outputs: 3 application diagnostic outputs.
Electrical & Mechanical Details
- Power Supply: 24V DC (16.8-30V DC range)
- Current Consumption: 0.33A normal, 1.7A maximum
- OSSD Outputs: 2 outputs, 250mA each
- Connection: Male M12 5-pin connector included
- Data Interface: RS-422 for measured data output
- Configuration Interface: RS-232, 38.4 kBaud
- Enclosure Rating: IP65 for dust and water protection
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -25°C to +50°C
- Dimensions: 102mm × 152mm × 106mm (W×H×D)
- Weight: 1.2 kilograms complete unit
- Housing Material: Aluminum die cast construction
- Laser Type: Pulsed laser diode, 905nm wavelength
- Laser Class: Class 1 safe for personnel
Package & Service Details
- One SICK S30B-2011BA safety laser scanner
- Mounting bracket and installation hardware
- Complete user manual and safety certificates
- Warranty: 12-month manufacturer warranty
- Shipping: Worldwide via FedEx, UPS, or DHL
- Technical support: info@oiltechcontrols.com
- Call for advice: +86 158 8020 0923
Professional FAQ & Selection Help
What’s the difference between S300 Standard and Expert versions?
- The Standard version has 1 field set and 1 monitoring case. The Expert version has 16 field sets and 32 monitoring cases for complex applications.
Can I use this scanner for a robotic work cell?
- Yes, it’s ideal for robot cells. The 270° scanning covers wide areas, and contour teaching lets the scanner ignore the robot arm itself.
What safety relay should I connect to the OSSD outputs?
- Connect to any safety relay rated for Category 3, PL d. The OSSDs provide 250mA each – ensure your relay matches this specification.
How do I configure the protective field shape?
- Use SICK’s free CDS software on a Windows PC. Connect via RS-232 and graphically draw your protective field boundaries.
Is this suitable for outdoor use?
- No, it’s for indoor use only. The operating temperature range and IP65 rating are for industrial indoor environments, not weather exposure.
