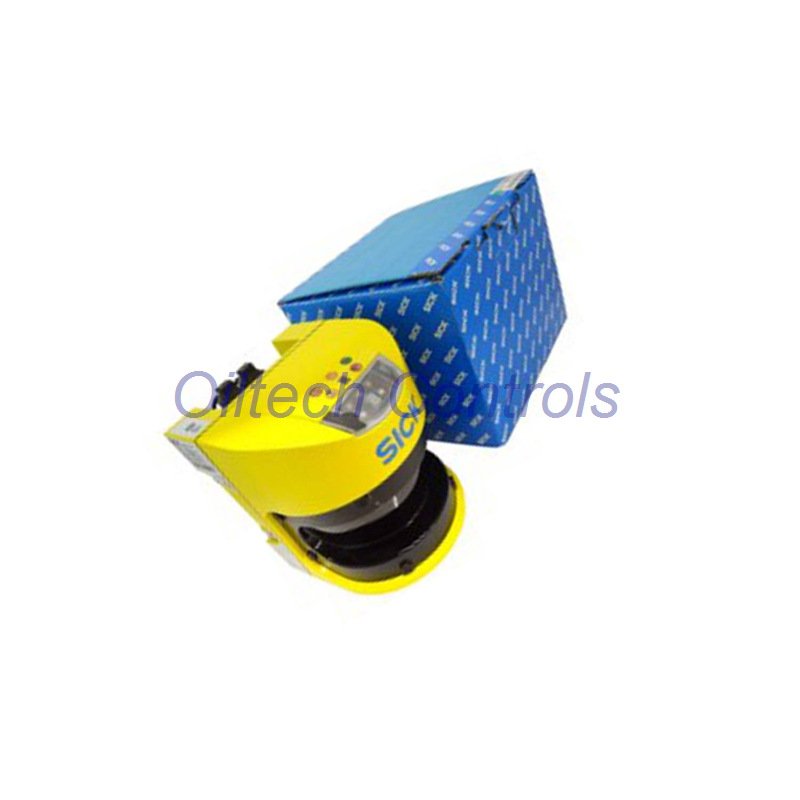

S30A-7111CP SICK S3000 PROFINET IO Advanced Safety Laser Scanner
This scanner works only in a PROFINET network.
It has no local I/O.
It is made for advanced safety control.
Basic Product Identity
- Brand: SICK
- Series: S3000 PROFINET IO
- Model: S30A-7111CP
- Type: Type 3 safety laser scanner
- Indoor industrial use
Detection Range and Coverage
- Protective field range up to 7 m
- Warning field range up to 49 m
- Stable detection at low reflectivity
- Wide scanning angle of 190 degrees
- Distance measuring range up to 49 m
Field Sets and Monitoring Logic
- Dual protective field sets
- Up to 4 field sets stored
- Total of 8 configurable fields
- Up to 4 monitoring cases
- Fast switching between safety zones
Safety Ratings and Compliance
- SIL 2 safety integrity level
- Performance Level PL d
- Category 3 safety structure
- PFHD value 8.0 x 10⁻⁸ per hour
- Designed for 20 years mission time
Network and PROFINET Features
- Integrated PROFINET IO device
- PROFIsafe communication supported
- Two-port real-time Ethernet switch
- Cycle times from 4 ms and above
- LLDP and SNMP topology support
Electrical and Mechanical Design
- Supply voltage 24 V DC
- Operating range 16.8 to 28.8 V DC
- Current draw about 0.8 A
- Robust aluminum die-cast housing
- Total weight about 3.3 kg
Environmental Resistance
- IP65 enclosure protection
- Operating temperature from -10 to +50 °C
- Shock and vibration resistant
- Scratch-resistant front screen
- Laser class 1 for human safety
Main Product Benefits
- Ideal for PROFINET safety networks
- No external safety controller needed
- Long warning range for early alerts
- Fast response time of 60 ms
- Reliable in harsh factory conditions
Warranty and Logistics
- Standard warranty period 12 months
- Worldwide express shipping
- Delivery via FedEx
- Delivery via UPS
- Delivery via DHL
Professional FAQ
- Is S30A-7111CP usable without PROFINET?
- No. It works only inside a PROFINET network.
- When should I choose this model?
- Use it for large machines with network safety.
- Does it replace safety relays?
- Yes. PROFIsafe handles safety logic.
- Is it suitable for long conveyors?
- Yes. The warning range supports long zones.
- Does it support future expansion?
- Yes. Field sets can be reconfigured later.
