SICK CLV650-6000 Fixed Mount Barcode Scanner | High-Speed

Product Overview

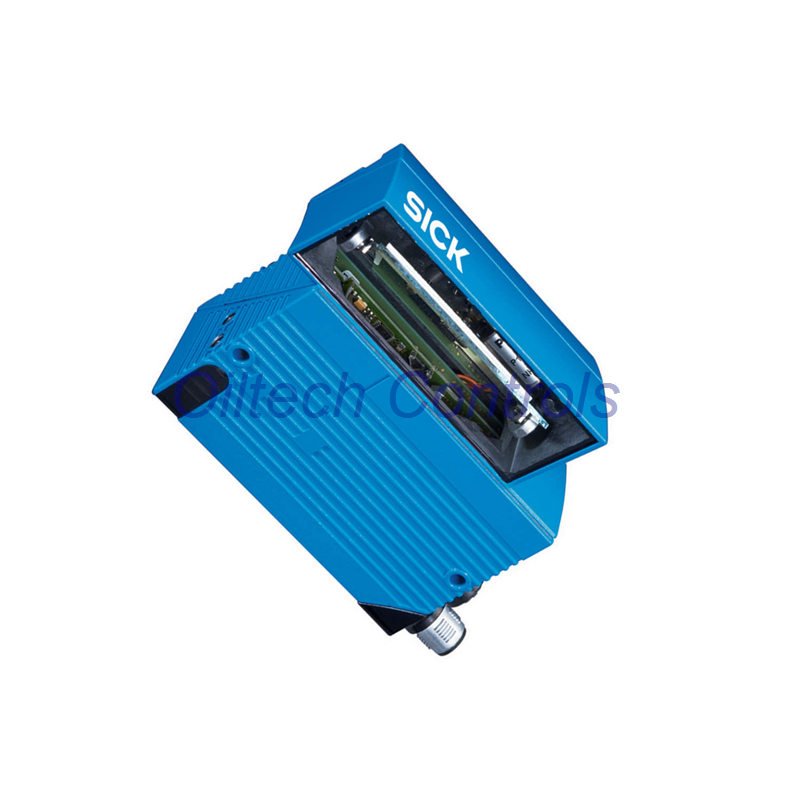

The SICK CLV650-6000 is a high-performance barcode scanner. It is part of the CLV65x series. This fixed-mount device reads 1D codes quickly and accurately. It is ideal for industrial automation lines.

Core Scanning Specifications

• Model: SICK CLV650-6000 Fixed Mount Scanner
• Scan Rate: High speed 600 to 1000 Hz
• Reading Distance: 125 mm to 1570 mm range
• Code Resolution: Fine 0.25 mm to 1 mm
• Light Source: Red laser, 658 nm, Class 2
• Aperture Angle: Wide ≤ 50°
• Auto Focus: Automatic optical focus
• Oscillation: Adjustable 0.5 to 6.25 Hz

Hardware & Connectivity

• Power: 18-30 V DC, 9.5 W consumption
• Connection: 15-pin D-Sub HD male connector
• Housing: Aluminum, IP65 protected
• Weight: 320 g with cable
• Size: Compact 95 x 107 x 41 mm
• MTBF: Reliable 100,000 hours
• I/O: 4 Digital Inputs, 4 Digital Outputs

Supported Codes & Interfaces

• Code Types: Reads all major 1D codes
• Codes per Scan: Up to 20 codes (Standard)
• Fieldbus: PROFINET, EtherCAT, PROFIBUS DP
• Serial: RS-232, RS-422, RS-485
• CAN/CANopen: Supports sensor networks
• DeviceNet: Via external module
• Software: Configure with SOPAS ET

Reliability & Support

• Operating Temp: 0°C to +40°C
• Humidity: Up to 90% non-condensing
• EMC: Complies with EN 61000-6-2/3
• Contrast: Needs ≥ 60% print contrast
• Warranty: 12-month quality guarantee
• Shipping: Global via FedEx, UPS, DHL
• Contact: info@oiltechcontrols.com
• Phone/WhatsApp: +86 158 8020 0923

FAQ – Selection & Application

• What is the main use for the oscillating mirror?
  It moves the laser line. This creates a wider scan area. It helps read codes on curved or uneven surfaces.
• Can this scanner read 2D codes like QR codes?
  No. The CLV650-6000 reads only 1D barcodes. For QR codes, choose a 2D imager scanner.
• How do I choose between Standard and SMART decoder?
  Choose Standard for many codes per scan (up to 20). Choose SMART for complex or damaged codes.
• What mounting position works best?
  Mount directly facing the barcode label. Avoid extreme angles. Ensure stable lighting conditions.
• Do I need an external module for PROFINET?
  Yes. You need the CDF600-2 fieldbus module. The scanner itself has the basic D-Sub connector.
